SPECIFICATIONS

Brand Name: ZOUPW

Cell Type: Monocrystalline Silicon, N-Type 182 16BB

Efficiency: 25%

Flexible Solar Panel: No

Foldable Solar Panel: Yes

Folded Dimensions: 30 x 32.17 x 3.44in / 762 x 817 x 87.5mm

Frame: Anodized Aluminium Alloy

Hign-concerned Chemical: None

IP Rating: IP68

Maximum Power Current (Imp): 10.75A

Maximum Power Voltage (Vmp): 37.2V

Maximum Power at STC (Pmax): 400W

Model Number: 400W Foldable Solar Panel

Number of Panels: 1

Opencircuit Voltage (Voc): 43.1V

Operating Temperature Range: -4°F ~ +140°F / -20°C ~ +60°C

Origin: VN(Origin)

Shortcircuit Current (Isc): 11.32A

Surface Material: ETFE

Type: Solar Panel

Unfolded Dimensions: 120 x 32.17 x 0.85in / 3048 x 817 x 21.5mm

Weight: 26.06±0.5lb / 11.82±0.2kg

About this item

Features

1. High-efficiency N-Type 16BB cells with a 25% conversion rate.
2. Durable ETFE layer for waterproof, dustproof, and high-temperature resistance.
3. 20% lighter than standard 400w panels & foldable design with aluminum frame—perfect for outdoor use.
4. Wide compatibility with power stations.

5. Enhanced low-light performance

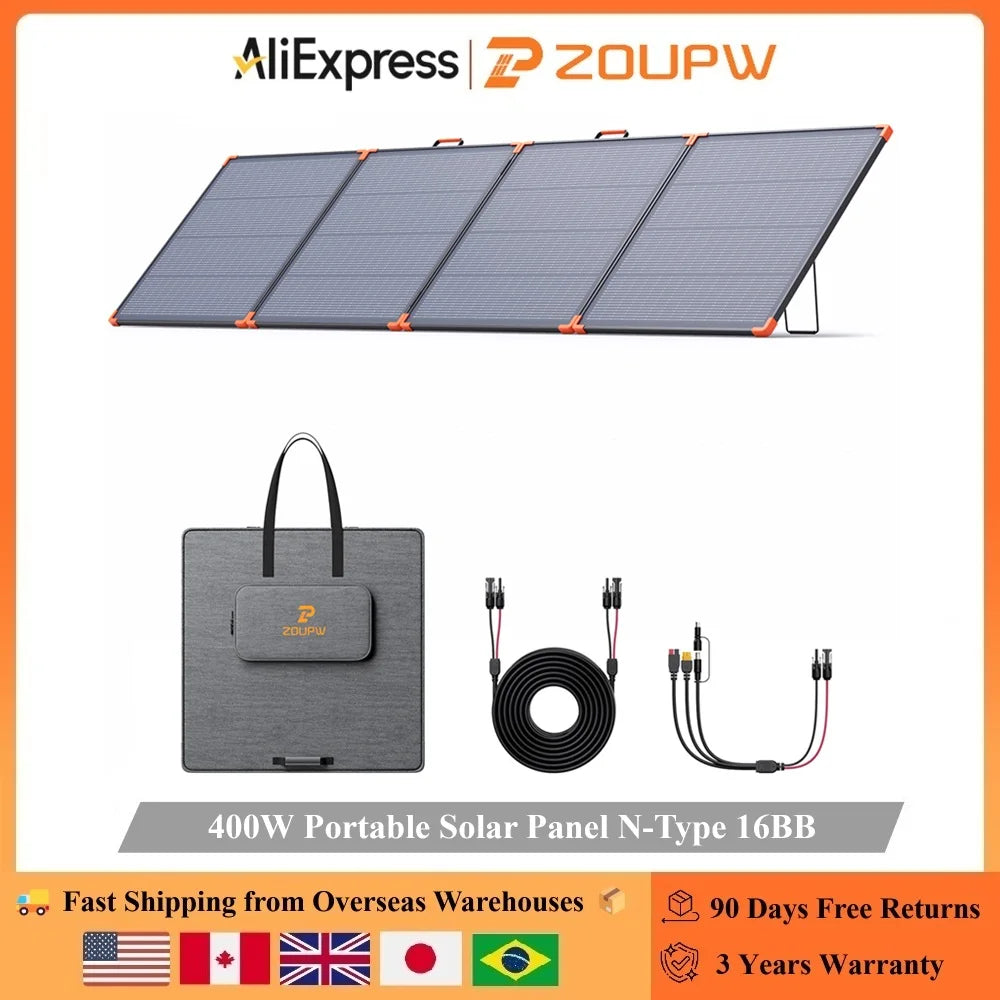

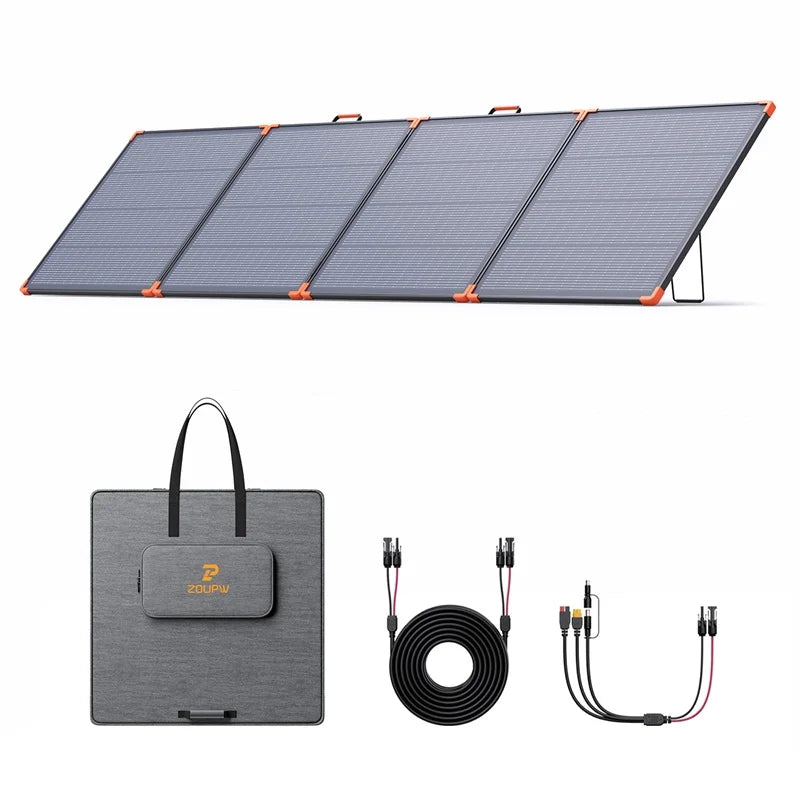

What You Get

1. 400W N-Type Foldable Solar Panel × 1 PC
2.Solar Connectors Extension Cable × 1 PC
3. Solar Connectors to DC7909(With DC8020 Adapter)/XT60/Anderson Cable × 1 PC
4. Storage Bag × 1 PC
5. User Manual × 1 PC
6. Ground Nail × 4 PCS

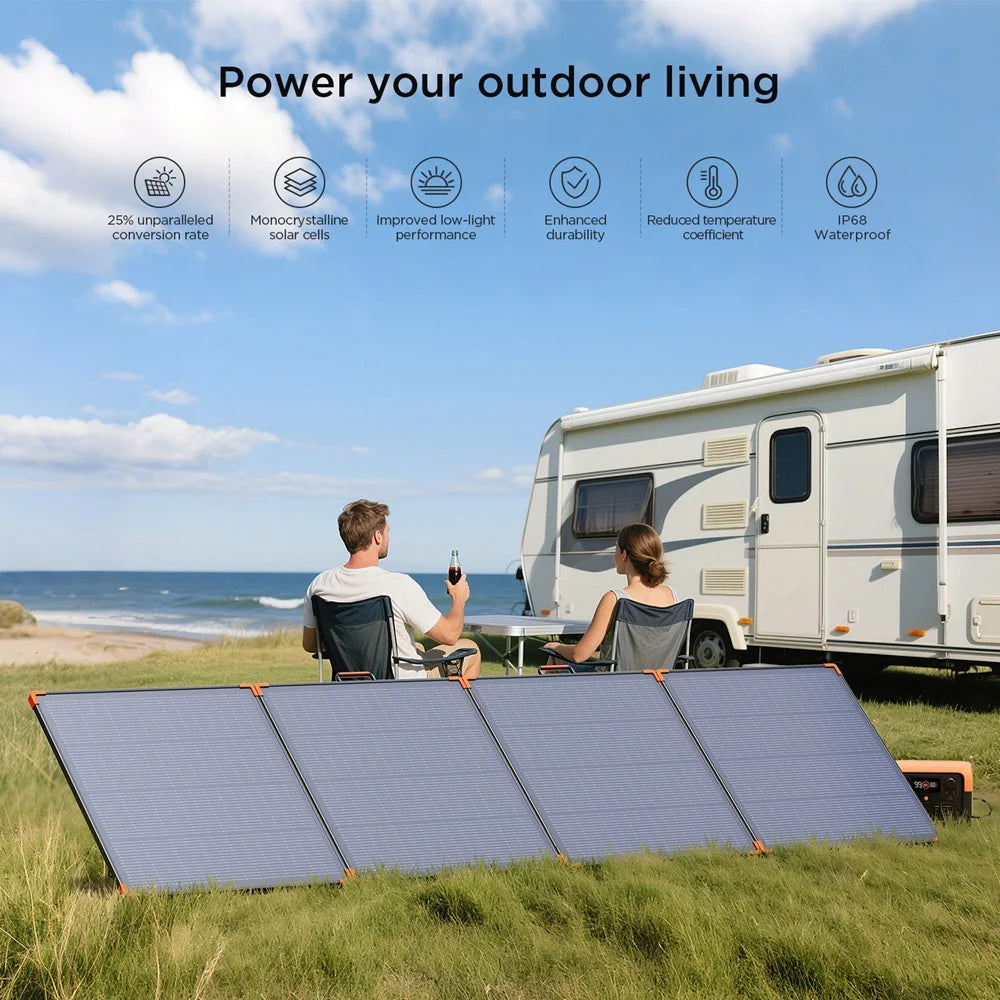

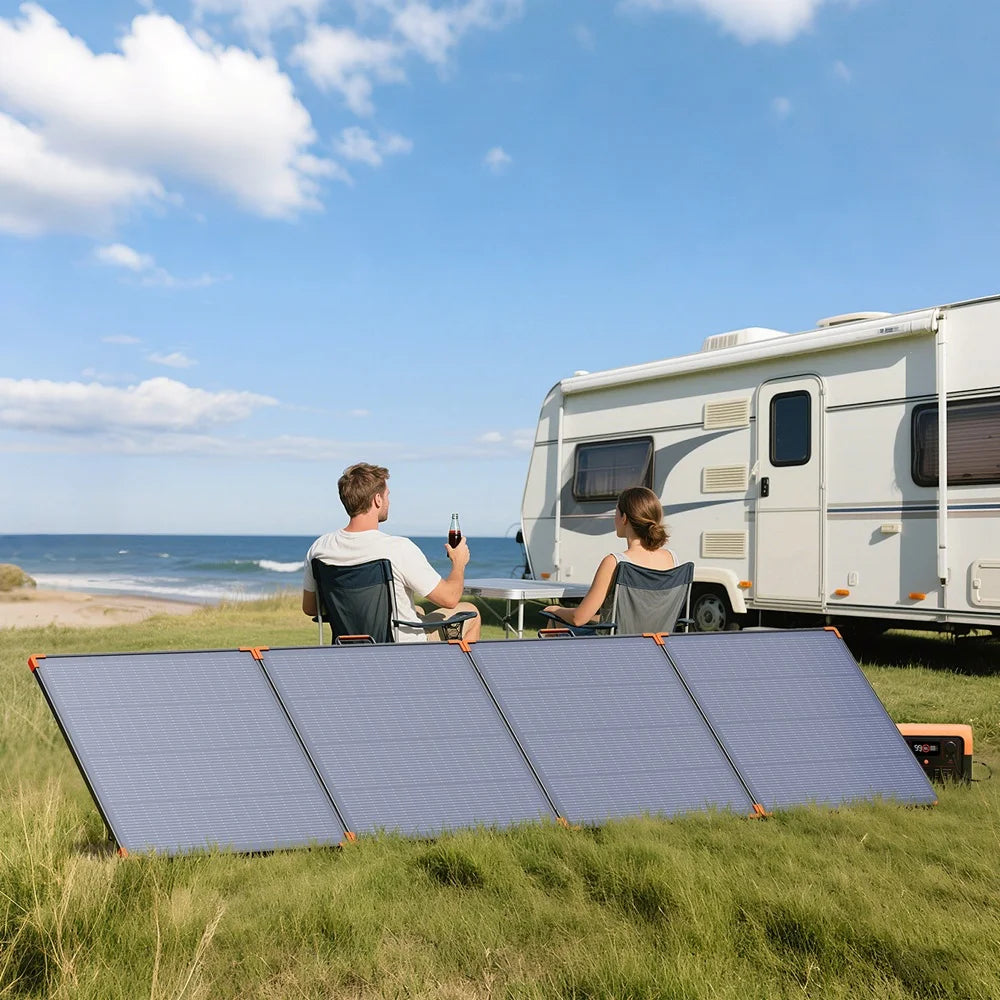

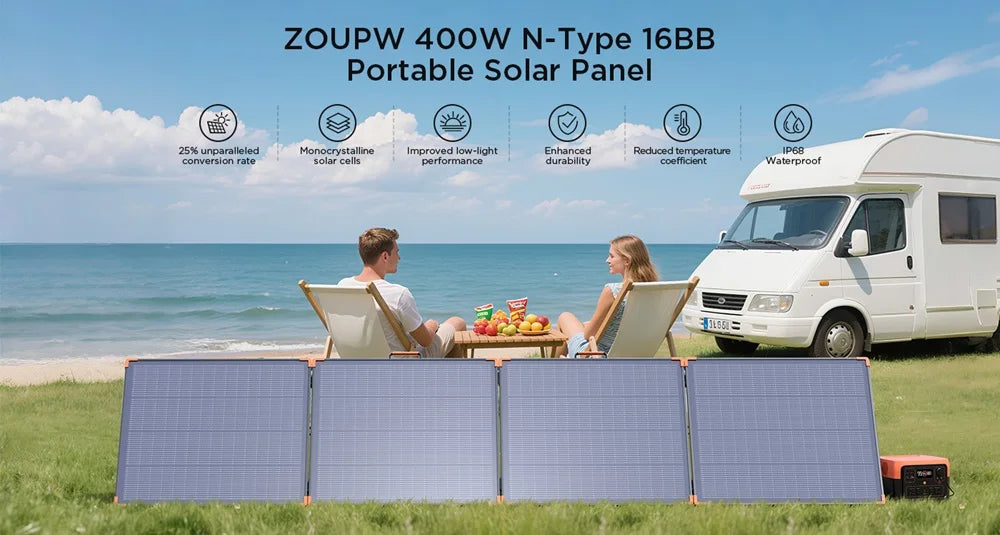

Whether you're setting up at a lakeside campsite or taking your RV on a weekend escape, the ZOUPW 400W Foldable Solar Panel is your go-to power solution for outdoor family adventures. Combining power, portability, and thoughtful design, it’s compact enough to fit in larger RVs and strong enough to support group energy needs—without weighing your trip down.

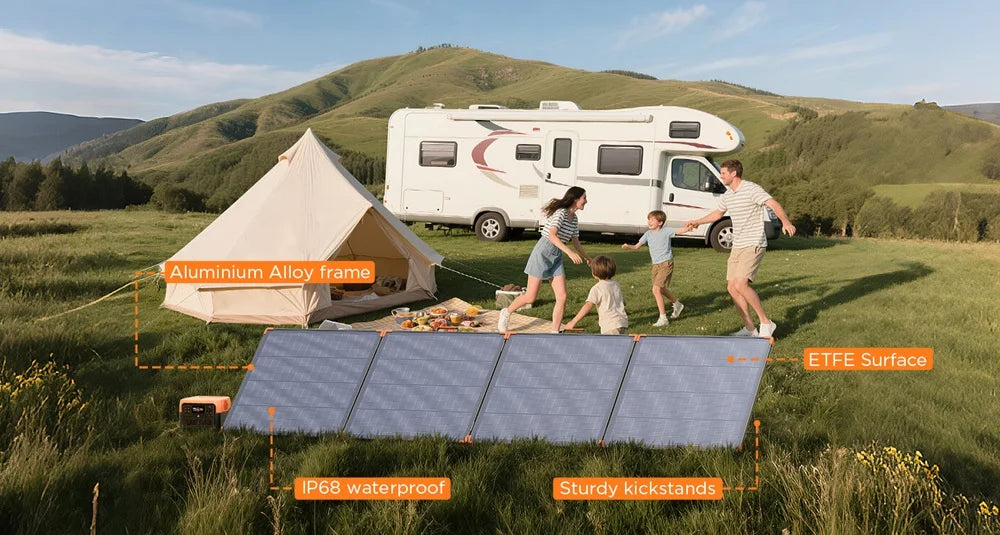

Designed for Family Outdoor Power

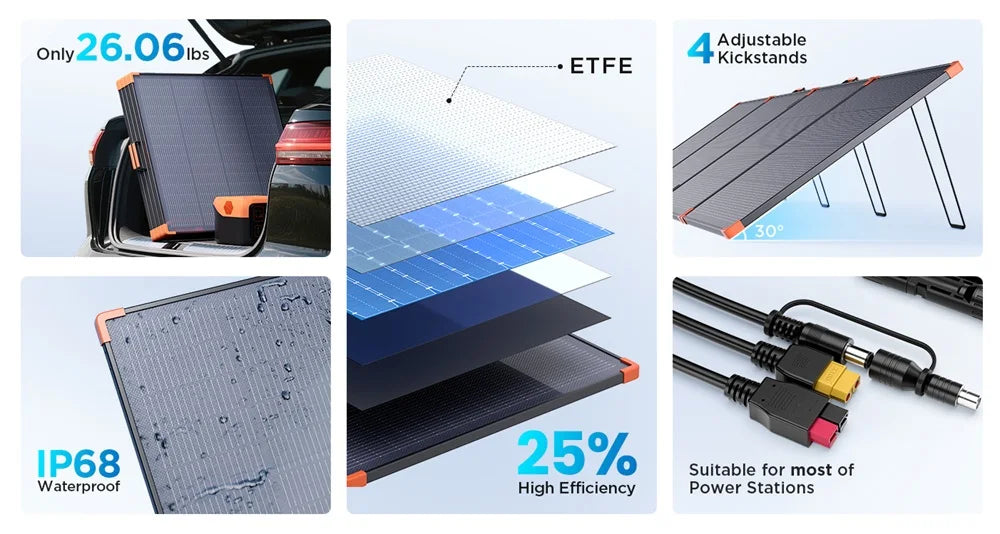

Made with an aluminum frame, A+ monocrystalline N-TYPE cells, and a rugged ETFE laminated surface, this panel delivers up to 25% efficiency while weighing only 26.06 lbs. It’s IP68 waterproof, dustproof, foldable, and easy to store—perfect for campsite, cabin, or setup zone. It’s the perfect fit for modern family camping

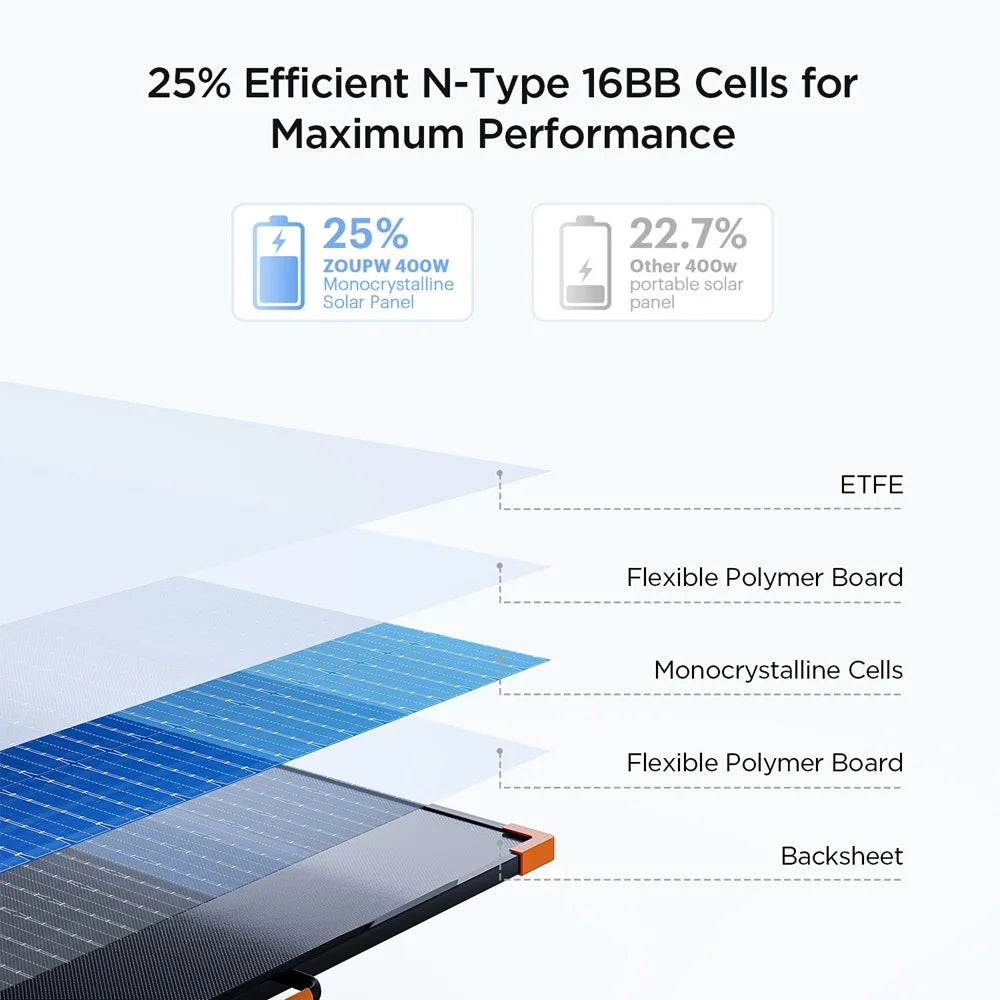

N-TYPE Cells + 16BB: Efficiency That Performs Anywhere

Built with N-TYPE solar technology and a 16-busbar (16BB) layout, the panel achieves 25% efficiency and maintains stable power output, even in low light or cloudy weather. It’s also highly resistant to performance drop-offs in high temperatures—ideal for unpredictable outdoor conditions.

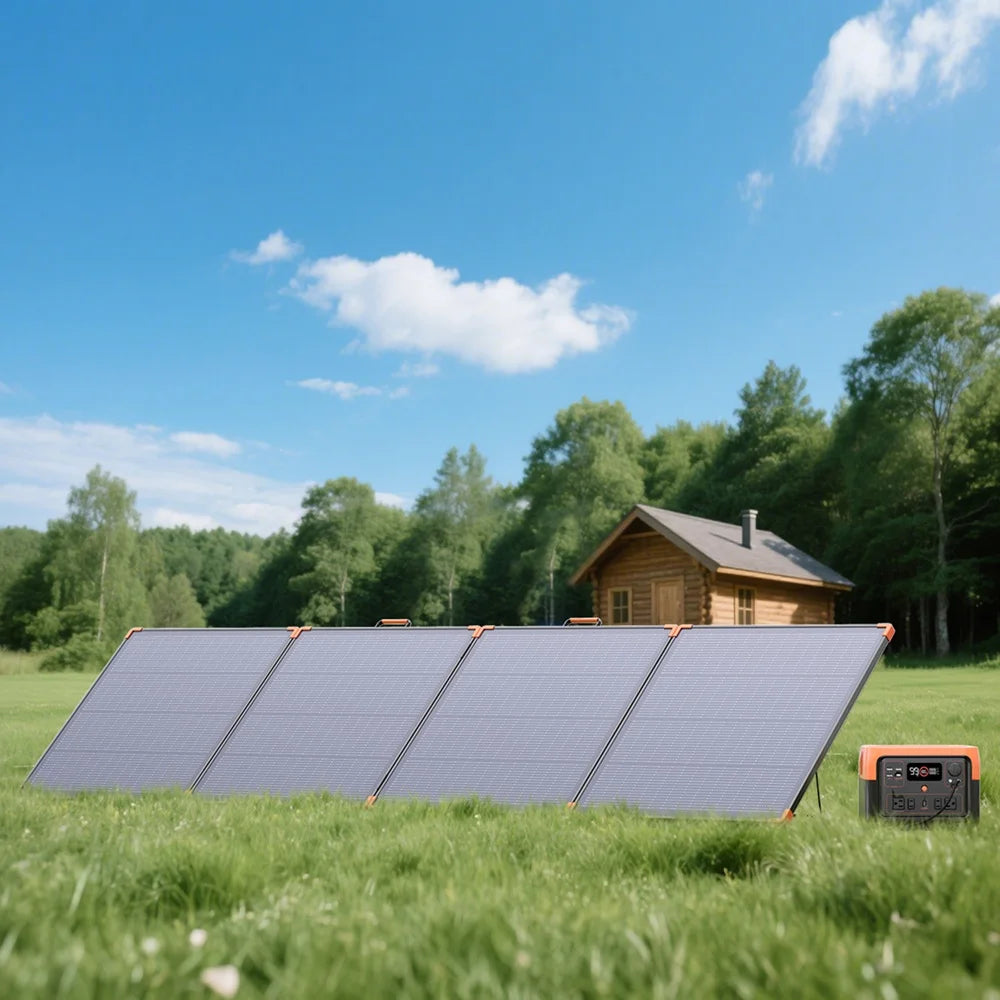

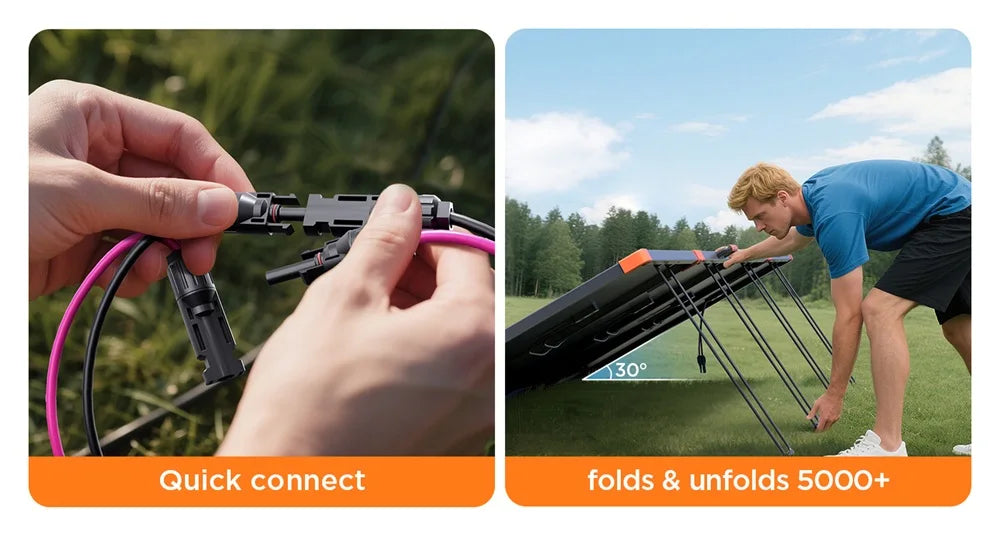

Quick Setup with Reinforced Support

Unfold the four-panel layout, drop the reinforced adjustable kickstands, and plug into your power station using the universal solar port interface—setup is fast, simple, and efficient. The kickstands to withstand 5000+ fold cycles for long-term outdoor use. The stand opens at a minimum 30° tilt, optimizing sunlight exposure throughout the day.

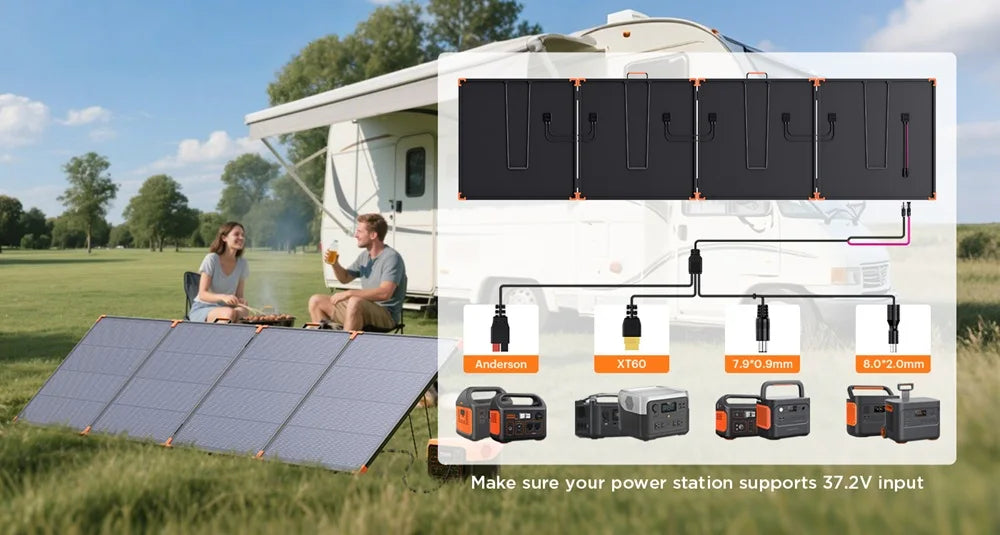

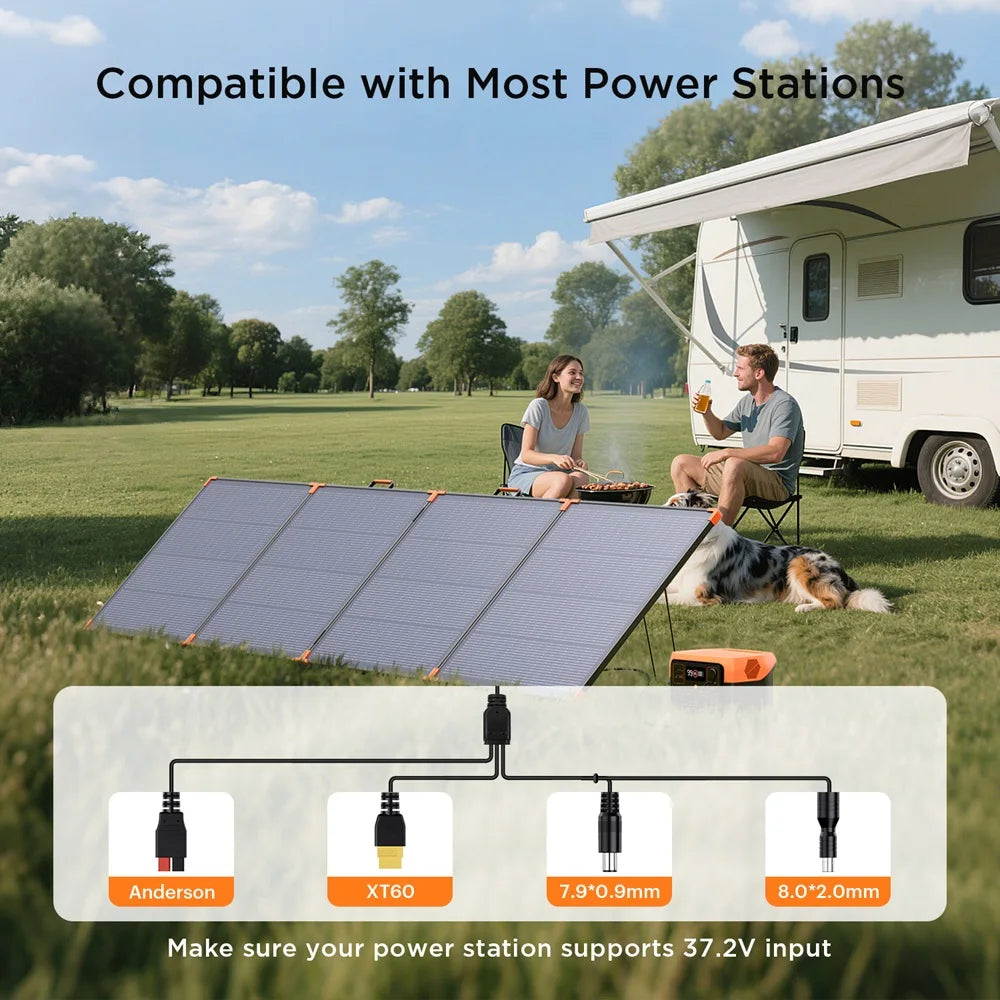

Smarter Wiring, Stronger Output

The panel comes with a 4-in-1 solar connector cable (DC7909 with DC8020 adapter, XT60, Anderson), offering broad compatibility with most portable power stations.Thanks to its parallel wiring design, shadows on one panel won’t drastically reduce output across the system. It also supports series and parallel configurations to scale your system when powering high-demand appliances like coolers, fans, and lights.

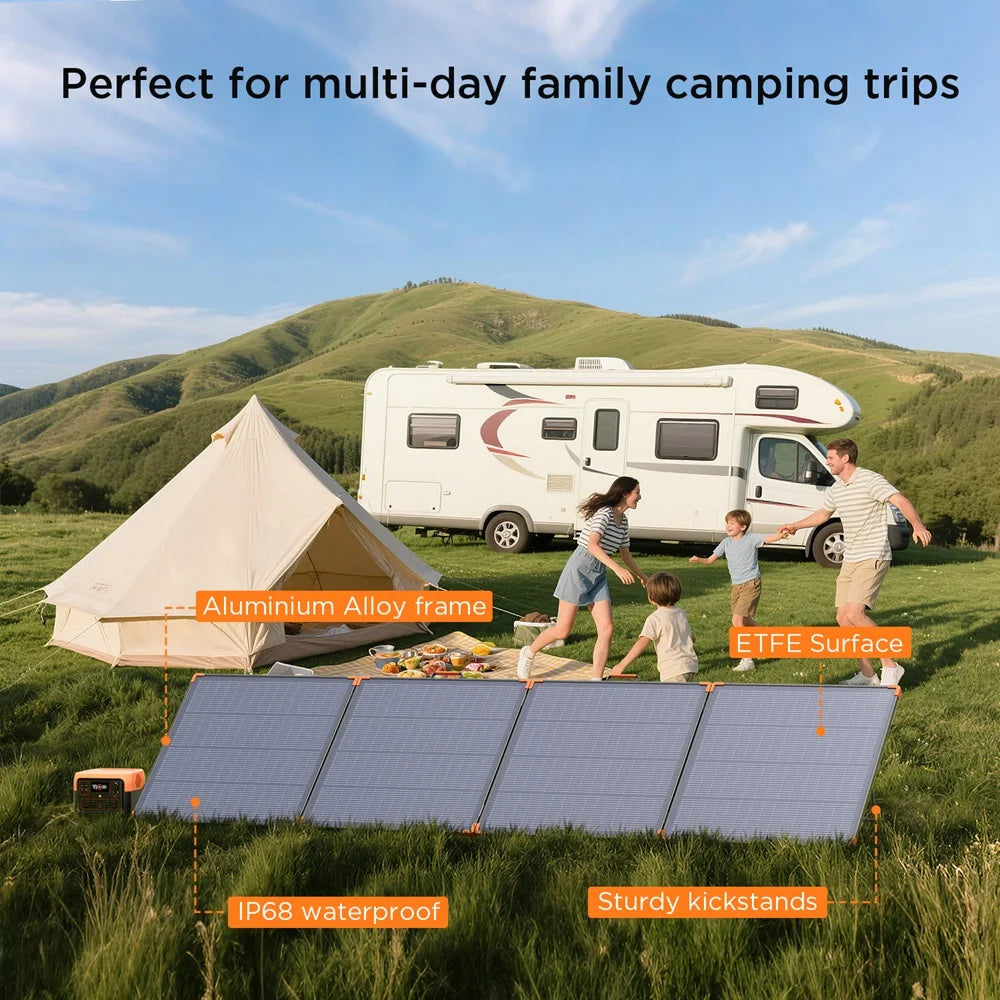

Outdoor-Ready in Every Detail

From the anti-rust aluminum frame and corner protection to the UV-resistant cable housing, this panel is made to thrive in the elements. The ETFE surface is not only IP68-rated waterproof and dustproof, but also easy to clean with just a cloth. Whether it’s a sunny beach or dusty roadside—this panel handles it all without stress.

Multi-Use Storage Bag

Our custom storage bag isn’t just for carrying—it unzips completely into a waterproof ground mat, ideal for setting up on damp or dirty ground. Place your panel on top, charge up, zip it back into the bag, and carry it away. It’s a smart, compact system designed for ease and cleanliness.

Multiple usage scenarios

Family beach getaways- Easy to deploy at scenic spots for all-day power

Off-grid tiny home setups-Clean energy without permanent installs

Take it where your car can't - Carry over your shoulder and set up when you arrive

FAQS About 400 Watt Portable Solar Panel N-Type 16BB

Q1. How much energy does a 400W solar panel produce per day?

On average, a 400W panel can generate 1.2–2.4 kWh per day, depending on sunlight hours and angle. That’s enough to power lights, charge devices, and support key appliances.

Q2. How long does a 400W solar panel last?
Our panels use premium A+ cells and reinforced materials. With proper care, they’re built to last 5–25 years, retaining strong output for the long haul.

Q3. Can a 400W solar panel run a small refrigerator?
Yes. A 400W panel can typically support a small portable fridge (30–60W), especially when paired with a compatible power station. It's perfect for camping trips or off-grid weekends..
