Specification
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Function: Siren and voice alarm, flash alarm
Alarm Type: telefon Alarm,Local Alarm
Audio Function: Built-in Mic and speaker, two-way audio
Audio Output: Two Way Audio
Brand Name: VIKYLIN
Certification: CE,RoHS
Color: WHITE
Color Night Vision: Yes
Compatibility Function: RTSP and Onvif 17.06 compatible with many third-party NVR
Connectivity: IP/Network Wired
Description 1: Security Protection
Description 2: For Hikvision compatible IP Camera
Description 3: Outdoor Video Surveillance
Description 4: CCTV Security Camera
Description 5: Smart Home CCTV
Description 6: outdoor surveillance camera
Description 7: 5X zoom PTZ camera
Description 8: Home Security Video Surveillance
Description 9: hikvision compatible PTZ
Dimensions (L x W x D)(mm): 195 x 105 x 100 mm
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
Housing Function: Strong metal water-proof housing, IP66
IP Rating: IP66
IR Distance(m): 30m
IR and Light Function: 4 pcs Array IR and warm-light LEDs, IR distance 40 meters, warm-light distance 30 meters
Image Processing Function: Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT, D-WDR, Flip, Defogging
Image Sensor Function: 1/2.8" Progressive Scan CMOS
Installation: Side
Key and Slot Function: Reset key, two-way audio, Micro-SD slot (Max. 512G)
Lens (mm): 2.7-13.5mm
Lens Quantity: Single Lens
Low Illumination Function: 0.01Lux
Media Function: CMS, Android, IOS
Megapixels: 8MP
Minimum Illumination(Lux): 0.01 Lux @(F1.0, AGC ON),0 Lux with Light
Model Number: YC-PTZ-2386IRC-ZS-N
Network Port Function: 1-RJ45, 100Mbps, PoE 48V in
Network Protocol Function: HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc.
ONVIF Function: 17.06 compatible
OSD Function: Multiply Style OSD Overlay, Motion Detection, Privacy Mask
Operating Temperature Function: -30°C-(+60)°C, 10%-90%RH
Optical Zoom Function: 5x optical zoom lens
Origin: Mainland China
P2P Function: Yes
Power Consumption Function: <15W
Power Consumption(W): Max.12W
Power Source: With Poe
Power Supply: With Poe
Power Supply Function: 12 VDC± 10% 2A
Power Supply(V): 12V DC
Resolution Function: 4K resolution 3840 x 2160P
Scene: Indoor and outdoor
Security Function: Support user authentication, video data encryption
Sensor: CMOS
Shell Material: Metal
Size Function: 1120(mm)x110(mm)
Smart Detection Function: Smart Human and Vehicle Detection Alarm
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Mobile Systems: IOS,Android
Supported Operating Systems: Windows 7,Mac OS,Windows 8,Windows 10
Video Compression Format: H.265,H.264
Web Browser Function: IE, Firefox, Chrome, Edge, Safari
Weight Function: 0.68kg
Zoom: 4X
Zoom type: Optical zoom

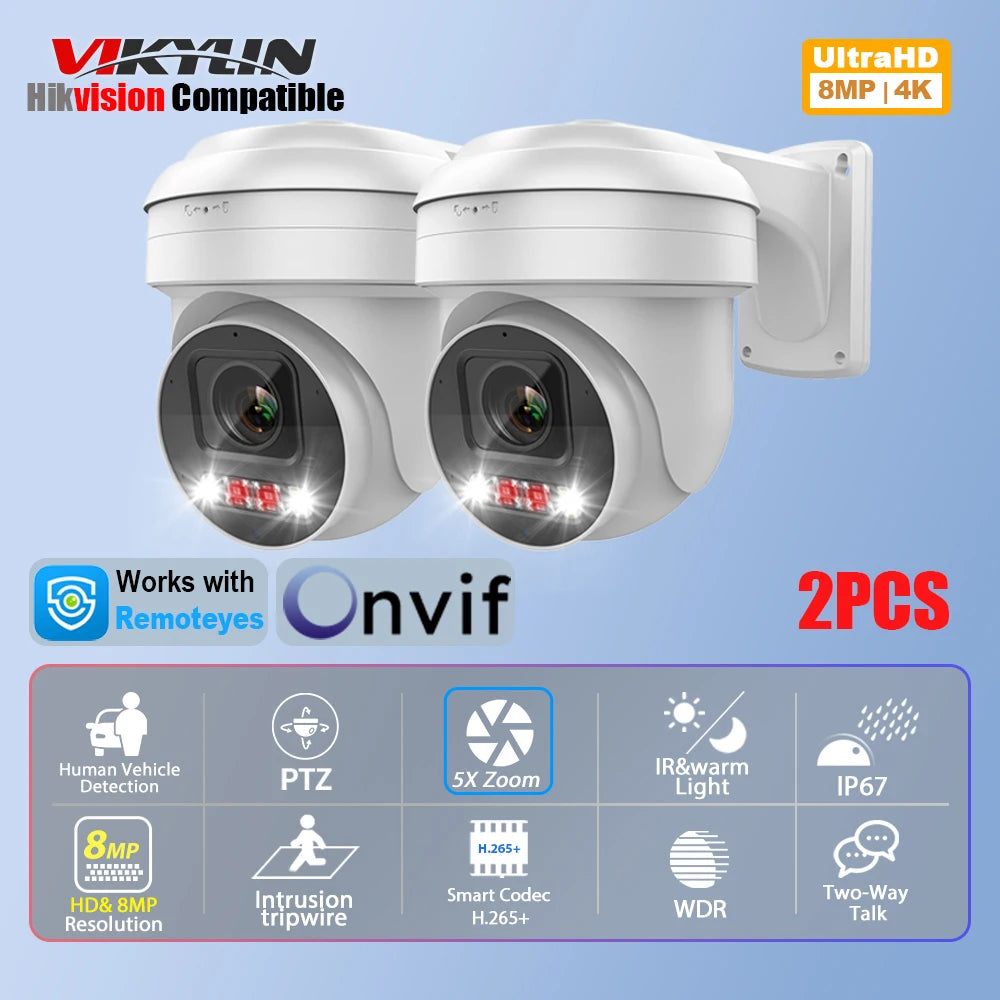

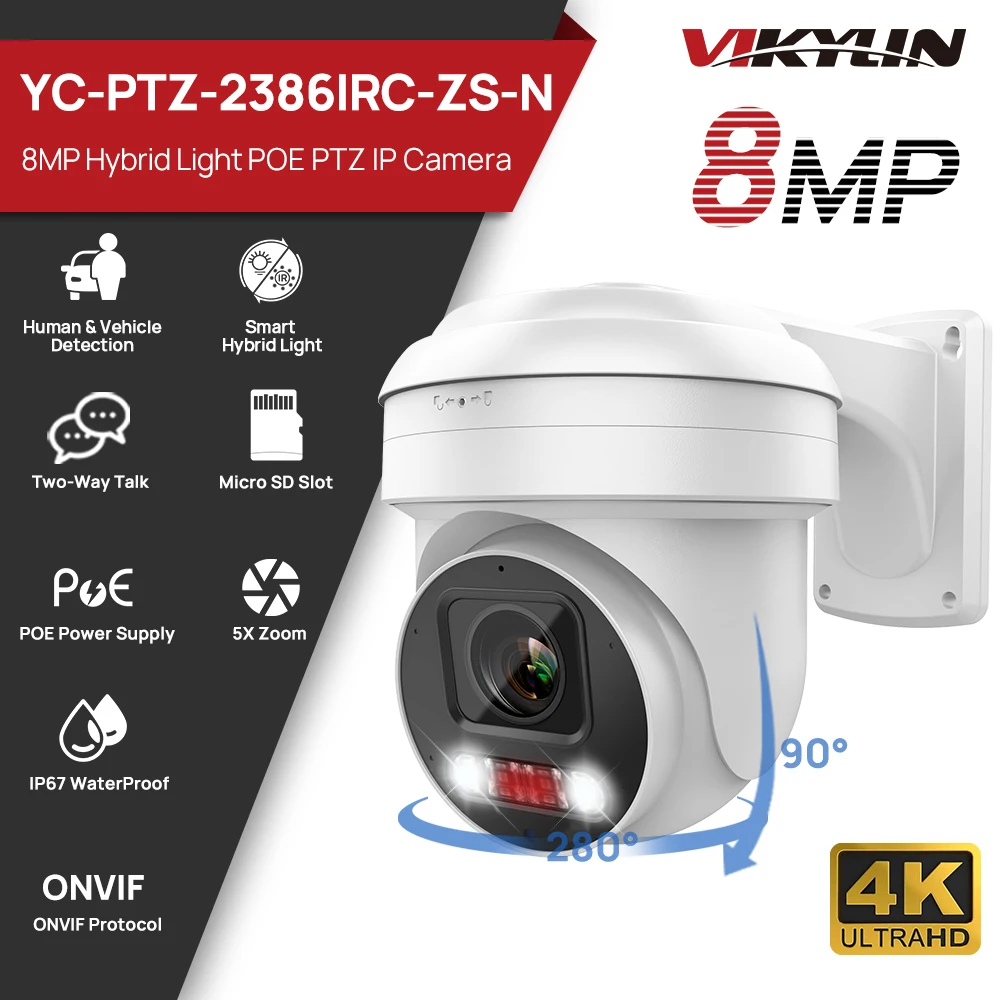

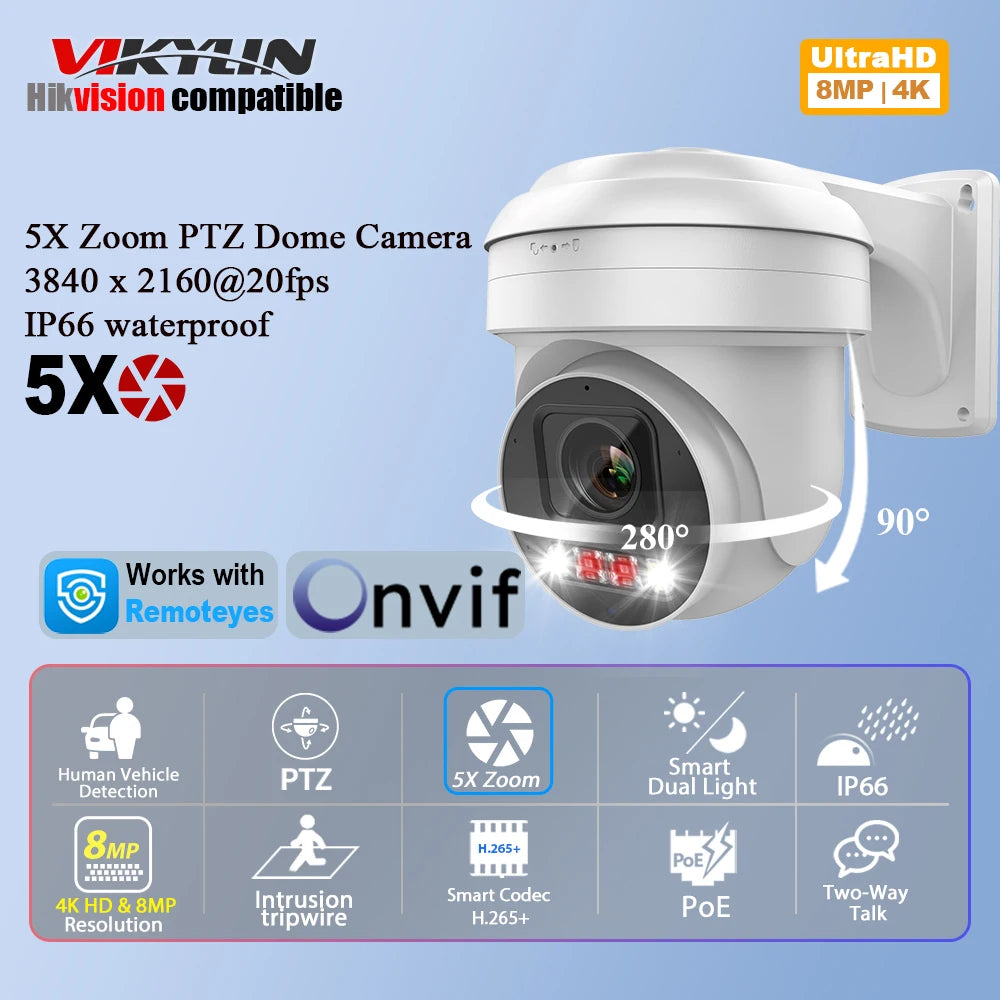

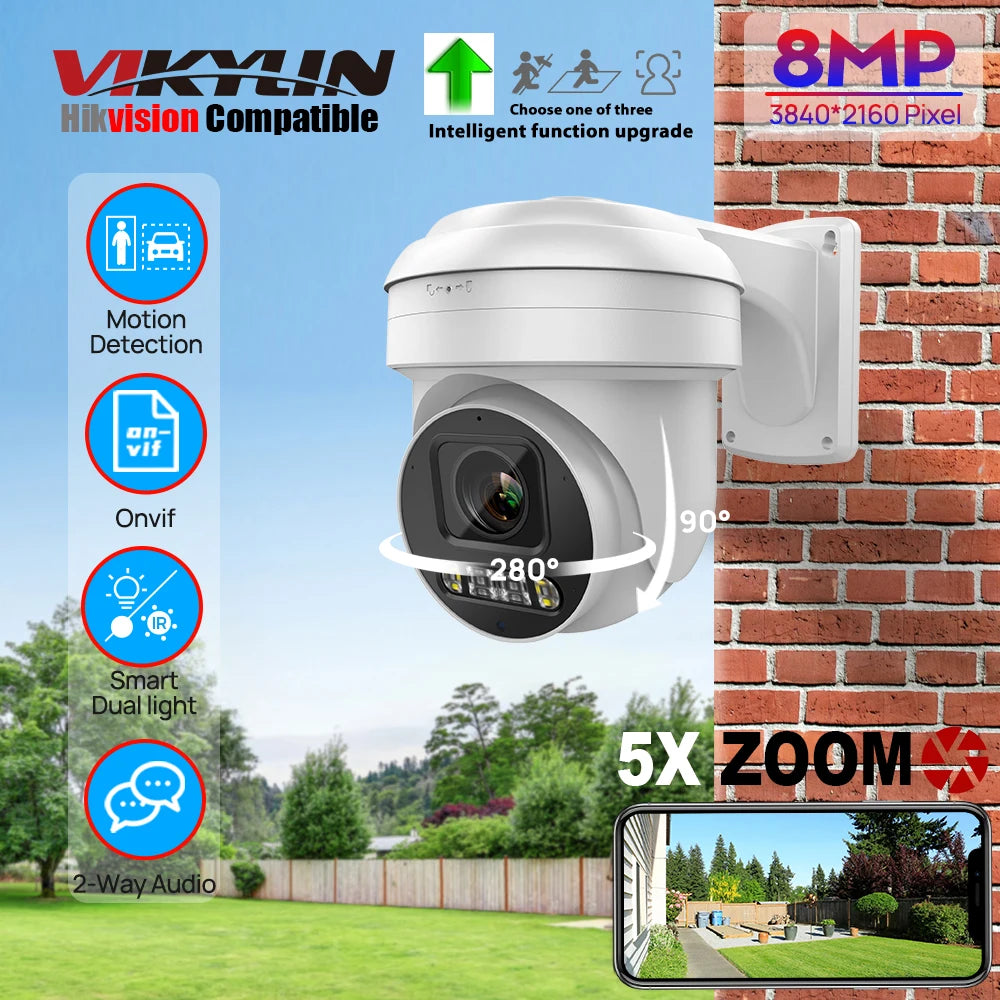

Vikylin 8MP 4K IP Security Camera 5X Zoom Hybrid Light Color Night for Hikvision Compatible POE Audio 512GB SD Human Vehicle Detection Dome plug&play Hikvision NVR

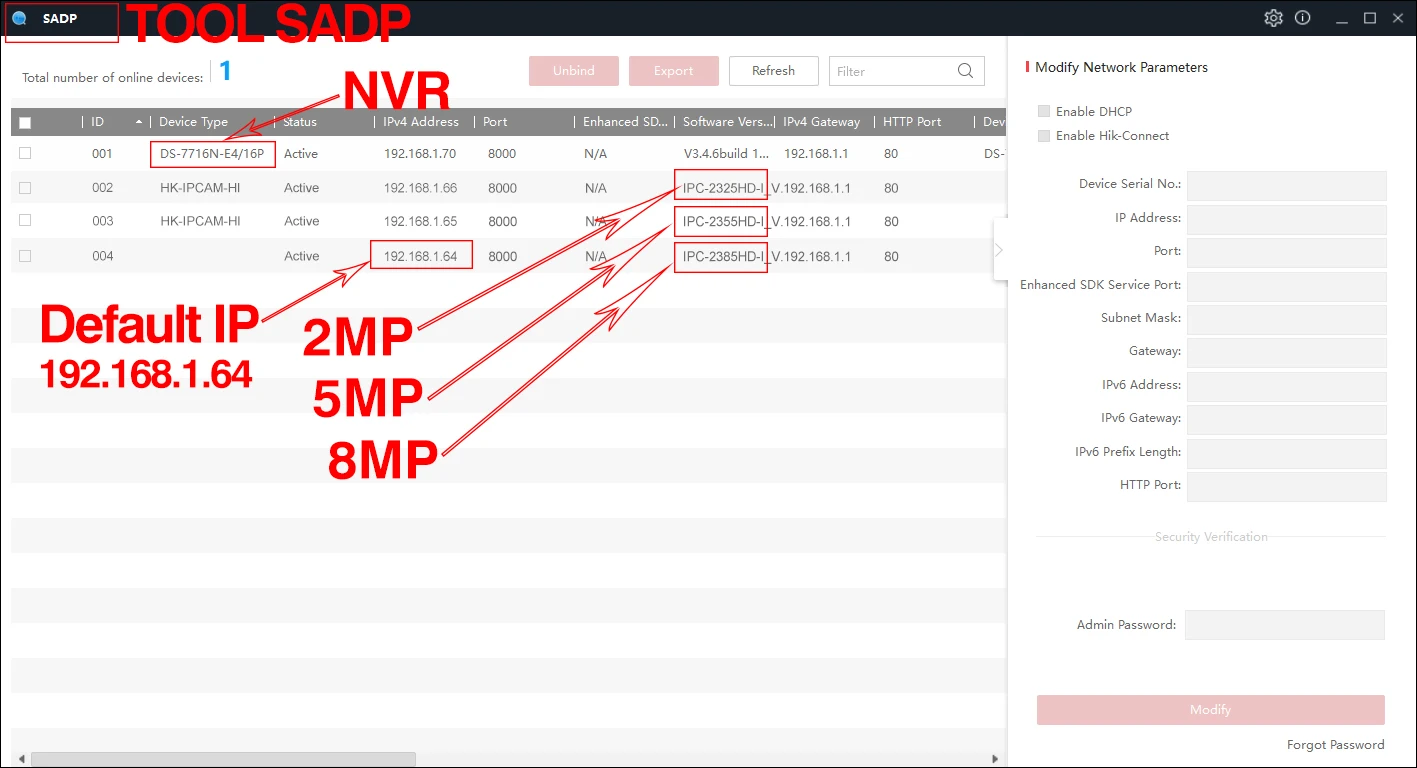

1. With SettingTools (for searching and modifying IP address, etc.) and SADP (search only), you can search the camera IP address.
2. Default automatic acquisition of IP addresses (DHCP) camera-specific App Remoteyes, built-in speakers to achieve two-way intercom, and Hikvision NVR connection can also support the realization of Hik-connect / Guarding Vision two-way intercom
3. Support mobile vehicle detection (MD2.0) new tripwire, area detection, face detection (only one effective) and other features

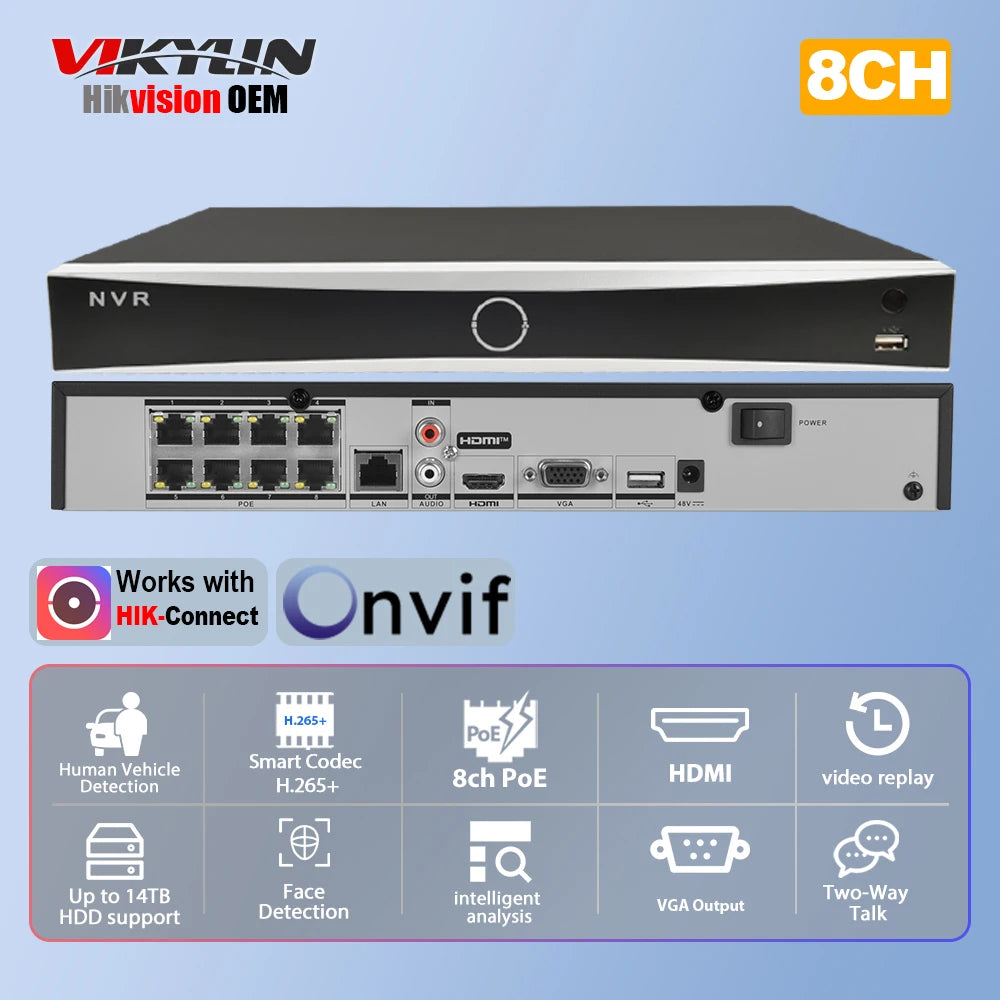

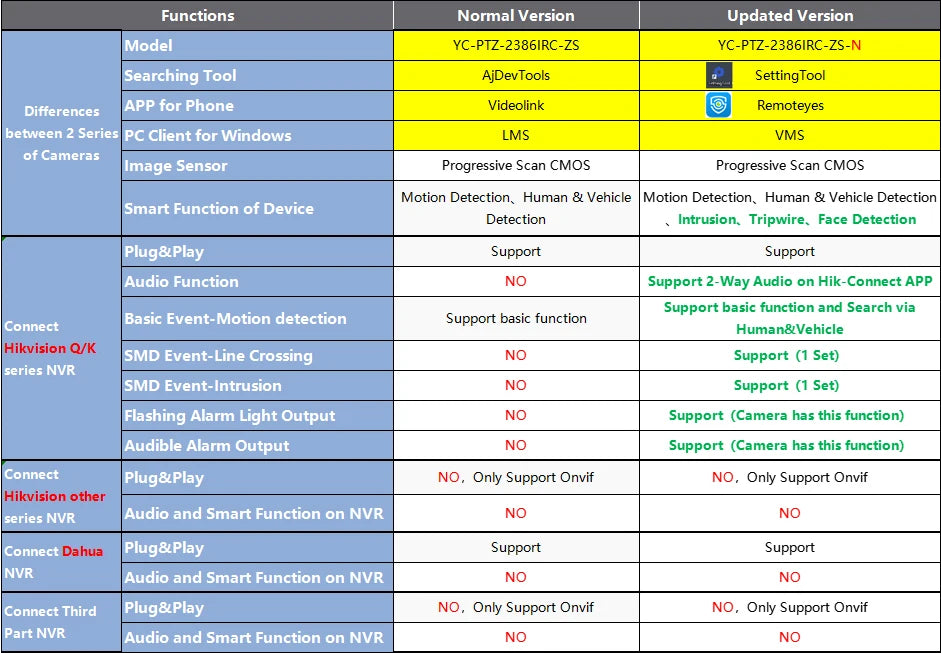

4. Support Hikvision original and Hikvision OEM NVR (K Q series) non-5.0 version, Hikvision protocol, plug-and-play, you can realize Hik-connect/Guarding Vision two-way intercom, push the alarm information, MD2.0 tripwire [a region] and regional detection [a region] function (three to choose from, can only be a valid), playback can be a man-vehicle Separation screening
5.Dahua Video Recorder: Plug and Play
Specification
>Image Sensor: 1/2.8" Progressive Scan CMOS
>Video Resolution Default: 3840 x 2160
>Lens: f=2.7-13.5mm F=1.6-3.3, with IR cut
>Video Format: H.265
>Horizontal: 101° to 34°
>Vertical: 56 to 19°
>IR Light Range: up to 40 m
>White Light Range: up to 40 m
>Audio: Two-Way audio
>SD Card Slot support up to 512GB
> Human Vehicle Detection
High quality imaging with 8 MP resolution
With a high resolution of 8megapixels (3840 x 2160), this 8MP HD lP surveillance camera is able to capturevideos in 3840p HD quality.lt is a huge advancement compared to 720p HD or 1080p Full HD. you nevermiss a single detail of your loved ones. which enables you to see all objects very clearly.
5X Optical Zoom, Capture Finest Details
PTZ - Pan/Tilt Range：Pan: 0° ~ 280°; Tilt: 0° ~ 90° Lens - Focal length：2.7-13.5mm,F1.2, 5X Optical zoom(Please note that the camera does not support human tracking)
Human and Vehicle Detection
Smart Functions 3 Options 1
The camera supports tripwire, intrusion detection, and face detection, but only one smart function can be turned on at a time, and buyers can set different functions according to their needs.

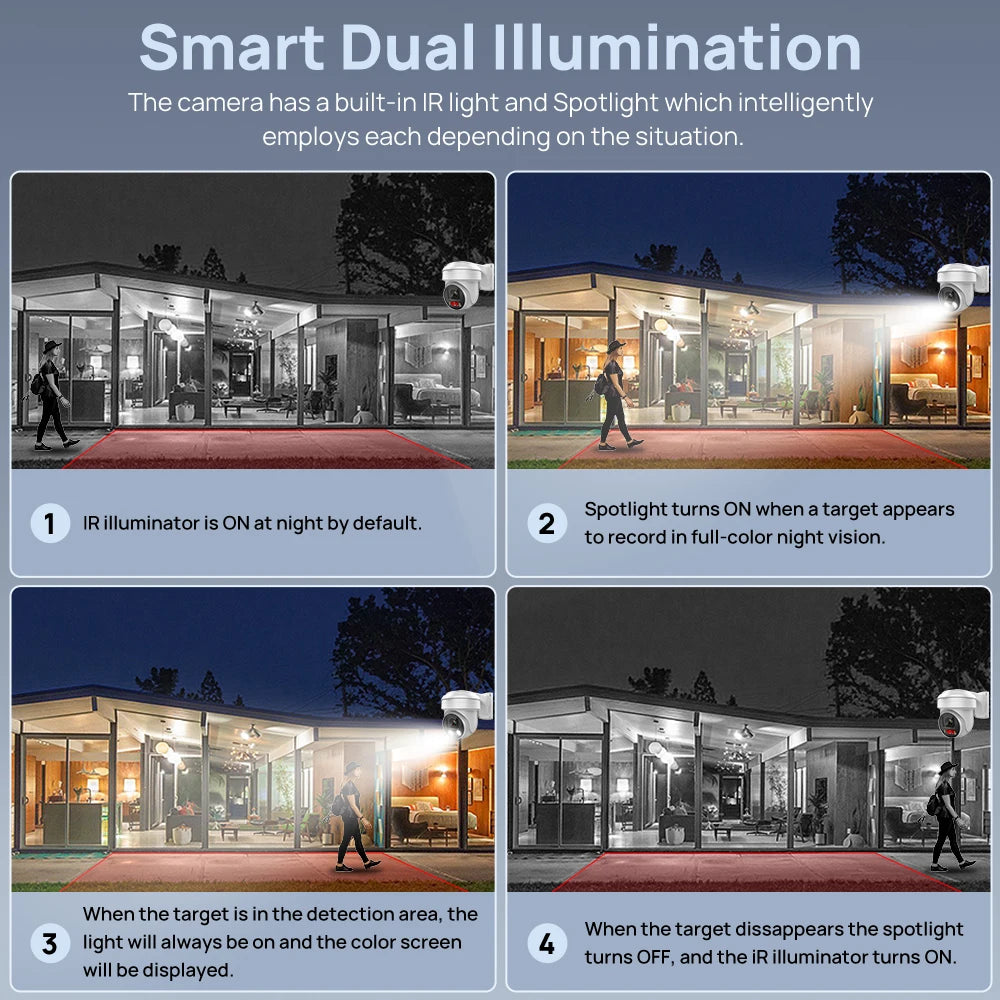

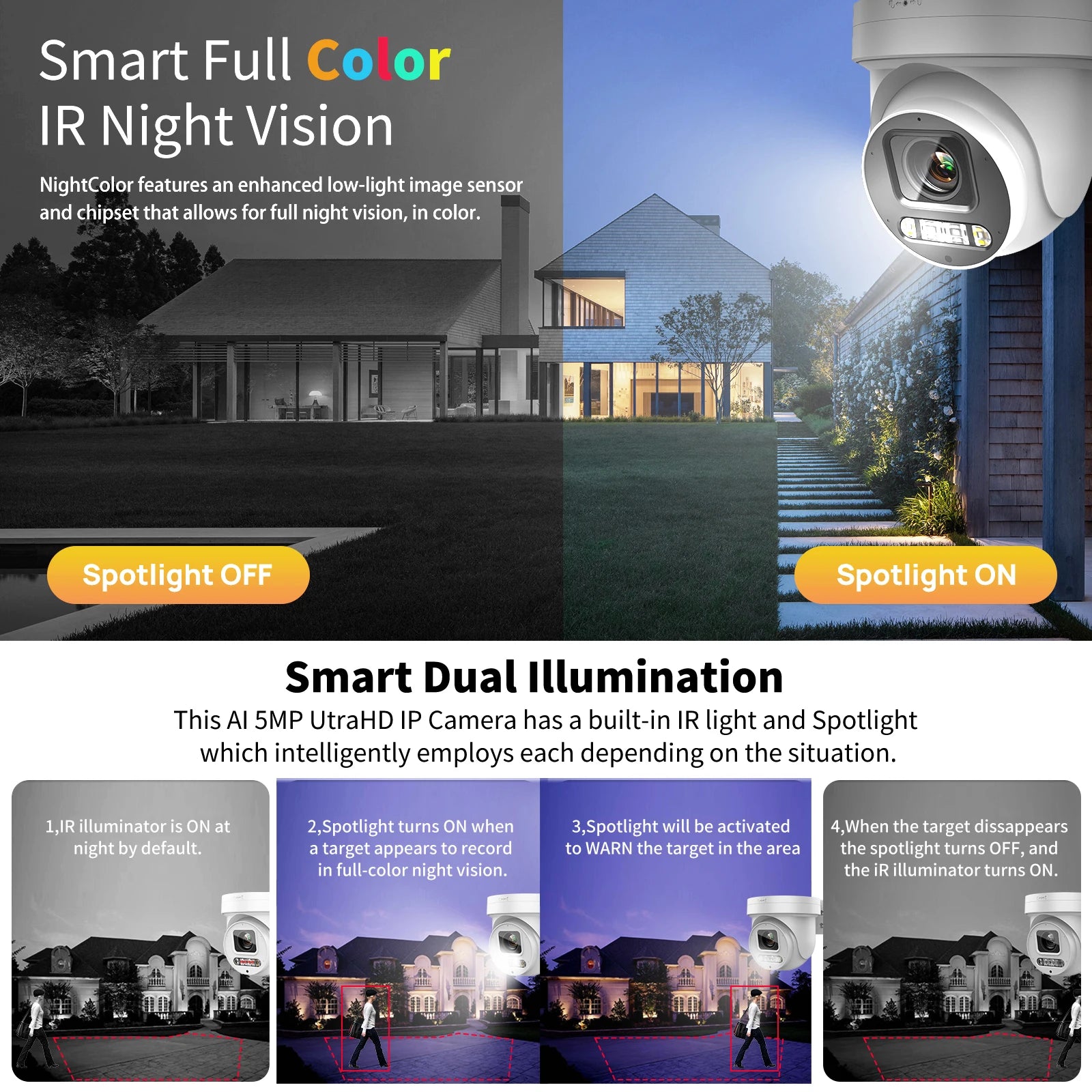

Smart Dual Night
The camera has a built-in infrared light and spotlight. When someone or a car passes by, the spotlight will be turned on to presenta color picture. When ther is no one or a car passing by, the infrared light will be used to present a black and white picture.

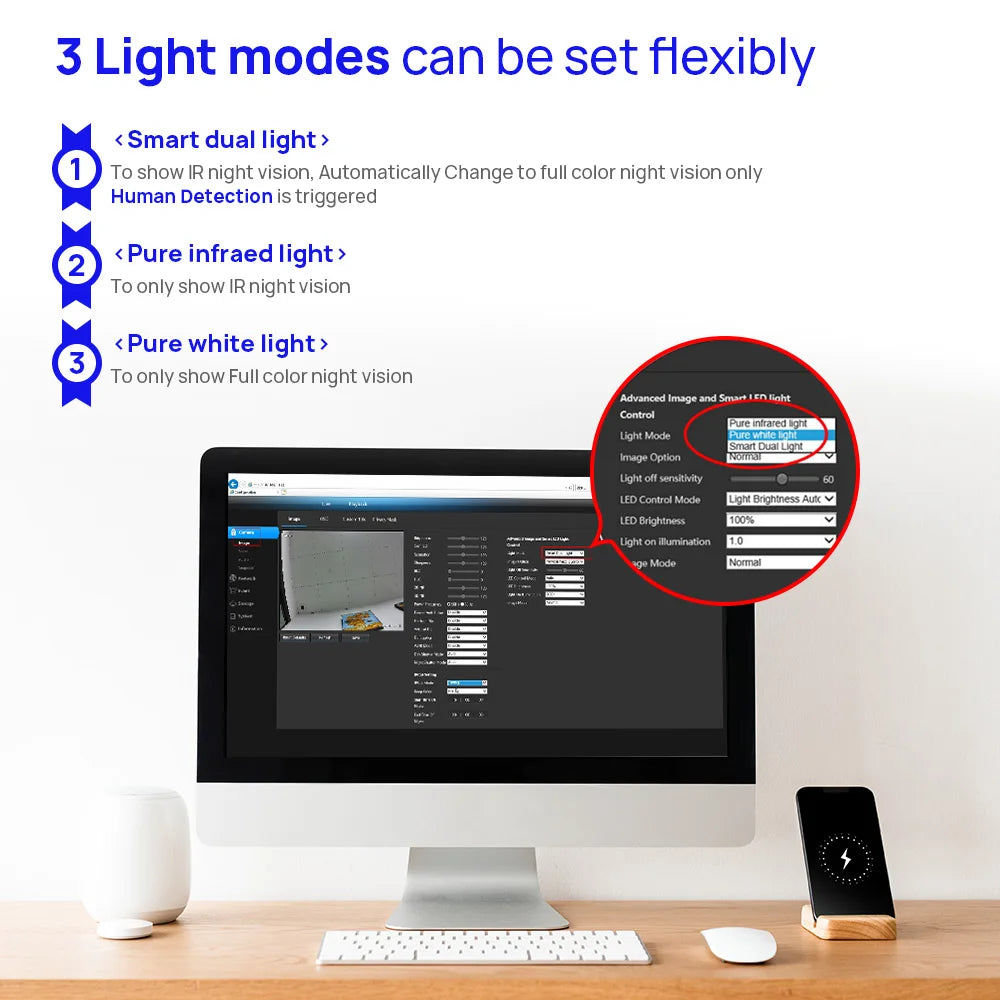

3 Light Modes
4K IR and Full Color Night Vision
IR Light Range: up to 40 m
White Light Range: up to 40 m

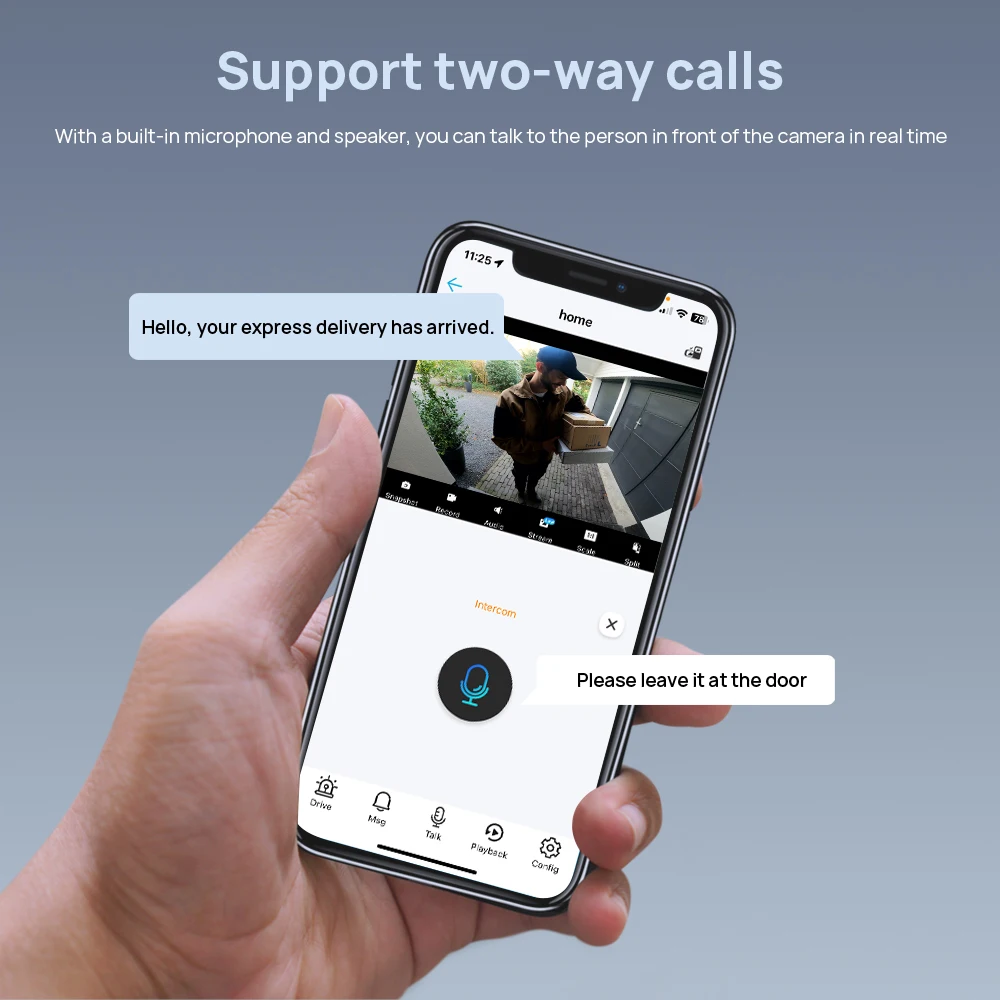

Built-in microphone and speaker

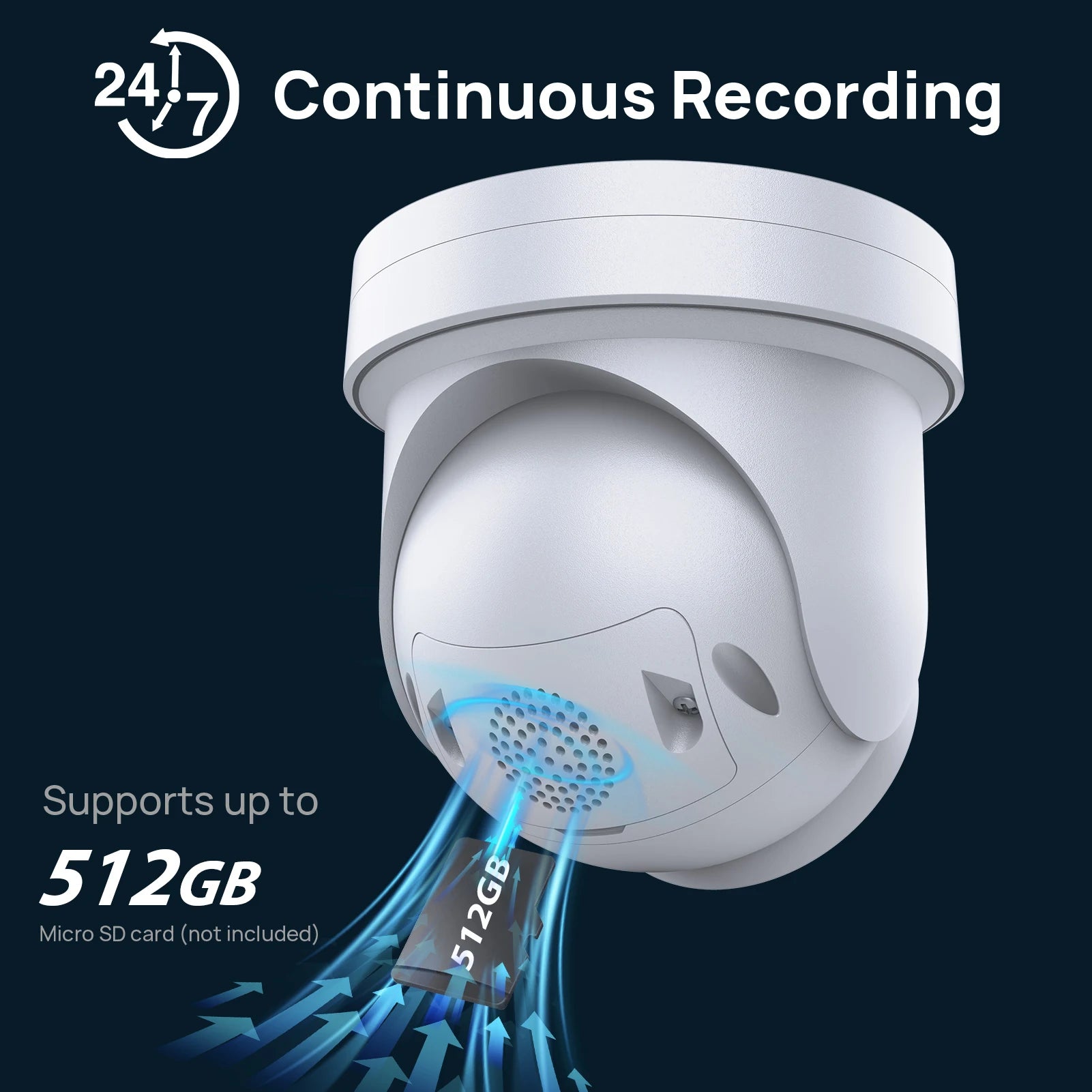

Flexible Recording Options
The camera has a built-in SD card slot, located inside the camera's bell, that can support up to 256G memory cards.
Efficient H.265 compression technology
H.265 Sharper, HD resolution gives you the best image quality at a lower bit rate. Save more storage space, can reduce video file size by 40%-50%, save hard disk storage space and reduce storage cost.

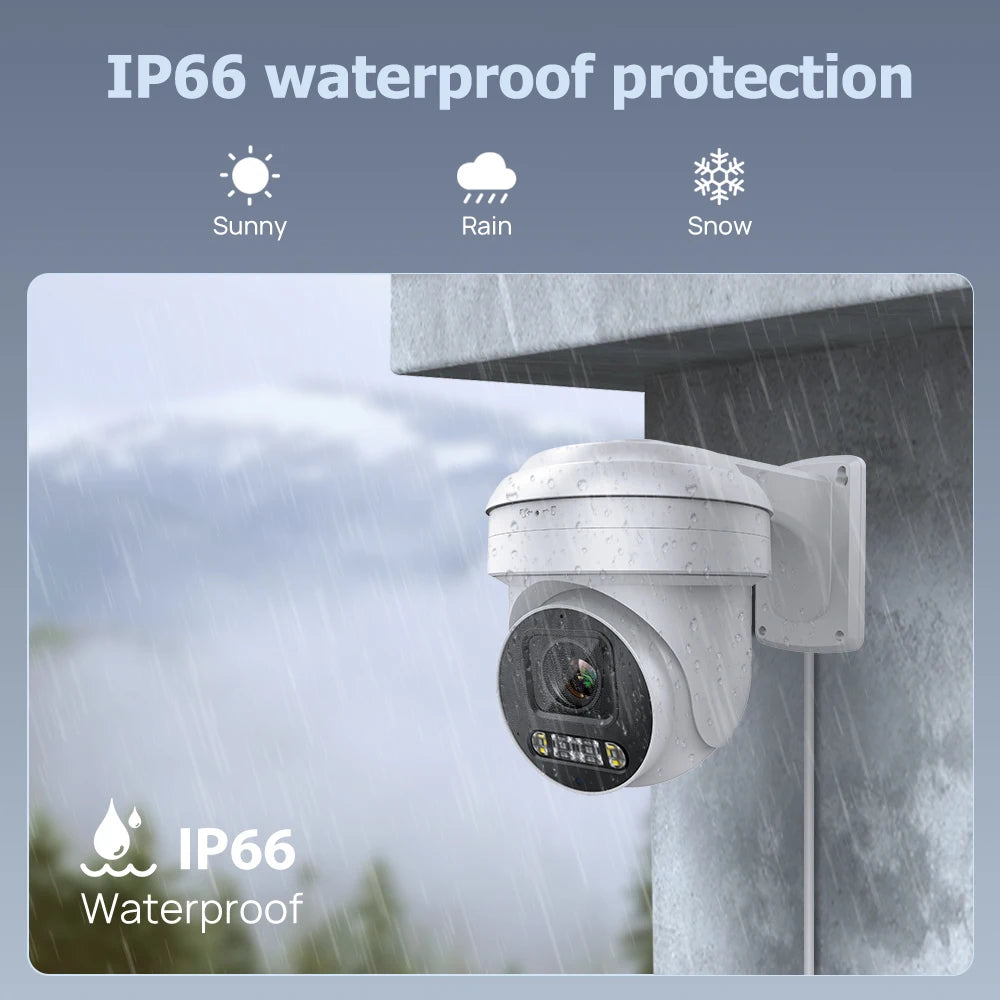

Water and dust resistant (IP66)
IP66 waterproof and dustproof, the camera can completely prevent dust from entering, can avoid the accumulation of dust affecting the performance and life of the equipment, can withstand strong water spray impact, even in torrential rain and other harsh environments can work normally, to ensure that the equipment in a variety of complex outdoor environments stable operation

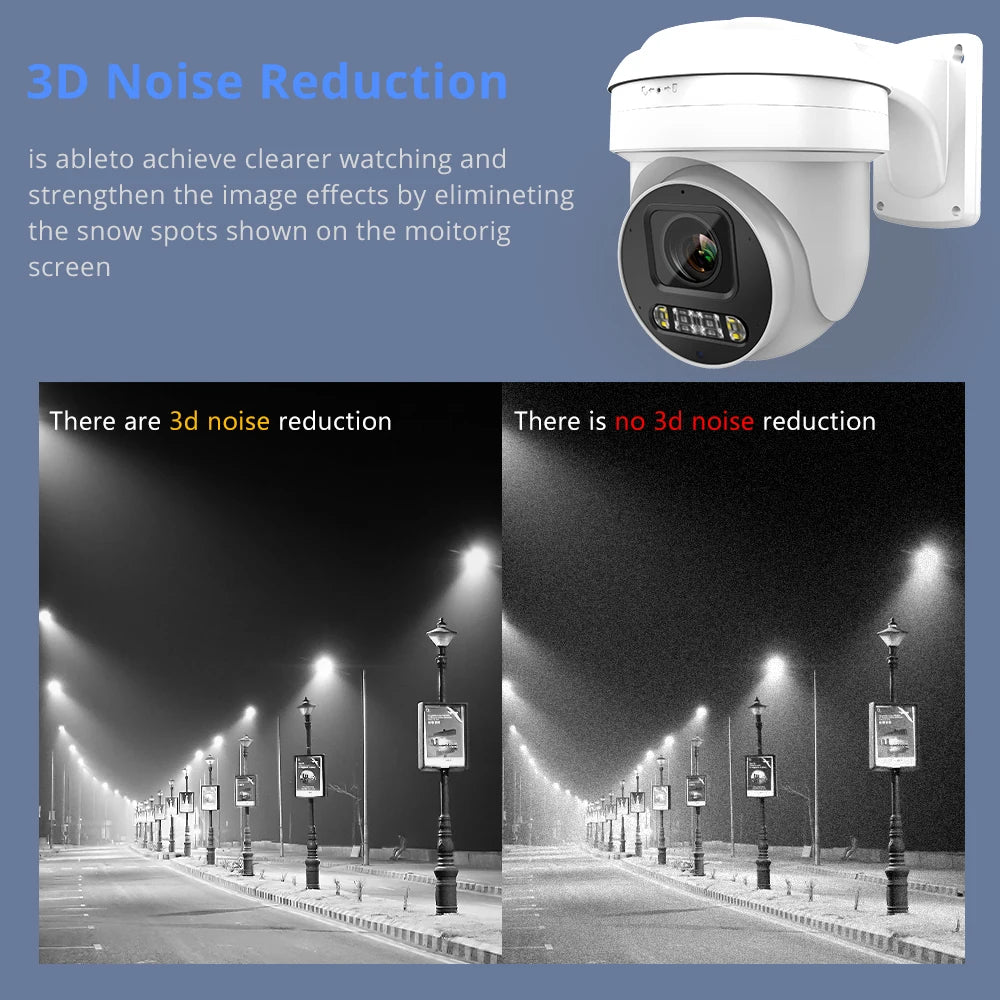

3DNR & 120db WDR
DNR: The camera utilizes DNR (Digital Noise Reduction) technology, which filters out noise in low-light environments as well as noise generated by motion. By eliminating graininess, the camera provides clearer and more accurate images.

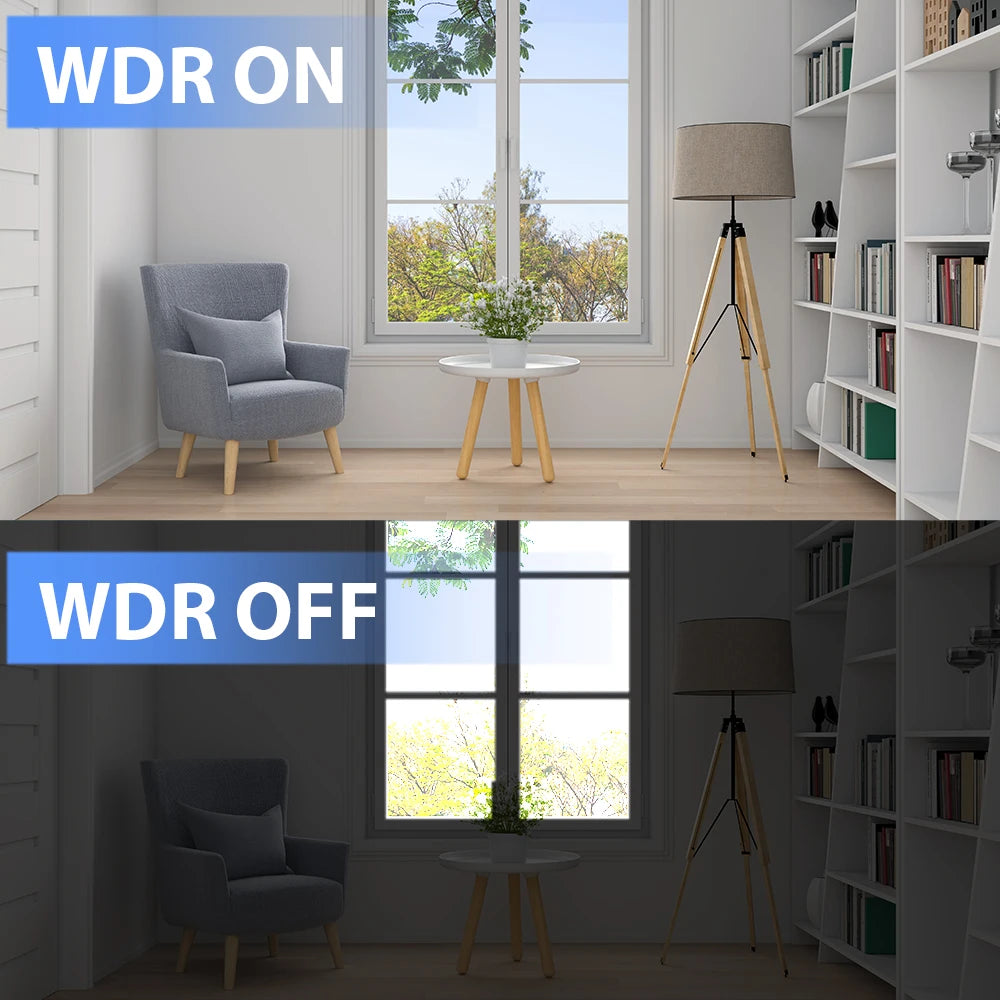

WDR: Balancing details in scenes with strong contrasts between light and dark.Your security camera with WDR technology can balance the details of light and dark areas in the camera's image, making the overall surveillance image clearer.
Connectable to Third Party Recorders
As all the VIKYLIN security camera system supports ONVIF protocol, it`s connectable to third party video recorders. In order to give full play to the functional advantages of the camera, we more recommend you to use Hikvision recorder or VIKYLIN recorder!

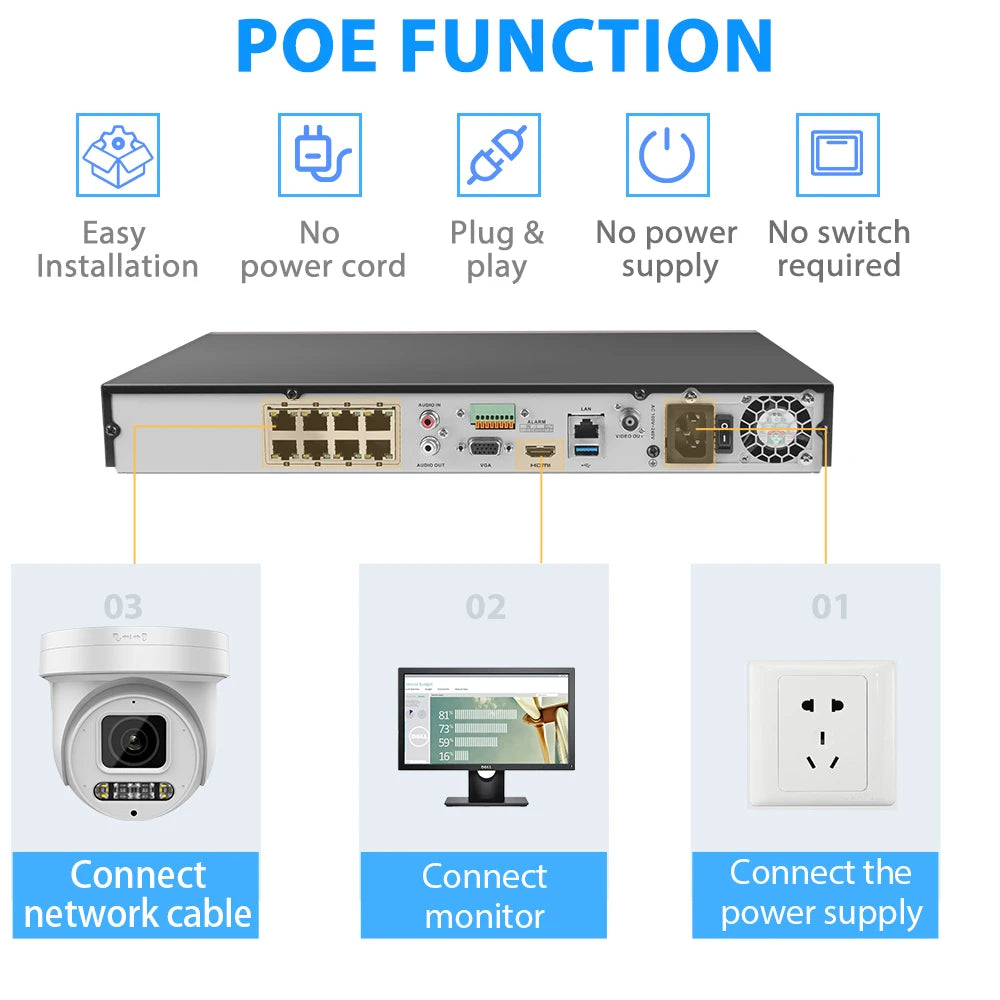

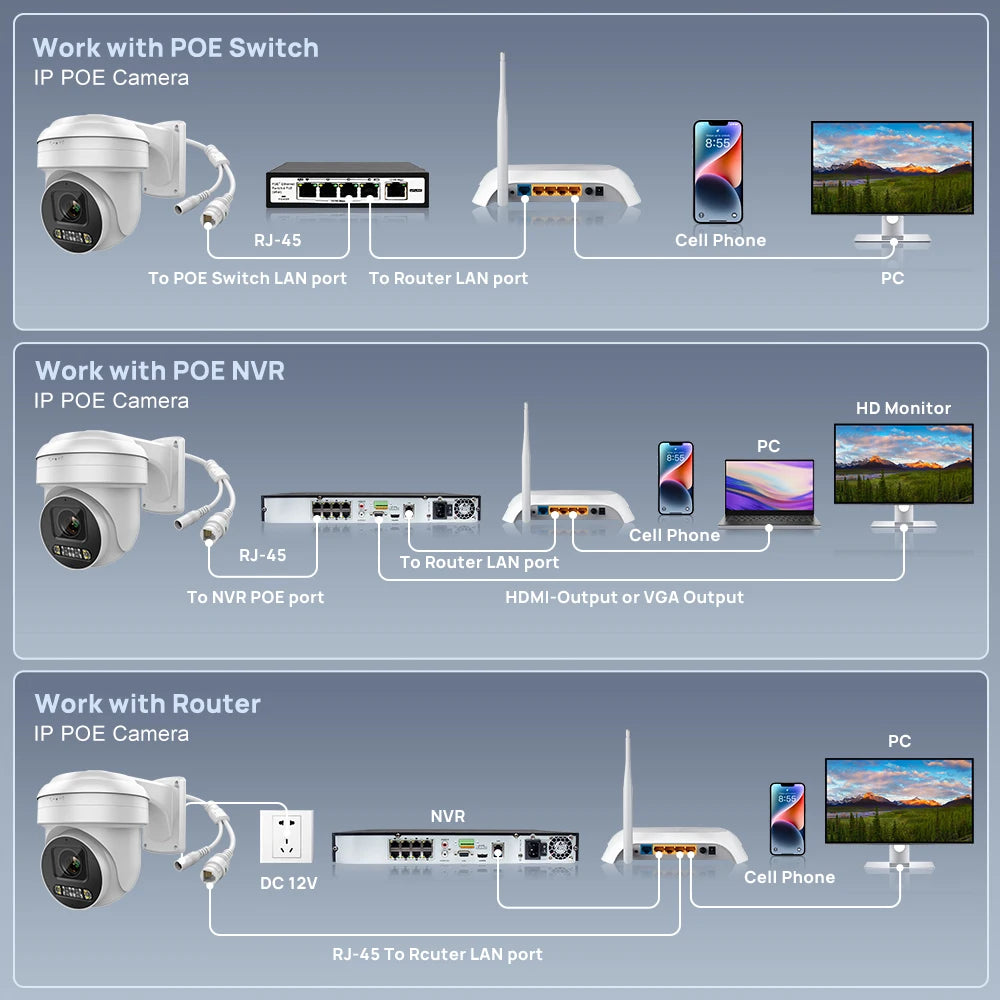

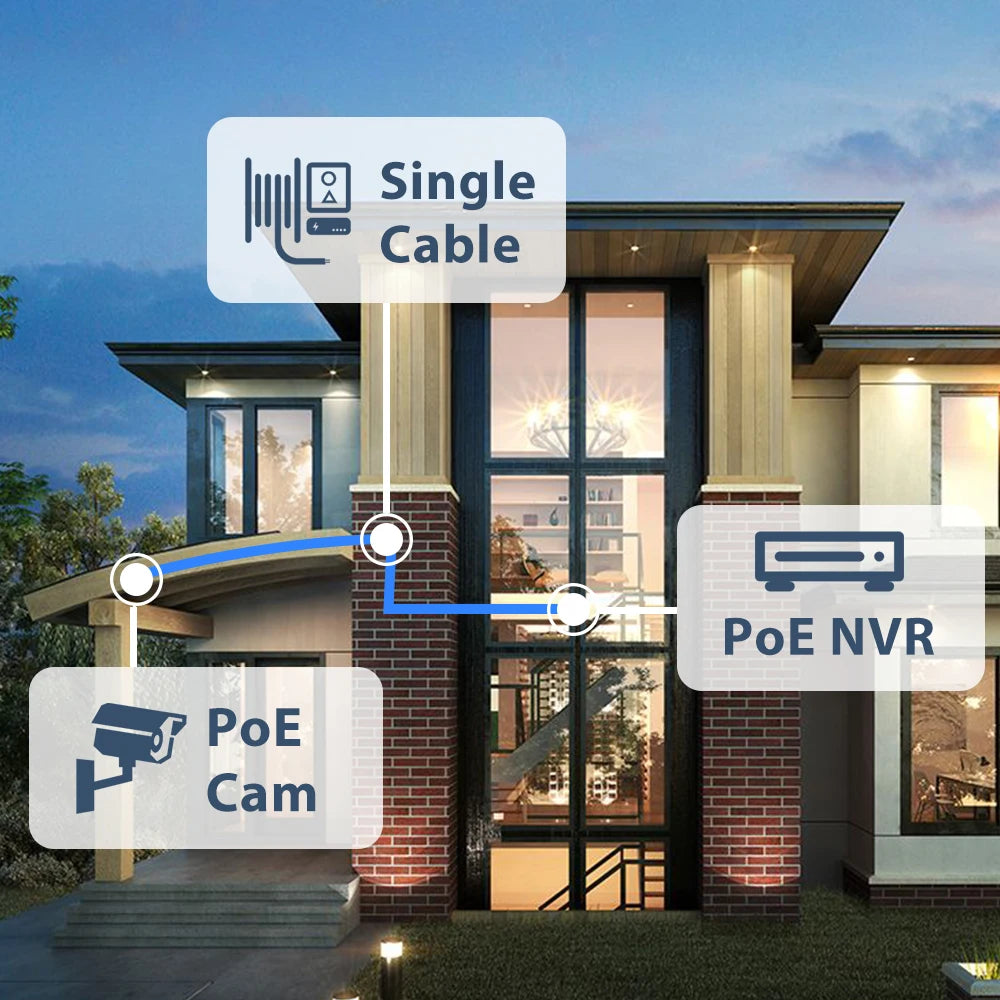

POE-Easy Setup, Even for a Beginner
(A real plug and play security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners)

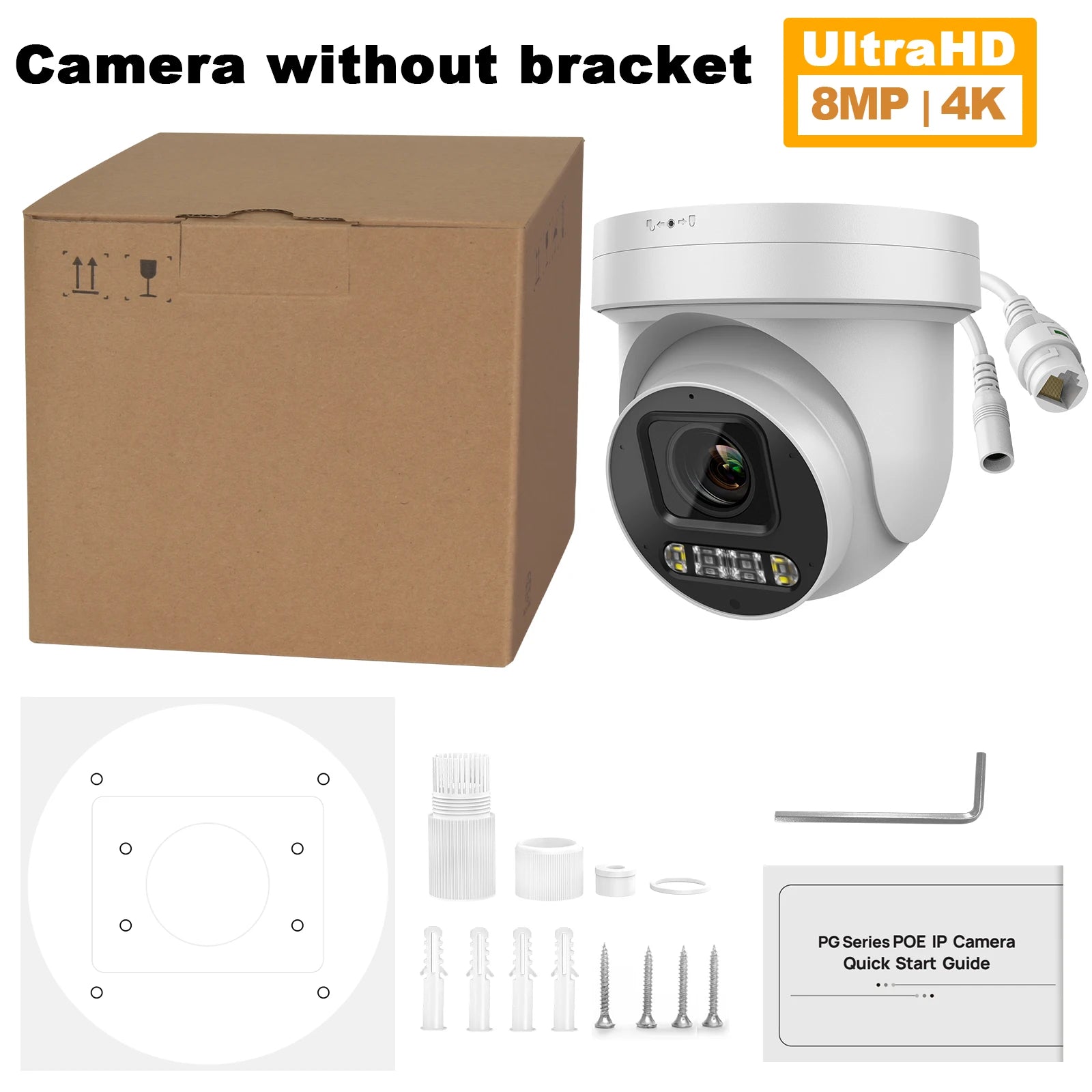

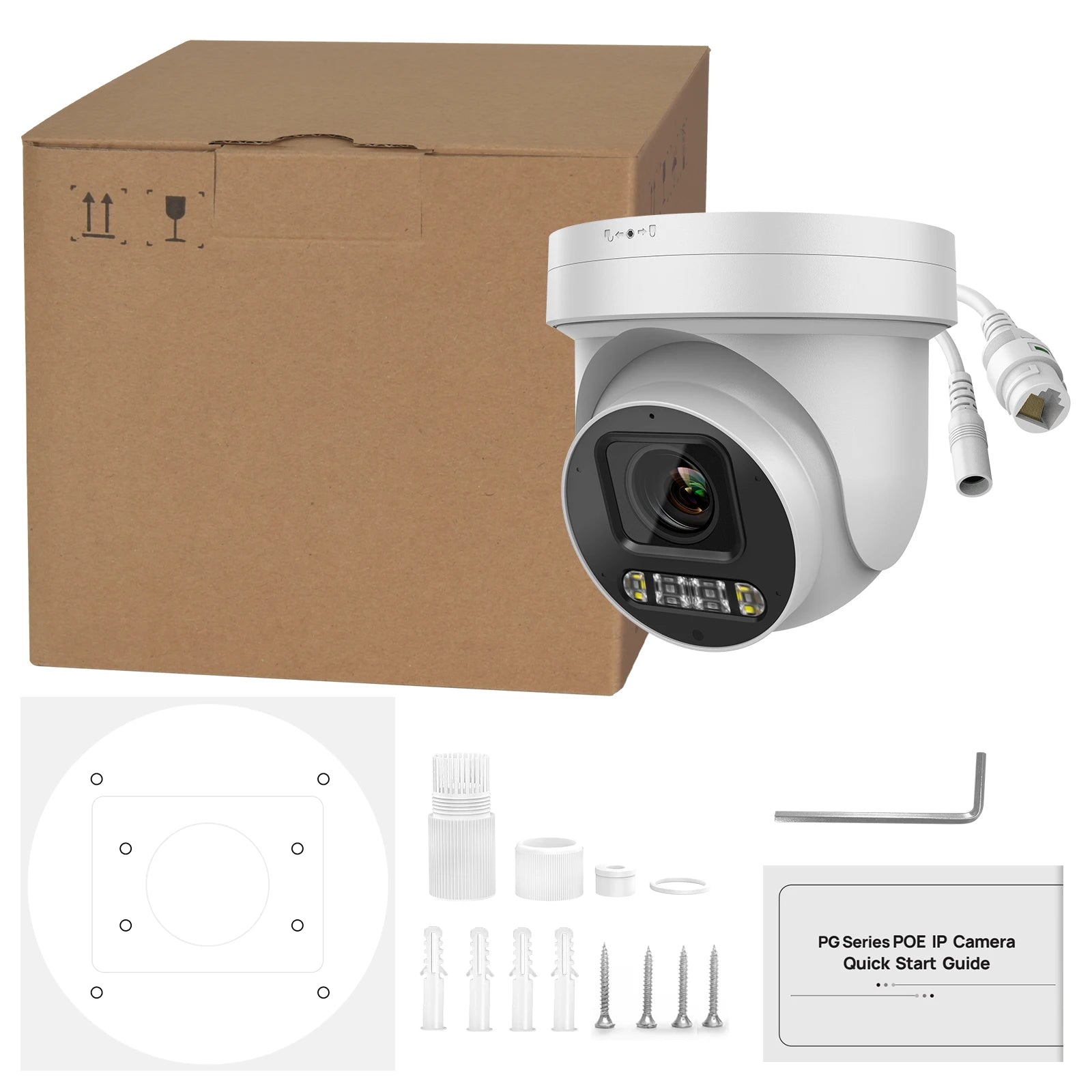

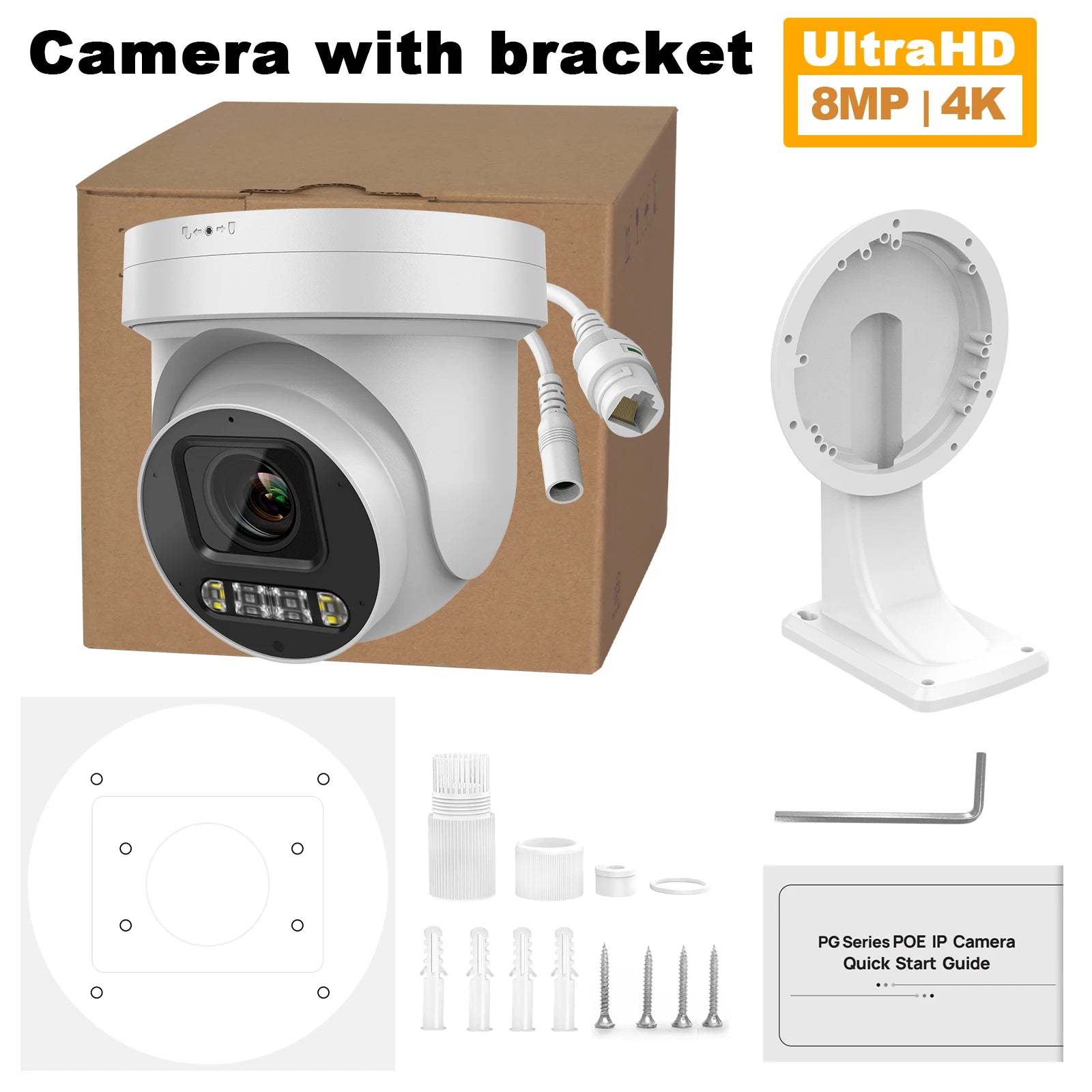

Package
Camera*1
Mounting Locator Sticker* 1
Mounting Screws*1
Cable Waterproof Sleeve*1
Wrench*1
Instruction Manual*1
Mounting Bracket (optional)

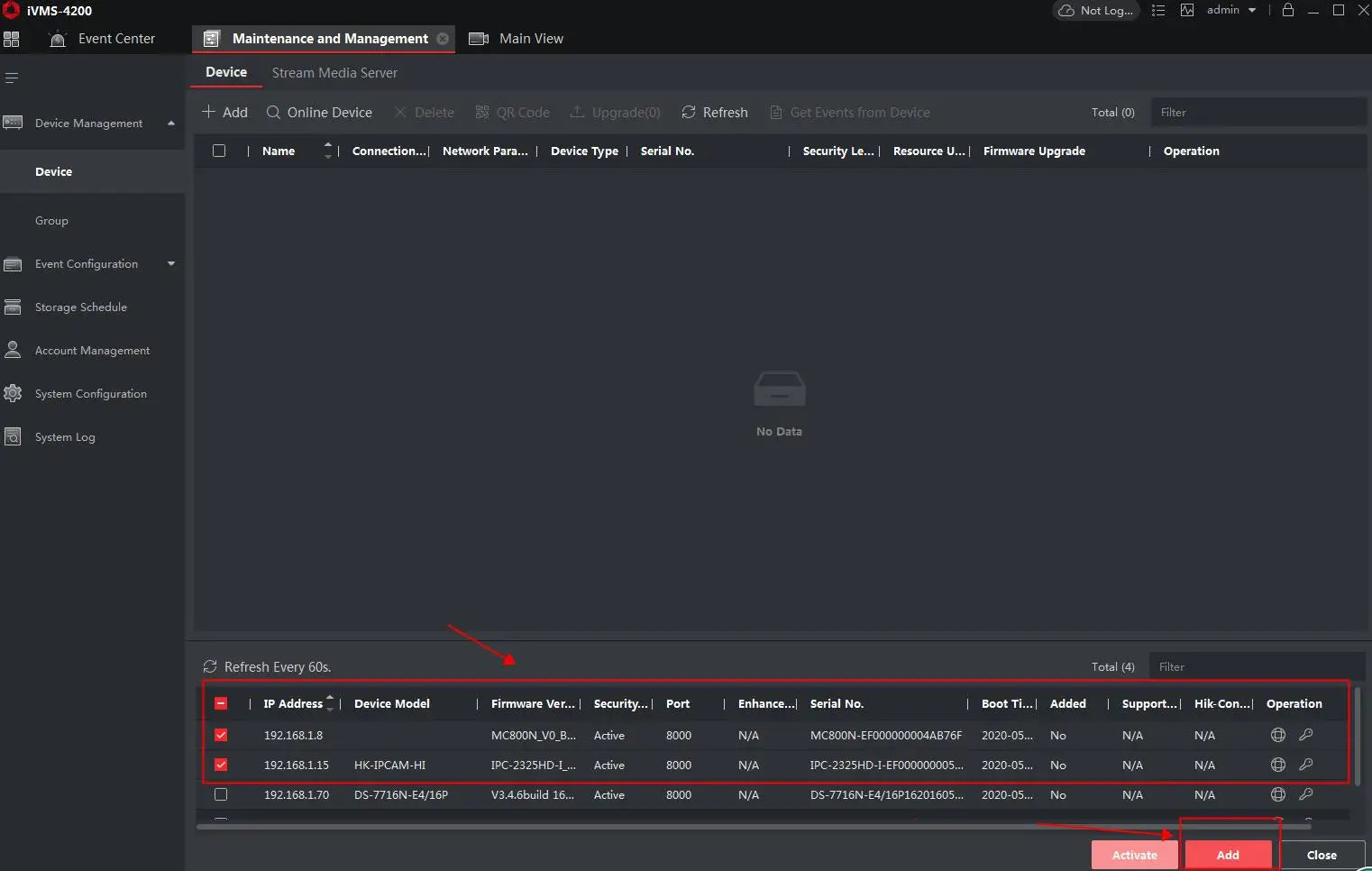

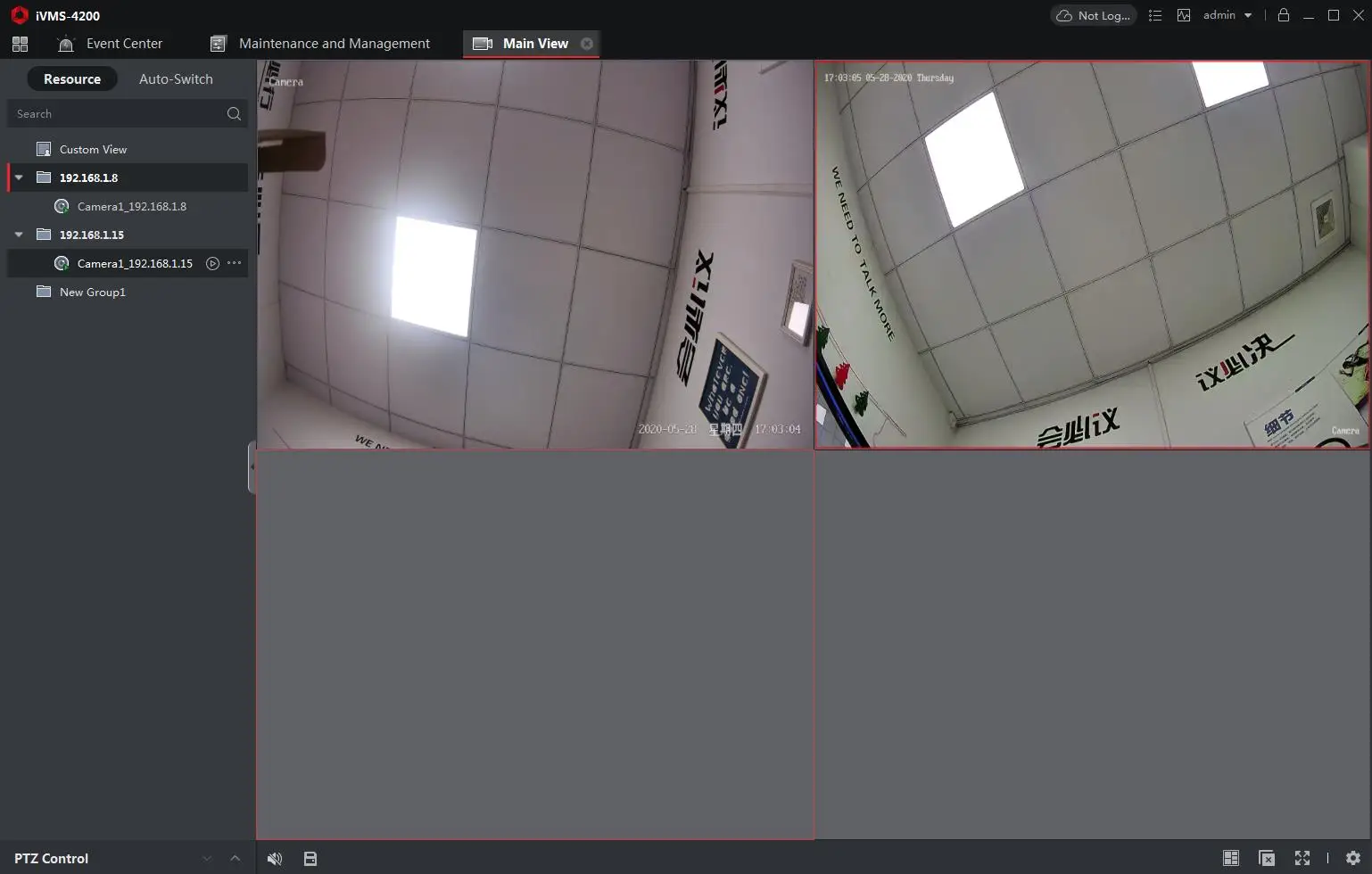

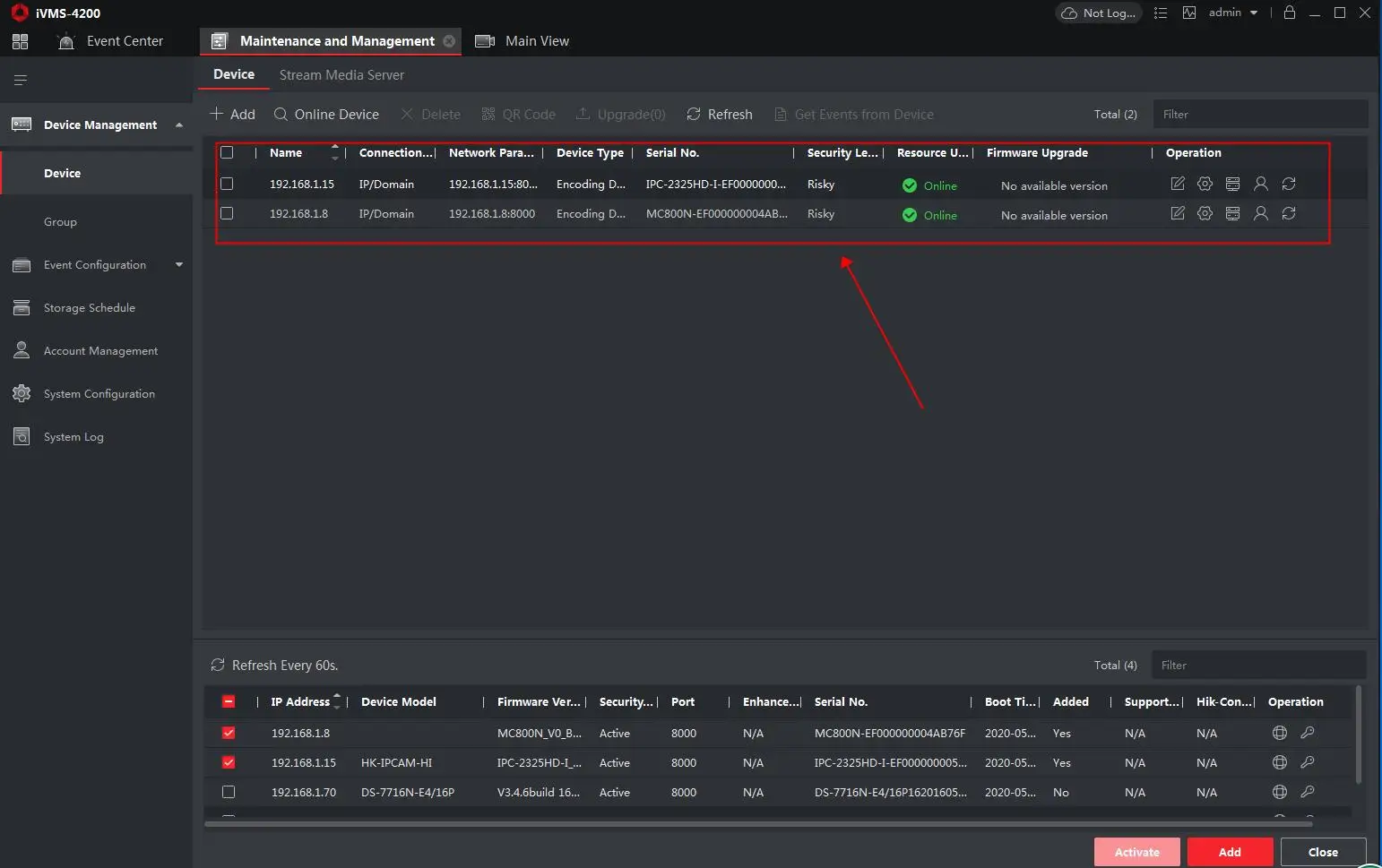

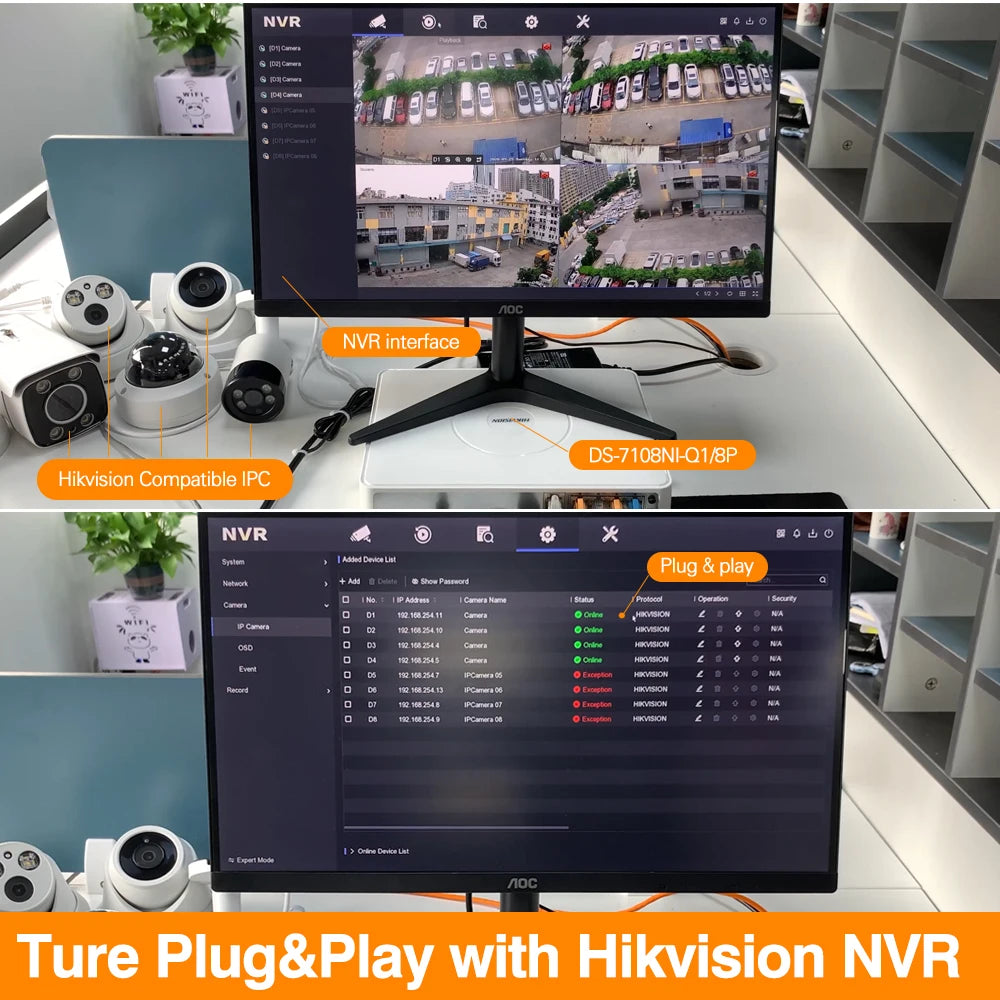

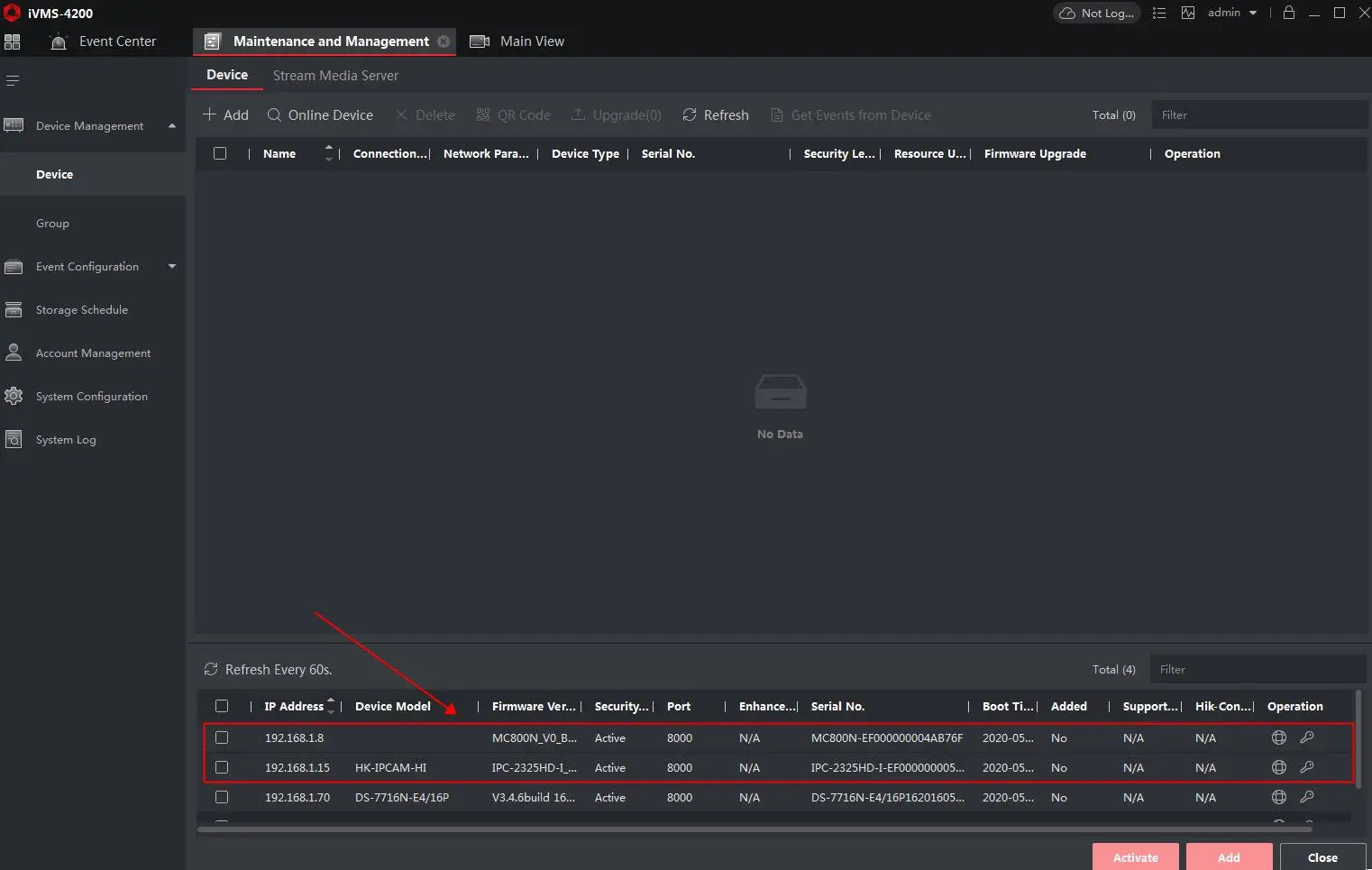

Support P2P, Plug & Play with Hikvision NVR- Hikvision Client iVMS-4200 supported
(Multi web browser, PC Client, mobile APP remote access)

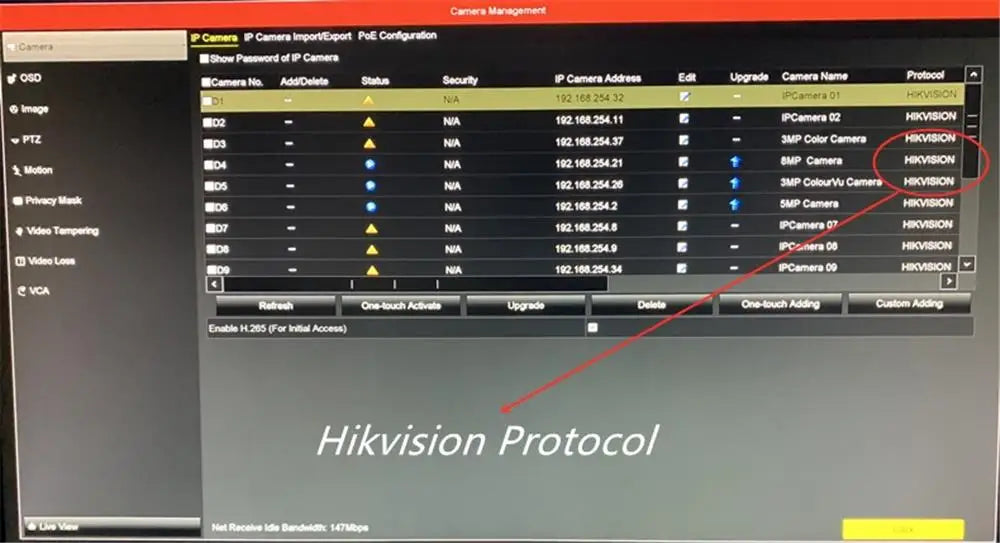

(Featured with Hikvision Private Protocol, this camera is able to Plug & Play with Hikvision NVR. Easy to use even for beginner)

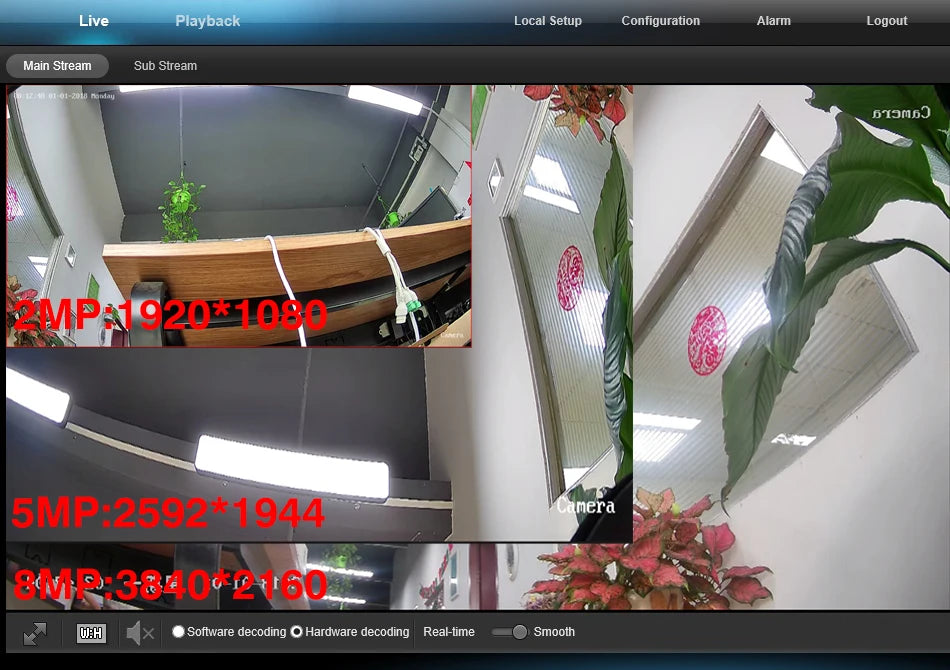

PC Client
2. What is the camera's password? If I forget the password, how do I reset it? The default user name of the camera is admin and the password is 123456. If you forget your password, you can reset it by clicking on the corresponding camera's factory settings in the SettingTool.
3.Which app should I use to view my camera? How do I add a camera? The mobile client of the camera is Remoteyes APP and you can add the camera by scanning the QR code after turning on P2P on the web side of the camera.
4. Why the NVR does not display images after adding IP cameras? 1. Please select the correct protocol and enter the correct user name and password when adding the camera.2. Make sure the NVR and IP camera are on the same IP subnet (e.g. NVR:192.168.1 .x, IP camera:192.168.1.y).3. If the NVR does not support H.265, please try to change the camera encoding mode to H.264.
