SPECIFICATIONS

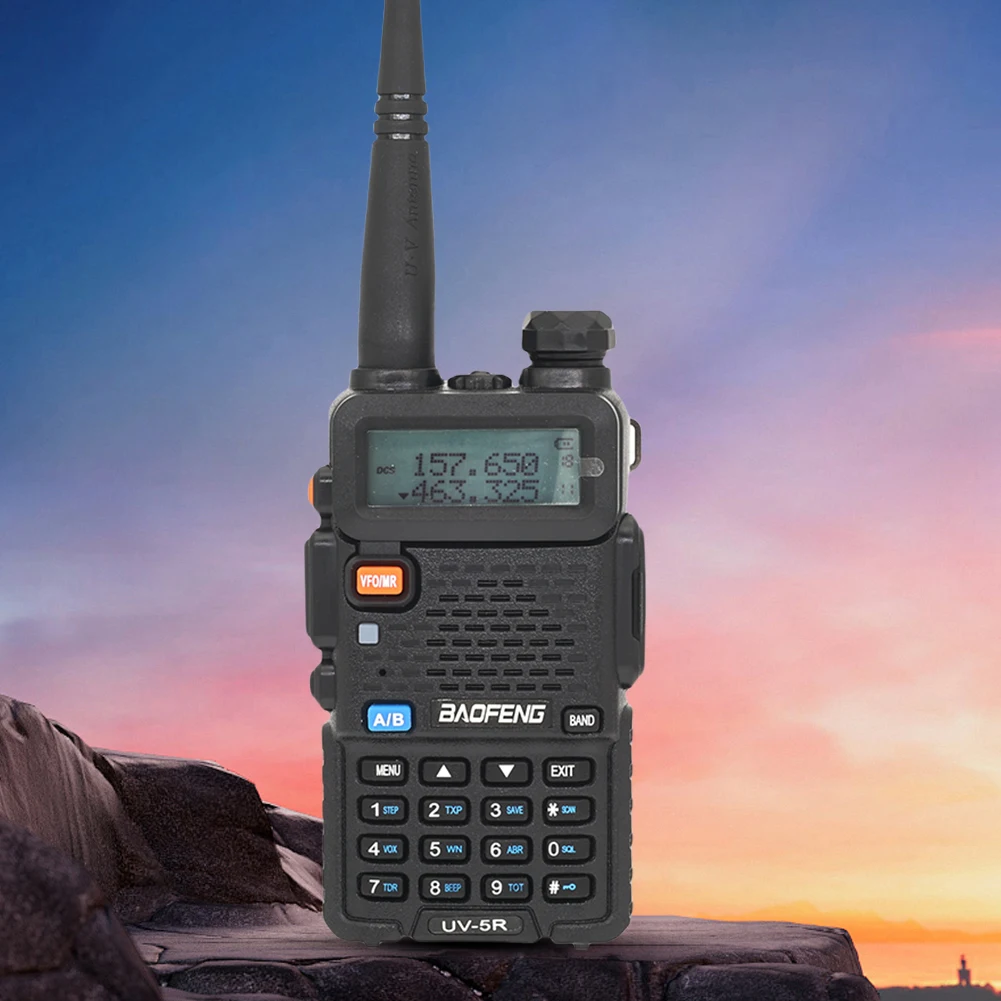

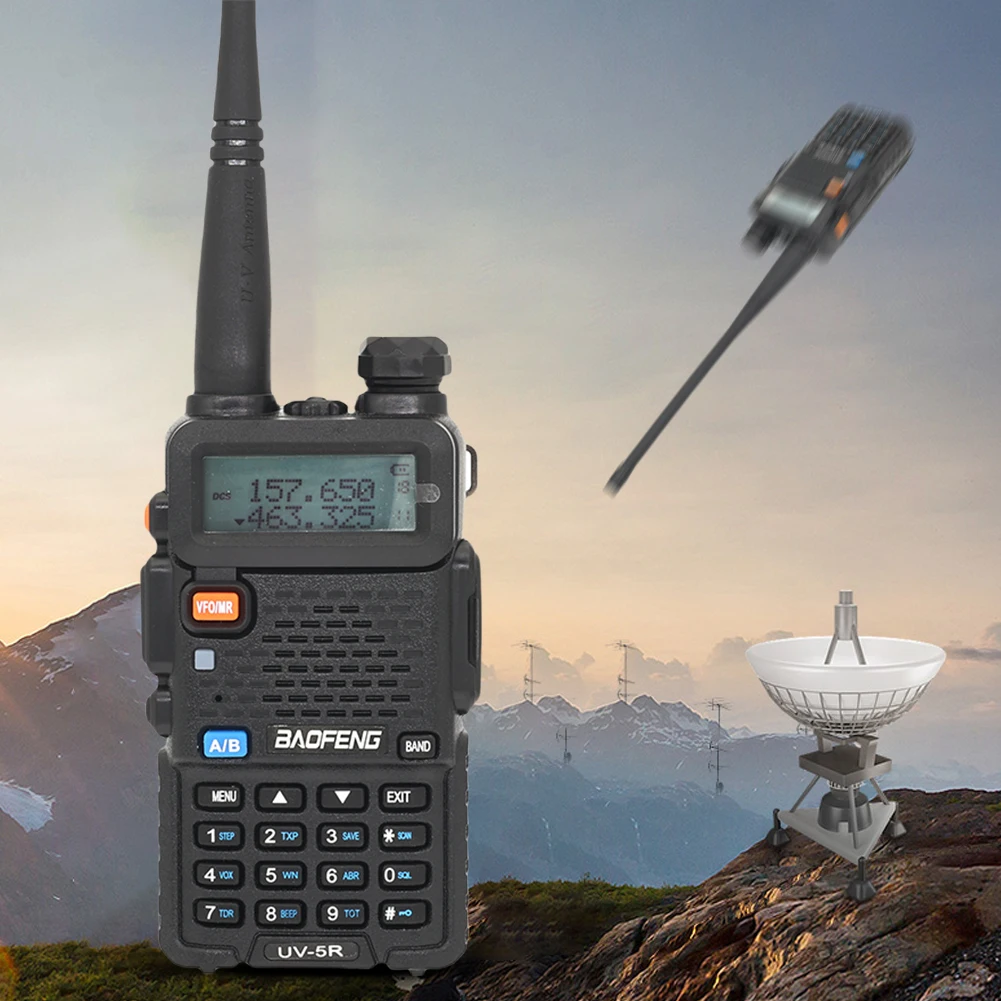

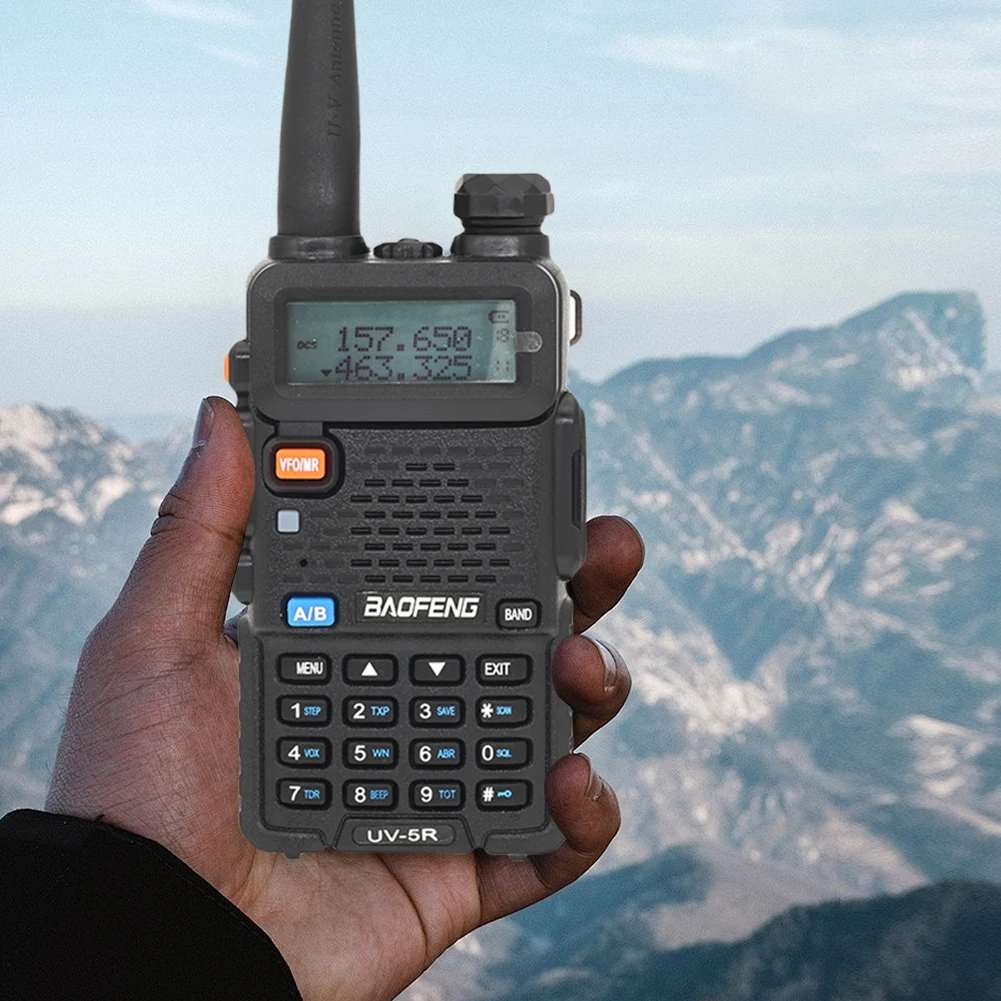

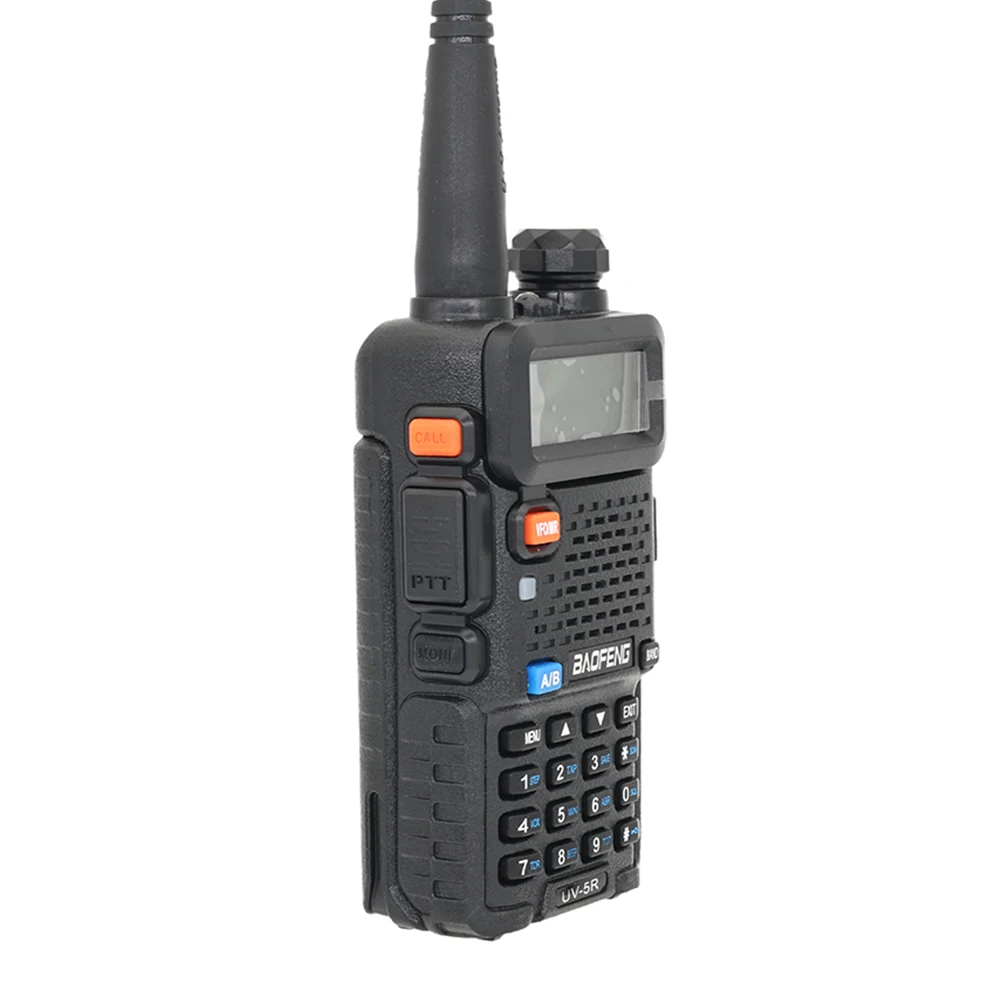

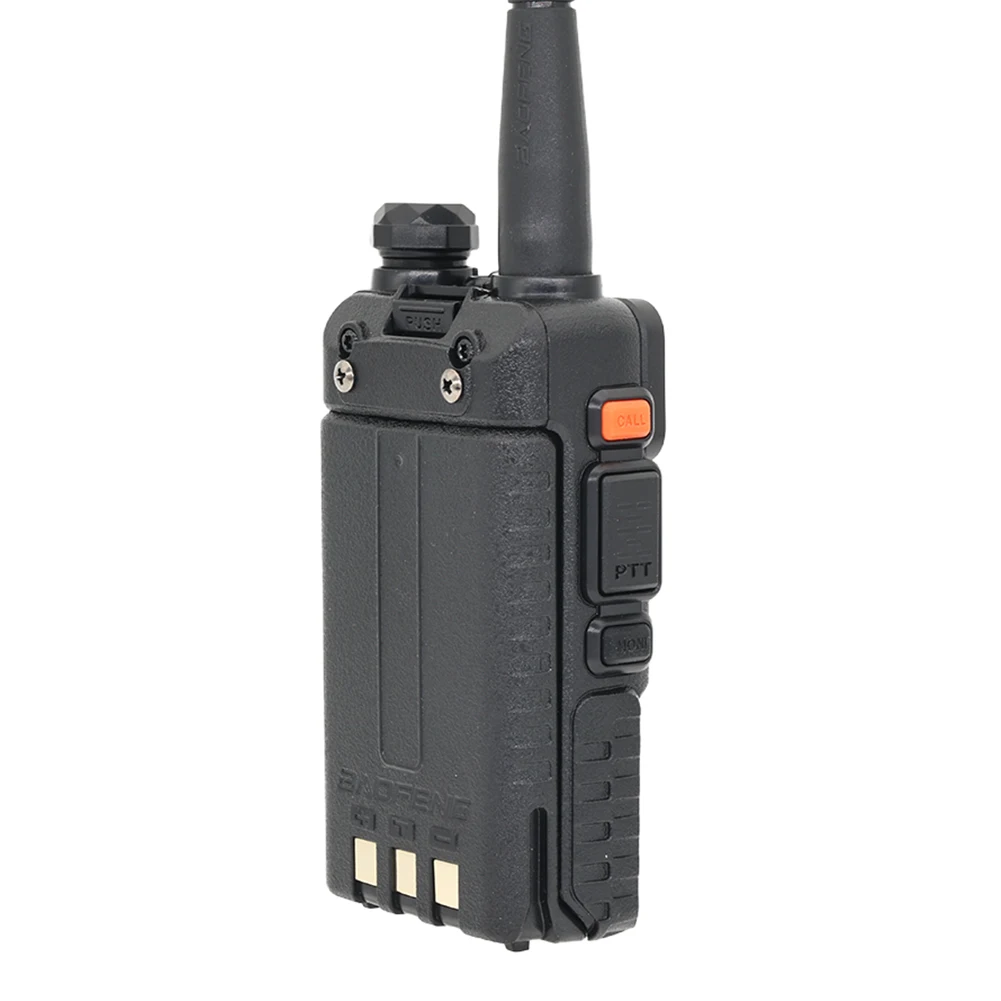

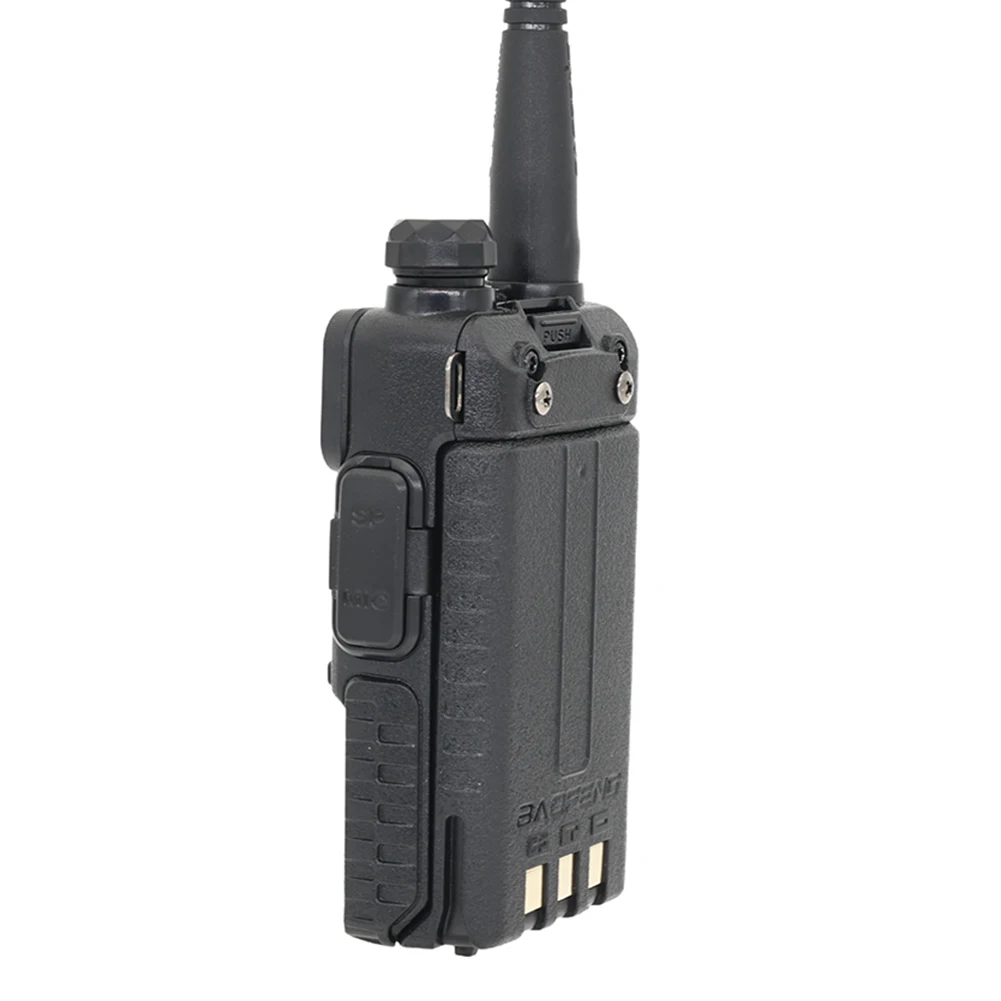

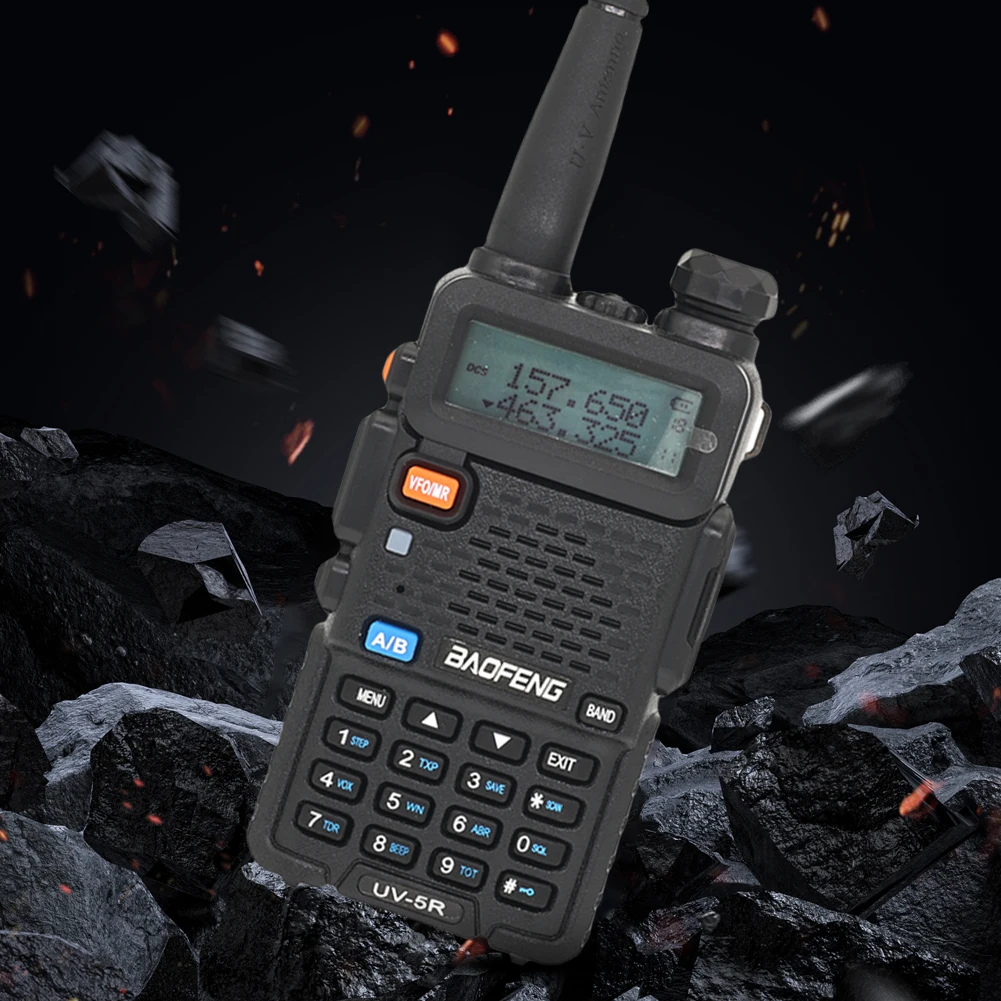

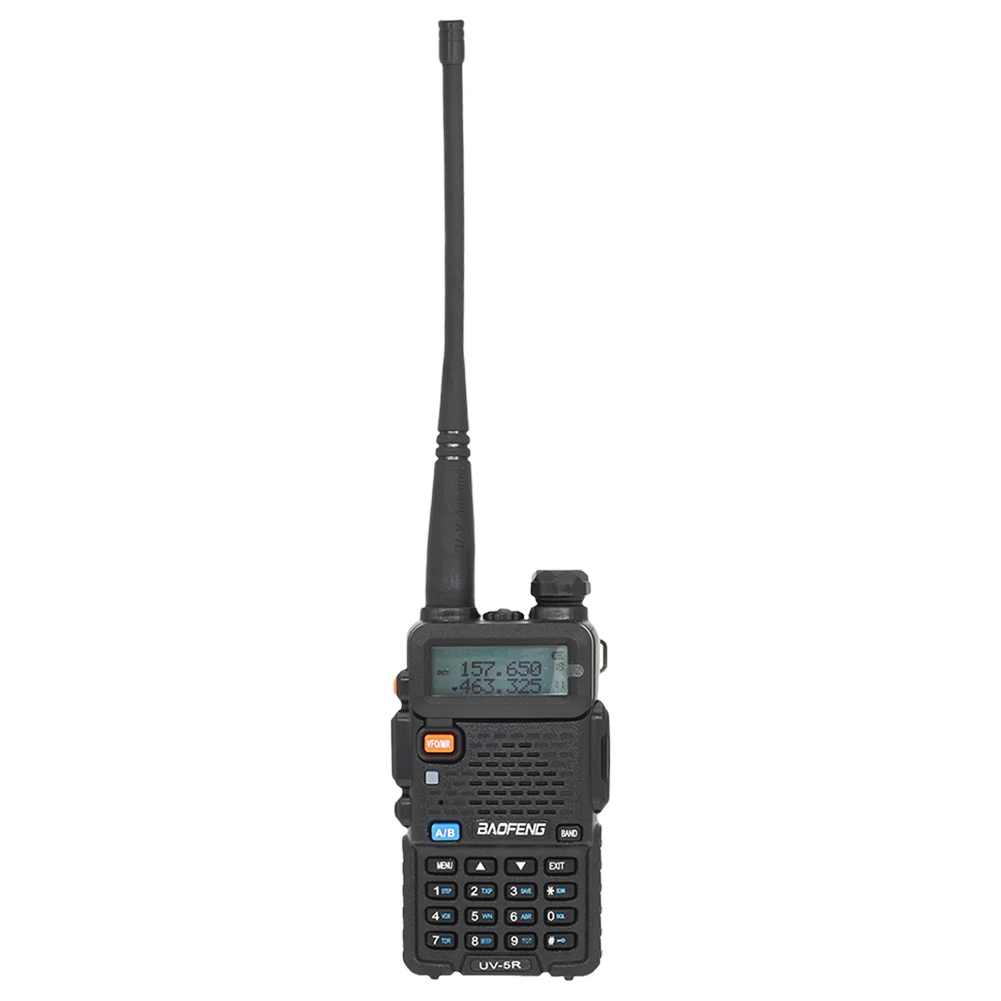

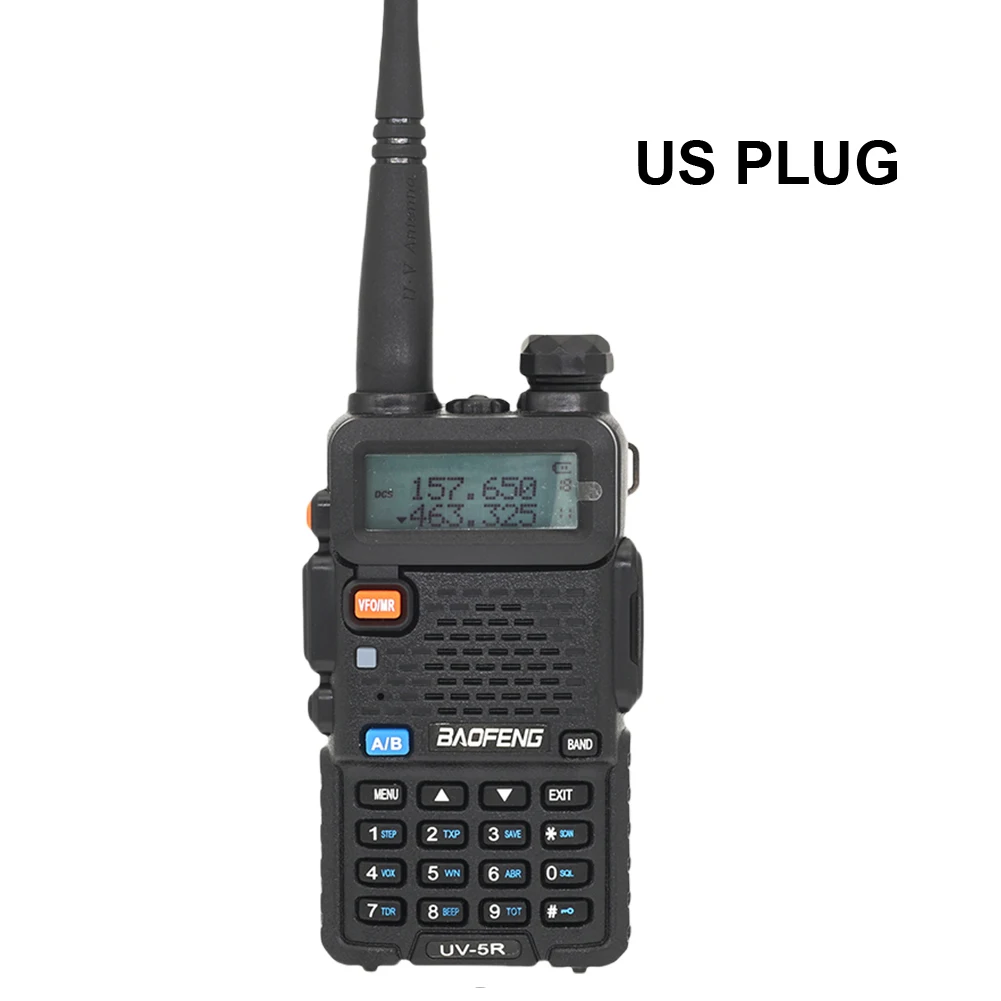

UV-5R Handheld Walkie Talkie VHF/UHF 136-174MHz & 400-520MHz 5W Dual Band Two Way Radio Handheld UHF/VHF Radio
Feature:
1. Versatile Communication: The Handheld Walkie Talkie offers 128 channels with 50 CTCSS and 104 CDCSS codes, ensuring secure and versatile communication. Built-in VOX functionality allows hands-free operation, ideal for busy environments.
2. Dual Band Flexibility: This Dual Band Two Way Radio supports both UHF/VHF frequencies with switchable high/low RF power, and selectable bandwidths of 25KHz/12.5KHz, providing adaptability for various communication needs and environments.
3. Enhanced Features: The Long Range Ham Radios include a 1750Hz tone burst for repeater access, an FM radio (65.0MHz-108.0MHz), and a flashlight, making it a multifunctional tool for both communication and entertainment.
4. User-Friendly Design: Equipped with a large LCD display, the Handheld UHF/VHF Radio allows easy navigation through features like emergency alerts, low battery alerts, and battery saver mode. The keypad lock and channel monitor enhance usability and security.
5. Reliable Performance: The 2 Way Radio features channel stepping options of 2.5/5/6.25/10/12.5/25KHz and a timeout timer to prevent accidental transmissions, ensuring efficient and reliable operation in various scenarios.



Specification:
Origin: Mainland China
Rated voltage: 7.4V DC±10%
Output power: <=5W
Channel: 128CH
Battery type: Li-ion battery
Battery capacity: 2800mAh
Operating temperature: -20-+50°C
Antenna impedance: 50 ohms

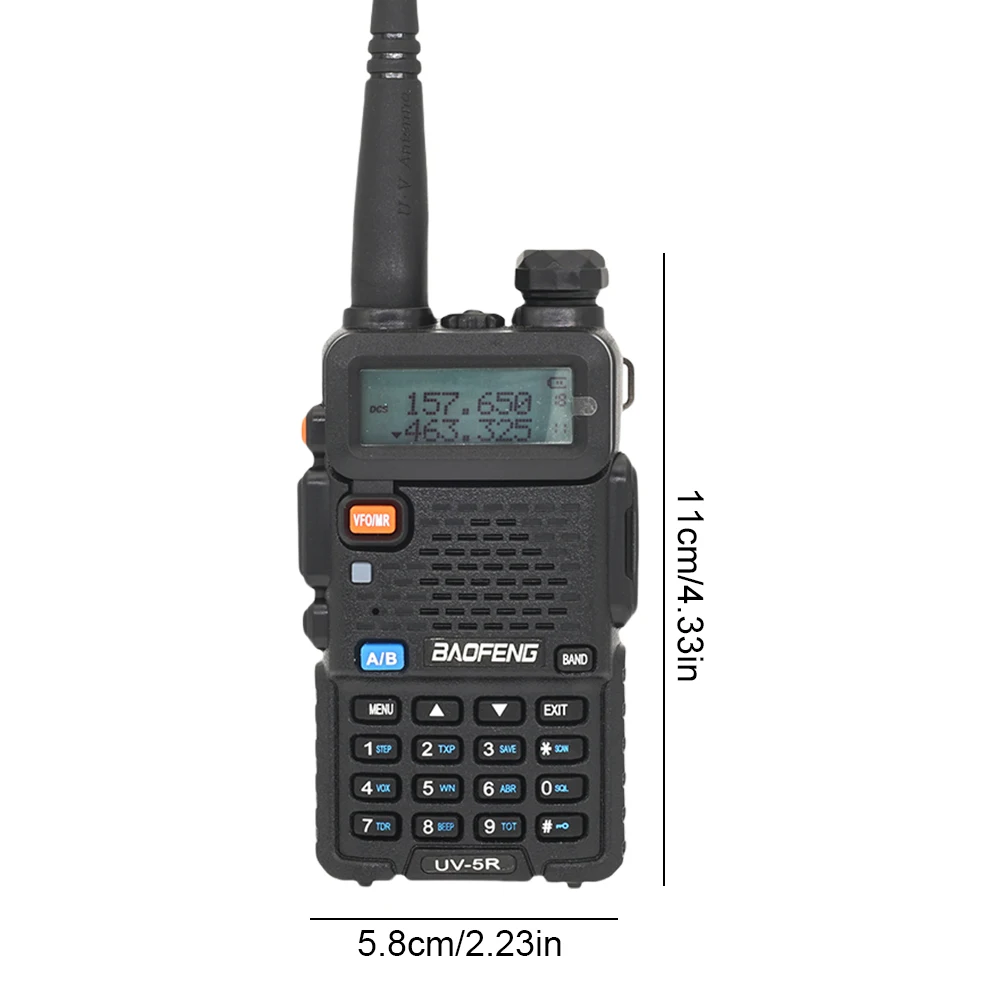

Dimensions (LxWxH): 110x58x32mm (non-antenna)
Frequency range: UHF: 400-520MHz + VHF: 136-174MHz
Frequency stability: ±2.5ppm
Carrier tolerance: 5ppm
Modulation mode: 16k F3E/11k F3
Maximum frequency deviation: <5kHz (wide) <2.5kHz (narrow)
Modulation characteristics: 6dB per octave
Transmitting current: <1.6A (5W)
CTCSS/DCS: 0.5±0.1kHz (wide) 0.3±0.1kHz
Sensitivity: <0.16uV (12dB SINAD)
Noiseless sensitivity: <0.2uV
Intermediate distortion: <10%
Intermodulation: 60dB
Audio output: 1000mW
Adjacent channel selectivity (wide/narrow): <-65dB (wide) <-60dB (narrow)
Packaging size: 180.00x110.00x100.00mm/7.09x4.33x3.94inch
