SPECIFICATIONS
Brand Name: wishiot
CN: Guangdong
Choice: yes
Hign-concerned Chemical: None
Is Electric: Lithium Battery
Item Type: Toy Phones
Material: Plastic
Model Number: FZ4523
Origin: Mainland China
Product Name: Recordable Sound Module Kit
RAM: 8M
Recommend Age: 14+y
Work for: for DIY Music Greeting Card Holiday Gifts
semi_Choice: yes
Recordable Sound Module 8M MP3 WAV Music Voice Player Programmable Board with Speaker Button Control for DIY Music Box Greeting Card
Description:

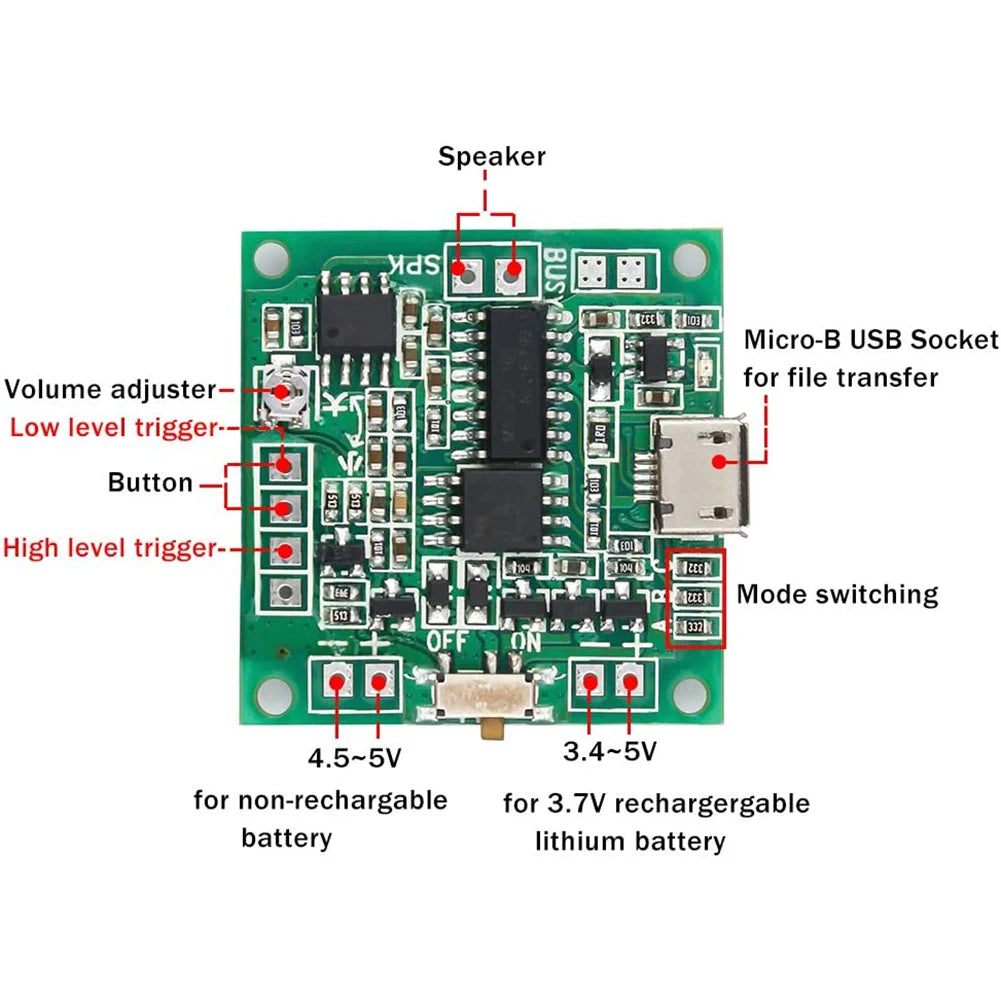

Power Supply Voltage:4.5-5V or 3.7V lithium battery
RAM:8M
Output:0.5-1W
Control mode:button / TTL

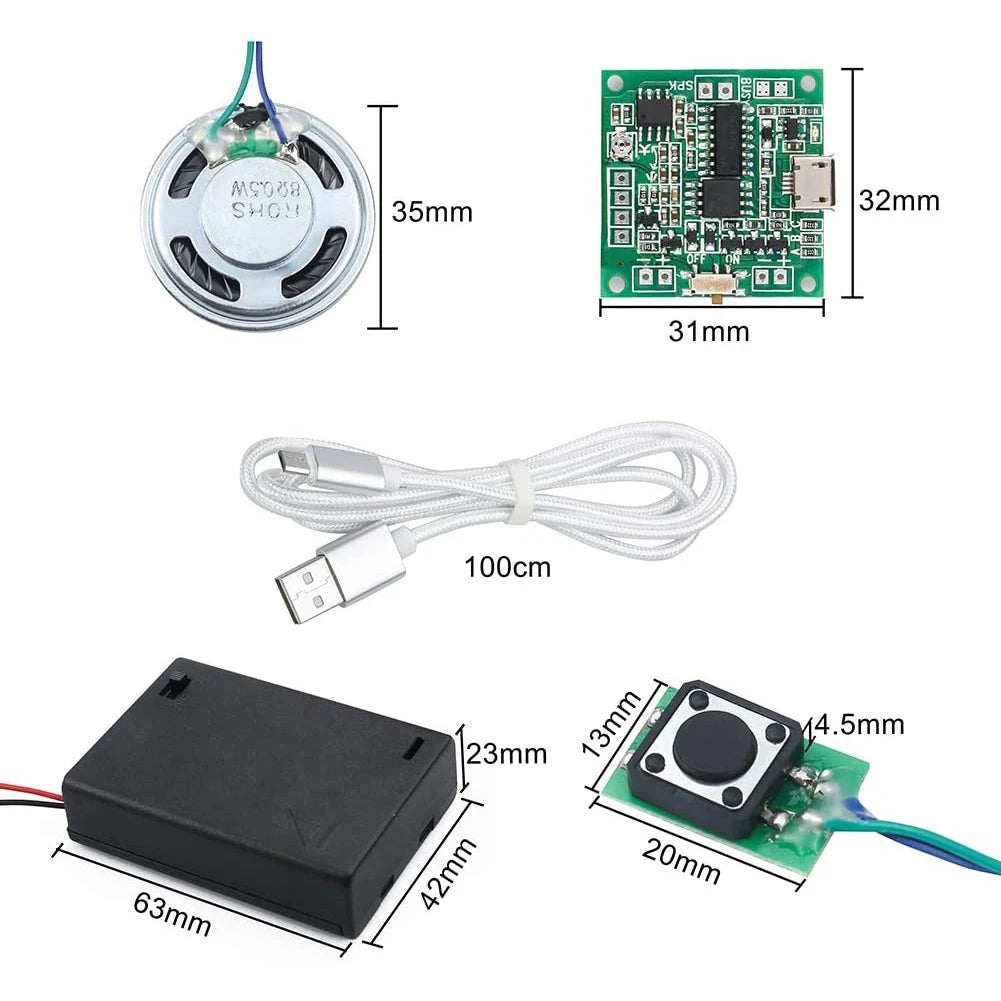

Board Size:30*30mm Speaker Size:D36mm
Feature:
PERFECT CREATIVE GIFT: It is ideal to make a DIY music box, musical greeting cards, photo frames, album, gift box and the other creative gifts for Mother's Day, Valentine's Day, Christmas.
8M MEMORY: Connect with your computer by a micro USB data cable. It is recognized by computer as a USB drive, just like a MP3 player, and you're free to add any MP3/WAV audio file to the internal 8M storage.
EASY TO PLAY WITH BUTTON: Install it in your project/gift, and then push the button. Your music which you put in it will be played once and automatically stop when the song finishes.

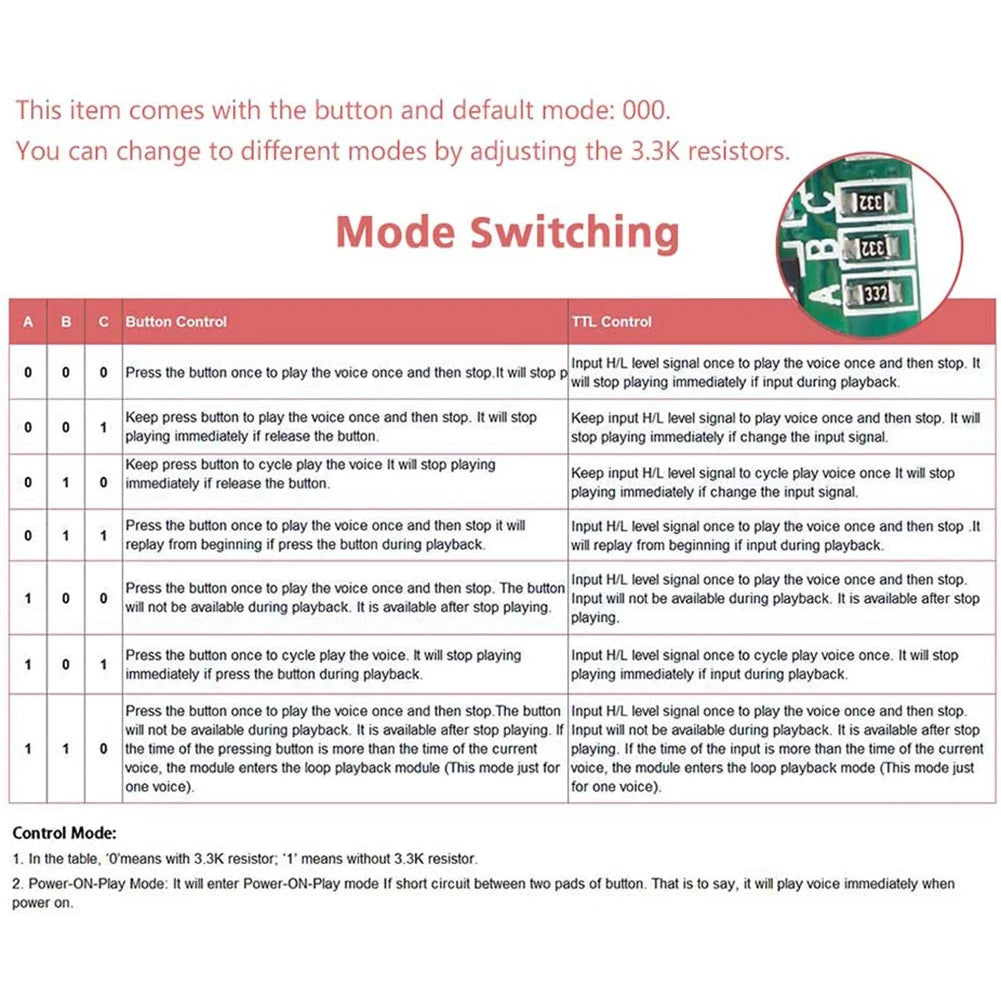

PROGRAMMABLE SOUND MODULE: Provide more possibilities to develop a module completely fit for your own project. You can select different trigger mode (button/TTL trigger) by connecting with different soldering pads.
Package Includes:

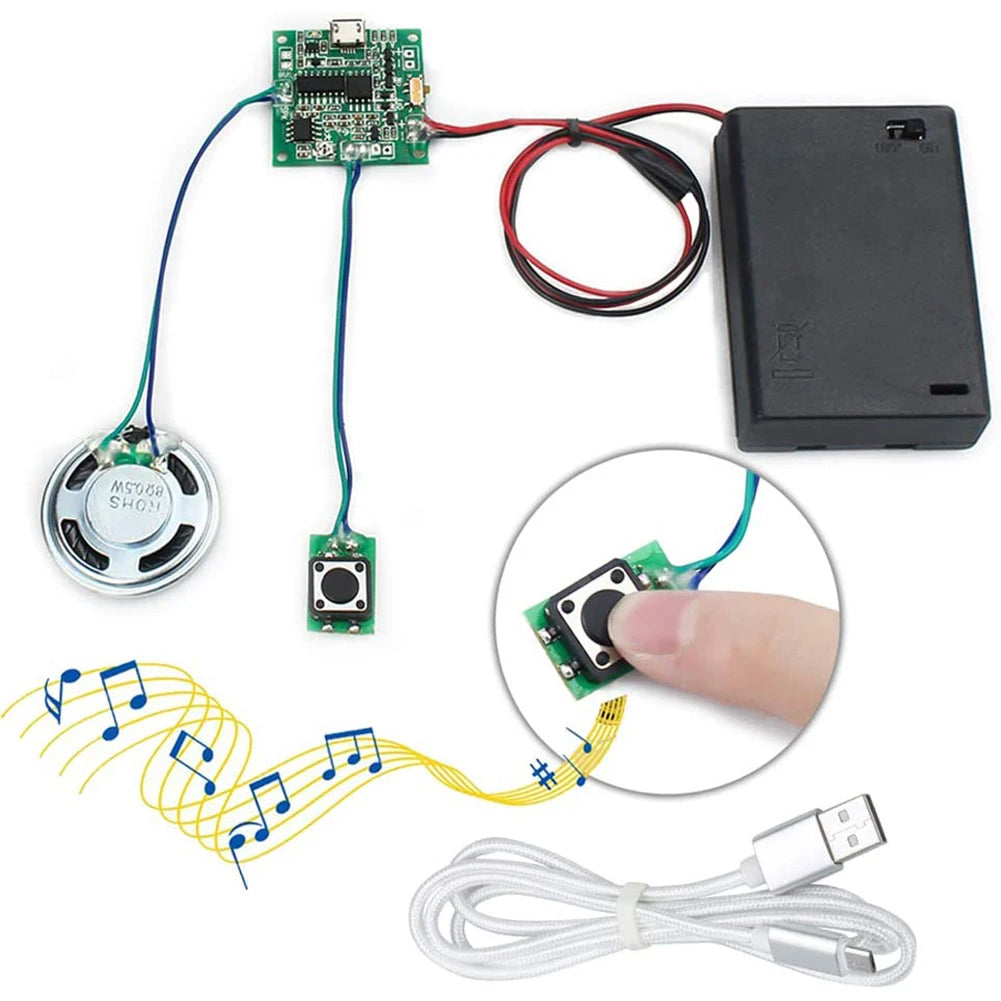

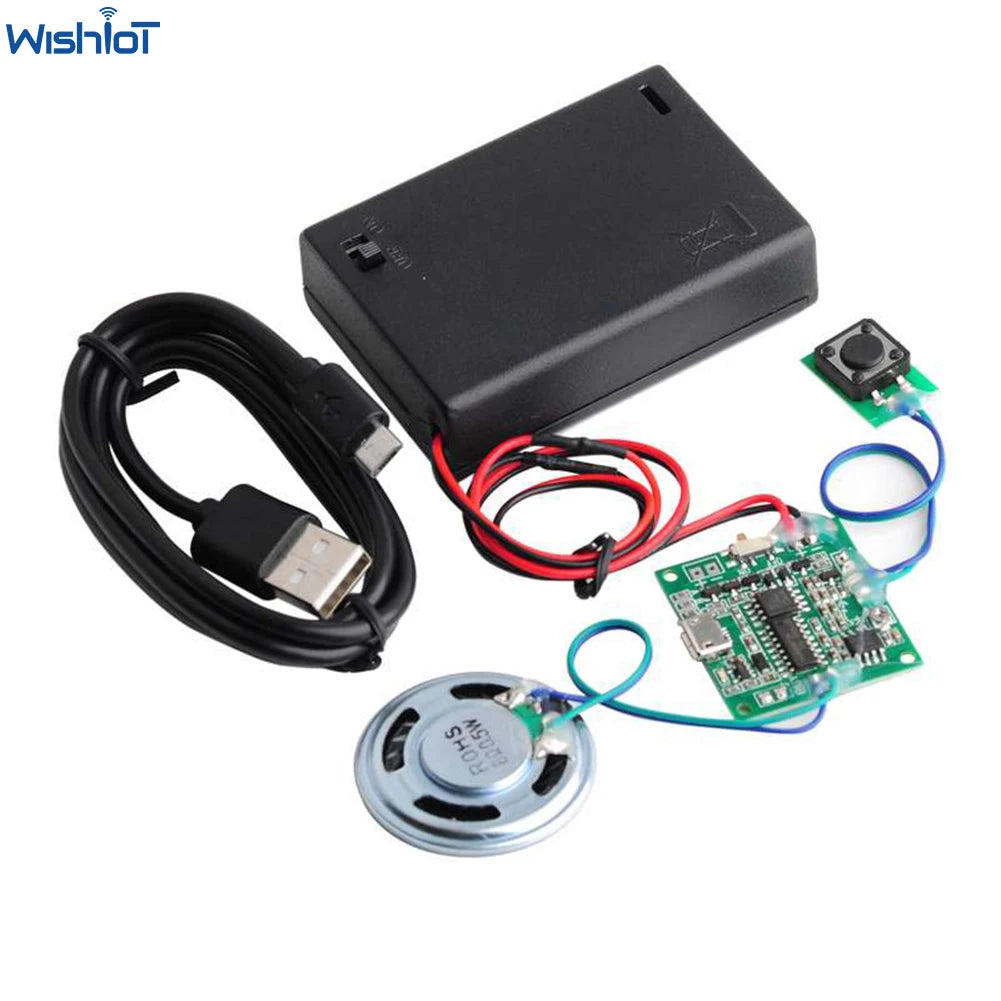

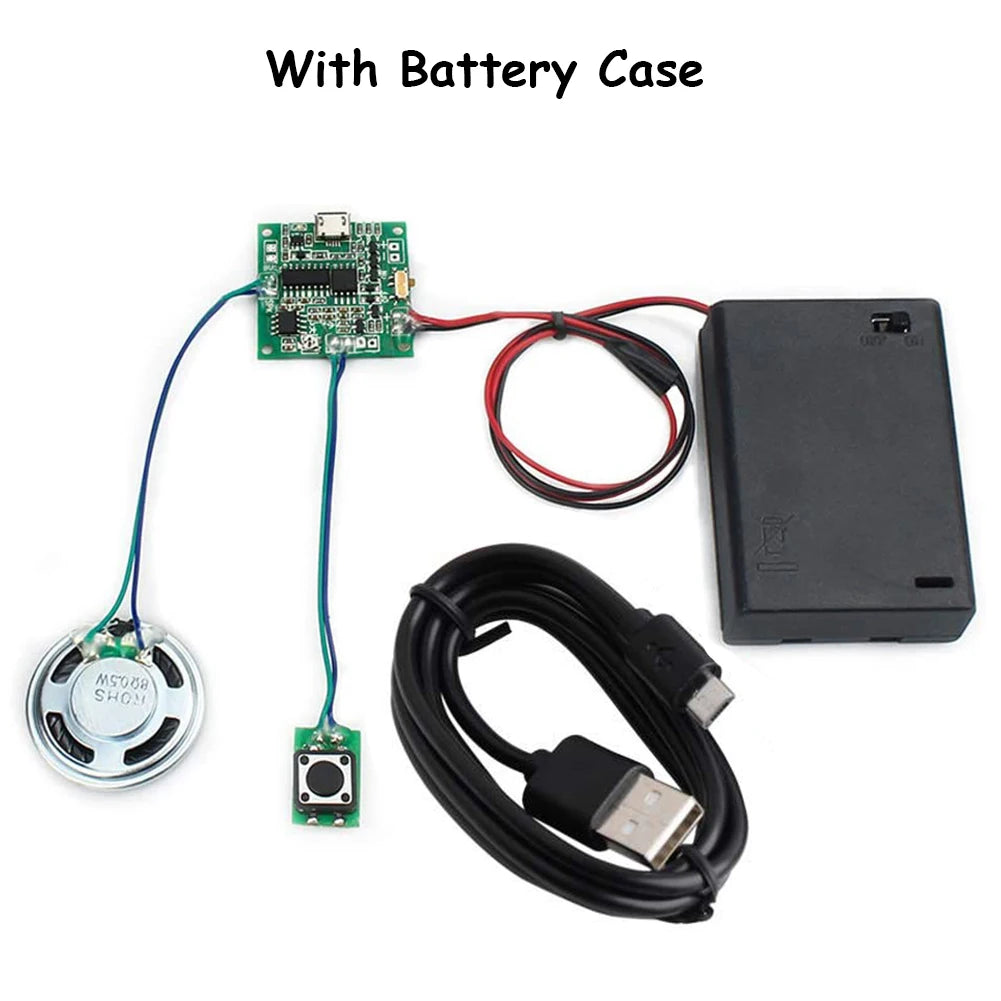

Bundle 1
1 X Recordable Sound Module

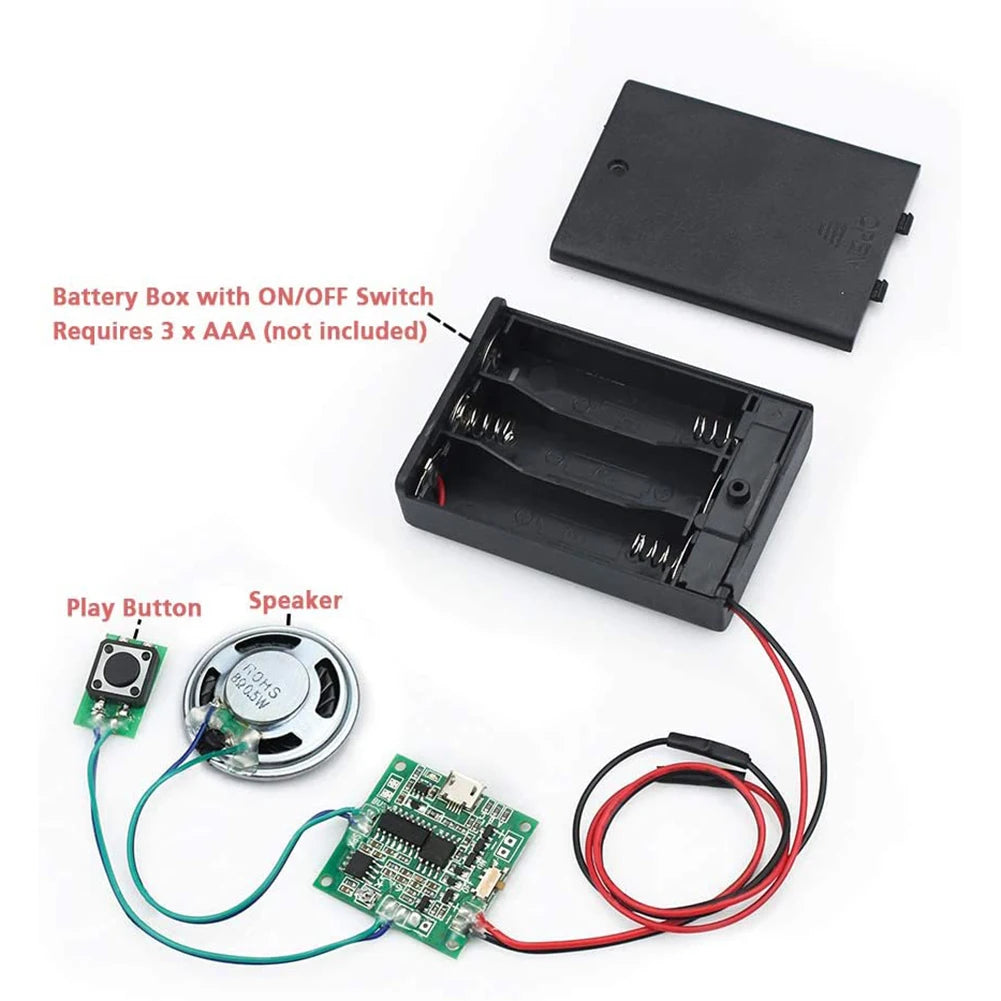

1 X Battery Case
1 X USB Cable

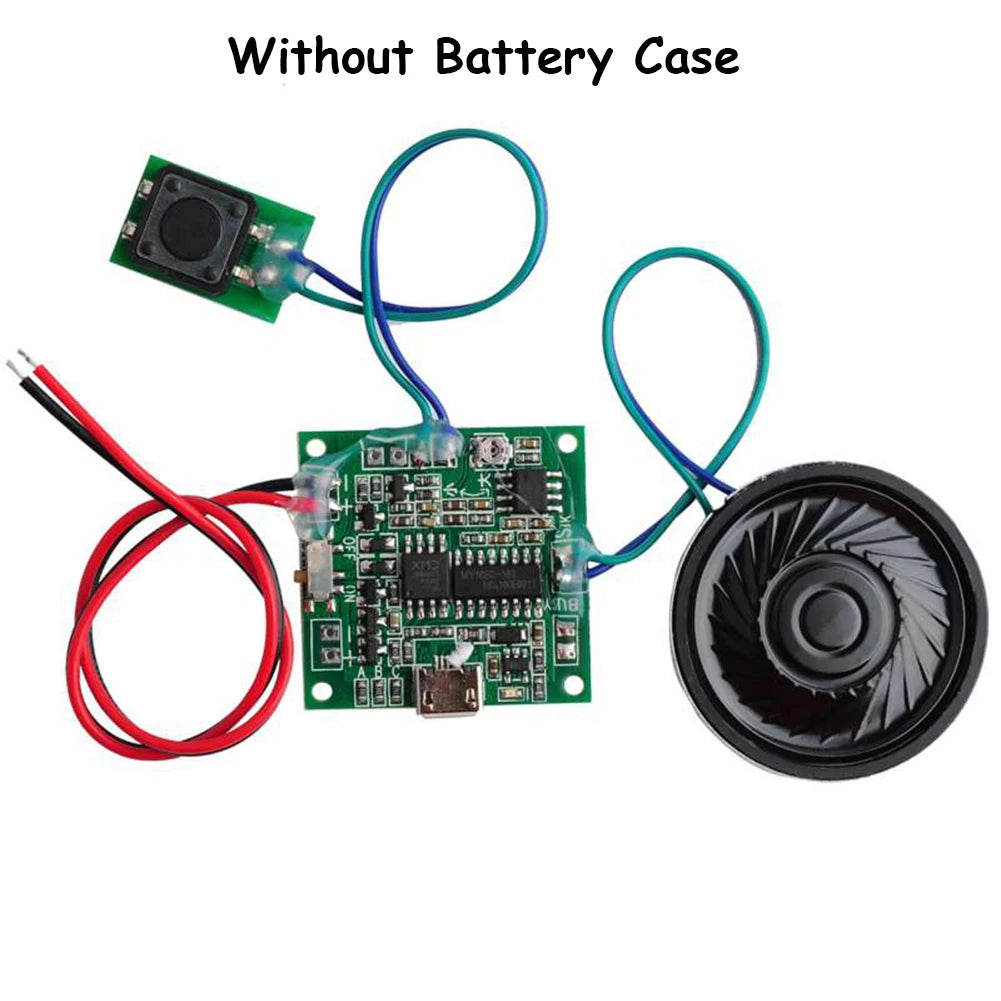

Bundle 2 Without Battery Case

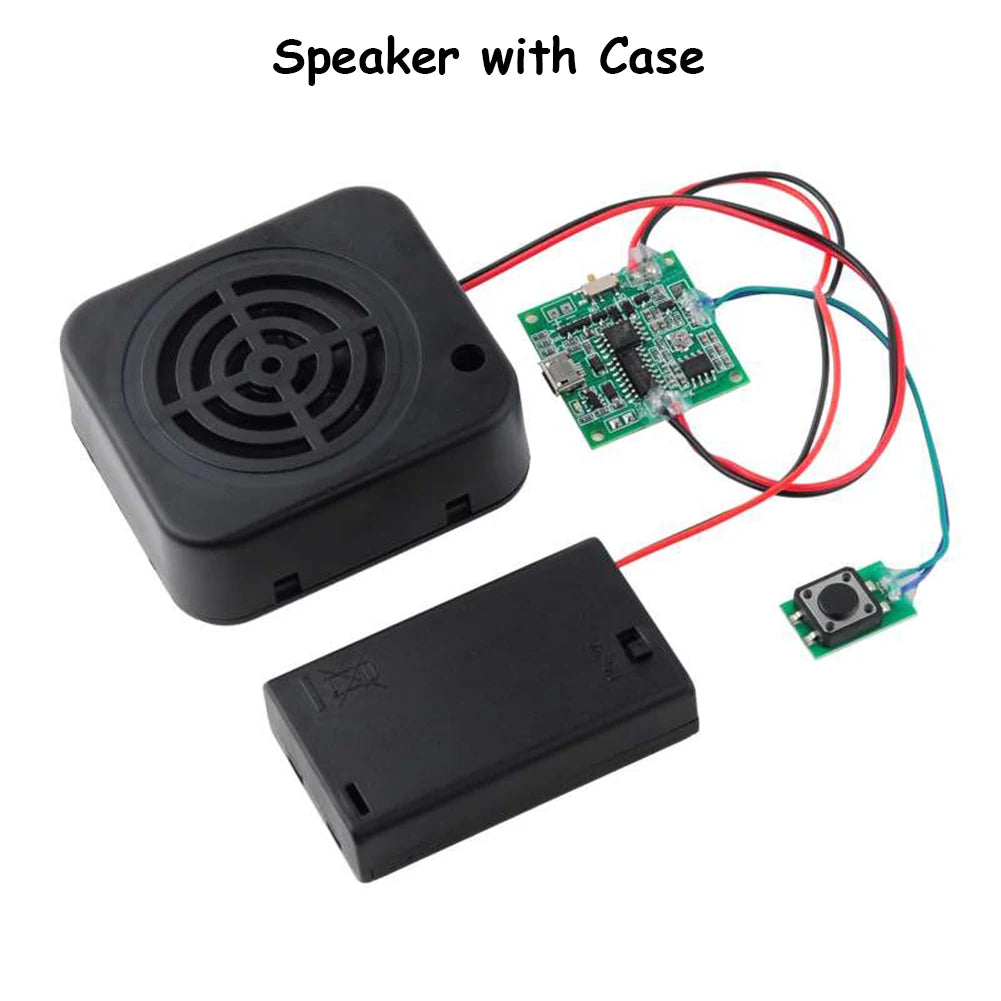

Bundle 3 Speaker with Case
