SPECIFICATIONS

Leixen VV-898SP Backpackable Mobile Radio 12000mAh Battery Dual Band 136-174&400-470MHz Transceiver 25W 898SP Outdoor Radios

Note:if you need software, please contact us.

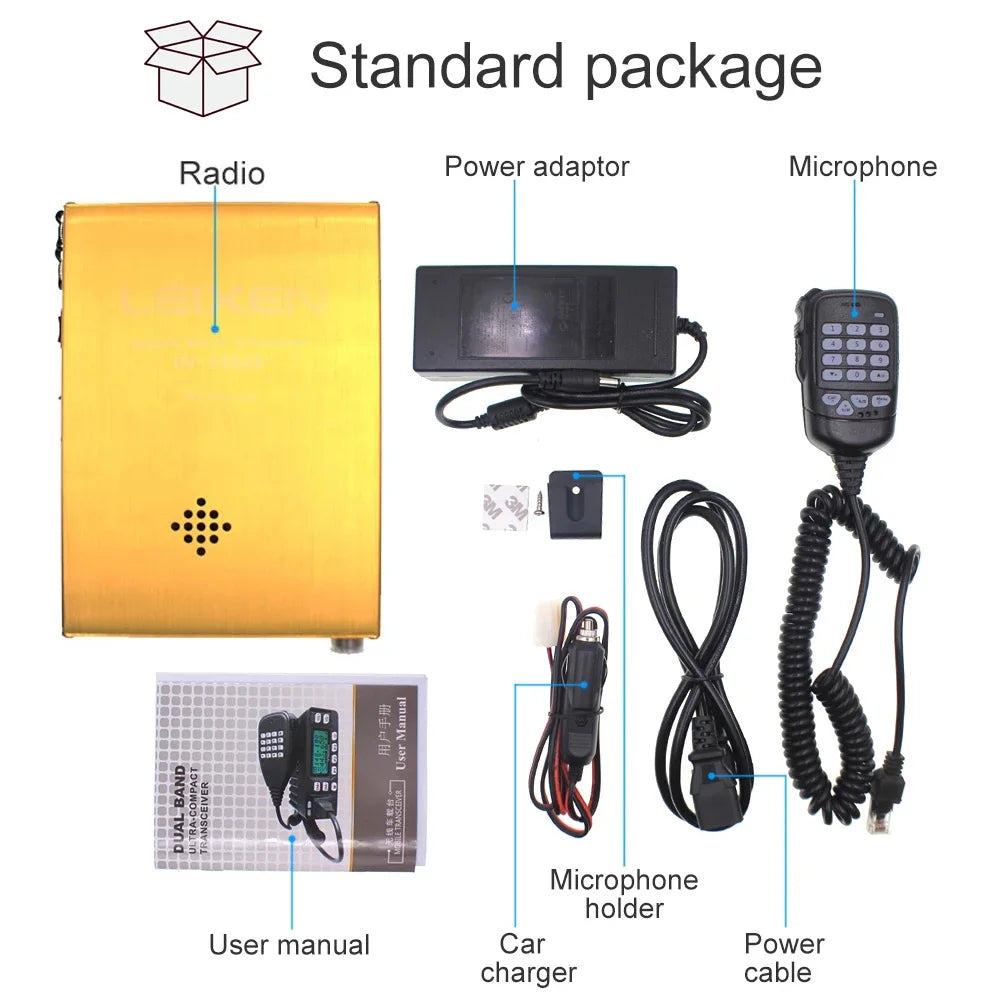

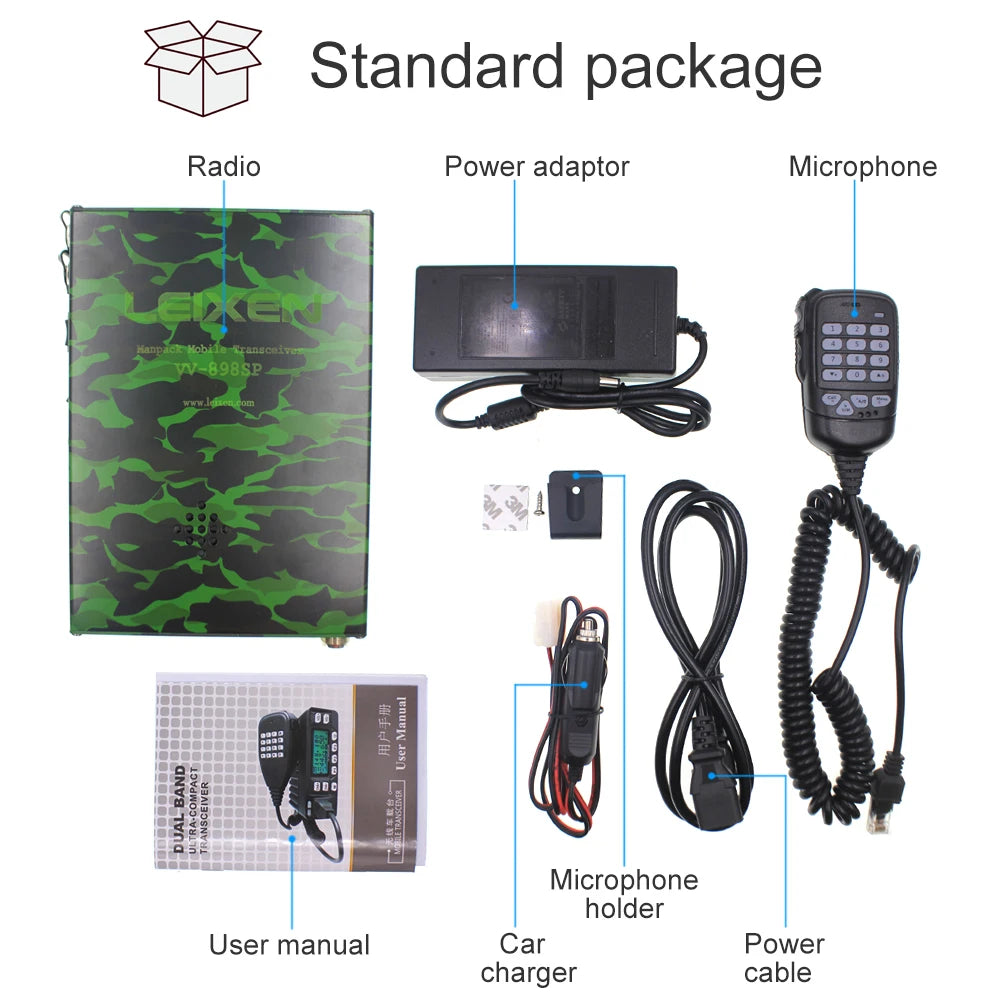

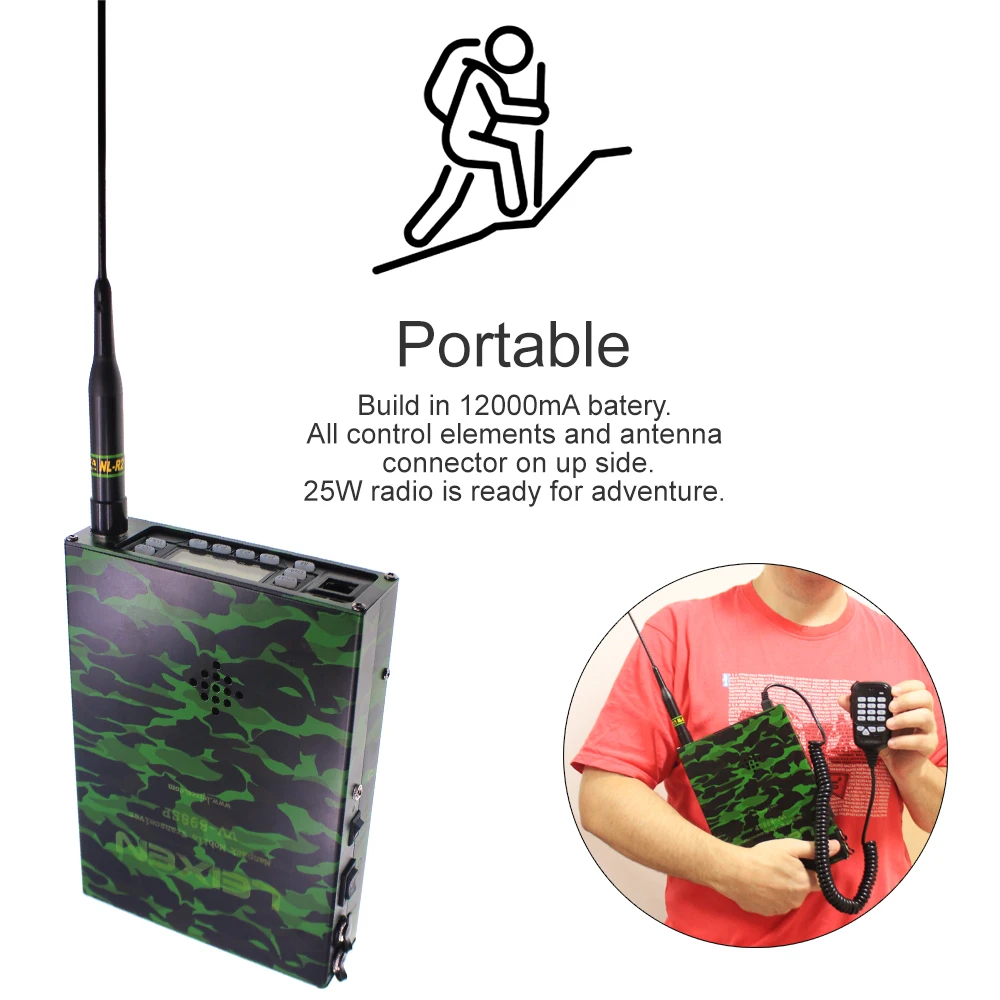

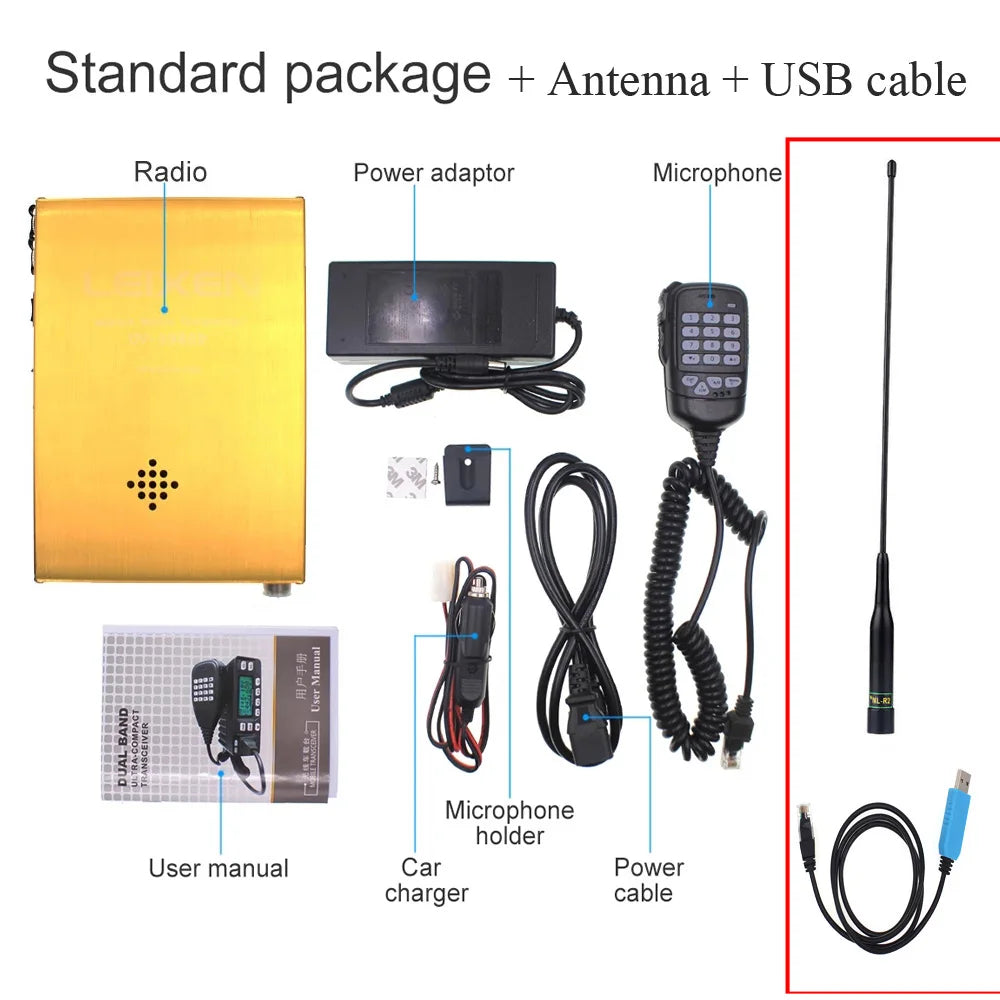

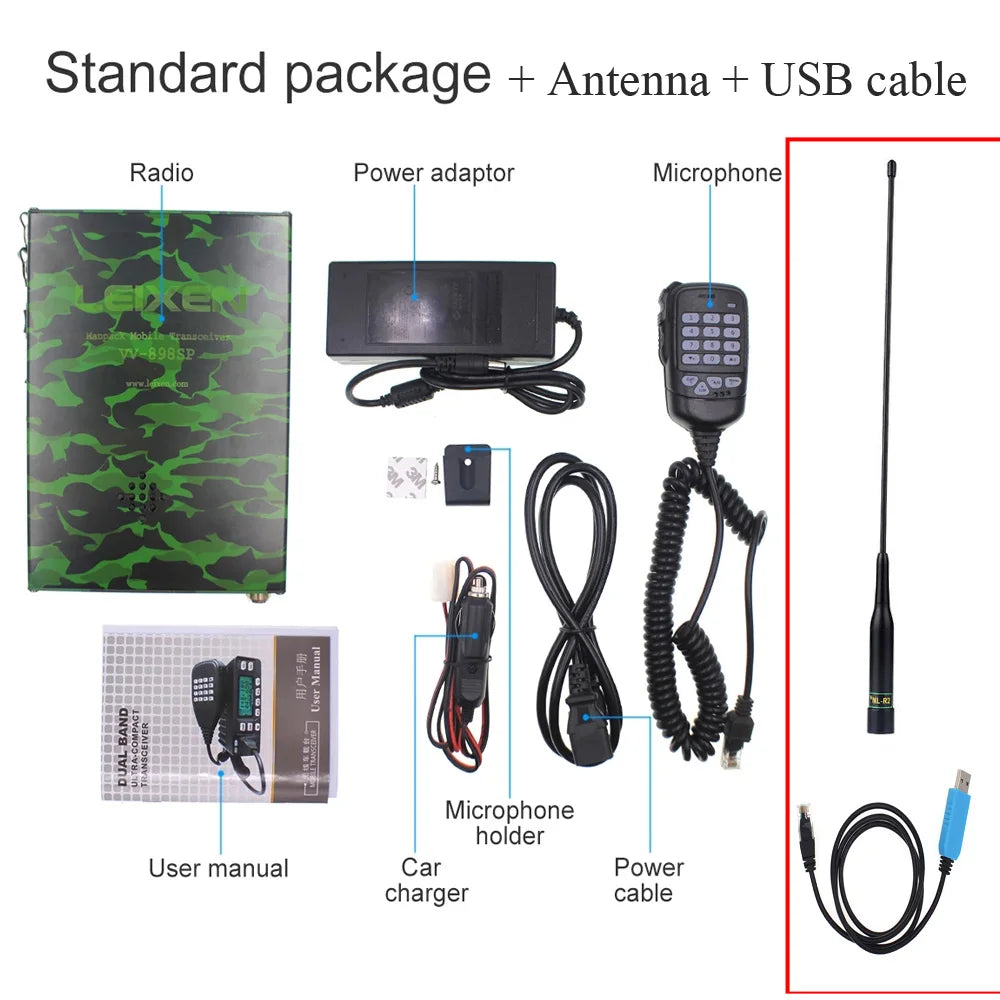

Built-in: VV-898S 25W mobile transceiver, 12A Li-ion battery, radiator fan, earphone connector.

Mini size: 200*150*45mm.

Weight: 1.7KG for the bagpack radio itself

The radio can unpack from the bagpack to use singly.

Specification

Channel Capacity: 199
Output Power: 20-25W
Operation Mode: Simplex

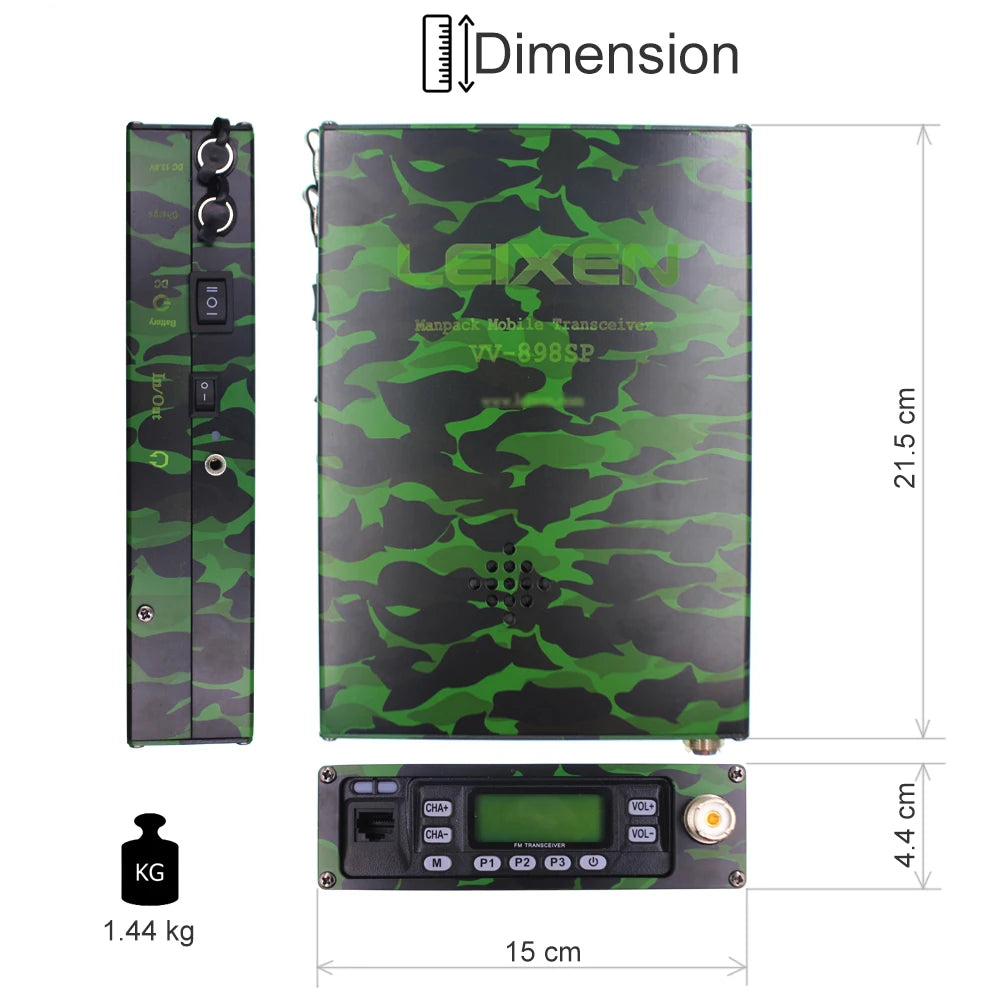

Dimension: 200*150*45mm/ 7.87*5.9/1.77in(Lx W x H)
Weight: 1515g/ 53.44oz
Modulation Limitation: ≤±5KHz
Spurious Radation: 60dB
TX Current: 1A/1.8A
Frequency Stability: ±2.5PPM
RX Sensitivity: ＜0.18μV
Modulation Type: F3E
Audio Power: ≥400mW
Standby Current: 78mA(Power saving mode is 30mA)
Rated Voltage: 13.8V

More Functions
1. Dual band:136-174MHz/400-470MHz/245MHz(Receive only)
2. Dual Reception/Dual Display
3. Voice Companding and Scrambler
4. Multi silent mode (QT/QTADT/QTXDT) 107 groups DCS/58 groups CTCSS
5. DTMF encoding and DTMF decoding
6. PTT ID(Voice broadcast PTT ID)
7. All calls, group calls and selective calls
8. Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm
9. FM Radio(87.5MHz-108MHz)
10. Scan/Scan add
11. Channel name edit available
12. 199 memory channels
13. High/Low power(25W/20W)
14. APO(Auto Power Off)
15. TOT(Time-out timer)
16. Font Set(Big/Small)
17. VOX(Level adjustable)
18. Busy channel lockout
19. Keyboard lock (Auto/Manual)
20. Multi scan mode (TO/CO/SE)
21. Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)
22. Wide/Narrow band selection (25KHz/12.5KHz)
23. TX Stop
24. Talk Around
25. Beat frequency
26. Reverse frequency function
27. 1750Hz burst tone
28. Four key programmable
29. Lease Function(can program the radio within a user specified date range)
30. Input frequency by using Keypad
