SPECIFICATIONS

Brand Name: Shunmaii

Features: Relay Receiver

Hign-concerned Chemical: None

Is Smart Device: No

Item Type: SWITCHES

Material: Plastic

Model Number: 433Mhz Remote

Origin: Mainland China

Switch Type: REMOTE CONTROL

433Mhz Wireless Remote Control Switch Door Access System 50m Relay Receiver High Current Wireless Control Relay 4 Working Modes for Household Appliances
Feature:
1. Wide Voltage Range Compatibility: Wireless remote control switch is designed to work with a voltage range of 60V-280V, making it suitable for various household appliances like lights, pumps, and air conditioners.
2. Convenient Remote Control: The included 2-key ON/OFF 433MHz 50m relay receiver enables easy operation from a distance of over 50 meters, providing convenient control for your devices.
3. Versatile Working Modes: Choose from momentary, interlock, self-lock, or delay modes to suit your specific needs, allowing you to customize remote transmitter's operation according to your preferences.
4. High Load Capacity: With a maximum load capacity of 3000W for light bulbs and 1500W for inductive loads like motors and pumps, wireless control relay can handle various applications efficiently and reliably.
5. Compact and Lightweight Design: Measuring only 644022mm (circuit board) and weighing just 68.5g, relay RF switch is space-saving and easy to install, making it perfect for different lighting fixtures, remote-controlled fans, household appliances, and more.

Specification:
Certification: NONE
Origin: Mainland China
Use: Switch,Lighting,Electric Door
Wireless Communication: RF
Model Number: Wireless Remote Control Switch
Package: Yes
Frequency: 433 MHz

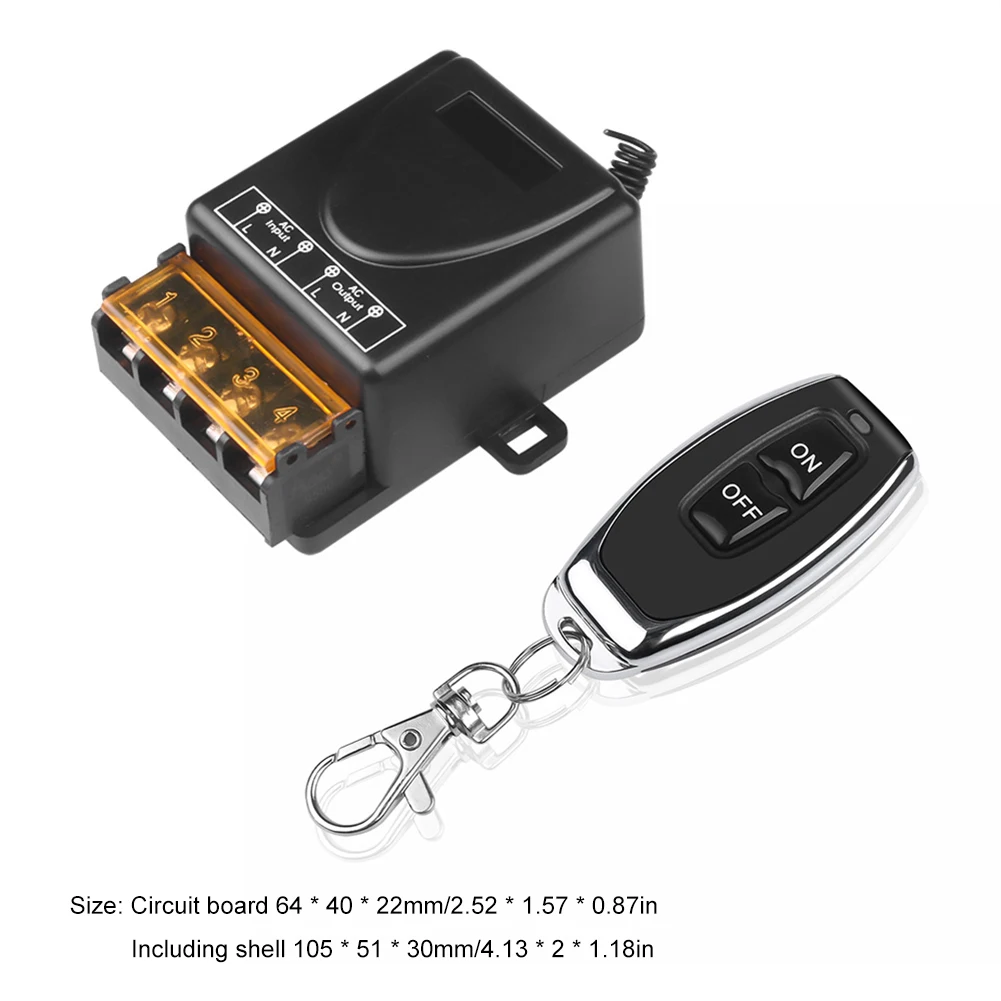

Size: Circuit board 64 * 40 * 22mm/2.5 * 1.5 * 0.8in; including shell 105 * 51 * 30mm/4.1 * 4.1 * 1.1in
Product frequency: 433MHZ
Working voltage: AC85-250V
Receiving distance:>50 meters (farther in open spaces), paired with high-power remote control for further distance
Working mode: jog, interlock, self-locking, delay
Maximum load: 3000W/light bulb
Inductive load: 1500W/motor/water pump
Static current:<10MA
Weight: 68.5g
Model: Remote Control/Receiver(Optional)
Application fields: various lighting fixtures, remote control fans, remote control household appliances, remote control row plugs, etc
Function mode description:

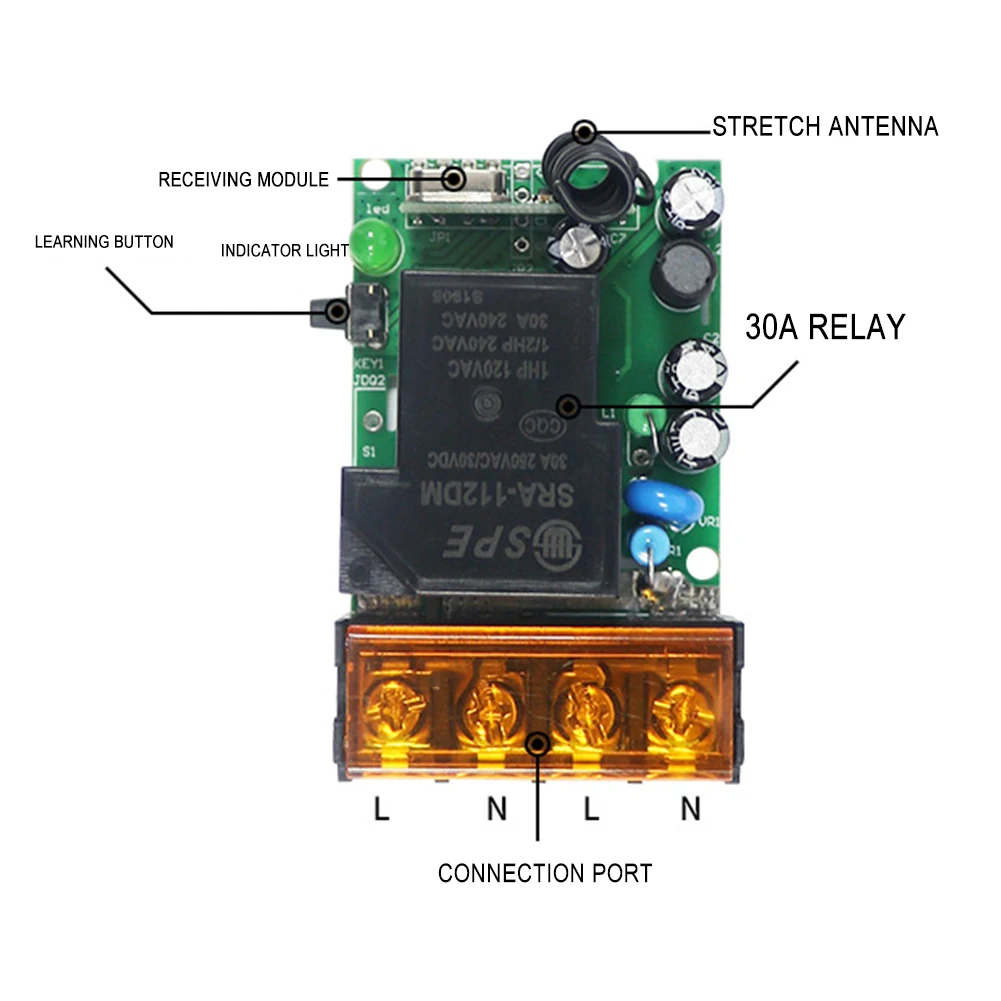

Jog mode: Short press the learning button once, and the LED flashes once,
Press button A on the remote control, and the LED flashes three times to indicate successful learning of the jog mode
Self locking mode: Short press the learning button twice, and the LED flashes twice,
Press the A button on the remote control, and the LED flashes three times to indicate successful self-locking learning. At that time, press the A button once to engage the relay, and then press the A button again to disconnect the relay
Interlock mode: Short press the learning button three times, and the LED flashes three times,
Press the A key once, the LED indicator light flashes three times, and then press the B key again. The LED flashes three times to indicate successful interlock learning. At that time, press the A key once to engage the relay, and then press the B key again to short circuit the relay.
Delay function description:
Five second delay learning method: Short press the learning button four times, the LED flashes four times. Press and hold the A key on the remote control, and the LED flashes three times to indicate successful learning. Press the A key once, and the relay will automatically disconnect after five seconds of activation
Ten second delay learning method: Short press the learning button five times, and the LED flashes five times. Press the A button, and the LED flashes three times to indicate successful learning. Press the A button once, and the relay will automatically disconnect after 10 seconds of engagement
Fifteen second delay learning method: Short press the learning button six times and the LED flashes six times. Press the A button once and the LED flashes three times to indicate successful learning. Press the A button once and the relay will automatically disconnect after fifteen seconds of engagement
Clear code operation instructions:
Press and hold the learning button for about 8 seconds, and the indicator light will flash to indicate successful code clearing. Warm reminder: To switch to any working mode, the code must be cleared first before learning

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

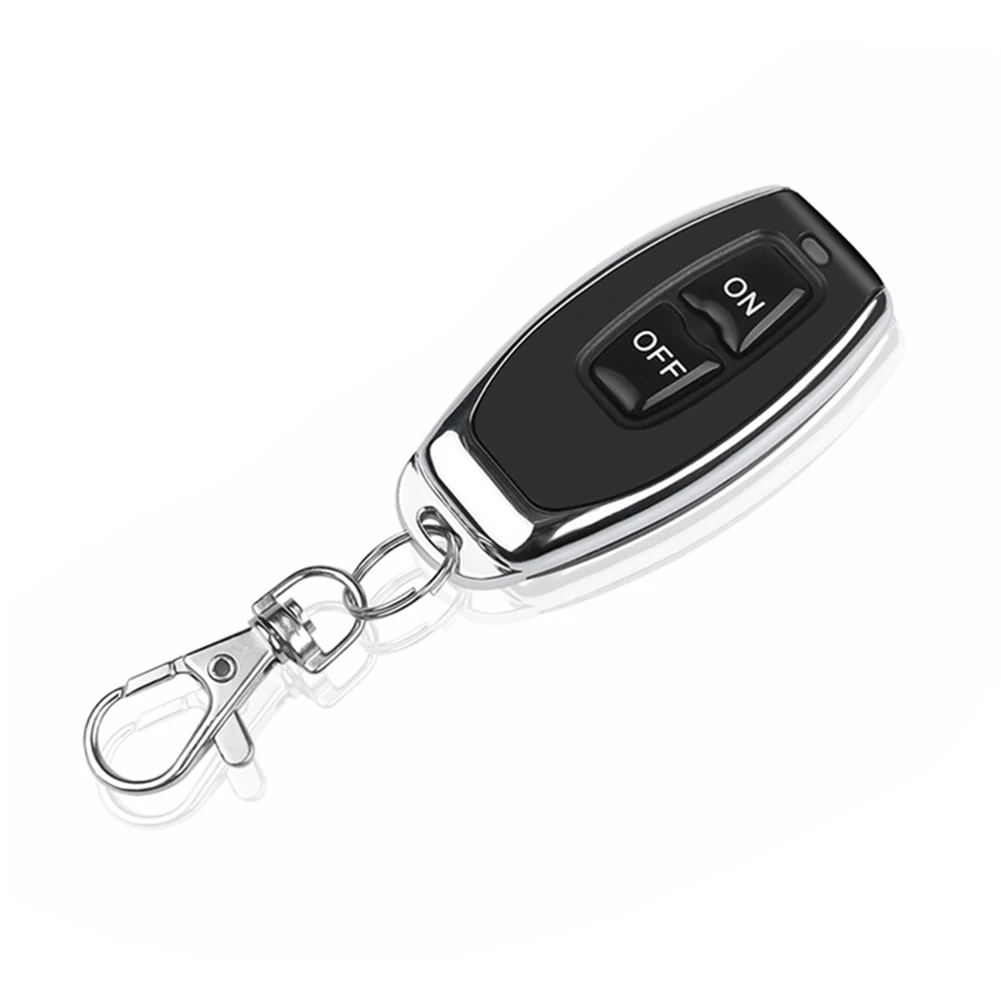

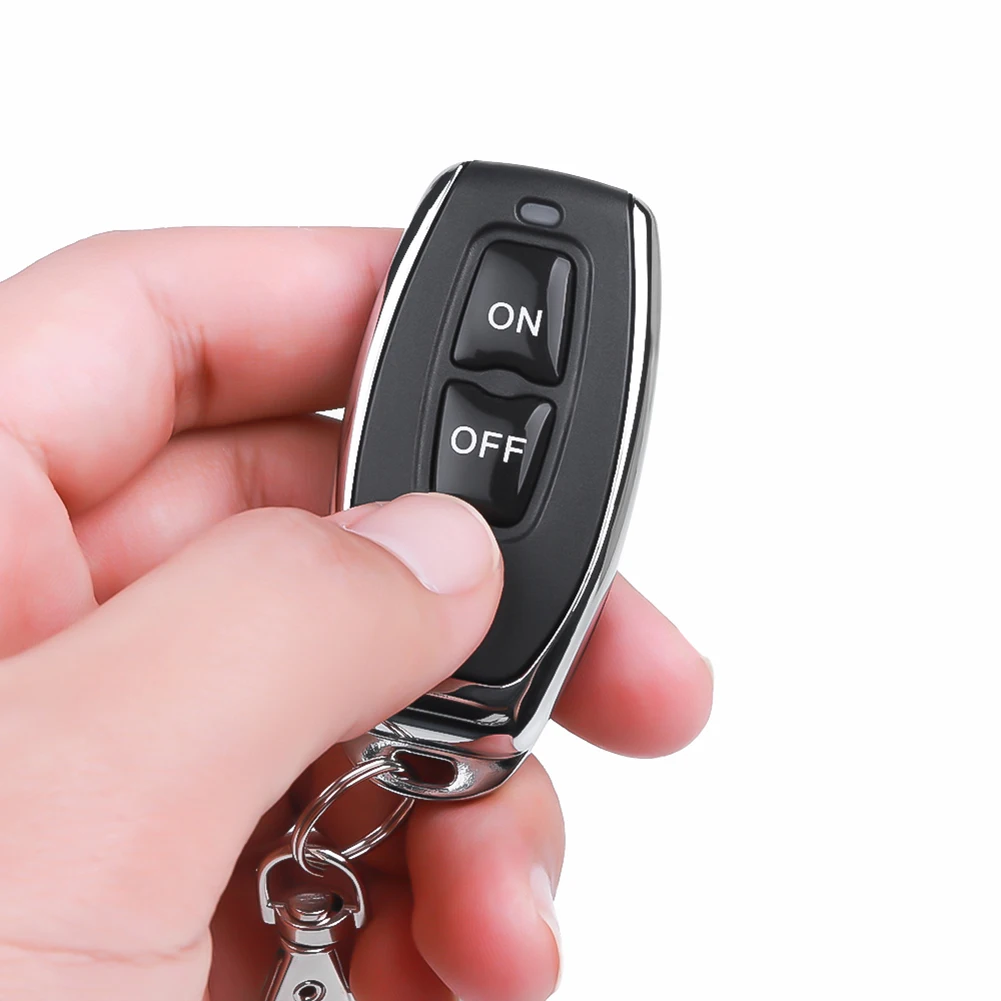

Remote Control: 1 x Remote Control
Receiver: 1 x Receiver
