SPECIFICATIONS

Brand Name: Bymaocar

Certification: ce

Color: Silver

Hign-concerned Chemical: None

Input Voltage: AC100-240V

Installation Hole Spacing: 100mm/3.94in

Motor Voltage: DC24V

Origin: Mainland China

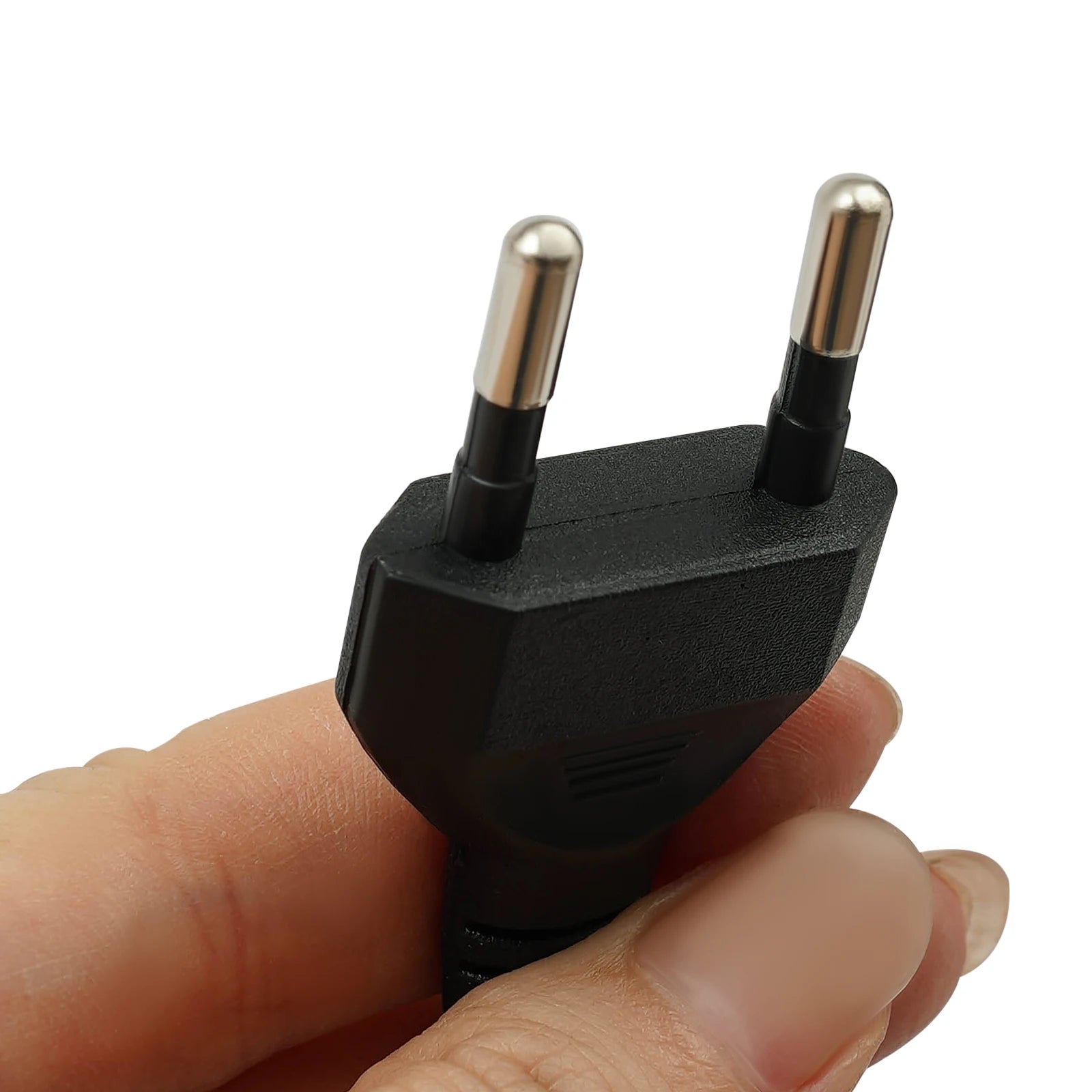

Plug Type: EU Standard/US Standard

Speed: Approx. 20-120RPM

Stroke Range: 3-15cm/1.2-5.9in

Swing Arm Length: 125mm/4.92in

Thread Specification: M8

Thrust Range: Generally 1-10kg/2.2-22.05lbs

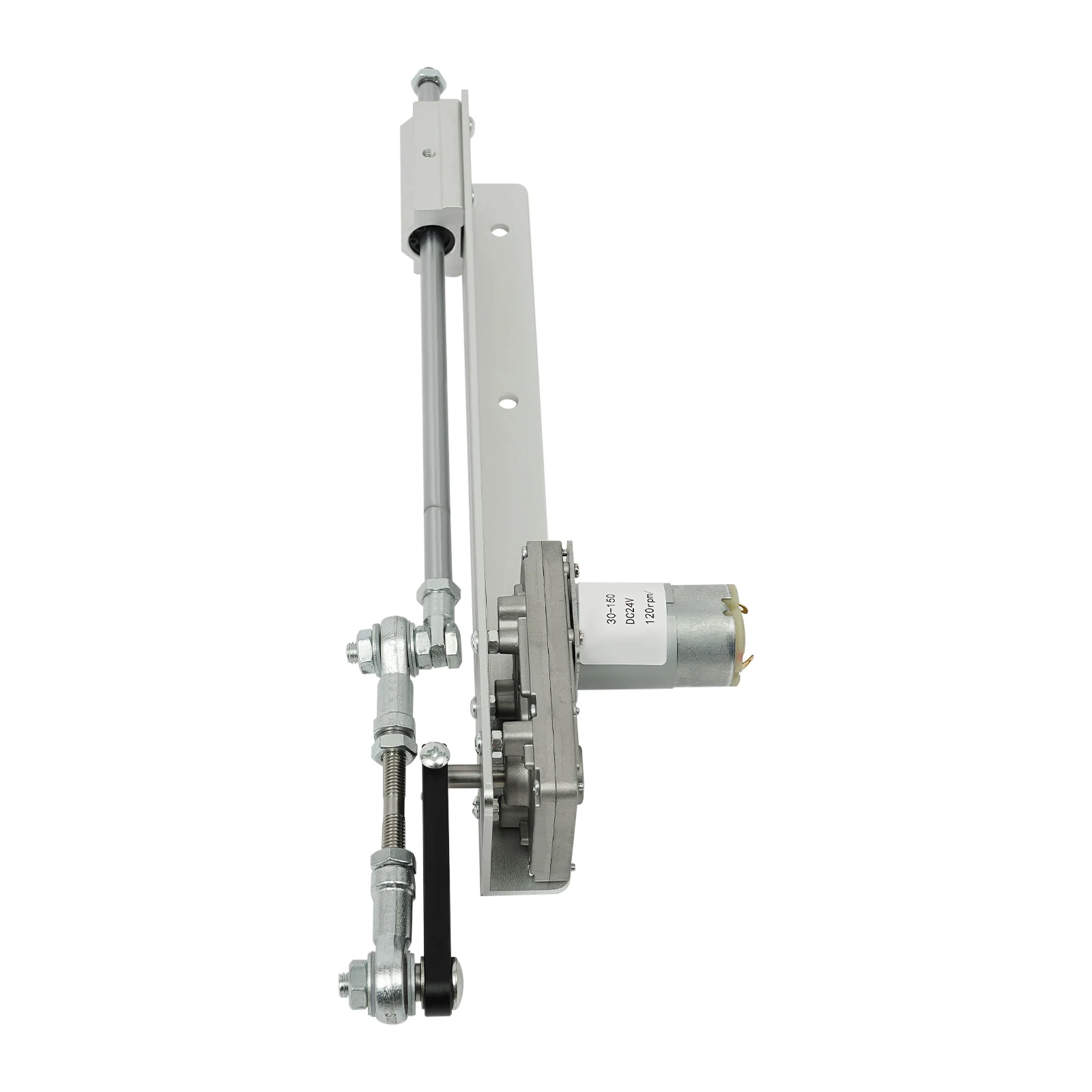

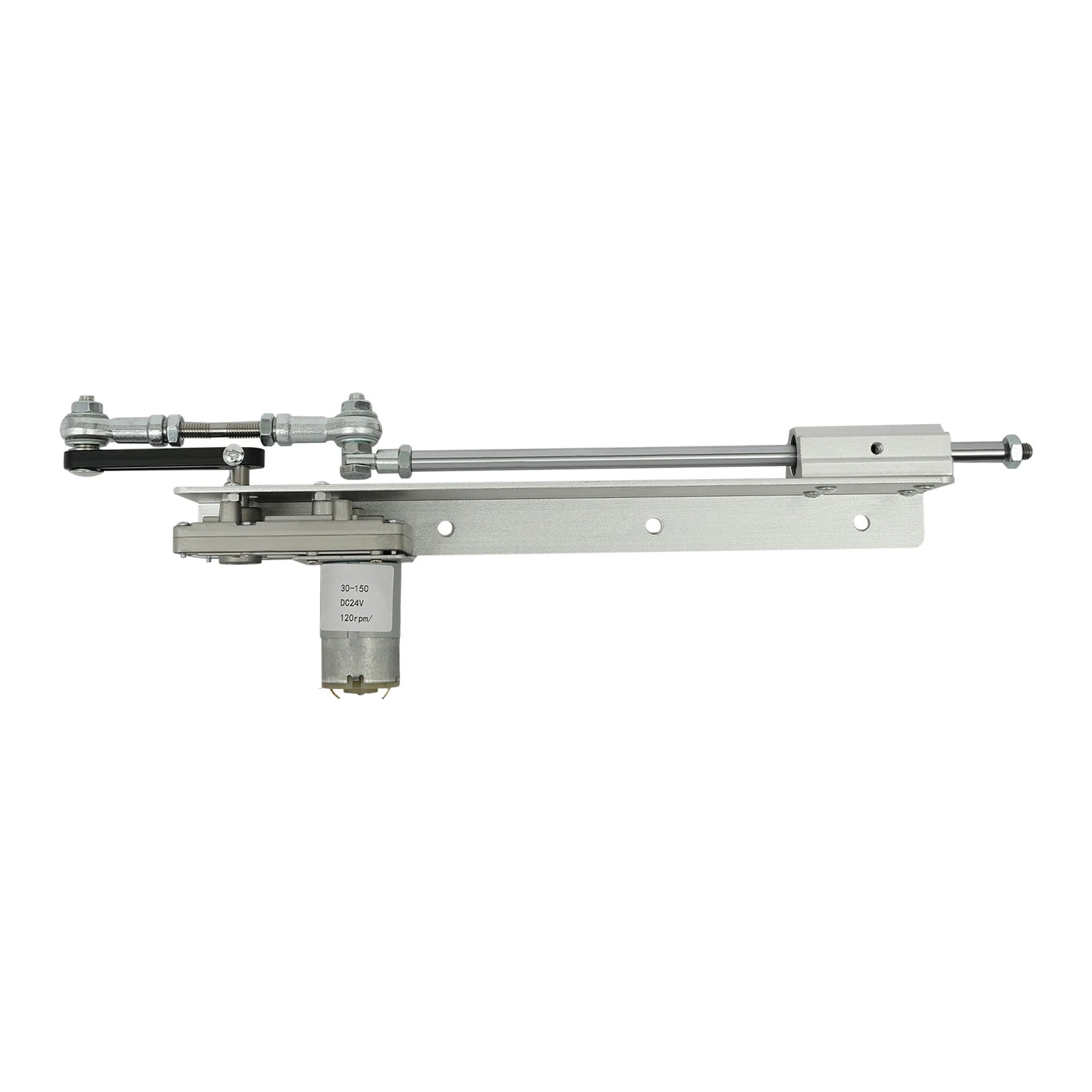

DC24V Mini Telescopic Linear Actuator 3-15CM Adjustable Telescopic Rocker Actuator| M8 Thread

Application
This product can be used in places that require reciprocating telescopic motion, such as assembly line execution force modification mechanisms, laboratory testing, personal modification, etc.

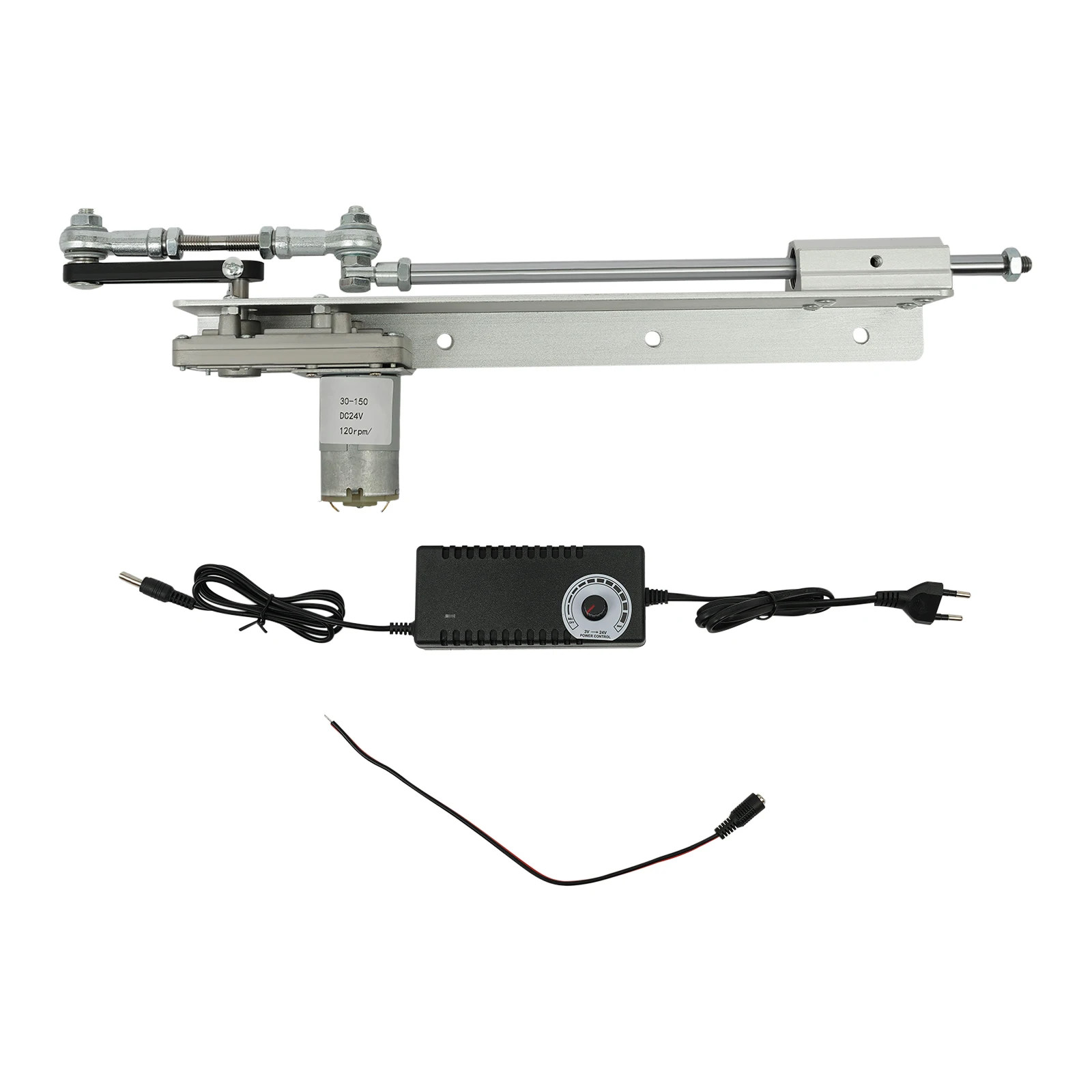

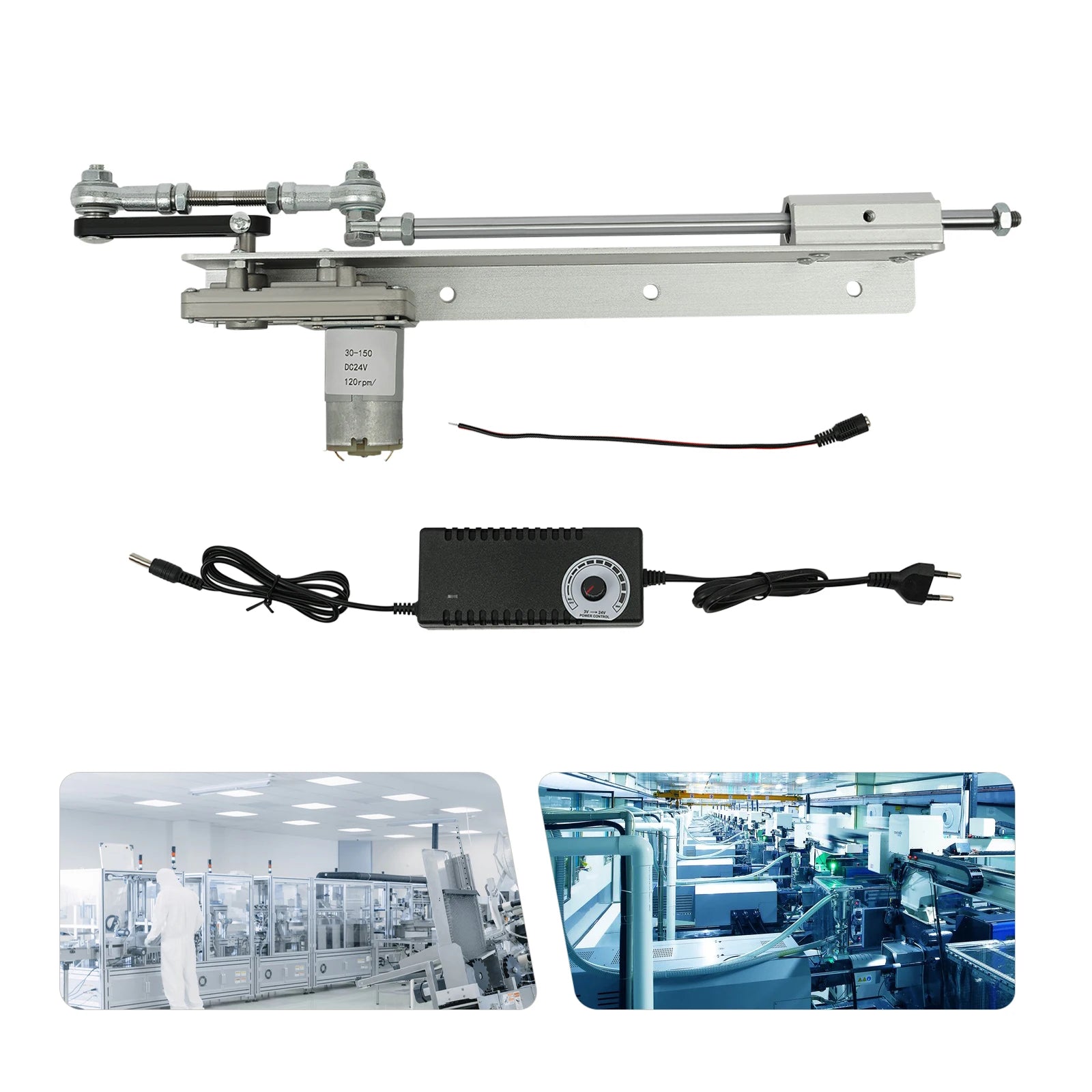

Package Included
1 * Reciprocating Cycle Linear Motor
1 * Power Adapter

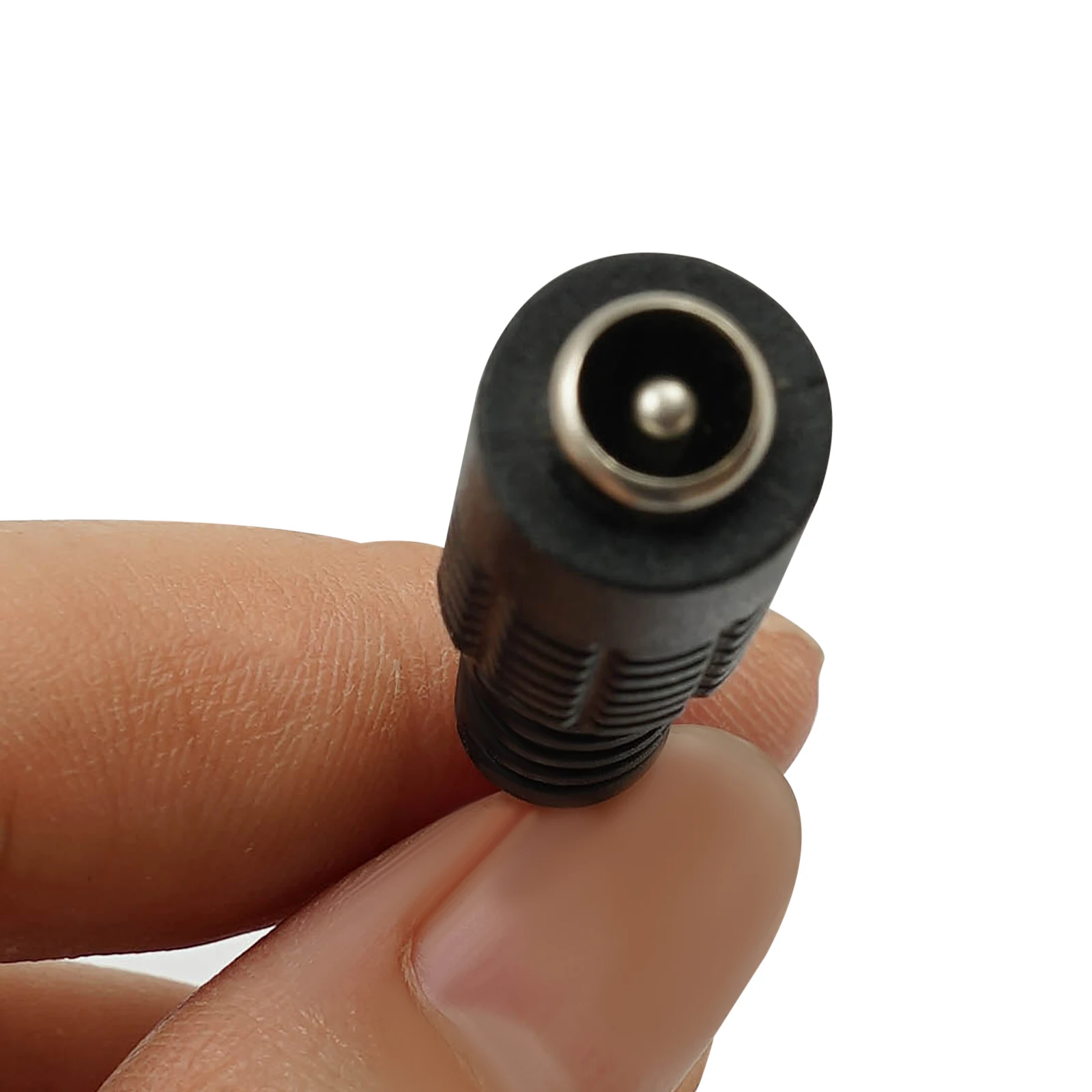

1 * Cable

Specification
Color: Silver
Material: Aluminum Alloy, Steel
Process: Chrome Plated, Anodizing

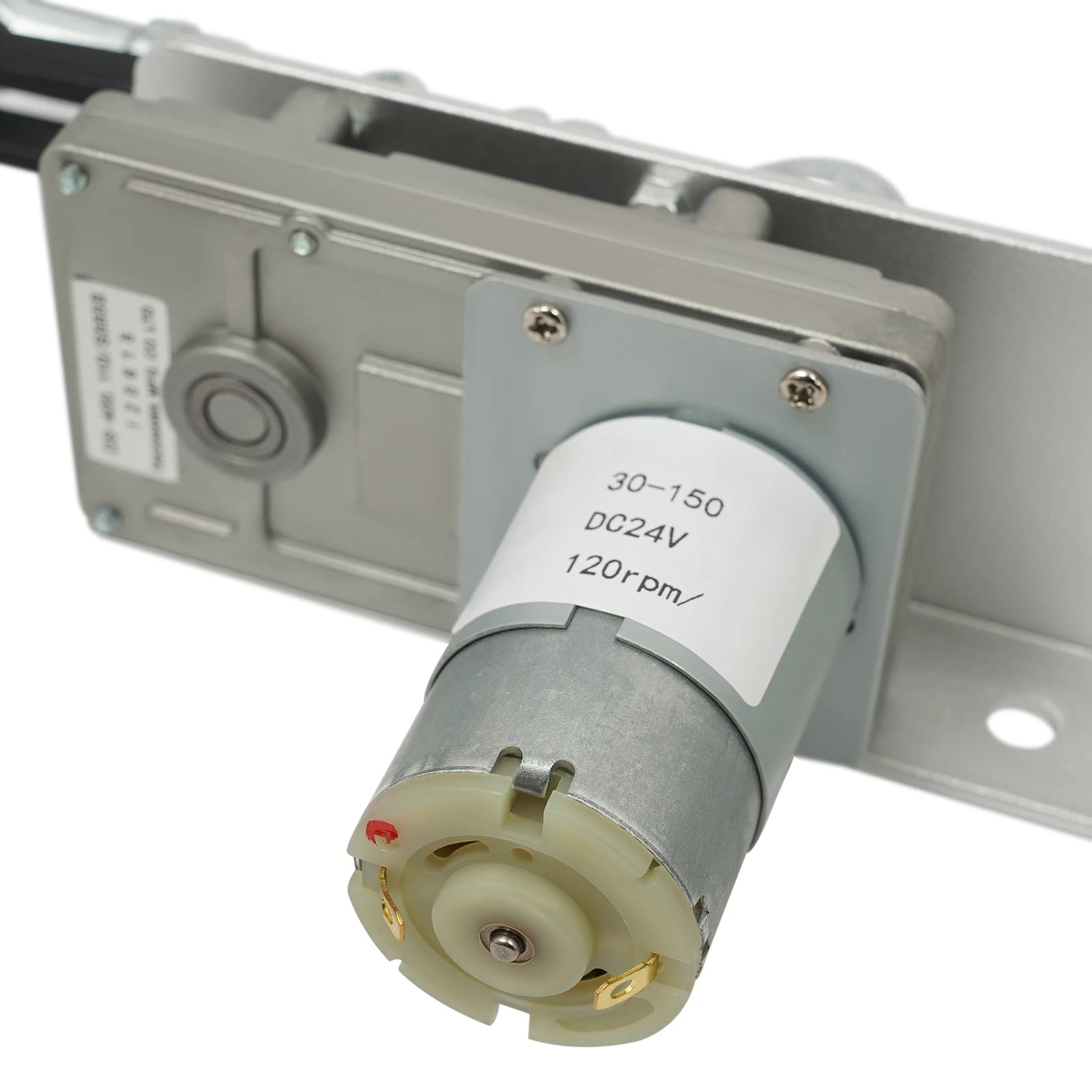

Motor Type: DC Pure Copper Motor
Power Source: Corded Electric
Plug Type: EU Standard/US Standard
Input Voltage: AC100-240V
Motor Voltage: DC24V
Speed: Approx. 20-120RPM
Thread Specification: M8
Thrust Range: Generally 1-10kg/2.2-22.05lbs
Operating Temperature: -10-50℃/14-122℉
Installation Hole Diameter: 8mm/0.315in

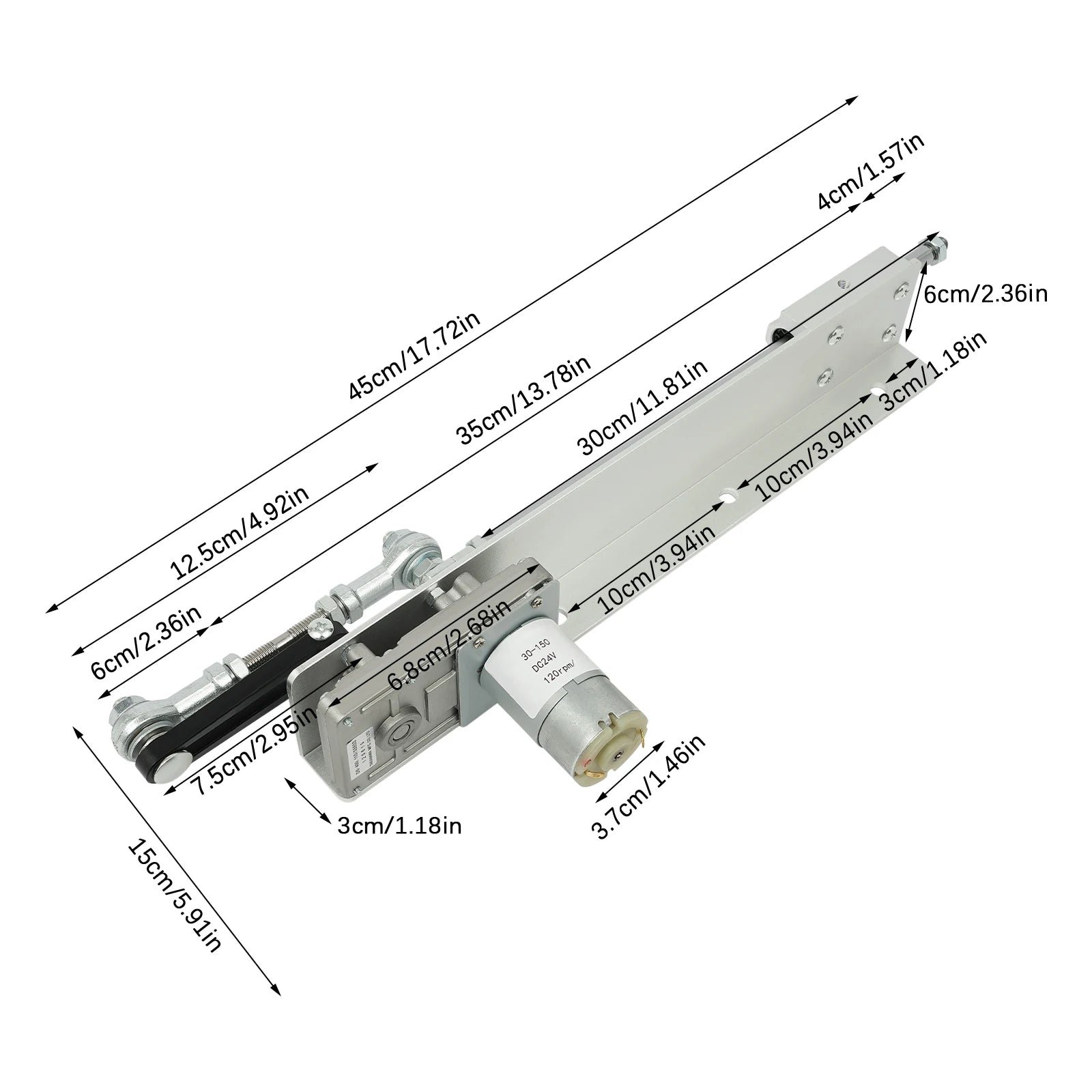

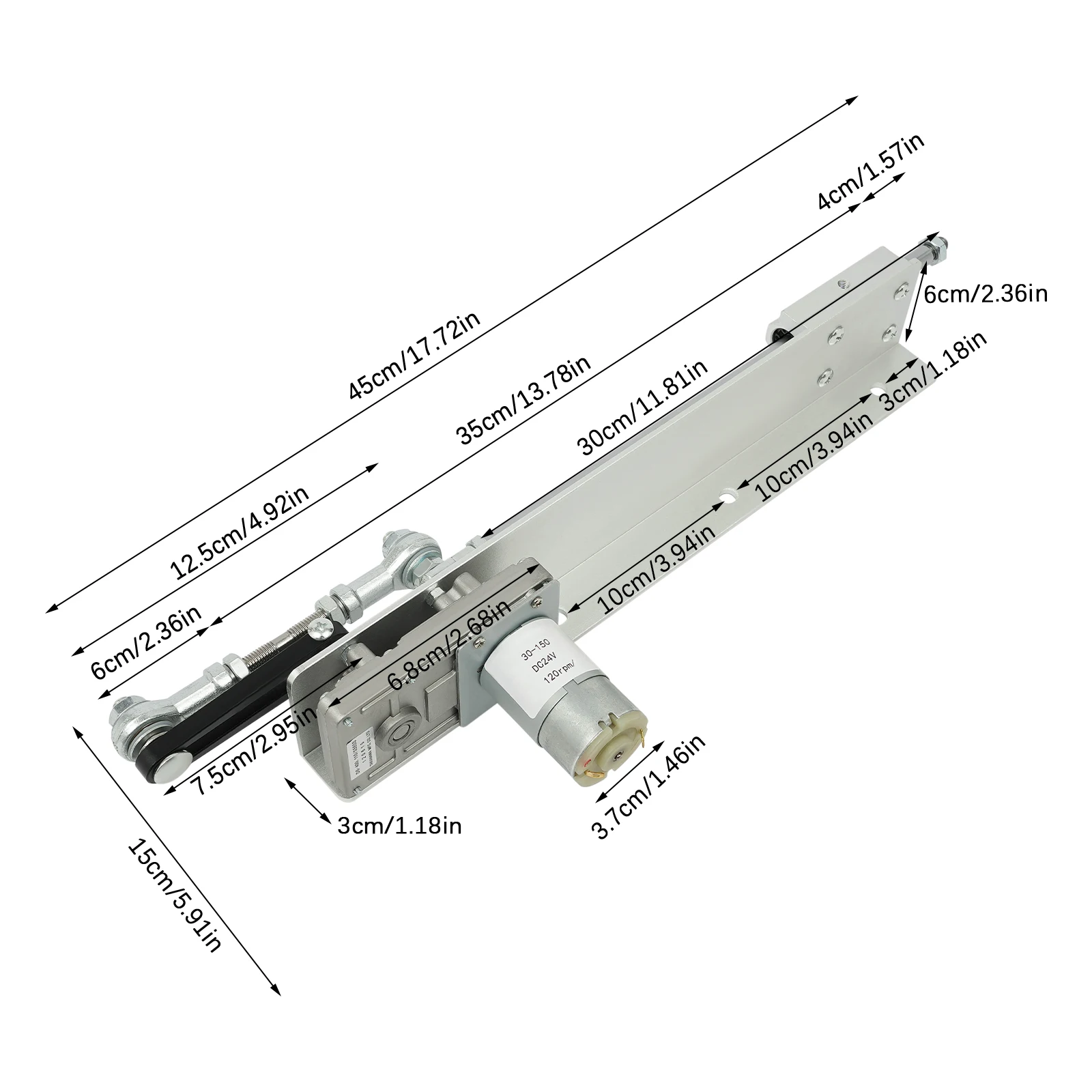

Stroke Range: 3-15cm/1.2-5.9in
Swing Arm Length: 125mm/4.92in
Installation Hole Spacing: 100mm/3.94in
Total Length: 45cm/17.7in
Package Size: 45*15*7cm/17.72*5.91*2.76in
Gross Weight: 1.6kg/3.53lbs

Key Features
Build to Last: After chrome plating and anodizing treatment, high-quality aluminum alloy and steel make this product highly resistant to corrosion, rust, and impact, ensuring long-term safe use.

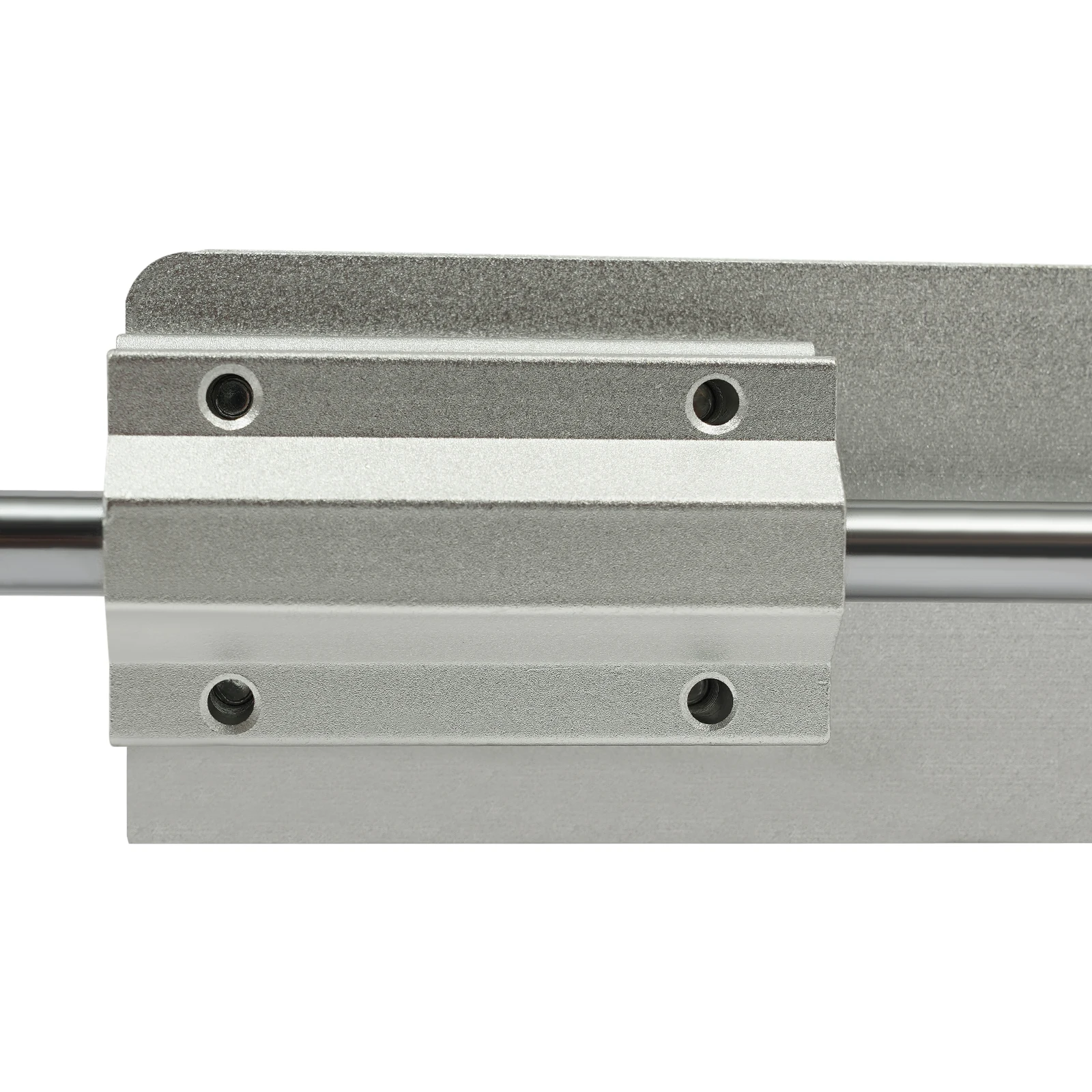

Stable Performance: The high-strength telescopic rod, swing arm, and powerful motor allow for stable and reliable performance for long-term use.

Wide Stroke Range: Its stroke can be adjusted between 1.2 inches and 5.9 inches, creating a thrust of 2.2-22.05 pounds generally to meet different work requirements.

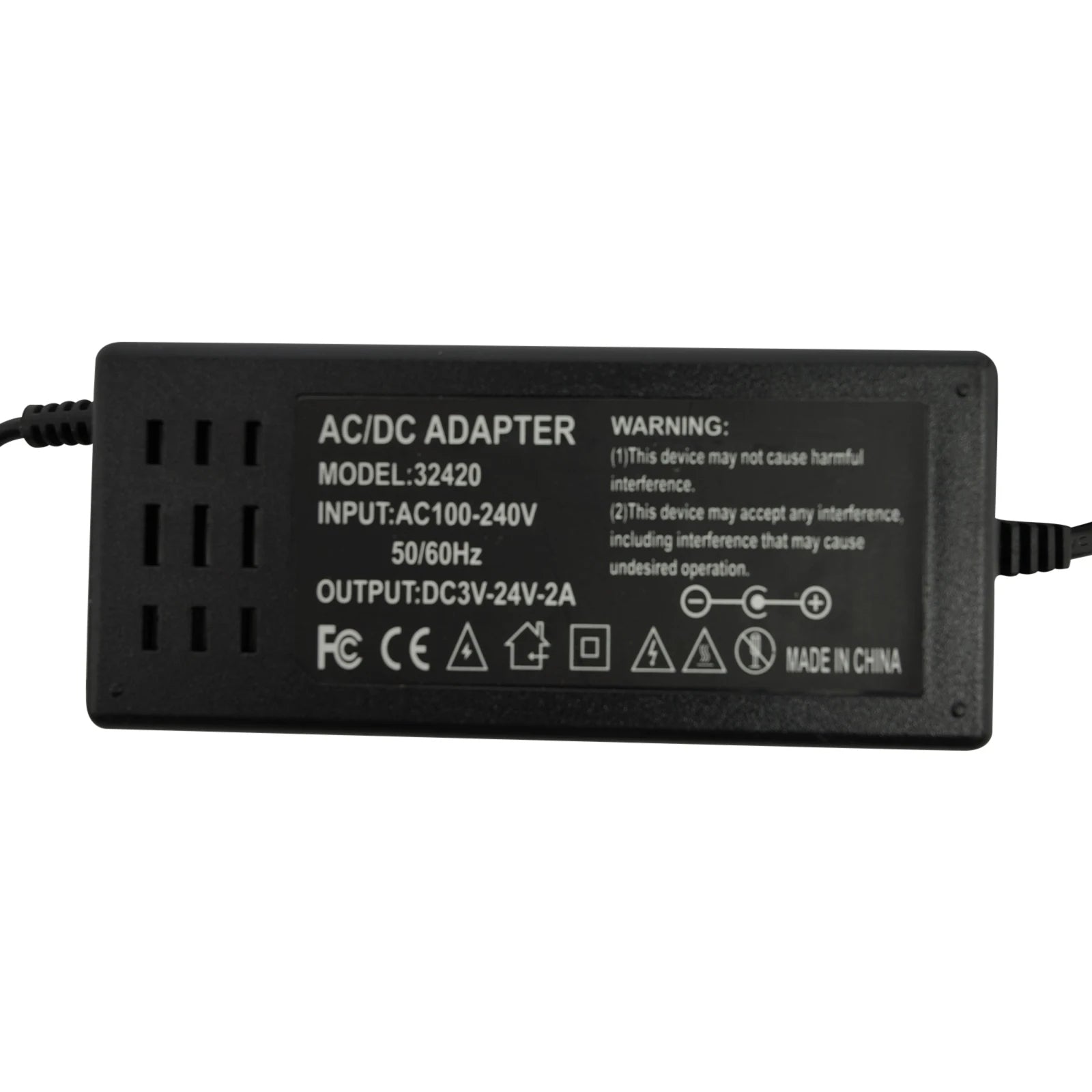

Adjustable Speed: You can adjust the speed of the product within the range of about 20-120 PRM by rotating the knob on the adapter according to your needs.

Compact & Lightweight: It adopts a compact design, with a total length of only 17.7 inches, and is lightweight (less than 3.53 pounds), making it easy to use and store.

High-precision Control: Linear motors are capable of realizing reciprocating push-pull linear motion, which is more suitable for high-precision automation equipment due to its higher positioning accuracy and faster dynamic response compared to traditional rotary motors+screws, belts, and other transmission structures.

Easy Clean-Up: The surface of the product is smooth and it has an open design, so you can easily use a soft cloth to wipe it clean.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Description
Are you still looking for a lightweight and easy-to-operate reciprocating cycle linear motor? Our motor is made of high-quality materials and can be used for a long time. It has the characteristics of simple structure, convenient operation, and wide stoke range, and can provide reliable and stable work performance.

Details
Pre-Dilled Installation Holes: 8mm pre-drilled installation holes allow you to install this product easily and conveniently.

Brush Feets: It allows for convenient connection or welding for stable running.

Notes

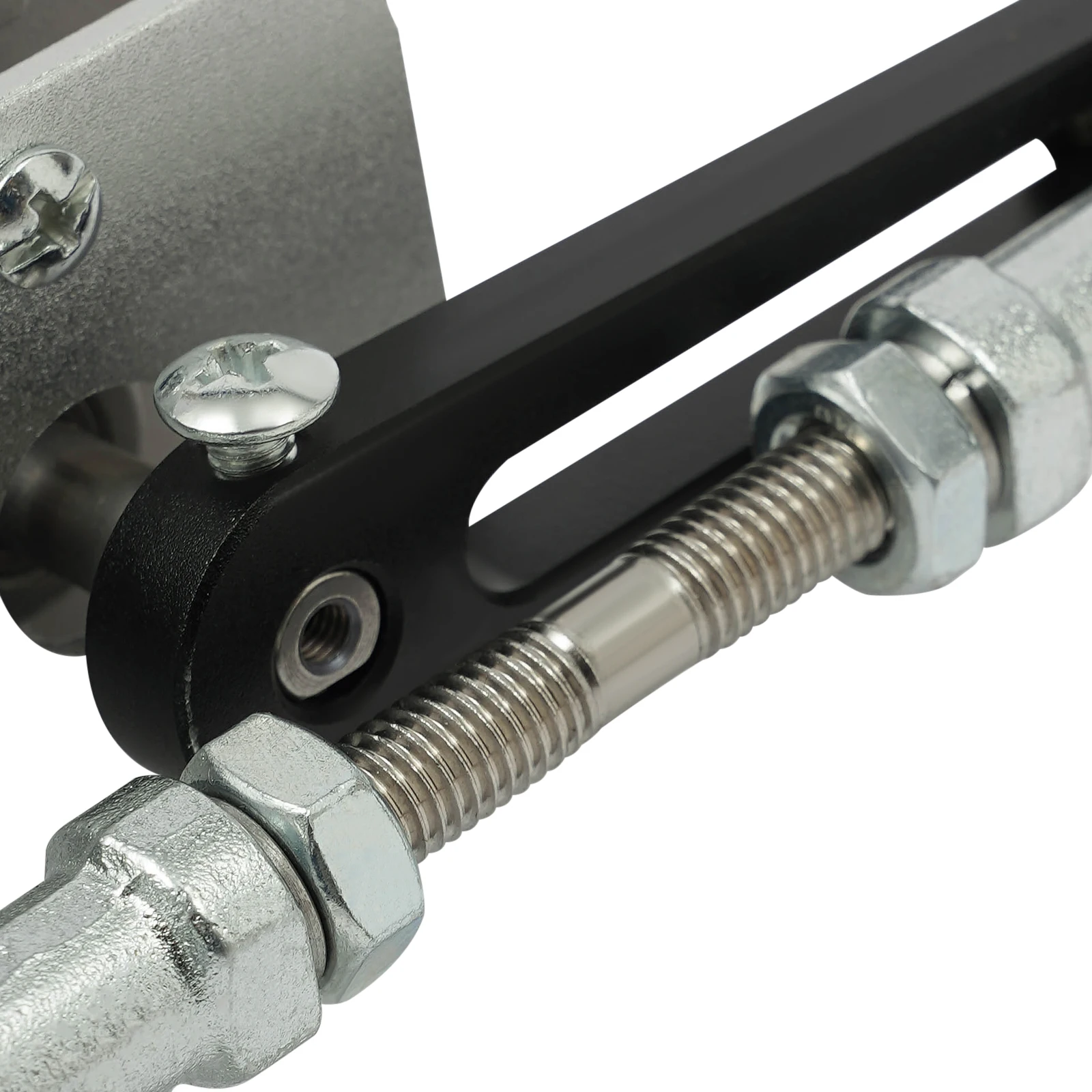

1.When using, please fix the screws of the swing arm to prevent changes in stroke.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
