Specification
SPECIFICATIONS
Battery Capacity(mAh): -
Battery Included: No
Brand Name: ANYSECU
Certification: CE

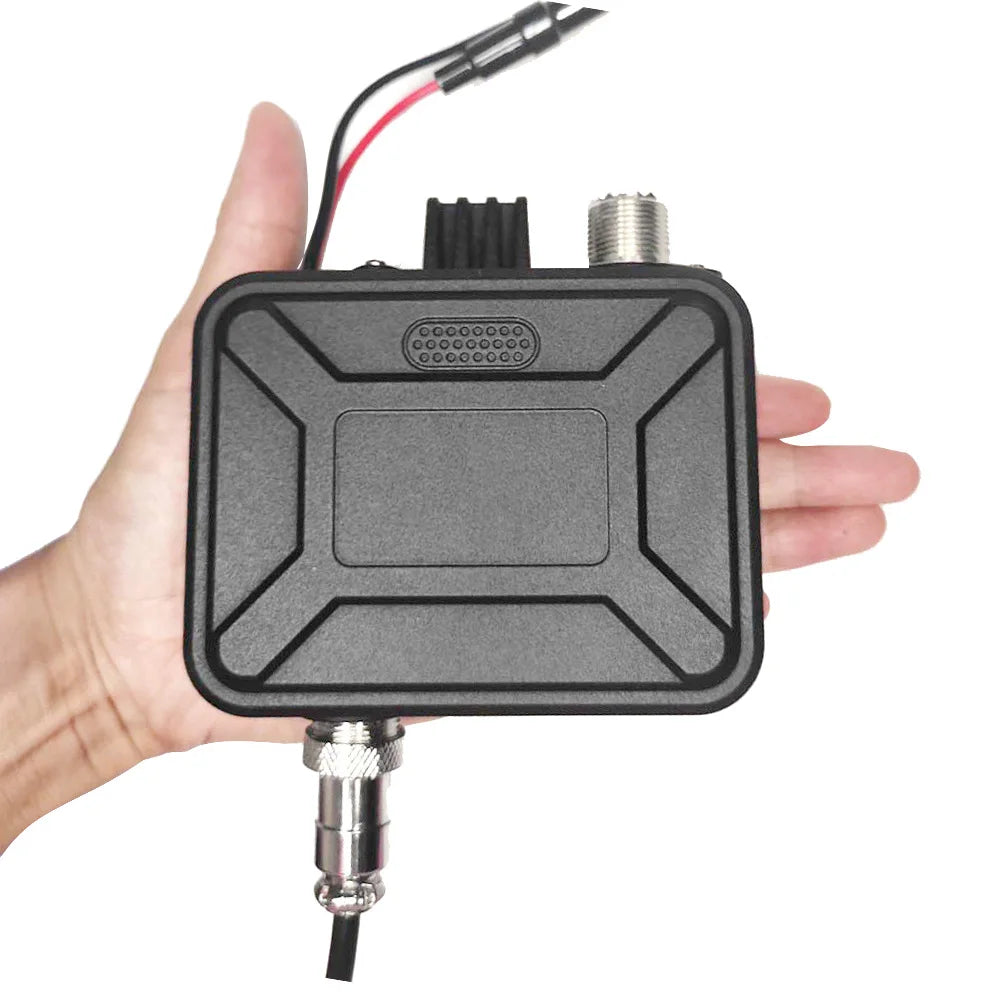

Dimensions: 98(W) x 43(H) x 126(D) mm
Frequency Range: 136-174 & 400-480MHz
Hign-concerned Chemical: None
Is_Display: Yes

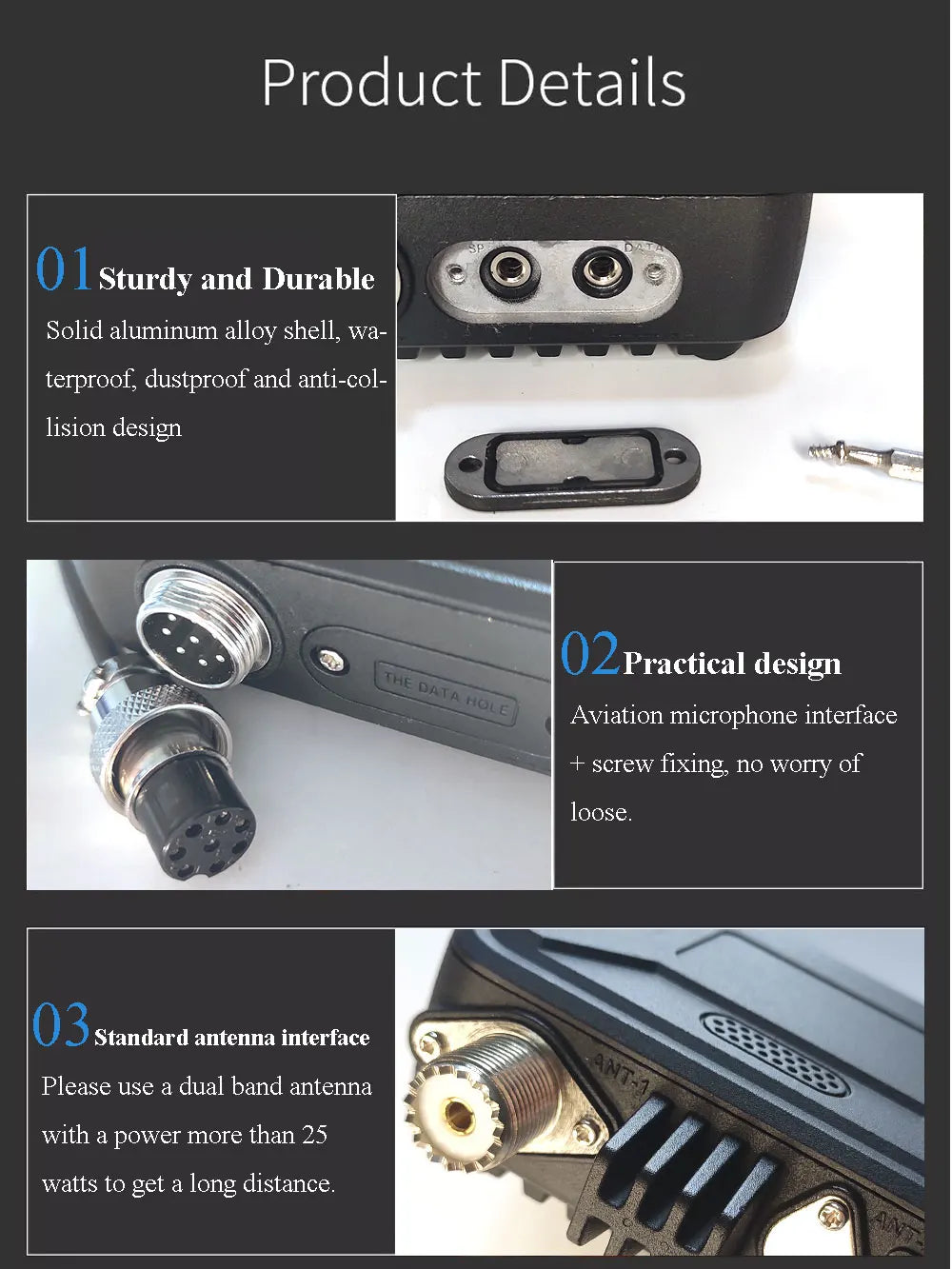

Material: plastic+metal
Maximum Range: 5km-10km

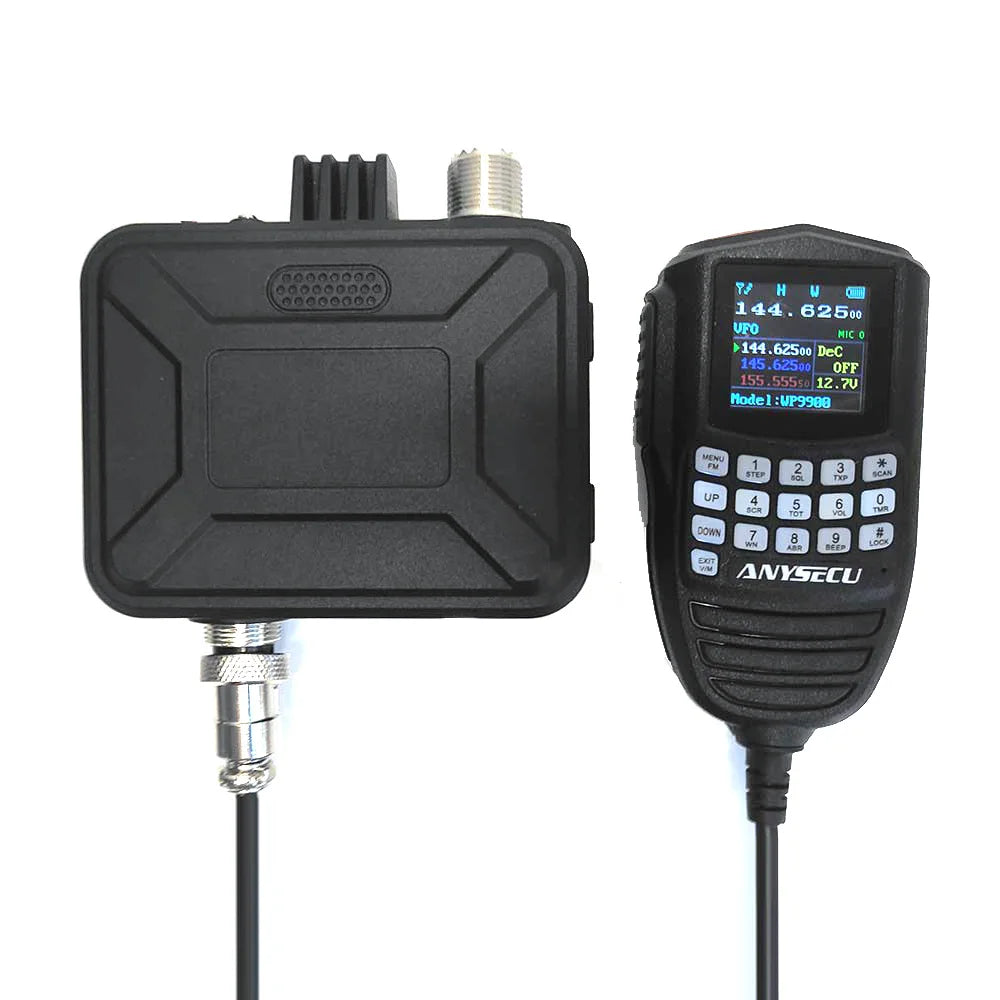

Model Number: WP-9900
Origin: Mainland China
Output Power(w): 10w-25w
Storage Channel: 200
Use: Motor vehicle
Walkie Talkie Type: Car
Waterproof / Water-Resistant: IP55
Note: if you need the software, please contact us.
Main Features

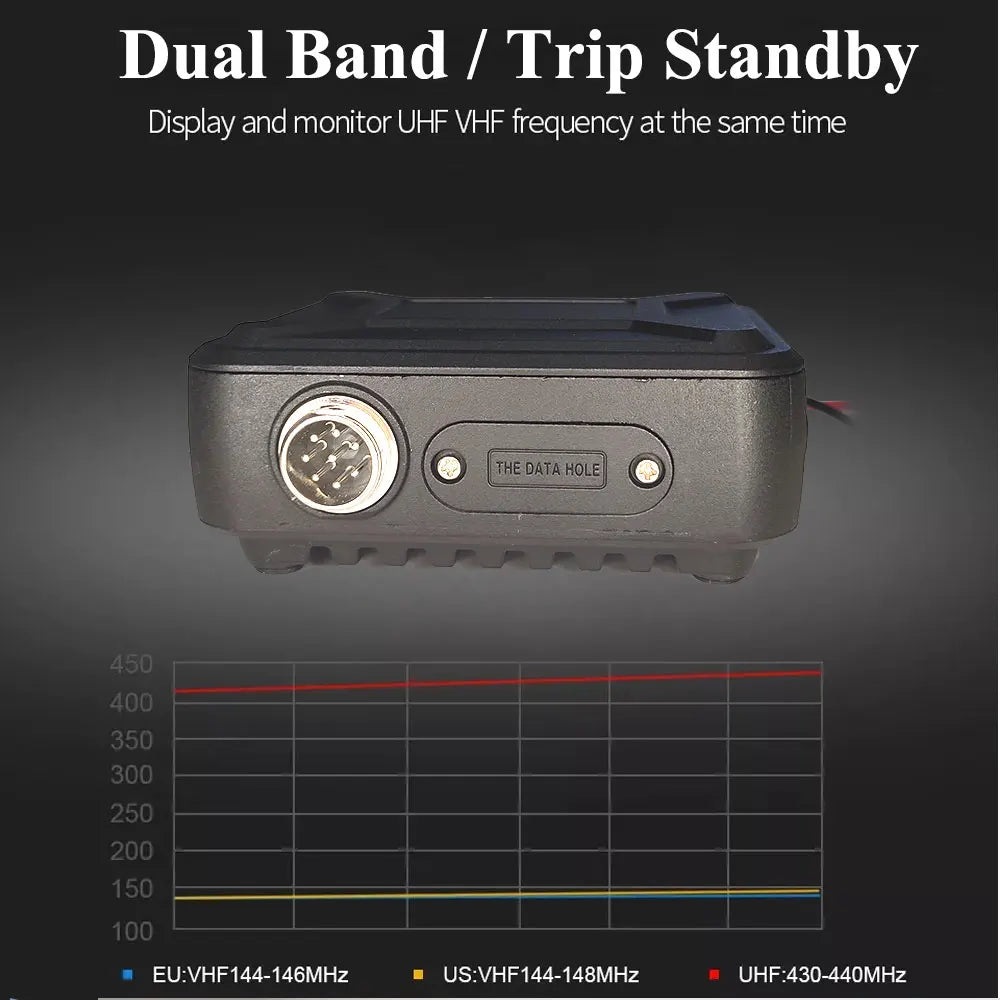

Dual Band, Trip Display / Standby
Battery Voltage Display
Built-In Vox
Busy Channel Lock-Out(Bclo)
DTMF Function
Emergency Alert
Fm Radio
1750hz Brust Tone
Ani Id

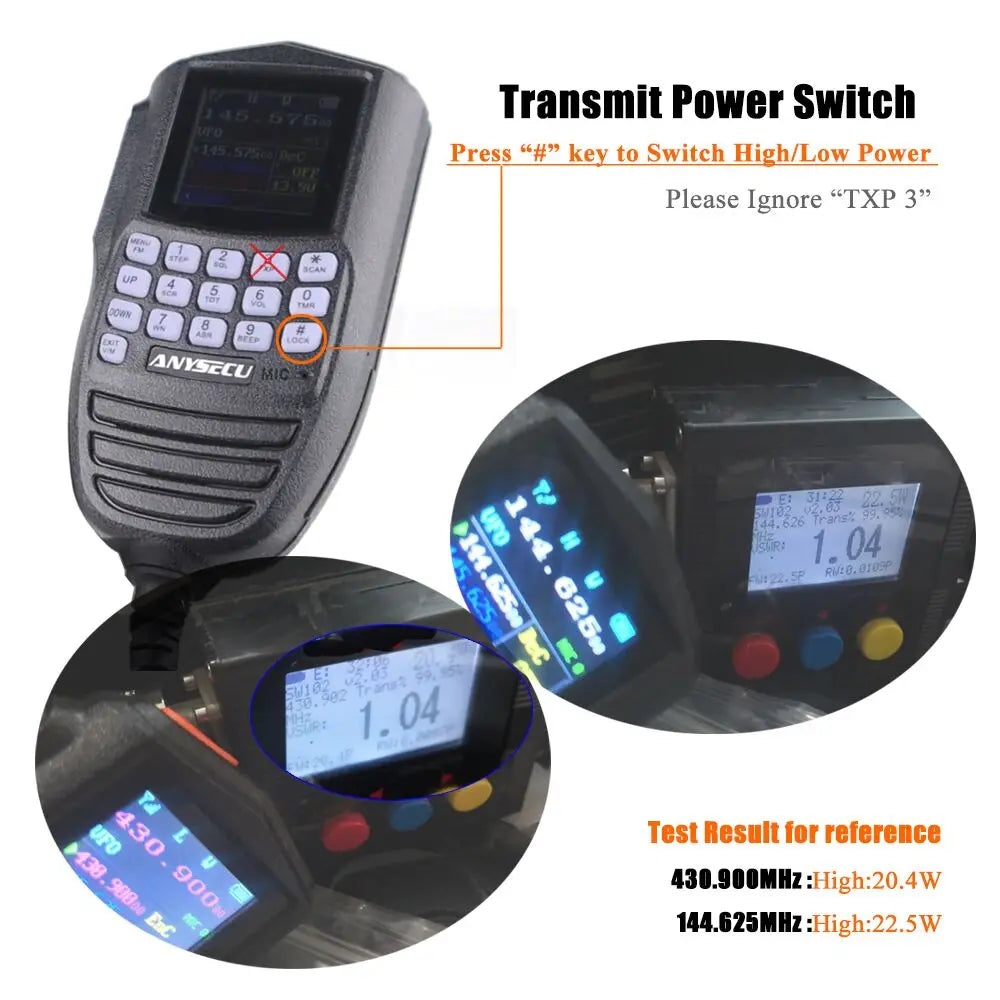

High/Low Tx Power Switchable
Keypad Lock

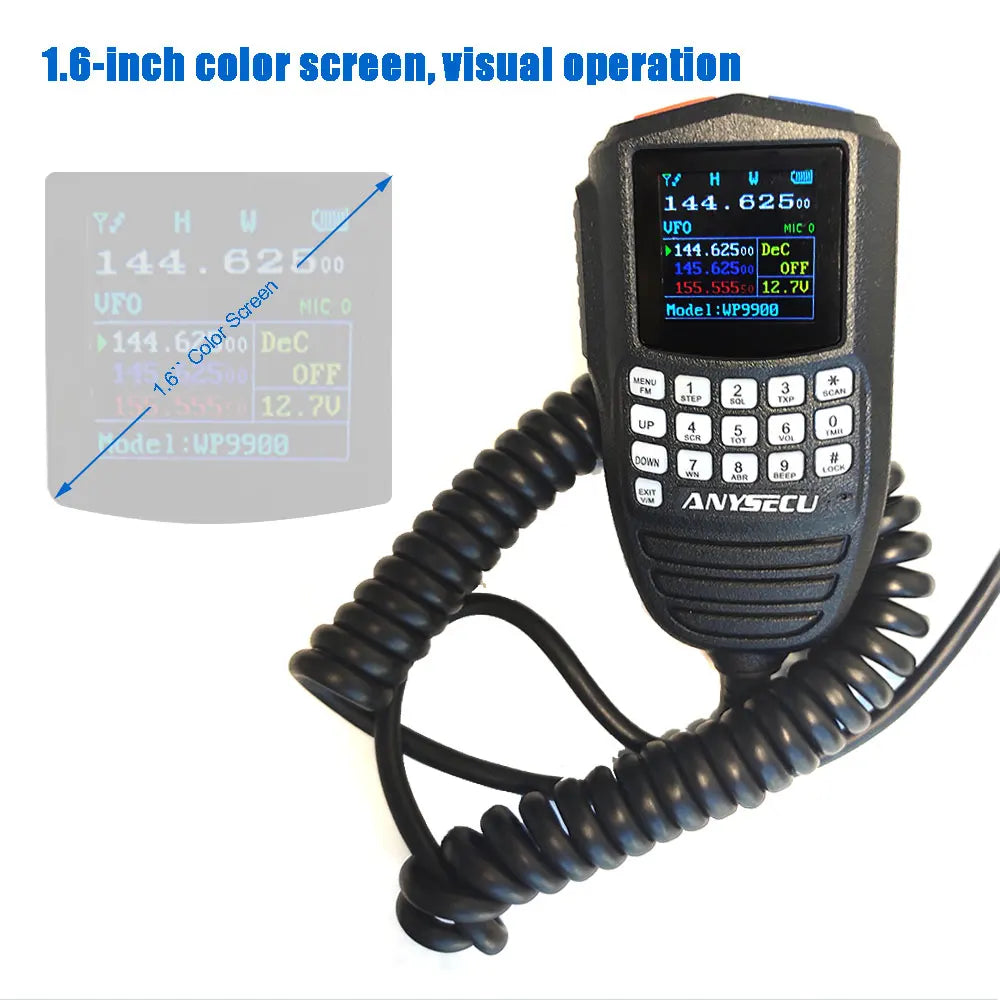

Large Color Lcd Display
Low Battery Alert
Monitor Channel

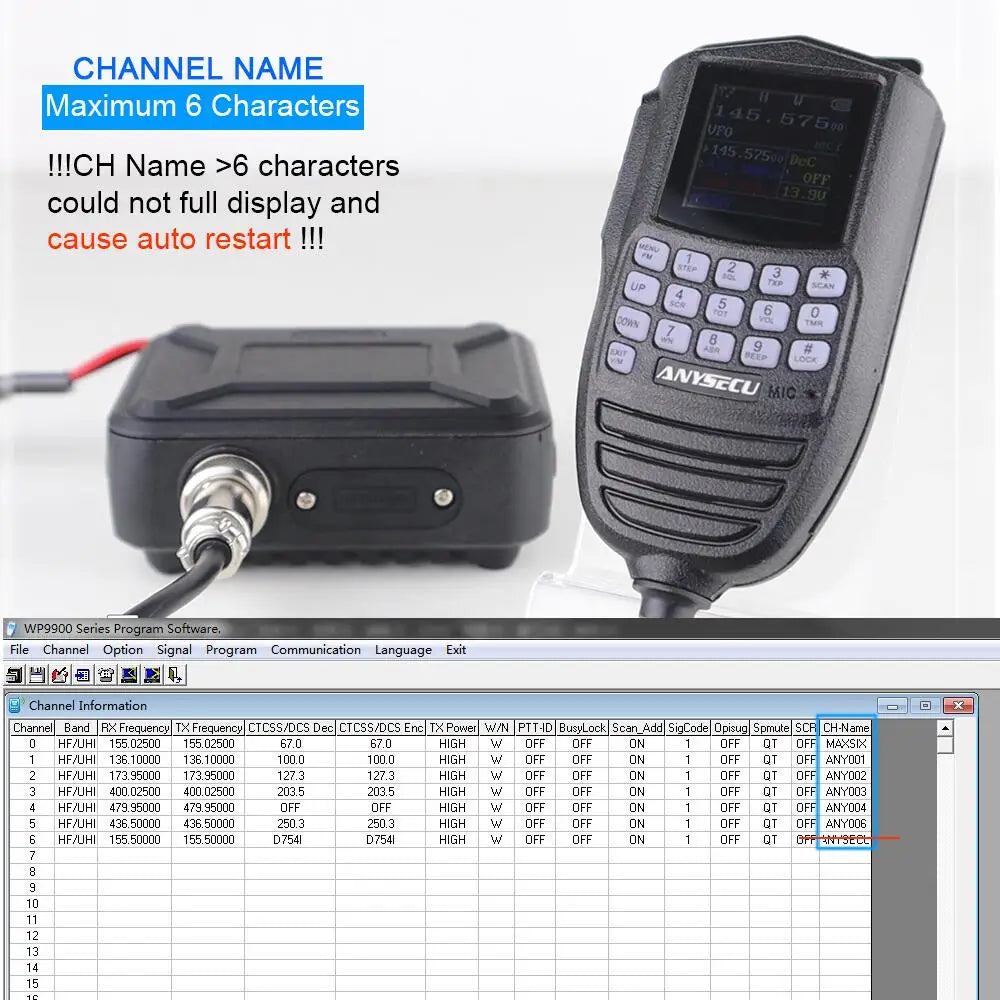

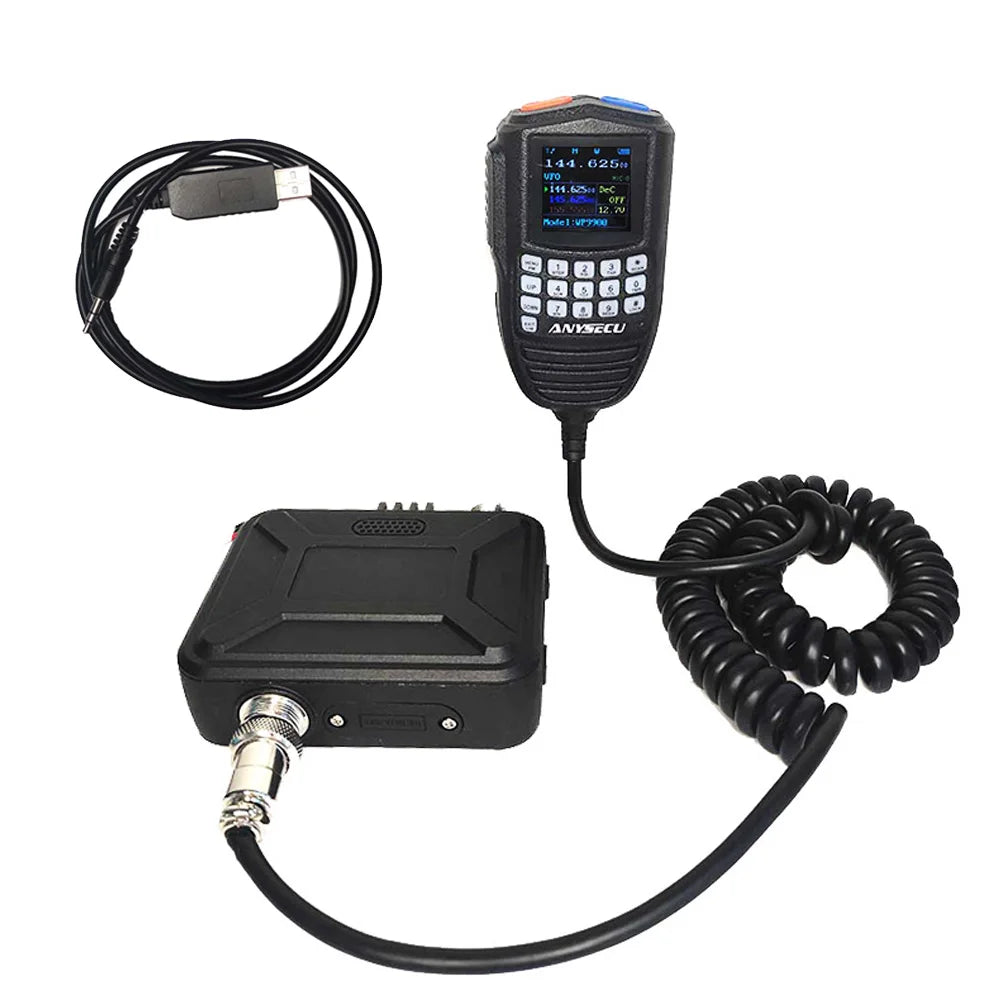

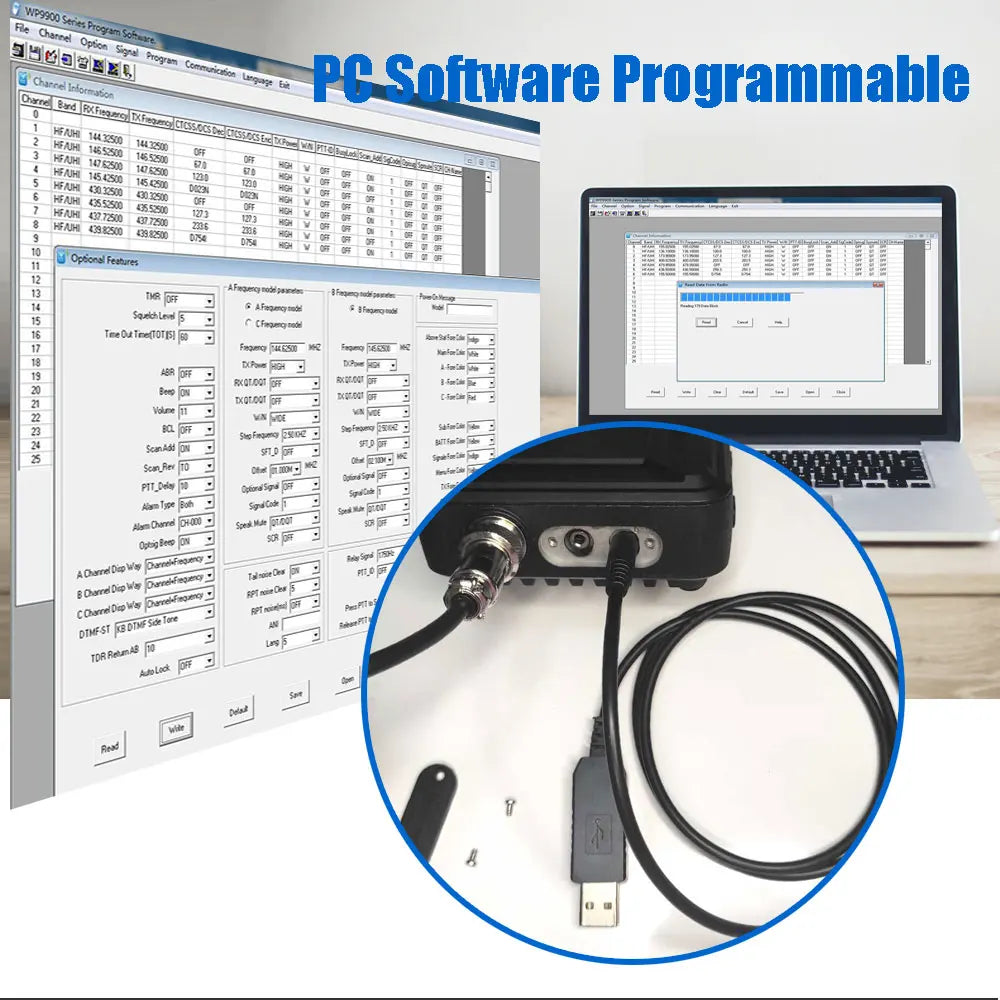

Pc Software Programmable
Scanning
Signal Strength Indicator
Time-Out Timer (Tot)
Specification | ||
Frequency Range |
VHF:136-174MHz |
|
UHF:400-480MHz | ||
Channel Capacity |
200 channels |
|
Channel Spacing |
25KHz, 20KHz, 12.5KHz |
|
Channel Step |
5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz |
|
Working Voltage |
13.8V DC ±15% |
|
Squelch way |
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20℃~+60℃ |
|

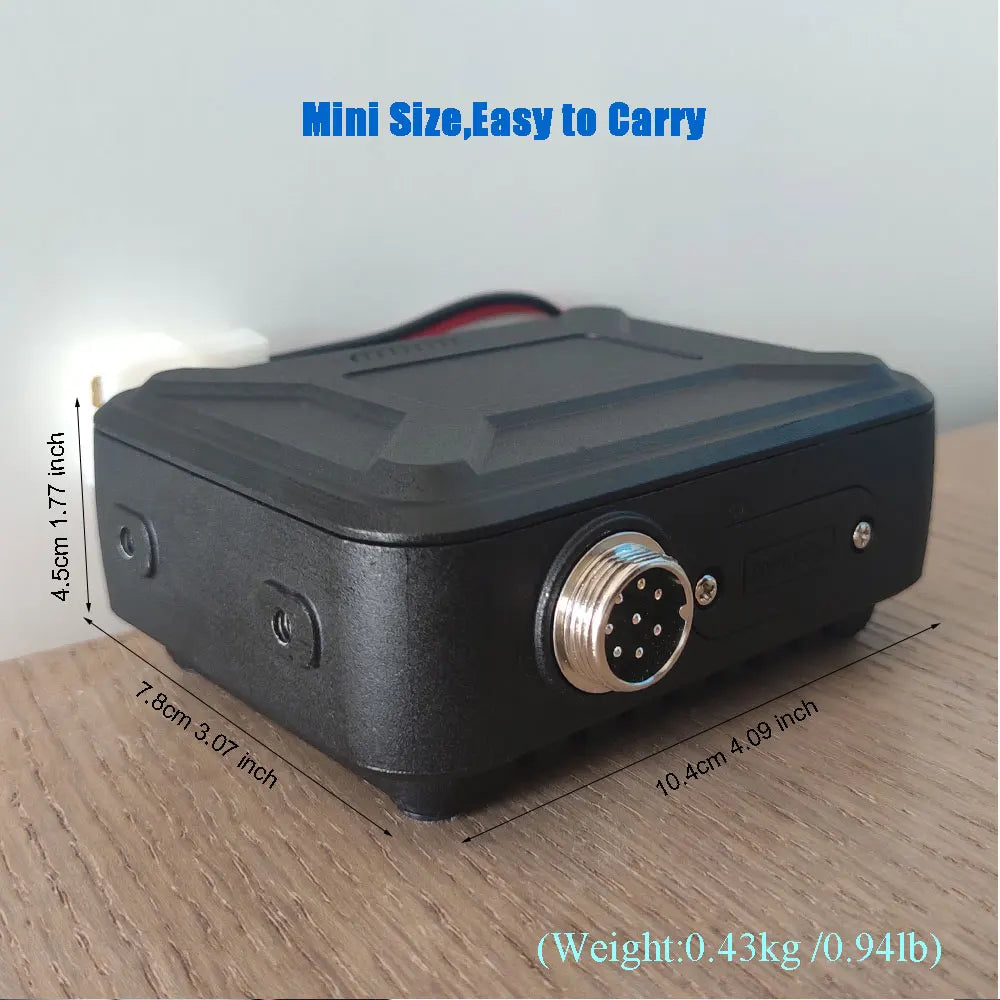

Dimension(W*H*D) |
98(W)*35(H)*118(D)mm |
|
Weight |
408g |
|
Receiver | ||
Wide Band |
Narrow band |
|
Sensitivity |
≤0.25μV |
≤0.35μV |
Channel chioce |
≥70dB |
≥60dB |
Intermodulation |
≥65dB |
≥60dB |
Spurious Rejection |
≥70dB |
≥70dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
Signal to noise ratio |
≥45dB |
≥40dB |
Audio distortion |
≤5% |
|
Audio output power |
≥2W±10% |
|
Transmitter | ||
Wide Band |
Narrow band |
|
Output power |

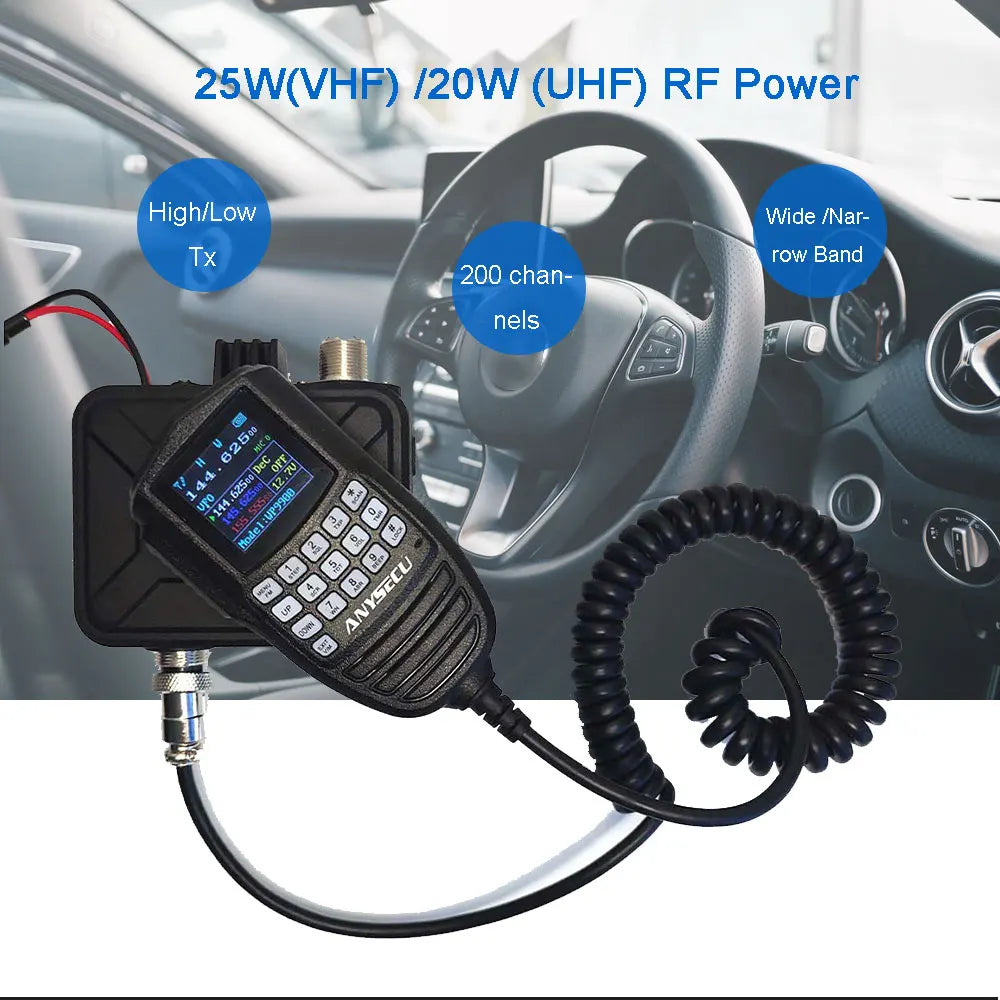

25W(VHF) /20W (UHF) |
|
Modulation Mode |
16KΦF3E |
11KΦF3E |
Channel Power |
≥70dB |
≥60dB |
Signal noise ratio |
≥40dB |
≥36dB |
Parasitic harmonic |
≥60dB |
≥60dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.25KHz) |
Audio distortion |
≤5% |
|
