Specification
SPECIFICATIONS
Brand Name: ANNKE
Cable Length: 30m,18m
Certification: CE
Hign-concerned Chemical: None
Lens: 2.8 mm
Max resolution: 4096x3072(12MP)
Model Number: N98PBK-94DN
Motion detection 2.0: Supoort Human Vehicle detection
Origin: Mainland China
PCS of Camera: 4PCS,8PCS
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
TV System: NTSC,PAL
Video Input: 8 Channel
Wide Dynamic Range: 120 dB WDR
NVR Key Features
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection
Camera Key Features
★ 12MP smart dual light bullet network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)

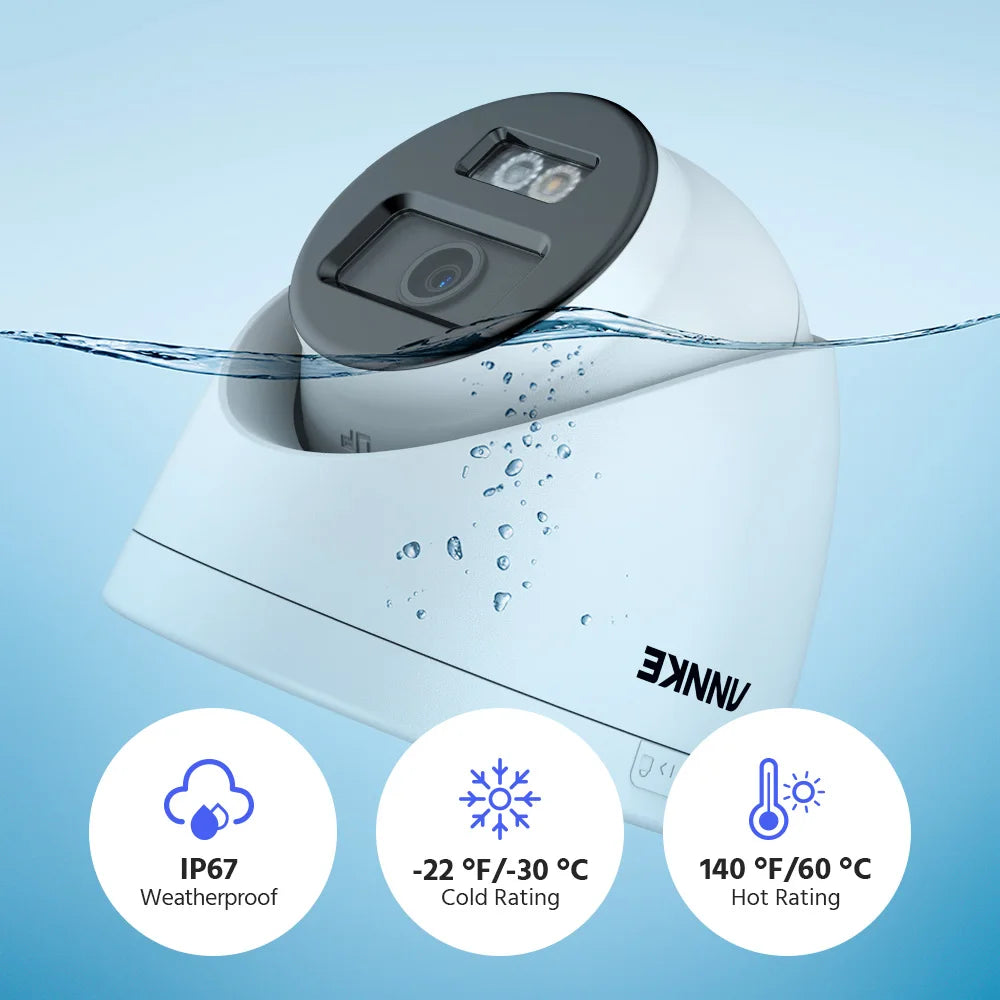

★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
Exceptional 12MP UHD Visual Experience
12MP resolution with the 1/2.7" progressive scan BSI CMOS image sensor, not only delivers crisp quality with a new level of color and detail, but also outputs 4096*3072 super-high-resolution images, which is 6 times sharper than the 1080P camera. Nothing will be ignored.
Human&Vehicle Detection and Enhanced Privacy
This PoE IP camera keeps an eye on people and vehicle movements with advanced AI features like smart detection, which is up to 99% accuracy, minimizing APP false alarm pushes. Also, you can mask your private places with digital veils to protect your privacy.
From Black & White to Colored Night
With the default IR night vision, human&vehicle triggered and turned the vision into color; even in darker environments, color night vision still at illuminations above 0.005Lux; in addition, IR night vision and color night vision mode switching.(100ft IR&color night vision distance )
Smart Search & Playback
This smart PoE camer makes it easier for you to find what you want in loads of videos and helps you to locate the vital clips in a sec. What's more, you can access&control the C1200 camera to perform remote access via the ANNKE APP.
Built-in microphone Support AudioRecording Noise-Cancelling
Advanced H.265+ Video Format – H.265+ coding offers longer recording time before having to overwrite the older recordings, saving up to 75% of storage space than H.264 systems.

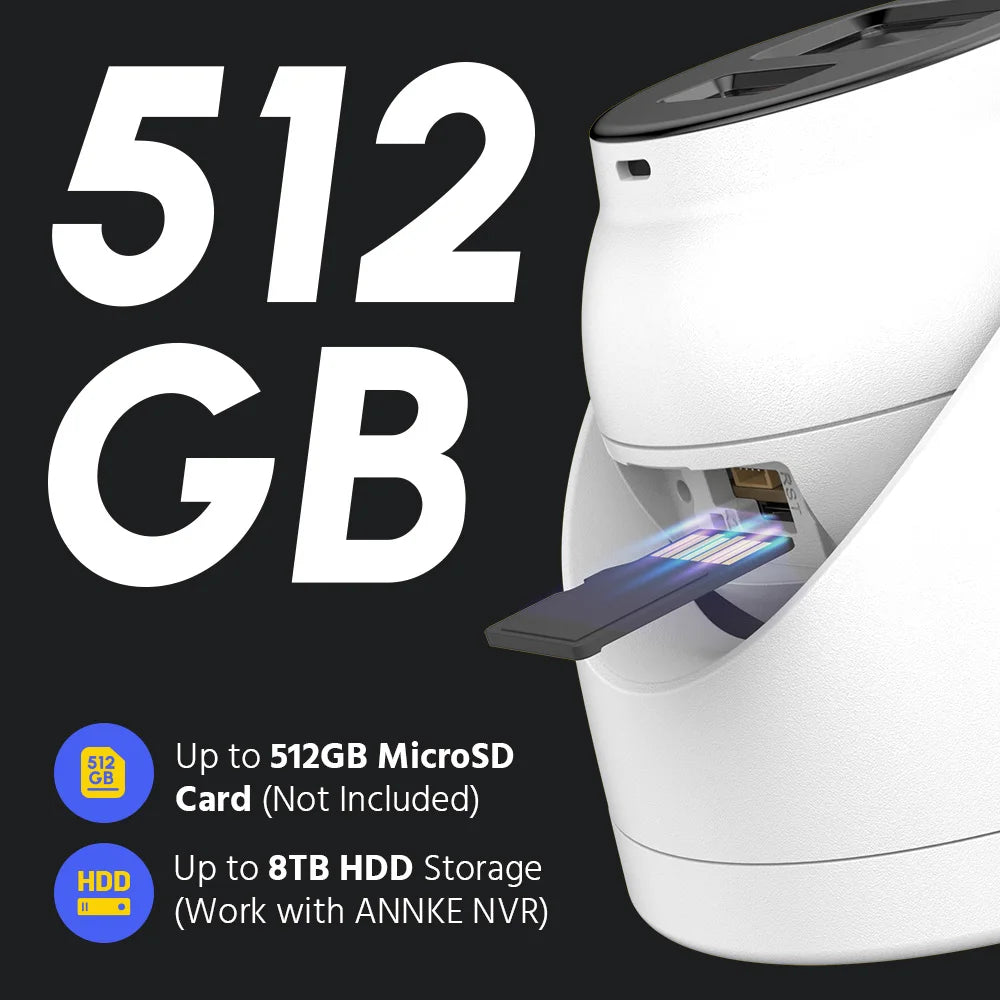

Memory Card & NVR Storage Allowed
The camera not only supports up to 512GB microSD card(not included) to store but NVR recording. ANNKE NVR works best with this 12MP PoE camera, which can let you enjoy crystal-clear image quality without distortion, extra-long recording and use less bandwidth.

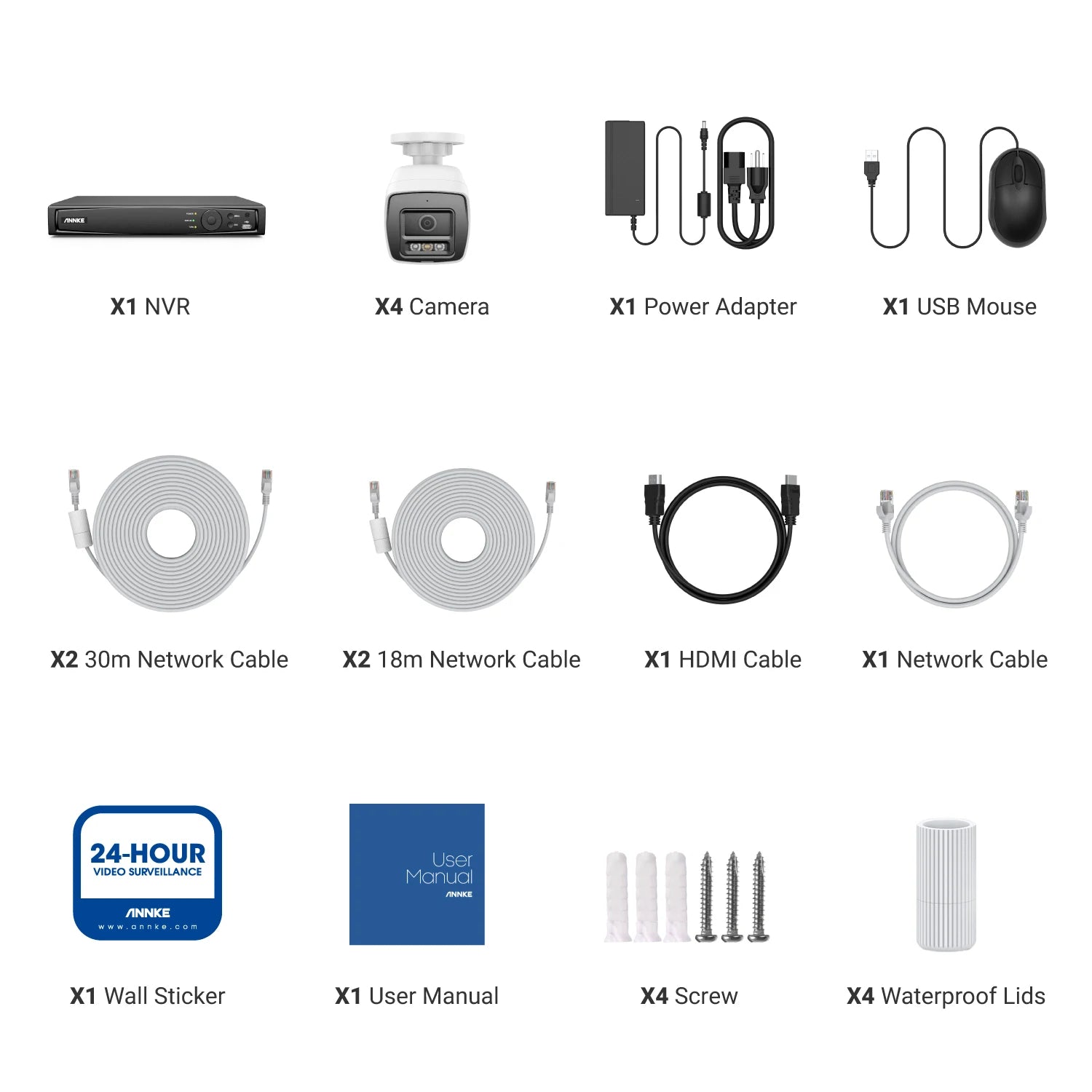

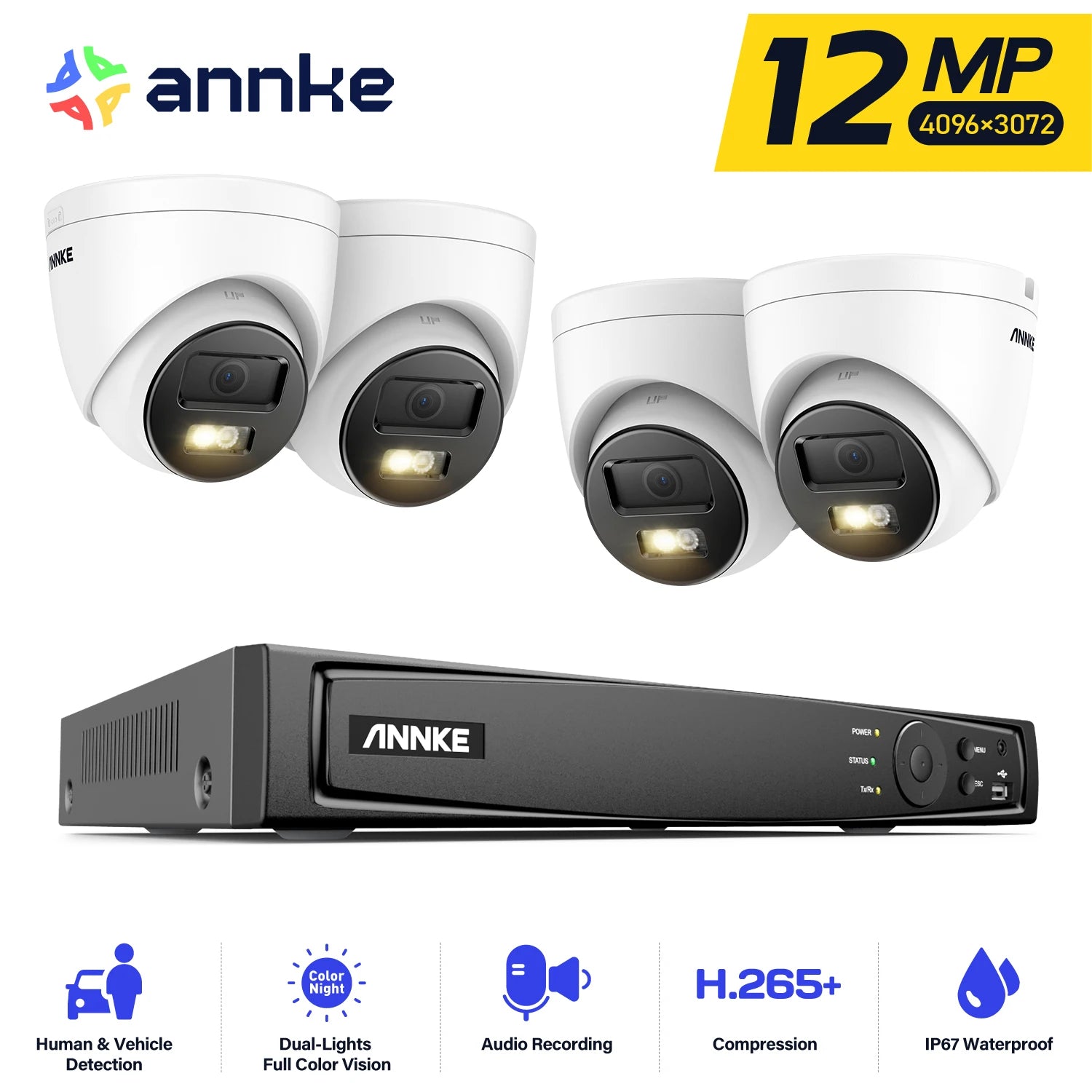

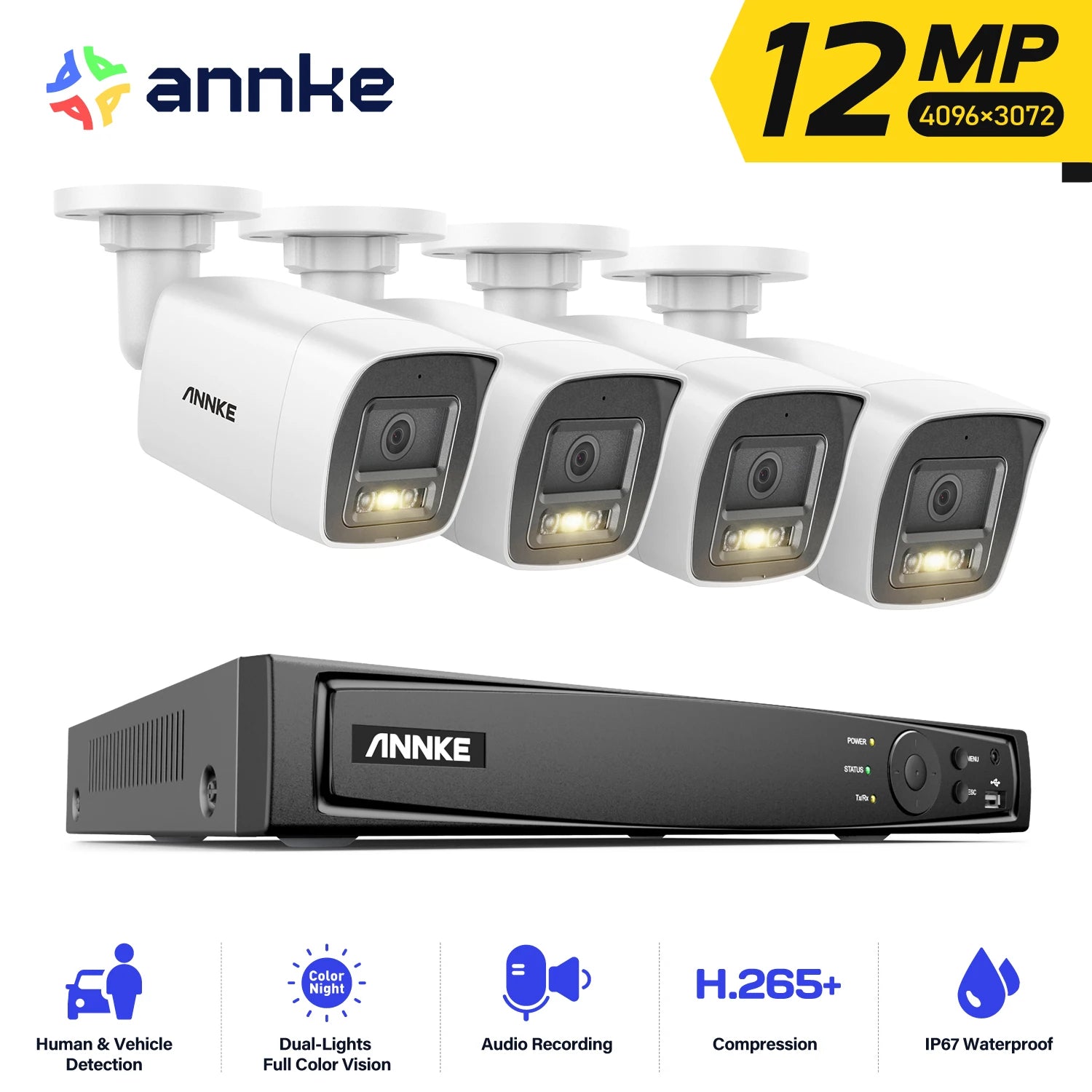

8CH NVR N98PBK + 4Pcs Camera

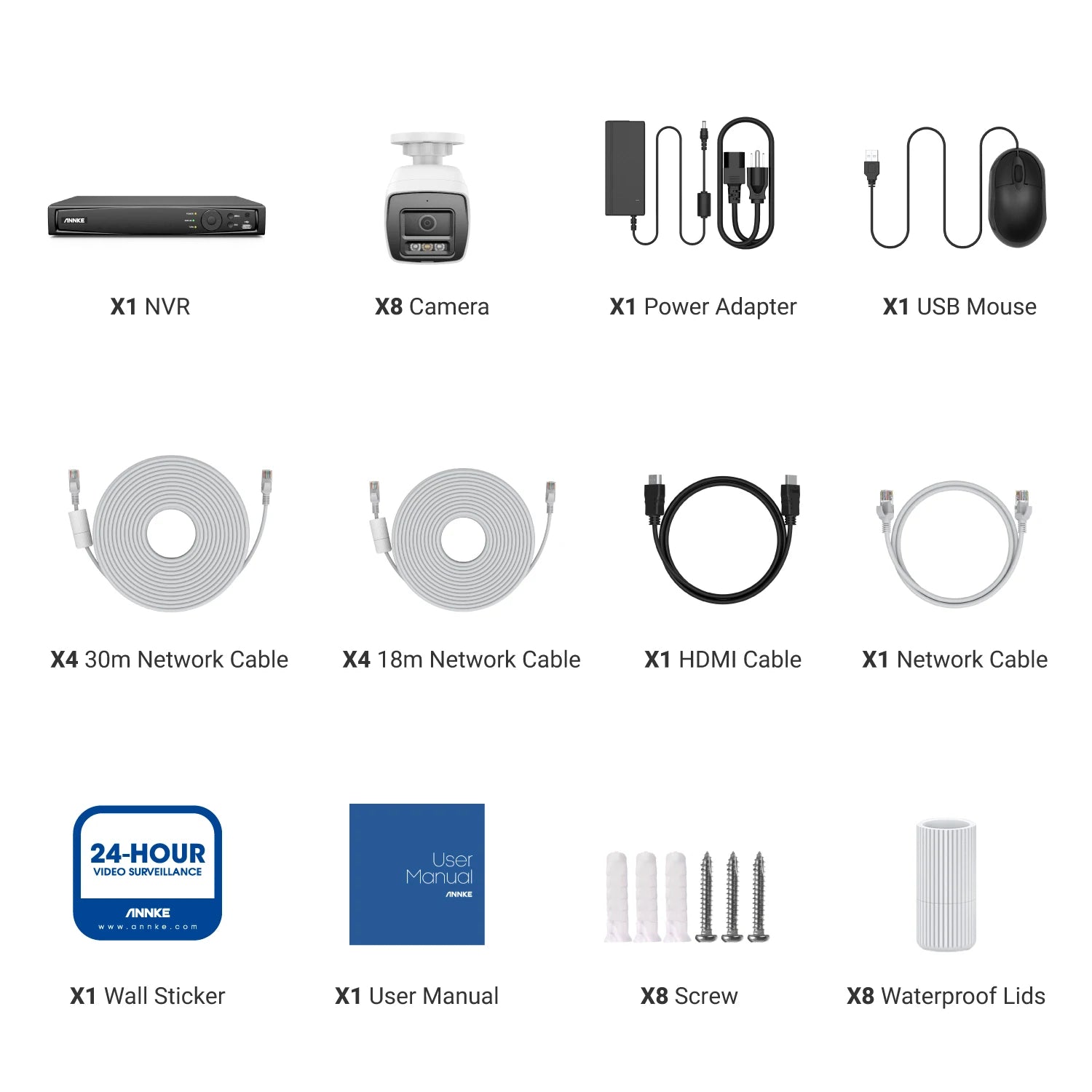

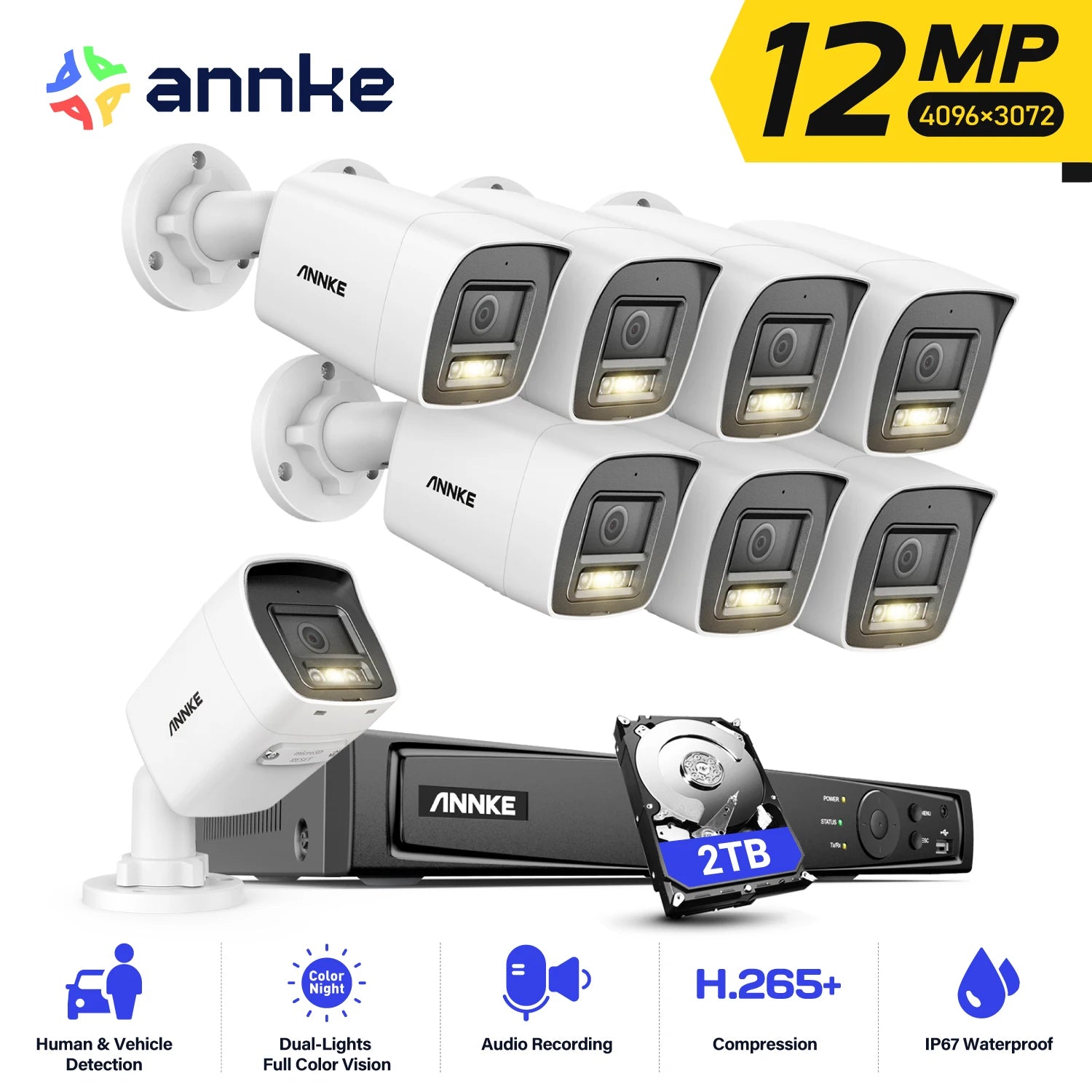

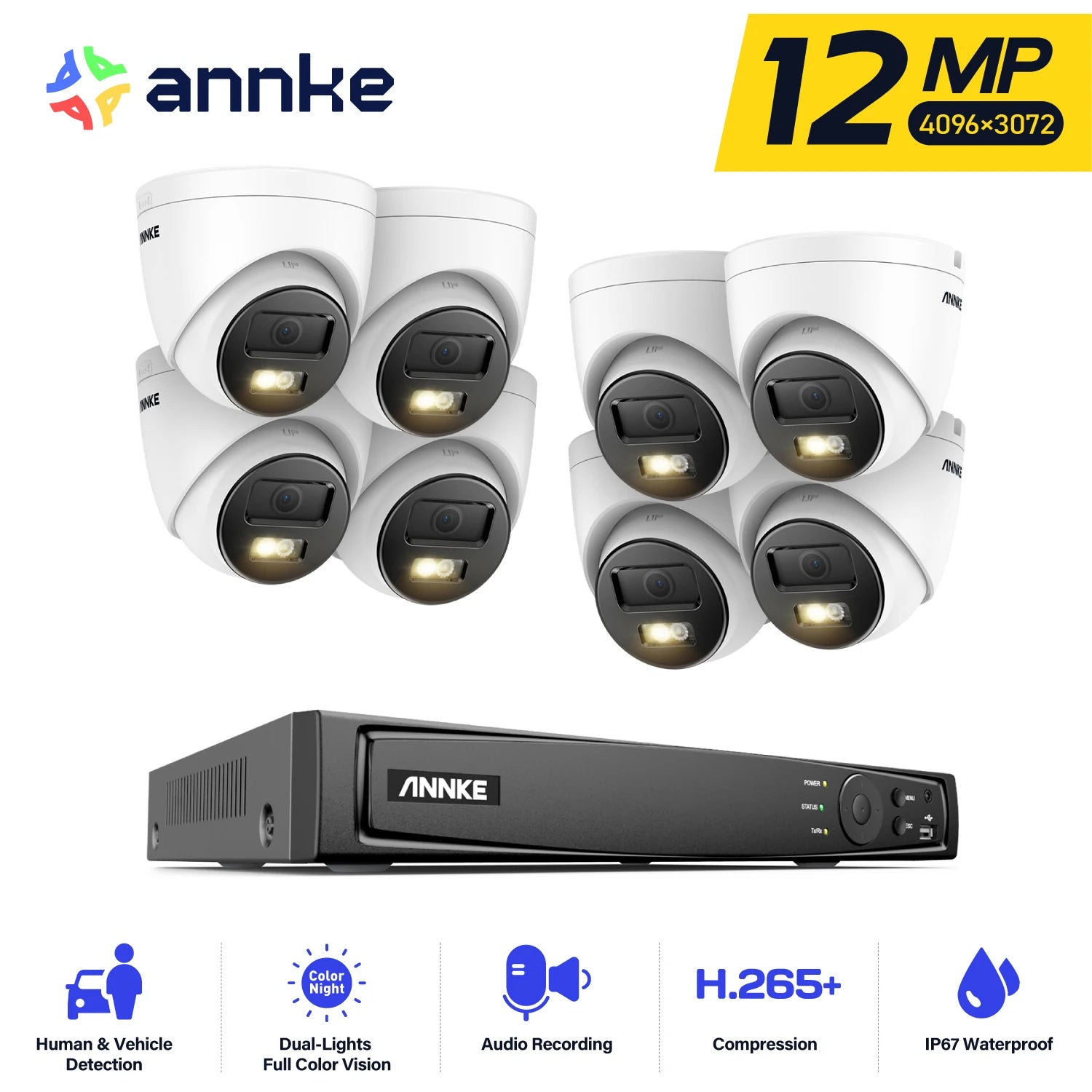

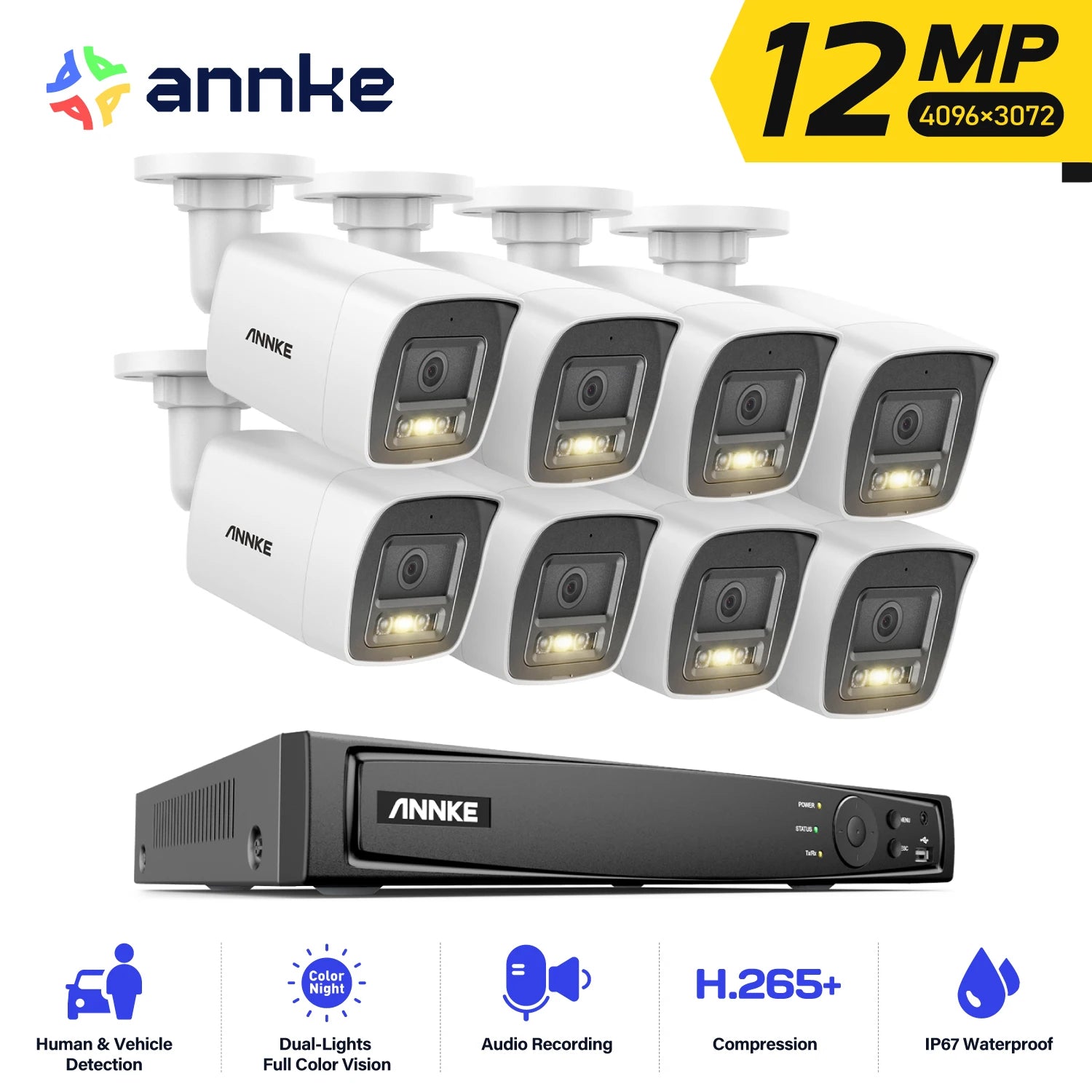

8CH NVR N98PBK+ 8Pcs Camera
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|

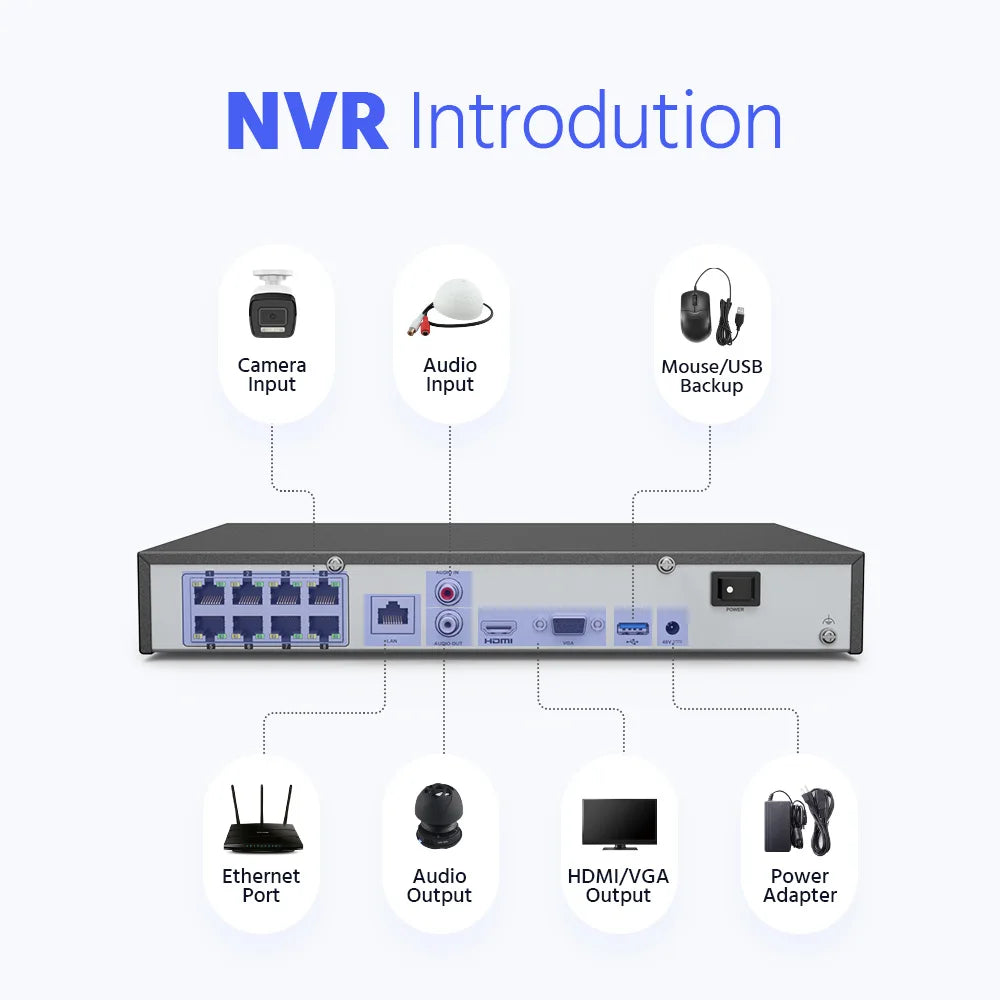

External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
IP Camera | ||
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 93 mm (Ø4.33" × 3.66") |
|
Weight |
0.6 lb./285 g |
|
