Specification
SPECIFICATIONS
Battery Capacity(mAh): 1500
Battery Included: Yes
Brand Name: ANYSECU
Certification: CE
Dimensions: 110*50*32 mm
Frequency Range: 400-520 MHz
Hign-concerned Chemical: None
Is_Display: No
Material: plastic+metal
Maximum Range: 3km-5km
Model Number: 4xKD-C1
Origin: Mainland China
Output Power(w): 3w-5w
Storage Channel: 16
Use: others
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: IP55

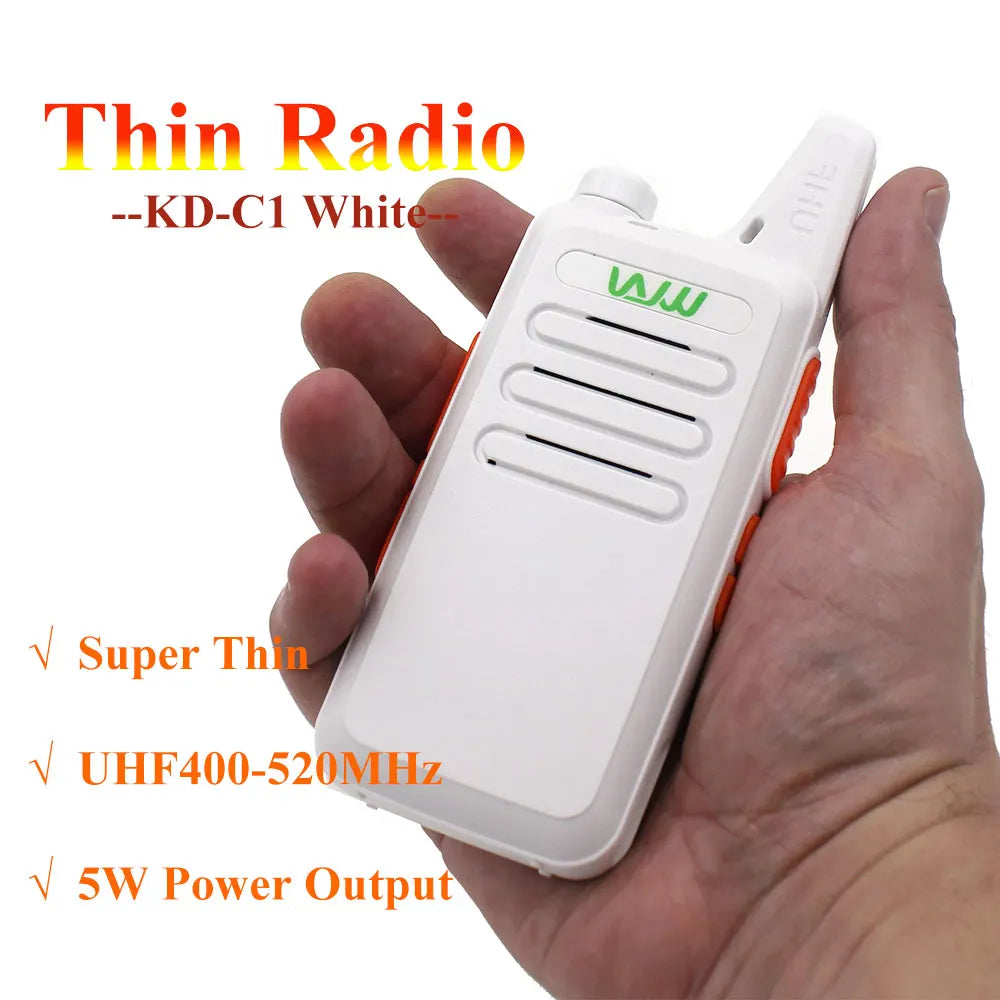

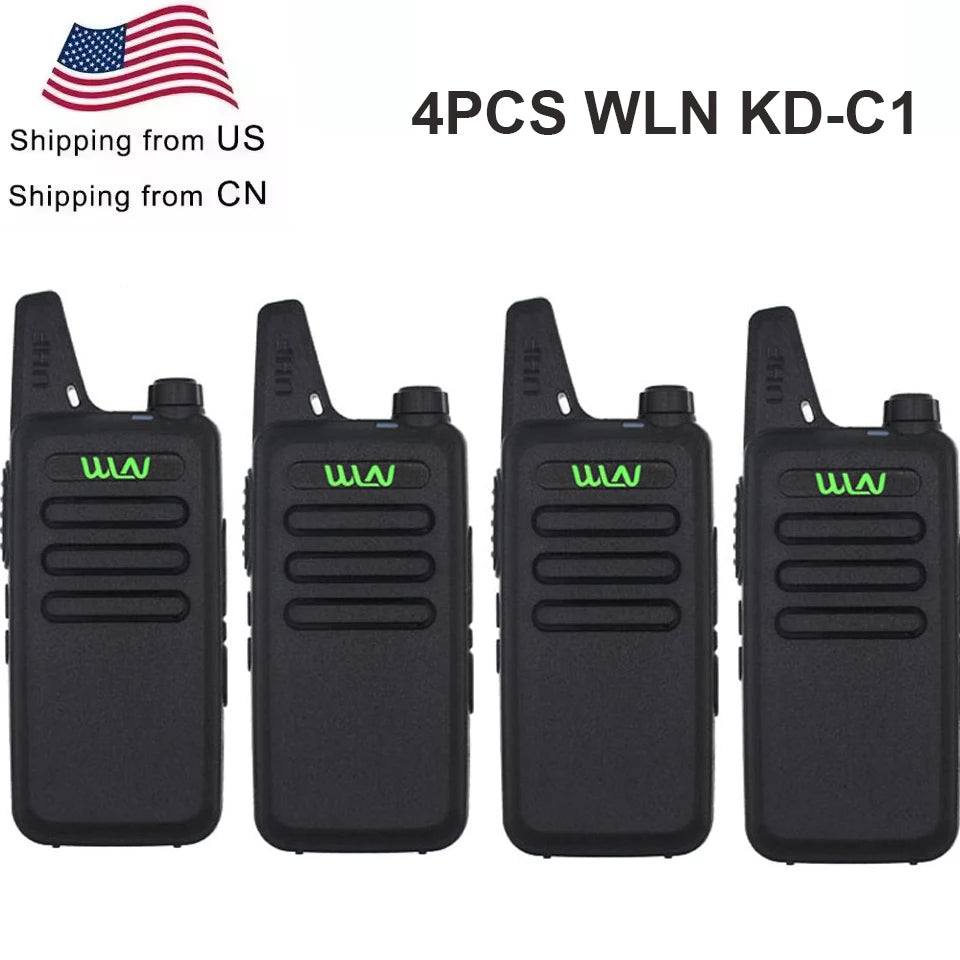

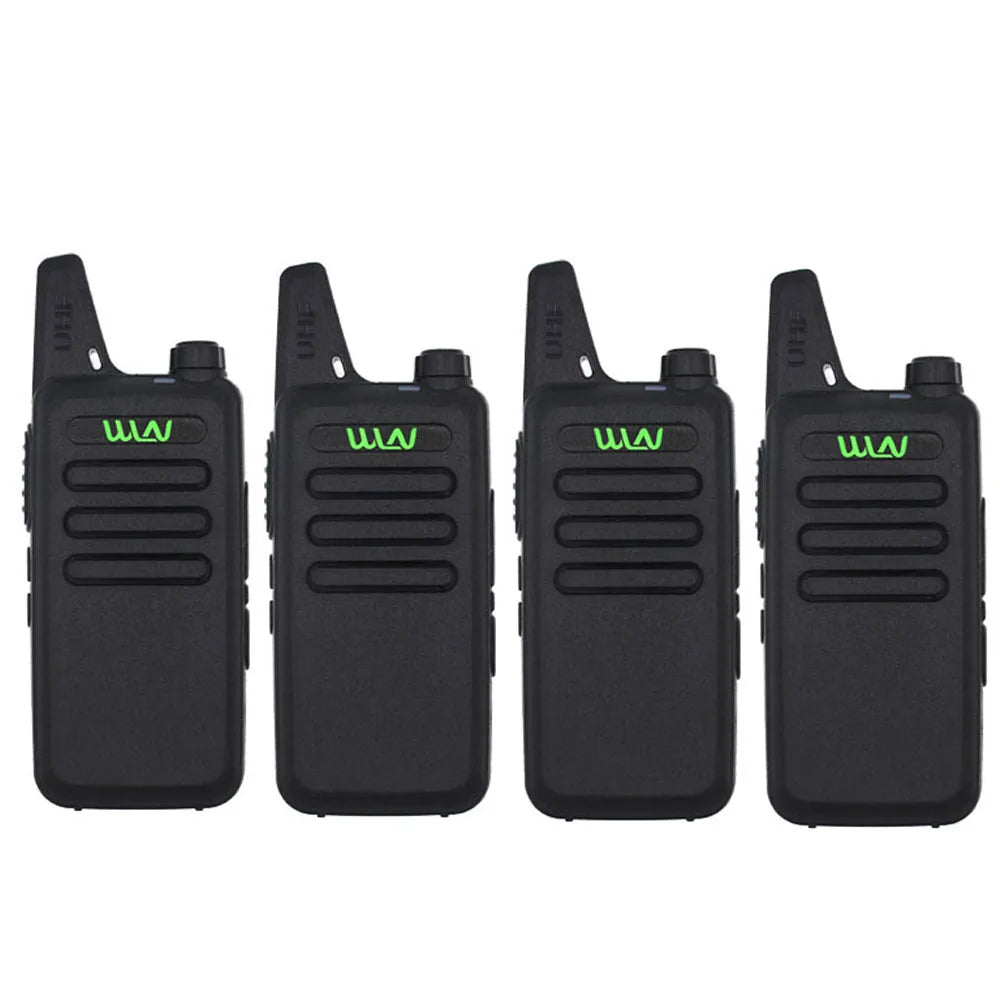

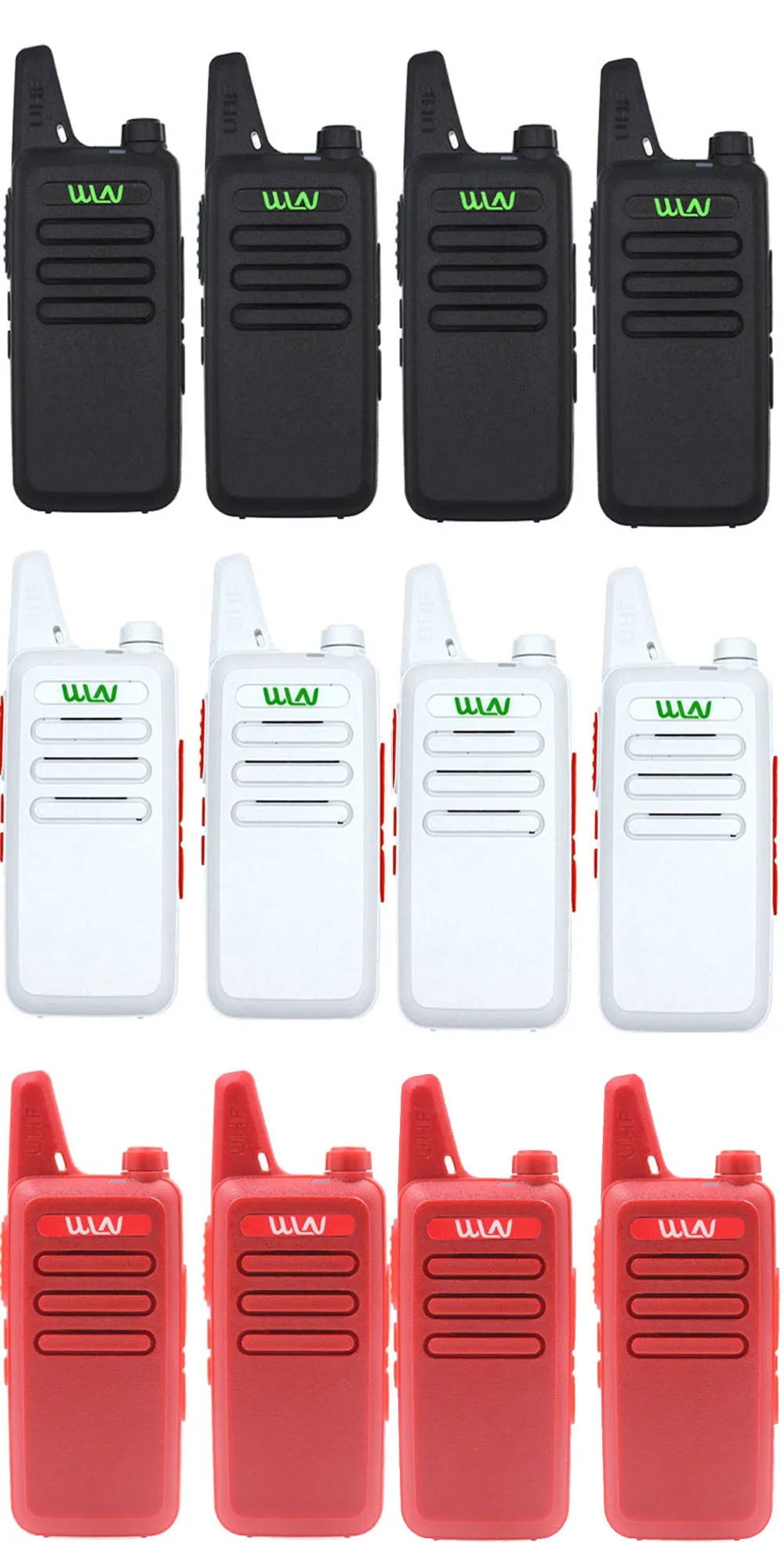

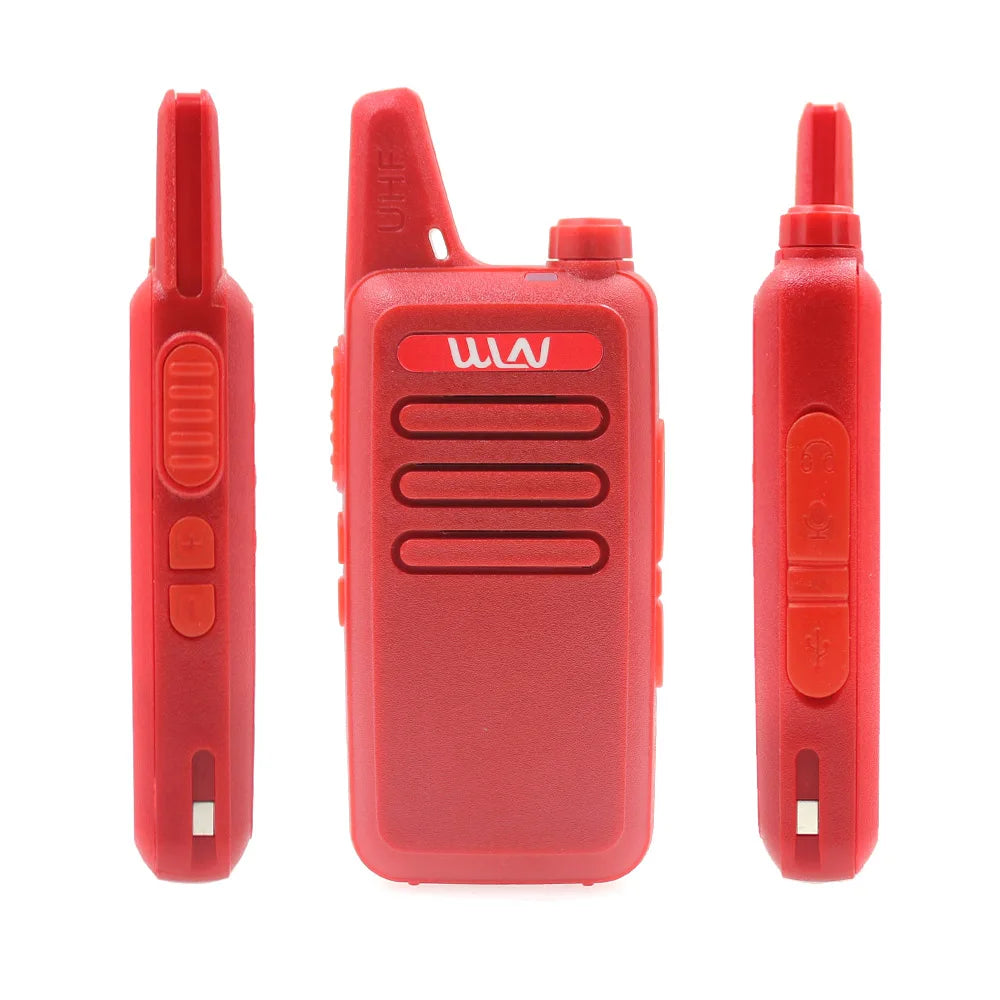

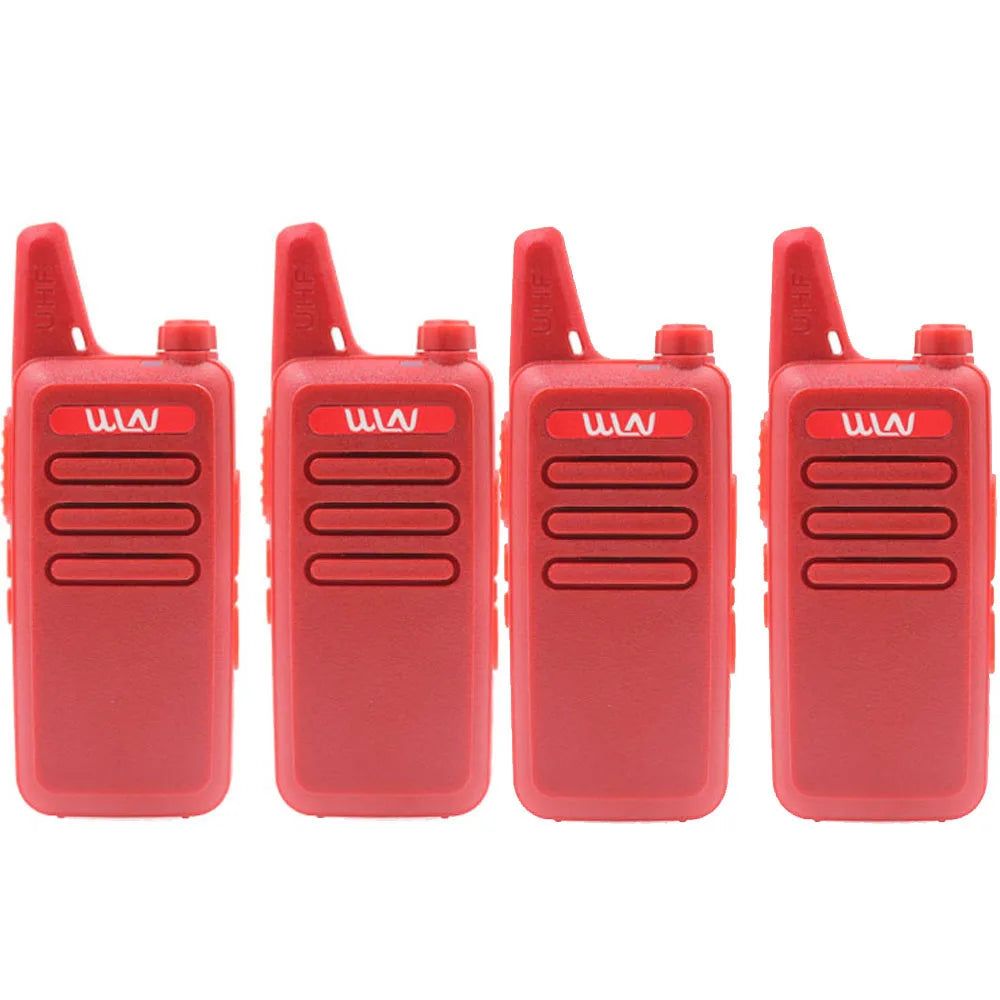

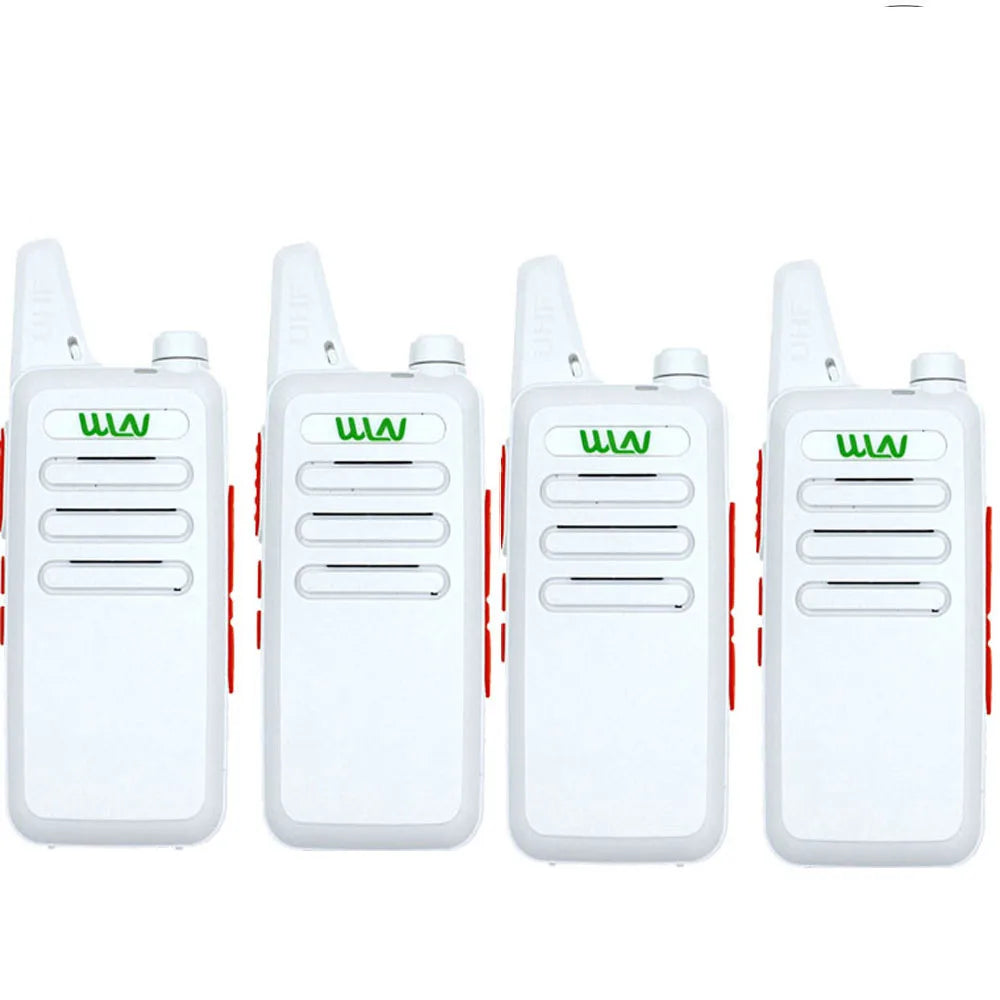

4PCS WLN KD-C1 mini radio UHF 400-520 MHz 5W portable walkie talkie 16 Channel UHF Transceiver
Note: if you need the software, please contact us.
Feature:
50 CTCSS/105 CDCSS
VOX Function
Voice Prompt

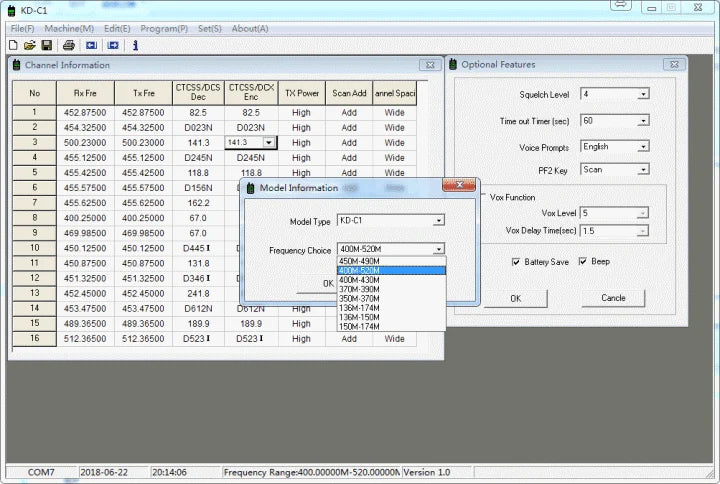

PC Programming
Emergency Alarm

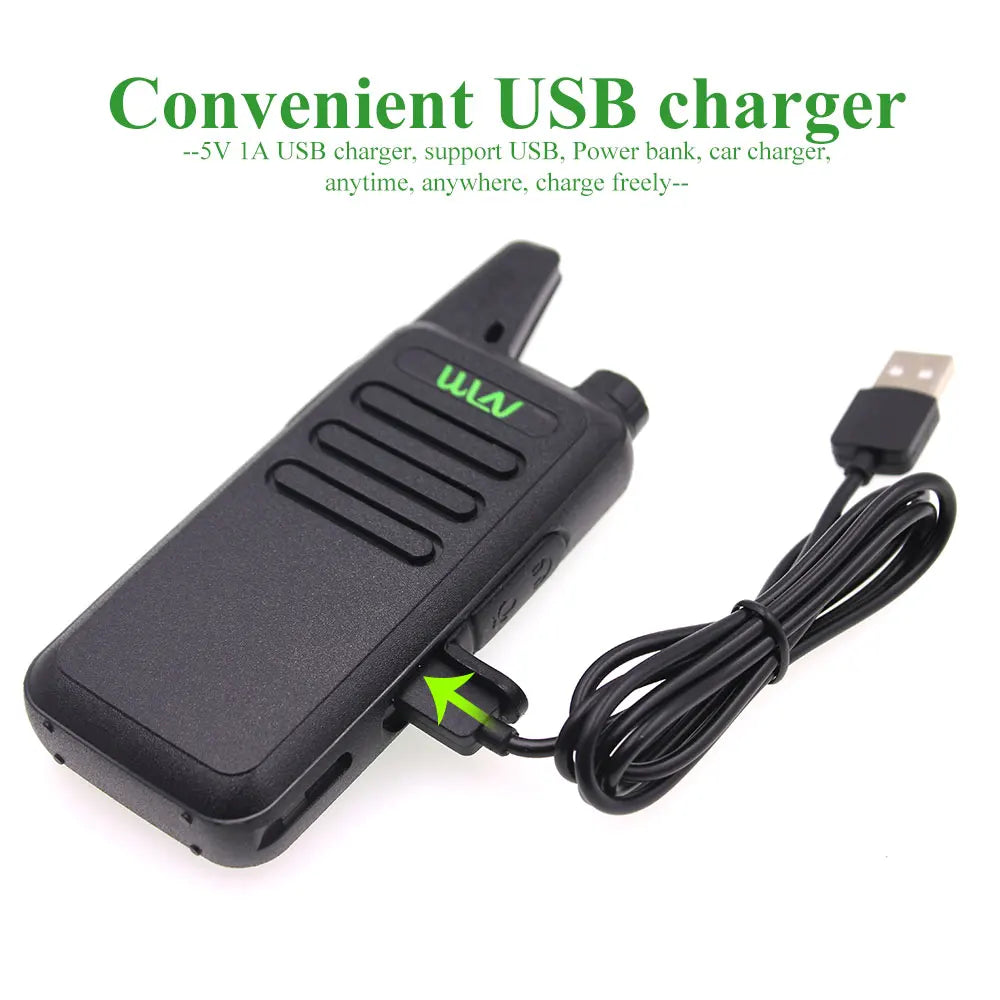

Intelligent Charging
Battery Save
Low Voltage Alert
Time-out Timer
Specification:
General Specifications |
|
Frequency Range |
UHF 400-520MHz |
Channel Capacity |
16 |
Channel Spacing |
25KHz |
Operated Voltage |
3.7 V |
Battery |
1500MAh Li-ion |
Battery Life(5-5-90 duty cycle) About 8 hours |
|
Frequency Stability |
±2.5ppm |
Operated Temperature |
-30°c-+60°c |
Antenna Impedance |
50Ω |
Dimensions (L×W×H) (with battery,without antenna) |
110×50×32 mm |
Weight (with battery/antenna) |
125g |
Communication Range |
about 6km |
Transmitter |
|
RF Power Output |
<5W |
Spurious Emission |
≤65dB |
FM Noise |
≤-45dB(W) ≤-40dB (N) |
Audio Distortion |
≤5% |
Transmitting Current |
≤1.3A |
Receiver |
|
Sensitivity (12dB SINAD) |
≤0.20 uV |
Selectivity |
55dB/50dB |
Intermodulation |
≥65dB |
Adjacent Channel Selectivity ≥60dB |
|
Spurious Response |
≥60dB |
FM Noise |
45dB/40dB |
Audio Power Output |
1000mW |
Audio Distortion |
≤5% |
Standby Current |
≈15mA (with battery save on) |
