SPECIFICATIONS

Battery Capacity(mAh): 2200 mAh

Brand Name: BAOFENG

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee

Dimensions: 133*62*36mm

Features 1: Dual Band

Features 2: Illuminated keyboard

Firmware: Upgraded Open GD77

Frequency Range: 144-148MHz,430-440MHz

Hign-concerned Chemical: None

Is_Display: Yes

Material: Plastic+metal

Maximum Range: 5km-10km

Mode 1: Digital Tier 1+2

Mode 2: Analog

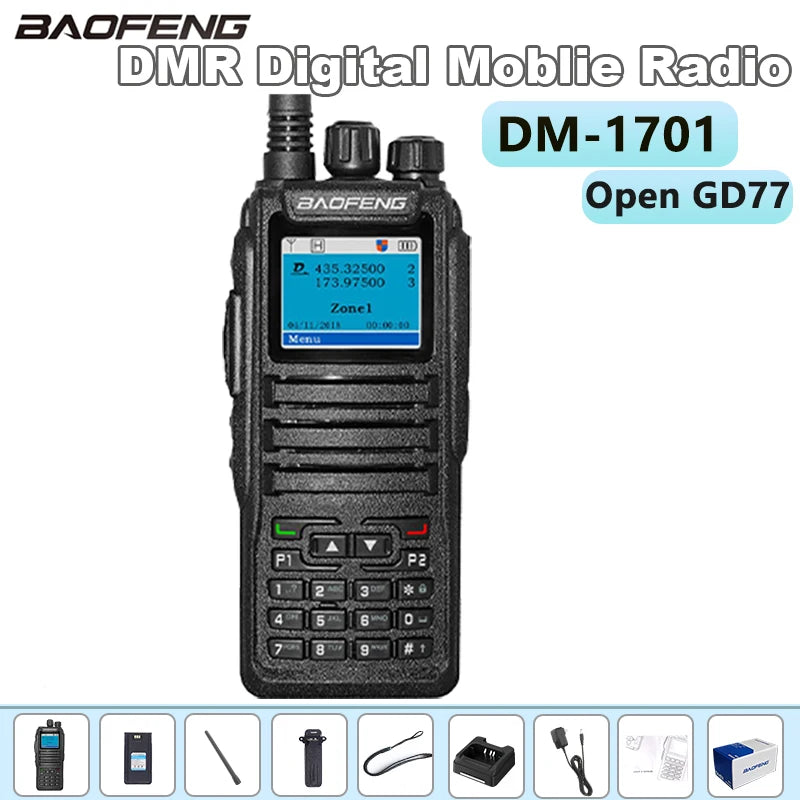

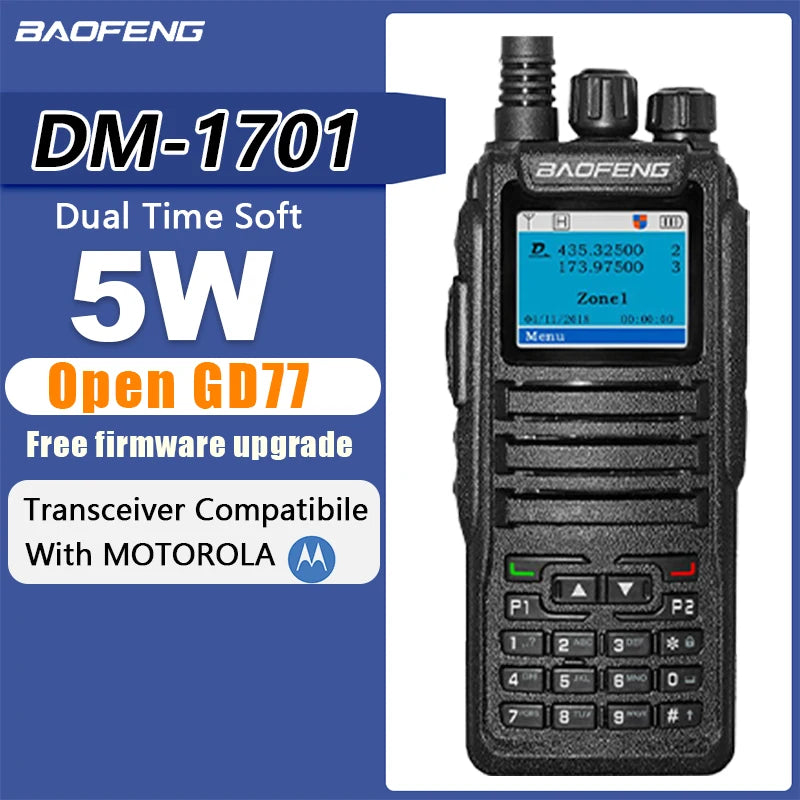

Model Number: Baofeng DM-1701

Origin: Mainland China

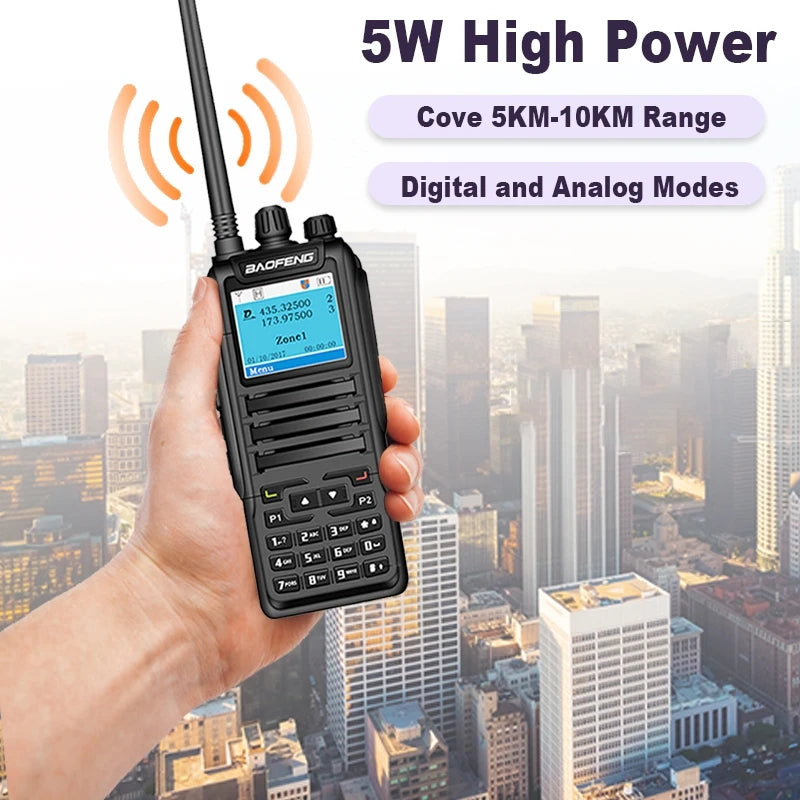

Output Power(w): 5w-10w

Storage Channel: Up to 3000

Type: Dual Mode

Walkie Talkie Type: Portable

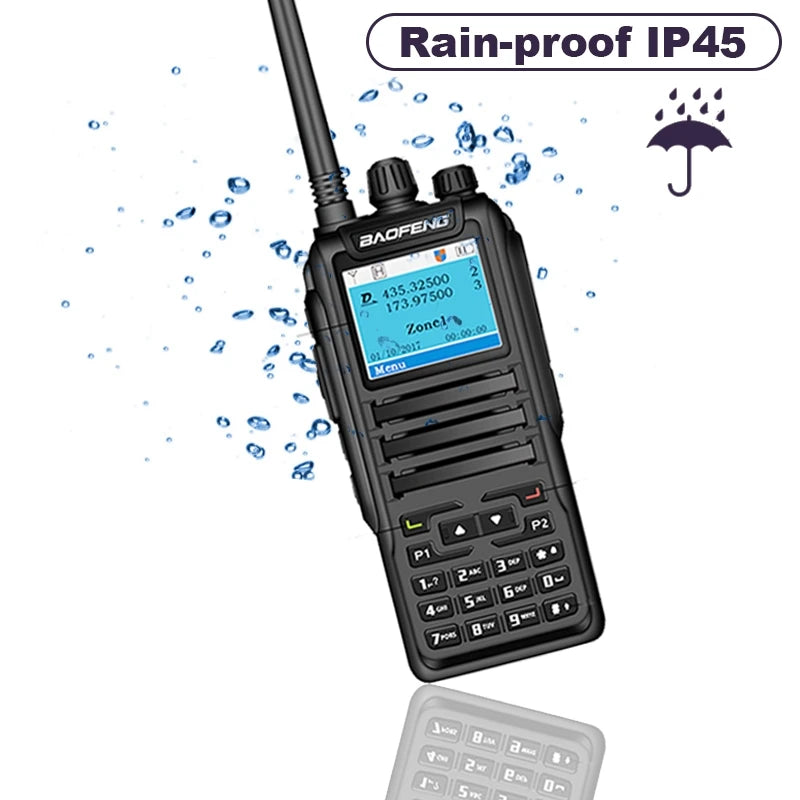

Waterproof / Water-Resistant: IP45

✧[Digital & Analog Compatible]

The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 MHz and 400-520 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

✧[Multi-Function & 1.77 "color TFT Display]

- The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

✧[Updated Software & Firmware Support]

- The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life-time-free.

✧[DMO True 2 time slot]

- Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

BAOFENG DM-1701 Baofeng New launch dual mode analog & Digital walkie talkie DM-1701 Tier 1+2 Dual Time Slot Dual Band VHF & UHF Two Way Radio DM-1701 DMR Ham Amateur 2-WAY-Radio Station Dual band Portable radios

《Multi-function and 1.77-inch color display》:

 The DM-1701 scans analog and digital channels, manual programming, emergency alarms, digital listening mode,

DTMF, VFO, text messaging, CTCSS and CDCSS, color code and DMR encryption.

《Support for updating software and firmware》:

The DM-1701CPS supports batch editing, which allows users to make complex application requests, making it easier to write code plug-ins.

Firmware and software upgrades for new features are free of charge. Customers can if they want to install Open GD77, can contact us when placing

an order, we will pre-install Open GD77 firmware for customers before shipping.

《DMO True 2 Time Slot》:

Straight-through mode dual time slot communication, realizing two groups of calls at one frequency point at the same time,

fully providing communication efficiency and saving frequency resources. Compatible with MOTOTRBO Tier I and II and other DMR radios.

《Compatible with both digital and analog modes》:

The DM-1701 is switchable between digital and analog modes, and it includes dual VHF/UHF frequencies of 136-174 MHz and 400-480 MHz.

It has up to 3,000 channels, 10,000 digital talkgroups and 120,000 contacts.

☞☞☞Broadband walkie talkie

Support UV double segment, frequency range UHF400.000-480.000MHz/VHF136.000-174.000MHz

☞☞☞DMO True2-Slot dual time slot

Direct mode dual-slot communication achieves two groups of calls at a frequency point at the same time, so that the communication efficiency is

doubled and frequency resources are saved

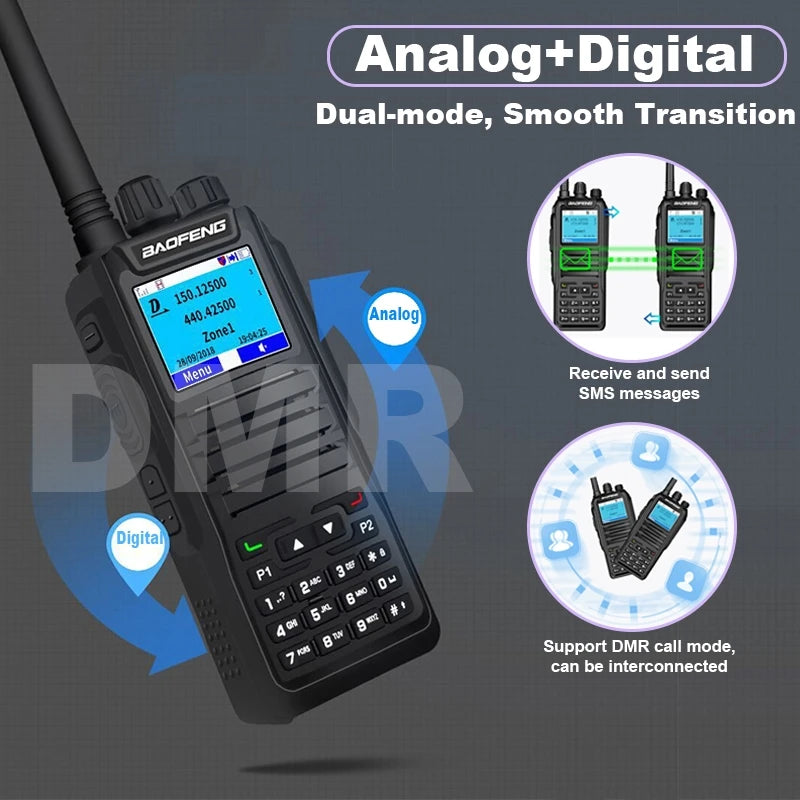

☞☞☞Digital and analog compatible

Digital and analog compatible,smooth over Support DMR digital and analog two communication modes to ensure

that the original analog products smooth transition to digital products to meet different communication needs

☞☞☞Digital signaling function

Rich calling modes that support DMR protocol, including single call, group call and all call; supports remote inhibit function and other applications

☞☞☞SMS function

Supports SMS, text editing and draft in 64characters in Chinese and English, so that text messages calls can be sent when voice call is inconvenient

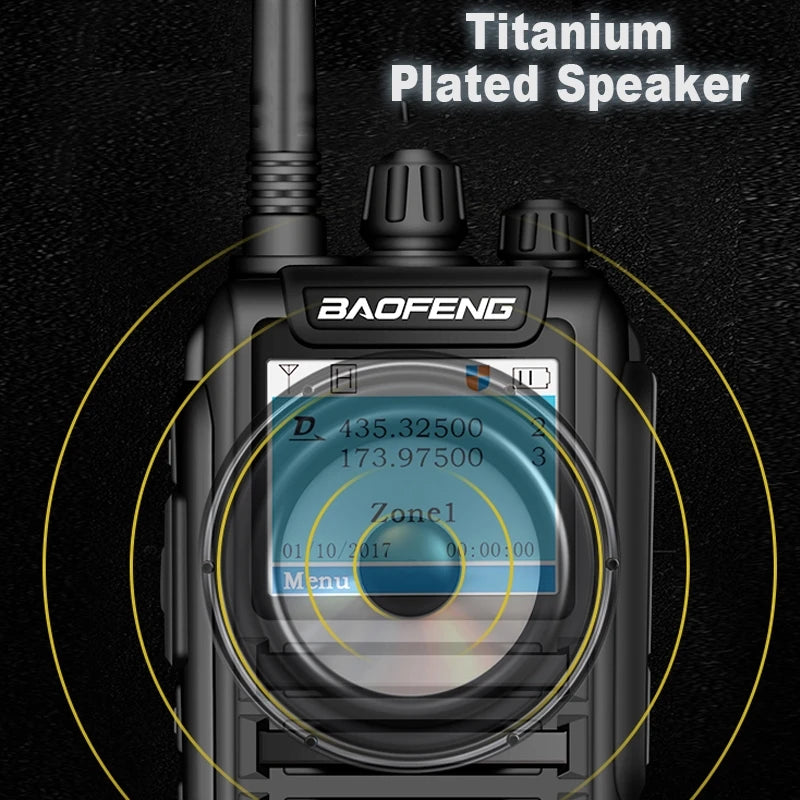

☞☞☞High sound quality

This digital two-way radio uses advanced AMBE +2TM voice processing technology to achieve high quality

☞☞☞Manual writing-frequency

Supports channel / frequency mode, allows manual writing-frequency in frequency mode, and writing-frequency software can be used to set the

required frequency without connecting the computer

☞☞☞High/low power switch

Meets the power requirements of different call distances to save more energy

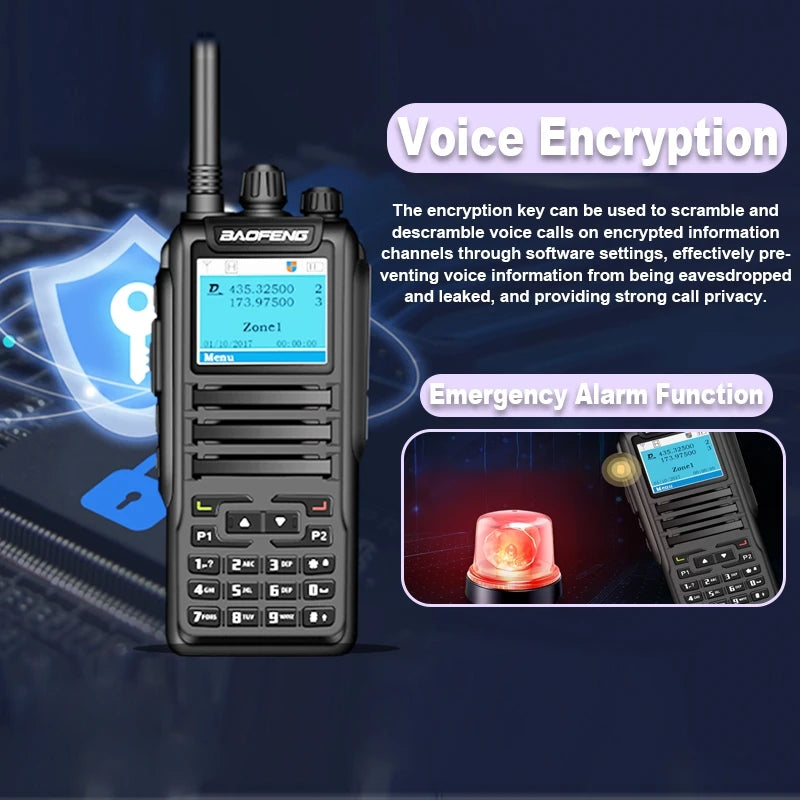

☞☞☞Alarm function

Supports general alarm and silent alarm in emergency situations

☞☞☞Digital mode supports the use of relays

☞☞☞Side buttons can be customized without changing the user’s operating habits

Note:if you need software, please contact us.

Frequency Range: VHF 136-174MHz &UHF 400-480MHz

Storage channel: up to 3000

Operating Voltage:DC 7.4V

Frequency Stability:±1.0ppm

Operating Temperature:-30°c ~ 60°c

Operating Mode:Same-frequency simple or different-frequency simplex

Antenna Impedance:50Ω

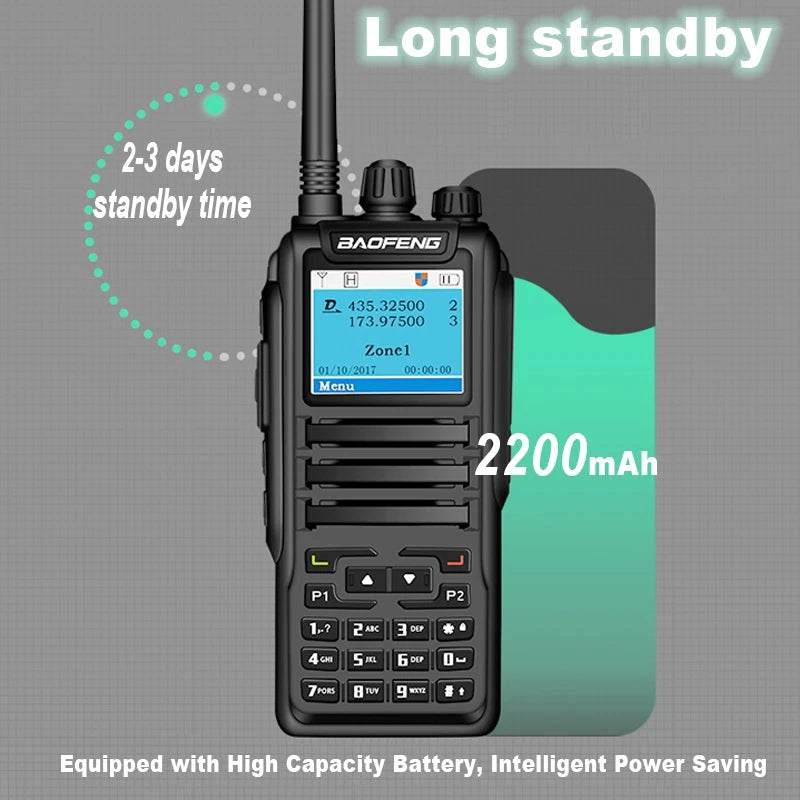

Battery Capacity:2200mAh

Weight: about 300g(with battery & antenna)

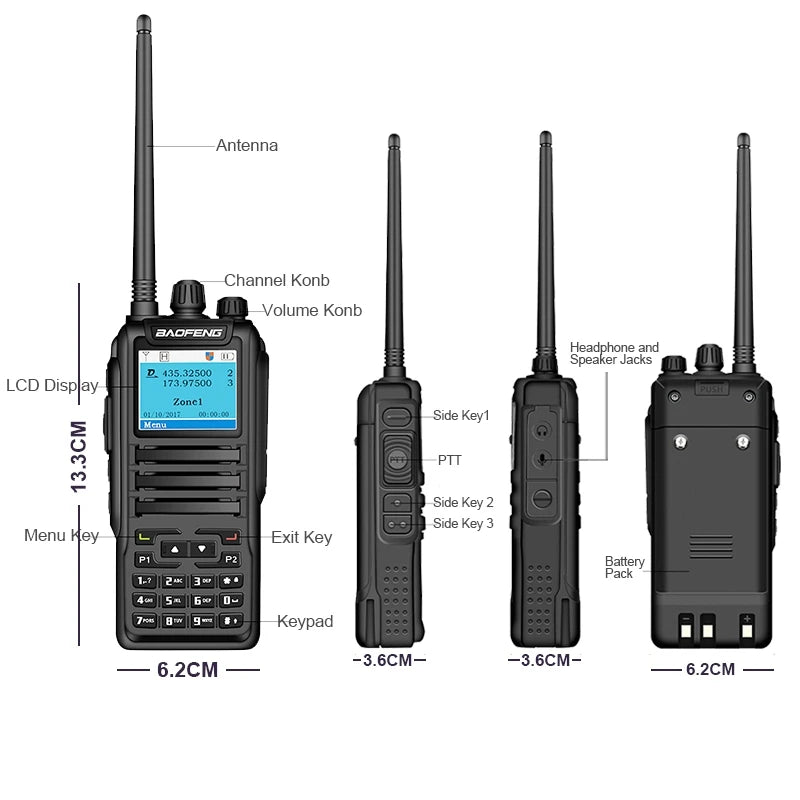

Volume: 133*62*36mm(antenna 14cm not including)

Transmitting:

Output Power:1W/5W

Digital:Tier i&ii

Adjacent channel:≤-65dB ≤-60dB

Modulation Distortion:≤5%

Digital Protocol: etsi-ts102 361-1,-2,-3

Vocoder type: AMBE+2TM

Receiving:

Analog sensitivity:-122dBm (12dB SINAD)

Digital sensitivity:-120dBm (BER ≤5%)

Audio Power:1W

Audio Distortion:<10%

Inter-mediation:≥62dB / ≥ 58dB

Adjacent channel selectivity:≥65dB /≥60dB

Receiving current:≤380mA

PM Noise :≥ 45dB*25KHz; ≥ 40dB*12.5KHz

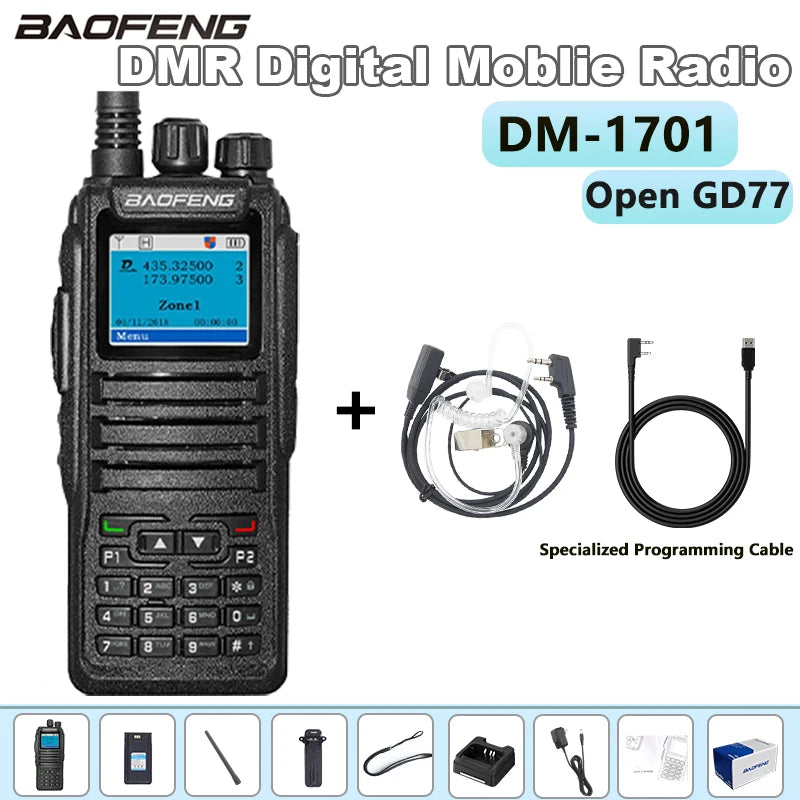

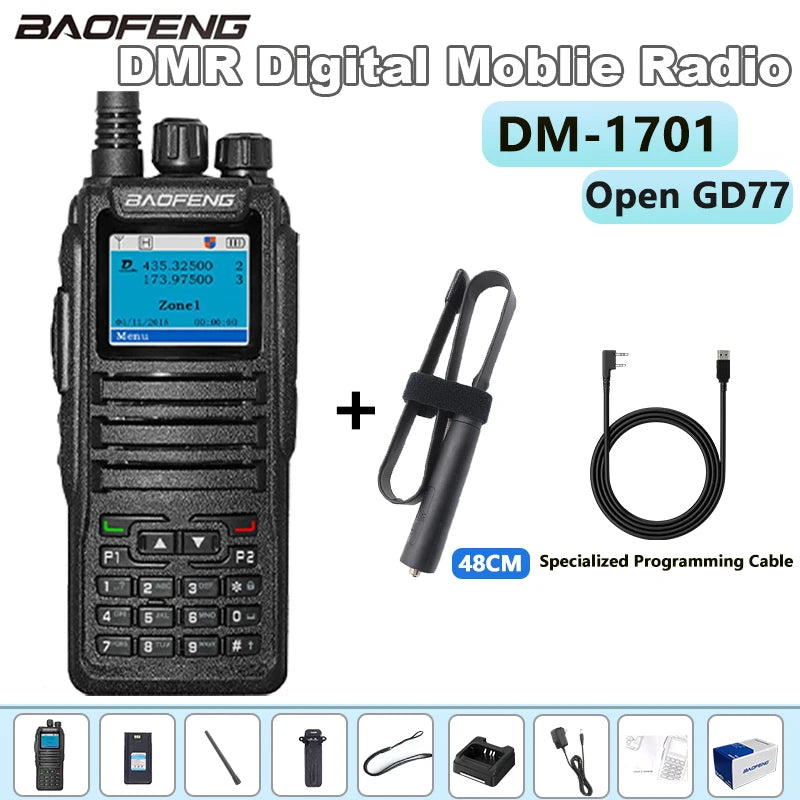

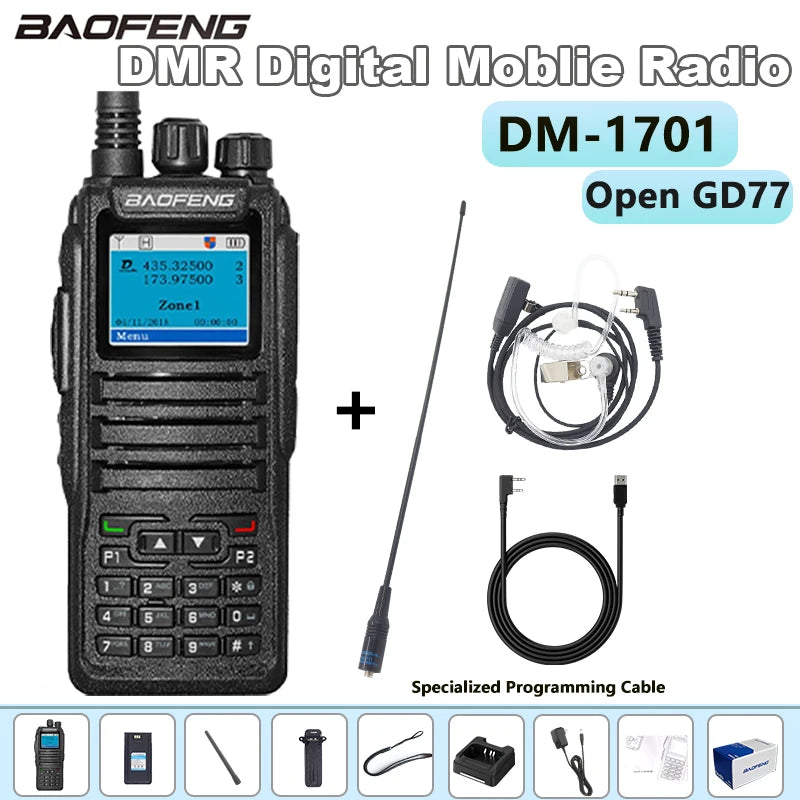

Package Included:

1* DM-1701 Radio

1* 2200mAh Li-ion Battery Pack

1* Desktop Charger

1* Antenna

1* Hand Strap

1* Belt Clip

1* User Manual

【Note】

1.Other Accessories Depend on Your Choice

2.Please allow 1-2 CM differences due to manual measurement, thanks.

3.Because of the different monitors and resolutions, the actual object received will have a slight color difference from the picture, please understand.
