Specification
SPECIFICATIONS
/SL model: White Light
/SRB model: Red and Blue Light
1.: Camera
12: VDC
13.: Event
14.: General
15.: Flashing
16.: Approval
2 mm: D: 50 m, O: 20 m, R: 10 m, I: 5 m
2.: Lens
3 user levels: administrator, operator, and user
3.: DORI
4.: Illuminator
5.: Video
50 Hz: 20 fps (4256 * 1888)
60 Hz: 20 fps (4256 * 1888)
AI Functions: Other
API: ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK
Alarm Type: FTP Photo,Email Photo,Local Alarm
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Aperture: F1.6
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Sampling Rate: 8 kHz/16 kHz
Audio Type: Mono sound
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Bit Rate Control: CBR, VBR
Brand Name: HIKVISION
Built-in Microphone: Yes, 1 built-in microphone
Built-in Speaker: Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB
CB: IEC 62368-1: 2014+A11
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
CE-RoHS: 2011/65/EU
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
Day & Night: IR cut filter
Day/Night Switch: Day, Night, Auto, Schedule
Dimensions (L x W x D)(mm): 130.1 mm * 109.1 mm
Environment Noise Filtering: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Focal Length & FOV: 2 mm, horizontal FOV 180°, vertical FOV 77°
General Function: Heartbeat, anti-banding, password protection, password reset via email
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
IC: ICES-003: Issue 7
IP Rating: IP67
IR Distance(m): 30
IR Wavelength: 850 nm
Image Enhancement: BLC, HLC, 3D DNR
Image Sensor: 1/2.4" Progressive Scan CMOS
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Iris Type: Fixed
KC: KN32: 2015, KN35: 2015
Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Lens (mm): 2mm
Lens Mount: M12
Lens Quantity: Multi-Lens
Lens Type: Fixed focal lens, 2 mm
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
Local service: Chrome 80+, Firefox 80+, Edge 89+
Main stream: H.265+/H.265/H.264+/H.264
Material: Base: Metal, cover: Plastic
Max. Resolution: 4256 * 1888
Megapixels: 8MP
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Minimum Illumination(Lux): Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Model Number: DS-2CD1383G2P-LIUF/SL DS-2CD1383G2P-LIUF/SRB
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Optical Zoom: None
Origin: Mainland China
Plug-in required live view: IE 11
PoE: IEEE 802.3af, Class 3, max. 11.5 W
Power Consumption(W): max. 5 W
Power Source: With Poe
Power Supply: With Poe
Power Supply(V): 12 VDC ± 25%, 0.83 A
Privacy Mask: 4 programmable polygon privacy masks
Protection: IP67: IEC 60529-2013
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
Reach: Regulation (EC) No 1907/2006
Region of Interest (ROI): 1 fixed region for main stream
Reset Key: Yes
SNR: ≥52 dB
Scalable Video Coding (SVC): H.264 and H.265 encoding
Sensor: CMOS
Shell Material: Metal
Shutter Time: 1 s to 1/100,000 s
Simultaneous Live View: Up to 6 channels
Smart Supplement Light: Yes
Special Features: Waterproof / Weatherproof
Startup and Operating Conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Storage Conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Style: Turret Camera
Sub-stream: H.265/H.264/MJPEG
Supplement Light Range: Up to 30 m
Supplement Light Type: IR, White Light
Supported Mobile Systems: Android,IOS
Supported Operating Systems: Windows 10,Windows 8
TF Card: None
Video Bit Rate: 32 Kbps to 16 Mbps
Video Compression Format: H.265,H.264,MJPEG
WEEE: 2012/19/EU
Weight: Approx. 586 g (1.3 lb.)
Wide Dynamic Range (WDR): 120 dB
With Package Weight: Approx. 760 g (1.7 lb.)
Zoom: None
Zoom type: None
iVMS-4200,: Hik-Connect

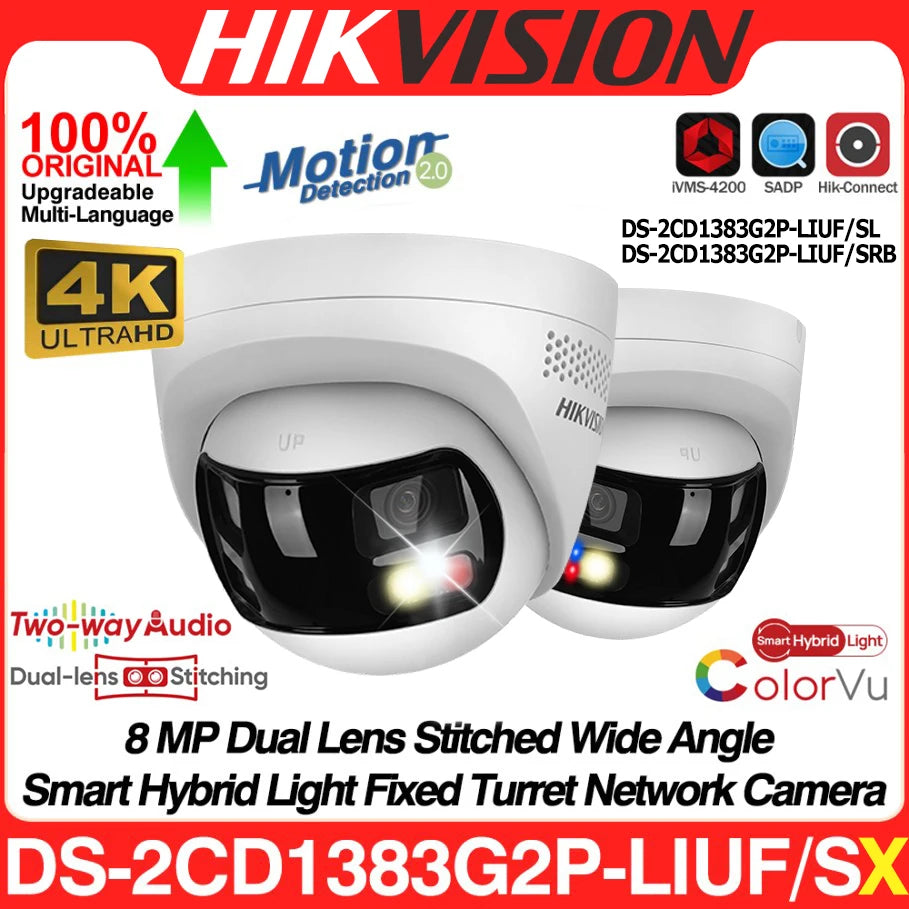

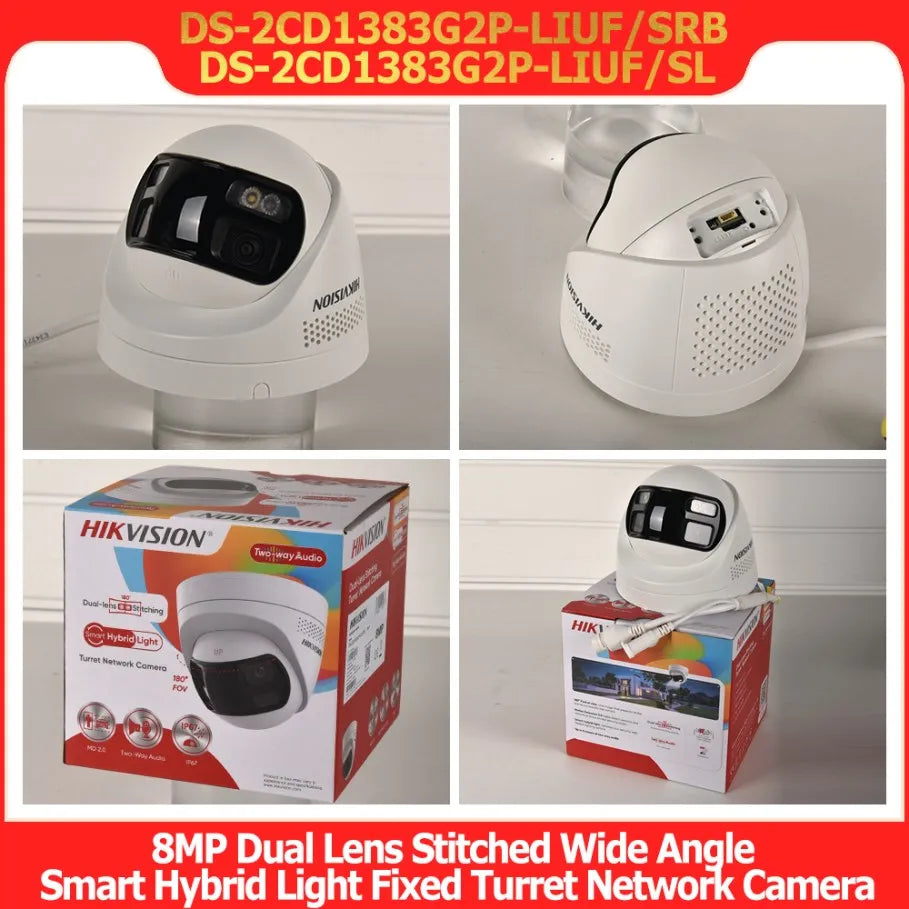

Hikvision DS-2CD1383G2P-LIUF/SL 8MP 4K Dual Lens Stitched 180° Wide Angle Smart Hybrid Light POE Network IP Camera MD 2.0 2WAY-Audio Human&Vehicle Detect SD Slot IP67 CCTV IPC

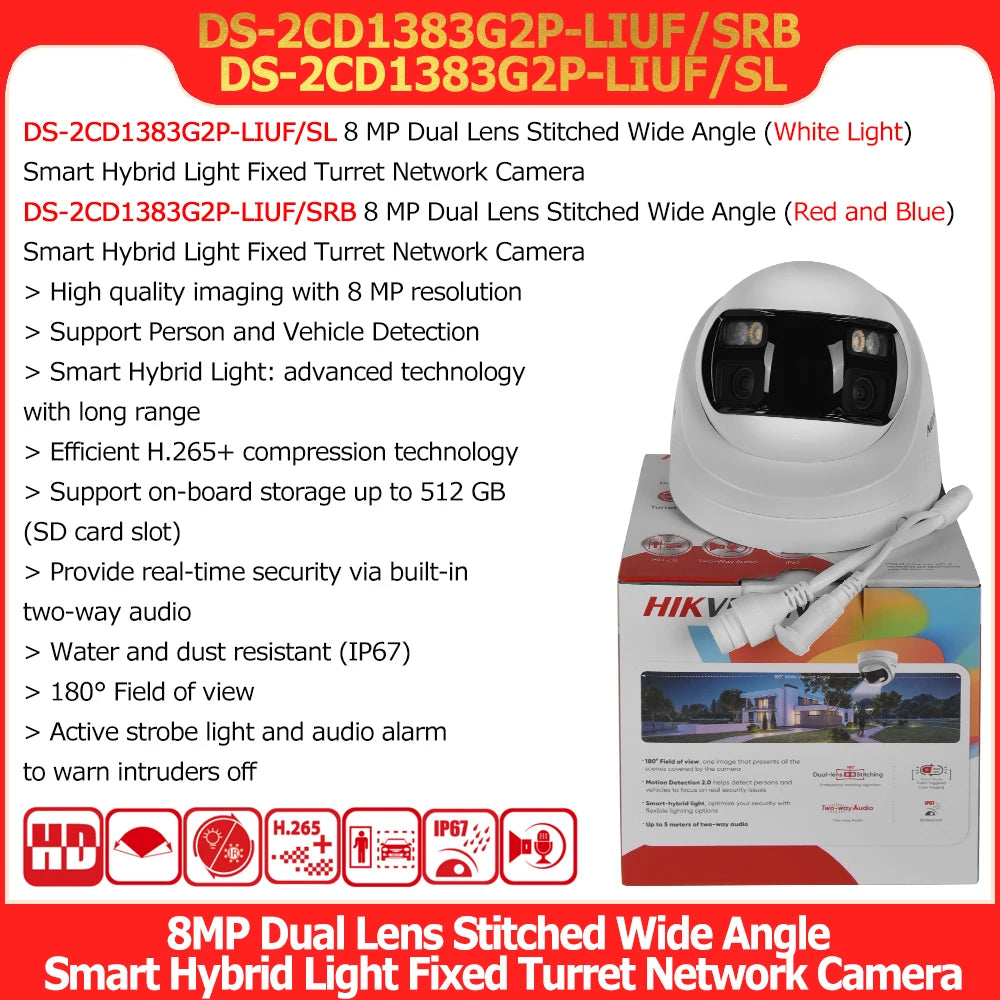

8 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera
DS-2CD1383G2P-LIUF/SL 8 MP Dual Lens Stitched Wide Angle (White Light) Smart Hybrid Light Fixed Turret Network Camera
DS-2CD1383G2P-LIUF/SRB 8 MP Dual Lens Stitched Wide Angle (Red and Blue) Smart Hybrid Light Fixed Turret Network Camera
High quality imaging with 8 MP resolution
Support Person and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)

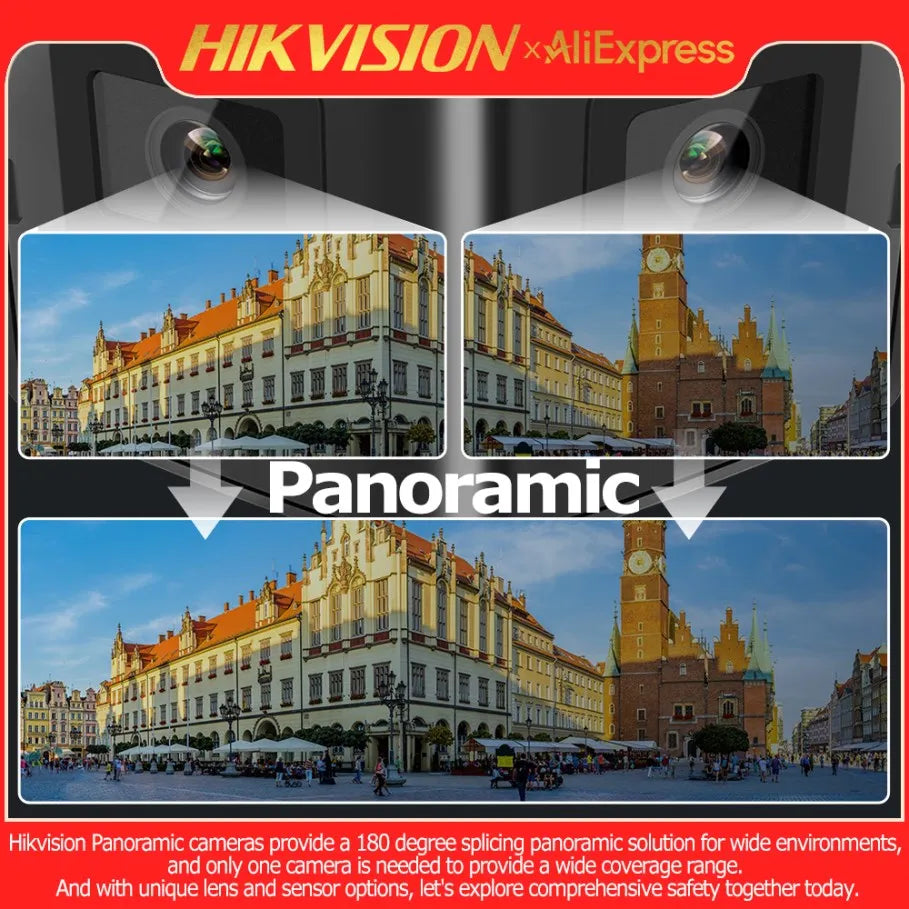

180° Field of view
Active strobe light and audio alarm to warn intruders off
1. Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 4256 × 1888
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
2. Lens
Lens Type: Fixed focal lens, 2 mm
Focal Length & FOV: 2 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
3. DORI:2 mm: D: 50 m, O: 20 m, R: 10 m, I: 5 m
4. Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
5. Video
Main Stream:50 Hz: 20 fps (4256 × 1888);60 Hz: 20 fps (4256 × 1888)
Sub-Stream:50 Hz: 20 fps (1200 × 536, 960 × 432);60 Hz: 20 fps (1200 × 536, 960 × 432)
Video Compression:Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Region of Interest (ROI): 1 fixed region for main stream
Scalable Video Coding (SVC): H.264 and H.265 encoding
6. Audio
Audio Type: Mono sound
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
7. Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
8. User/Host:Up to 32 users;3 user levels: administrator, operator, and user
9. Client:iVMS-4200, Hik-Connect
10. Web Browser:Plug-in required live view: IE 11;Local service: Chrome 80+, Firefox 80+, Edge 89+
11. Image
Wide Dynamic Range (WDR): 120 dB
SNR: ≥52 dB
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks
12. Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes, 1 built-in microphone
Built-in Speaker: Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB
Reset Key: Yes
13. Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
14. General
Power:12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: IEEE 802.3af, Class 3, max. 11.5 W
Material: Base: Metal, cover: Plastic

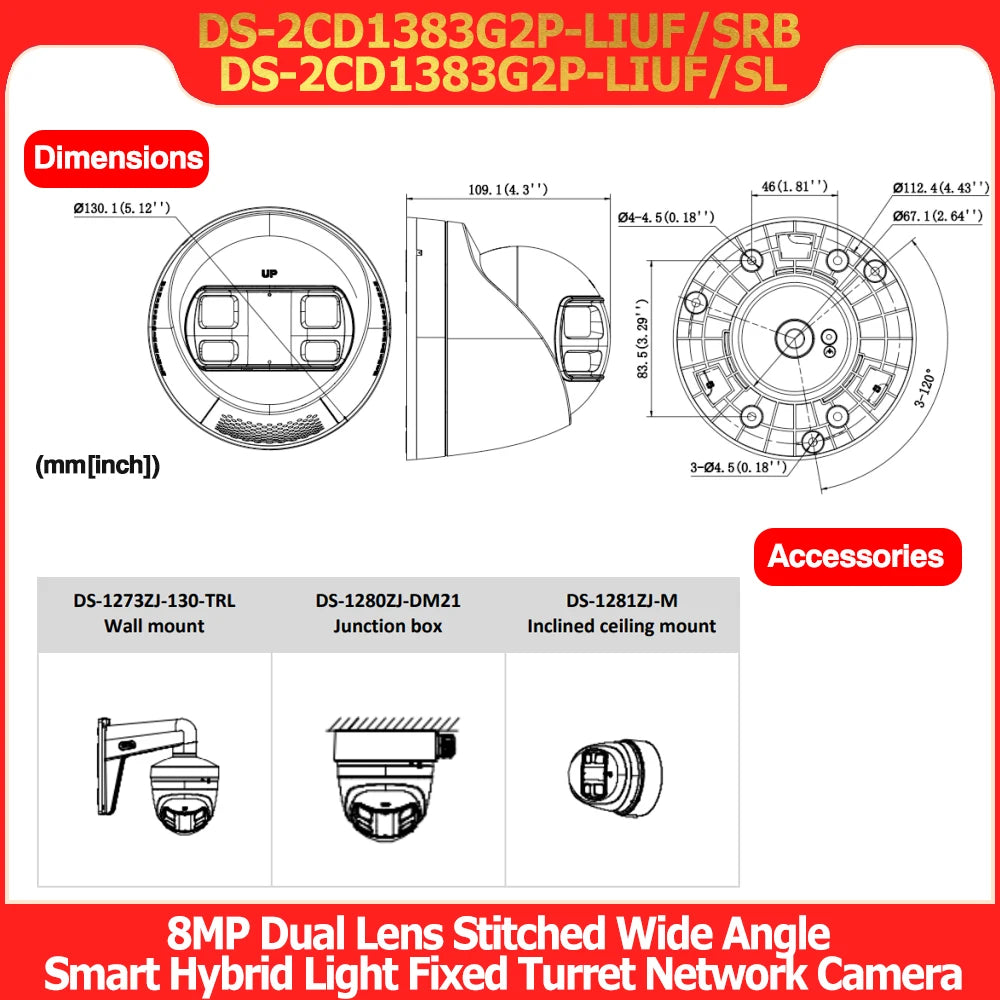

Dimension: Ø130.1 mm × 109.1 mm (Ø5.1" × 4.3")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 586 g (1.3 lb.)
With Package Weight: Approx. 760 g (1.7 lb.)
Storage Conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Function: Heartbeat, anti-banding, password protection, password reset via email
15. Flashing Light
/SRB model: Red and Blue Light;/SL model: White Light
16. Approval
EMC:CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-33:2013+A1:2019+A2:2021;IC: ICES-003: Issue 7;KC: KN32: 2015, KN35: 2015
Safety:CB: IEC 62368-1: 2014+A11;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment:CE-RoHS: 2011/65/EU;WEEE: 2012/19/EU;Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
