Specification
SPECIFICATIONS
6MP Main Stream: 25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P
6MP Sub stream: 25fps@D1/VGA/360P/CIF, etc.
8MP Main Stream: 25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P
8MP Sub stream: 25fps@D1/VGA/360P/CIF, etc.

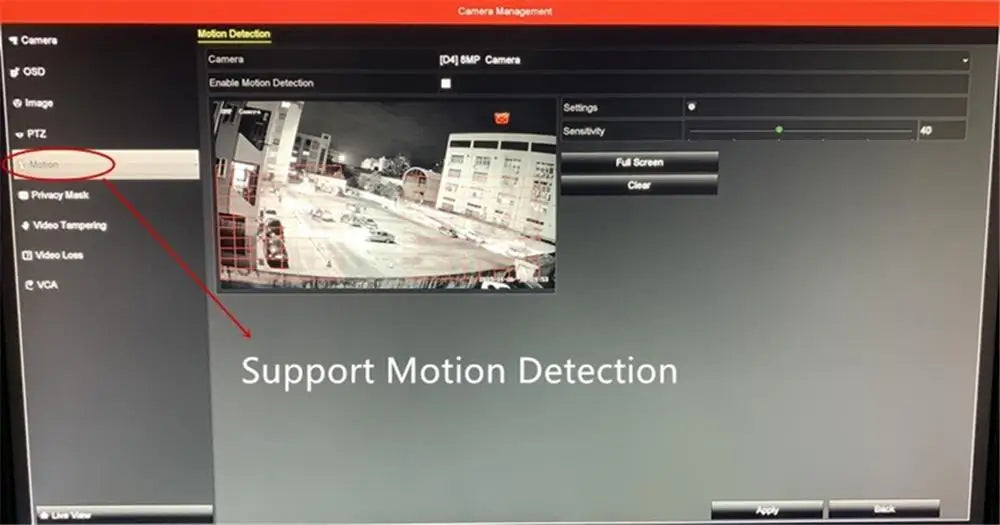

AI Functions: Motion Detection
Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo
Audio Output: Two Way Audio
Audio Standard: G.711-u/G.711-a
BLC /HLC: Support
Brand Name: Ziksecu
Built-in Mic: Yes
Certification: CE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
DNR: 2D/3D DNR
Day/Night: Auto/Color/(B/W)/Timing
Distance: 20-30M
Effective Pixels: 6 megapixels/8 megapixels
Electronic Shutter: AUTO, 10-10000/min
Focal length: 2.8mm F1.0 lens
High Definition: 6.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): 20-30m
Image Sensor: 1/3" CMOS
Internal Storage: None
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Media: CMS, Android, IOS
Megapixels: 6mp
Min. Illumination: 0.01Lux@F1.2(AGC ON), 0Lux IR on
Minimum Illumination(Lux): 0.01Lux@F1.2(AGC ON), 0Lux IR on
Model Number: YC2367C-ISU-N/YC2387C-ISU-N
Network Port: 1-RJ45, 100Mbps, POE optional
ONVIF: 17.06 compatible
OSD Overlay: Title and Time overlay
Operating Temp: -30°C-(+60)°C, 10%-90%RH
Operating Temperature: -10°-60°
Optional Function: PoE, two-way Audio, SD card slot (Max. 256GB), Vehicle & human body detection, reset button
Origin: Mainland China
Other: AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
P2P: Yes
Power Consumption: < 8 W
Power Consumption(W): < 8 W
Power Mode: Mains Electricity
Power Supply: With Poe,Default: PoE (12V DC ± 10% optional)
Power Supply(V): Default: PoE (12V DC ± 10% optional)
Protocol: HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
Sensor: CMOS
Shell Material: Metal
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Turret Camera
Supported Mobile Systems: Windows Mobile,Android,IOS
Supported Operating Systems: Windows 10
Video Bitrates: 512Kbps - 12Mbps, VBR/CBR
Video Compression Format: H.264,H.265
Video Standard: H.264/H.265
WDR: Digital WDR
Warm lights: 2 pcs warm light
Web: IE ,Firefox (32bit esr), etc.
White Balance: Auto/Manual
Zoom: None
Zoom type: None
 |
 |
 |
 |
 |
 |
 |
 |

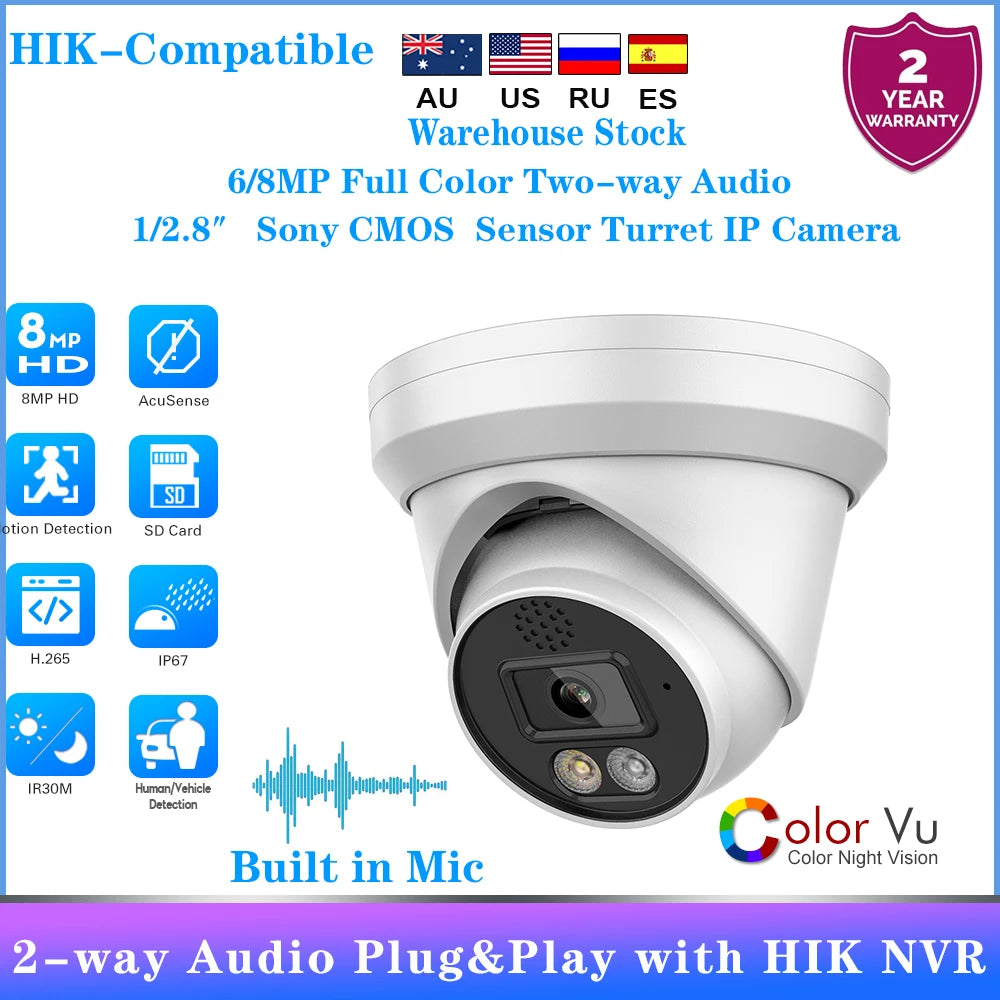

6/8MP ColorVu HIK Compatible IP Camera Security Surveillance IP Camera Two-way Audio Plug&Play with HIK NVR

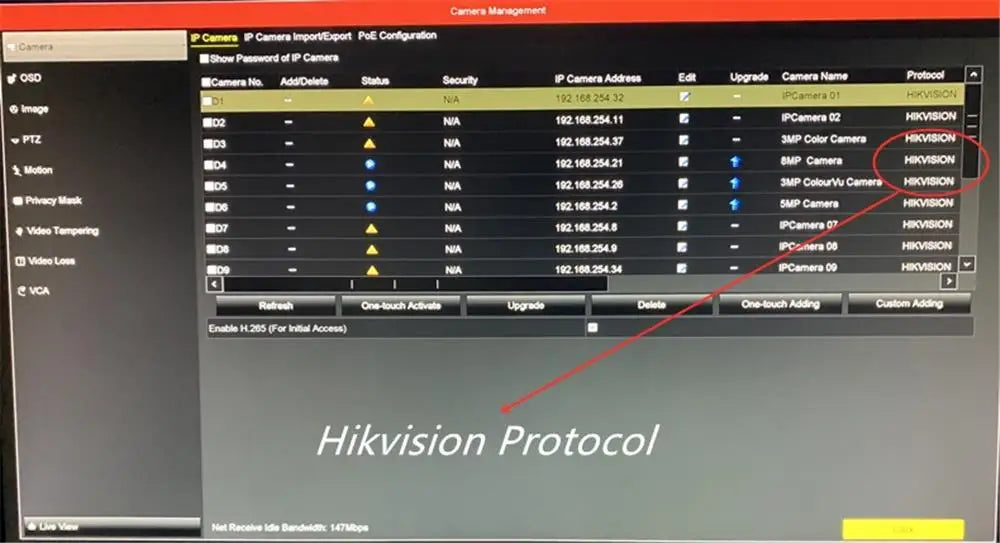

1. What is the “hikvision protocol”?
The HIK protocol is hikvision's proprietary protocol that allows hikvision cameras and NVRs to be plug-and-play without the need for cumbersome setup.
2.what is "Hikvision compatible"?

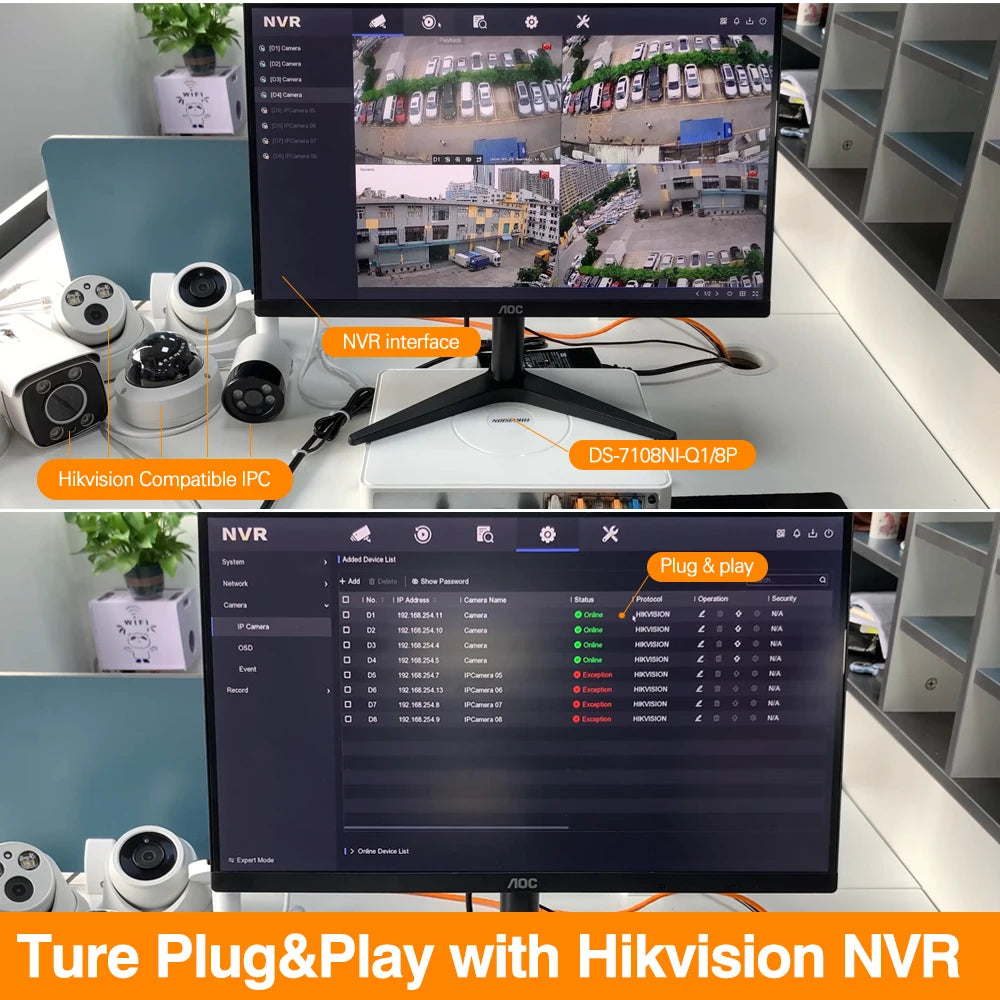

The VIKYLIN camera comes with the hikvision protocol, which supports plug-and-play with hikvision's NVRs, eliminating the need to manually set up IP addresses and passwords.
If you wanna some ptz or camera can compatible with your HIK products and software this camera is best choice for you.It'smore cheaper than HIK original and have good quality at image!
3.About shipment:If you order more than 4pcs cameras , we will try to send items via fast shipping for free .
We will choose the best shipping method for your order according to our experience as different countries has different shipping rules .
4. About US:we are top agent of security system and more than 10 years experience in this market, with Proffesional after-sale service and suggestion.

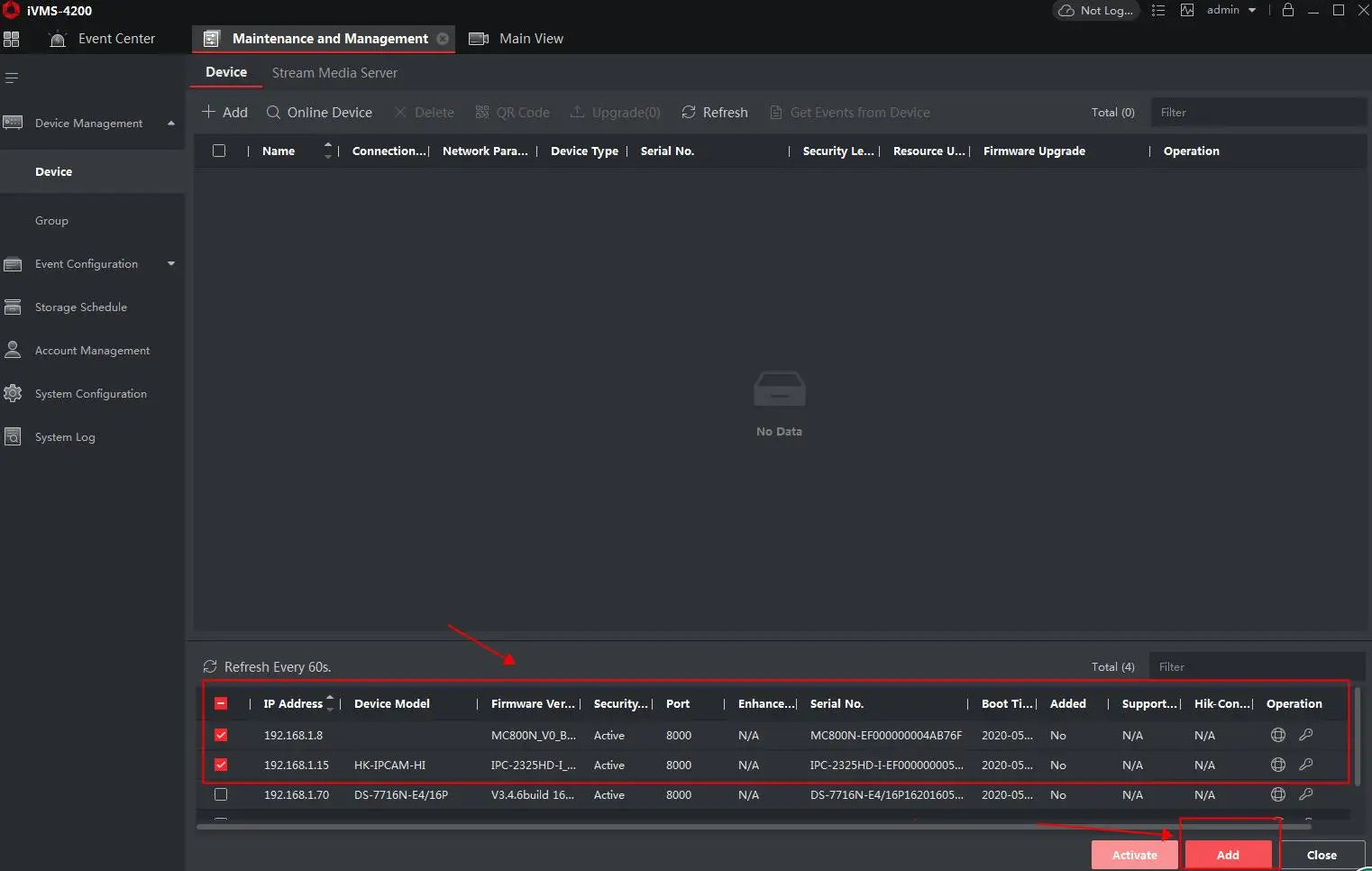

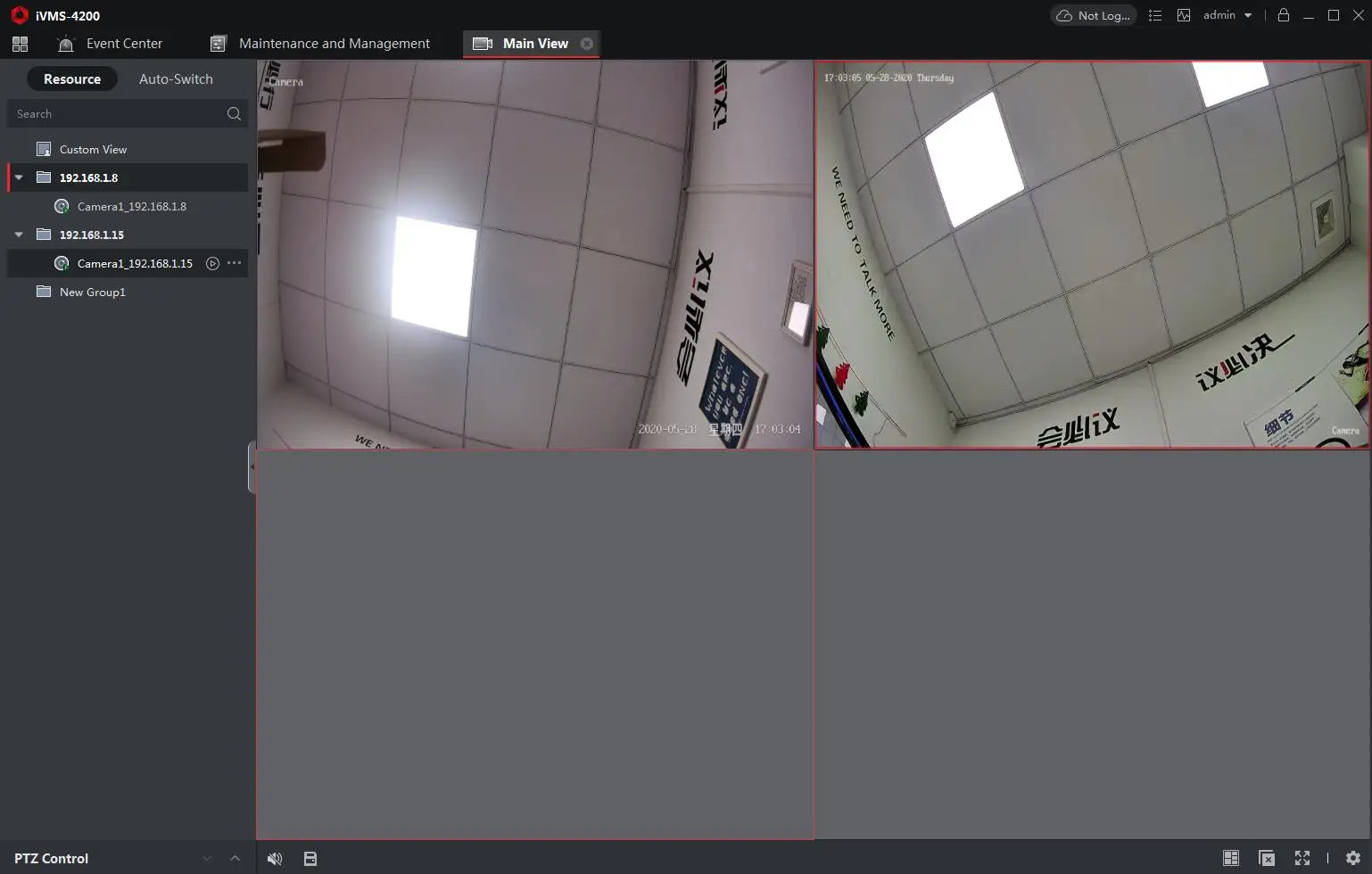

Which software can i use to find this camera？ (username:admin passward:123456)

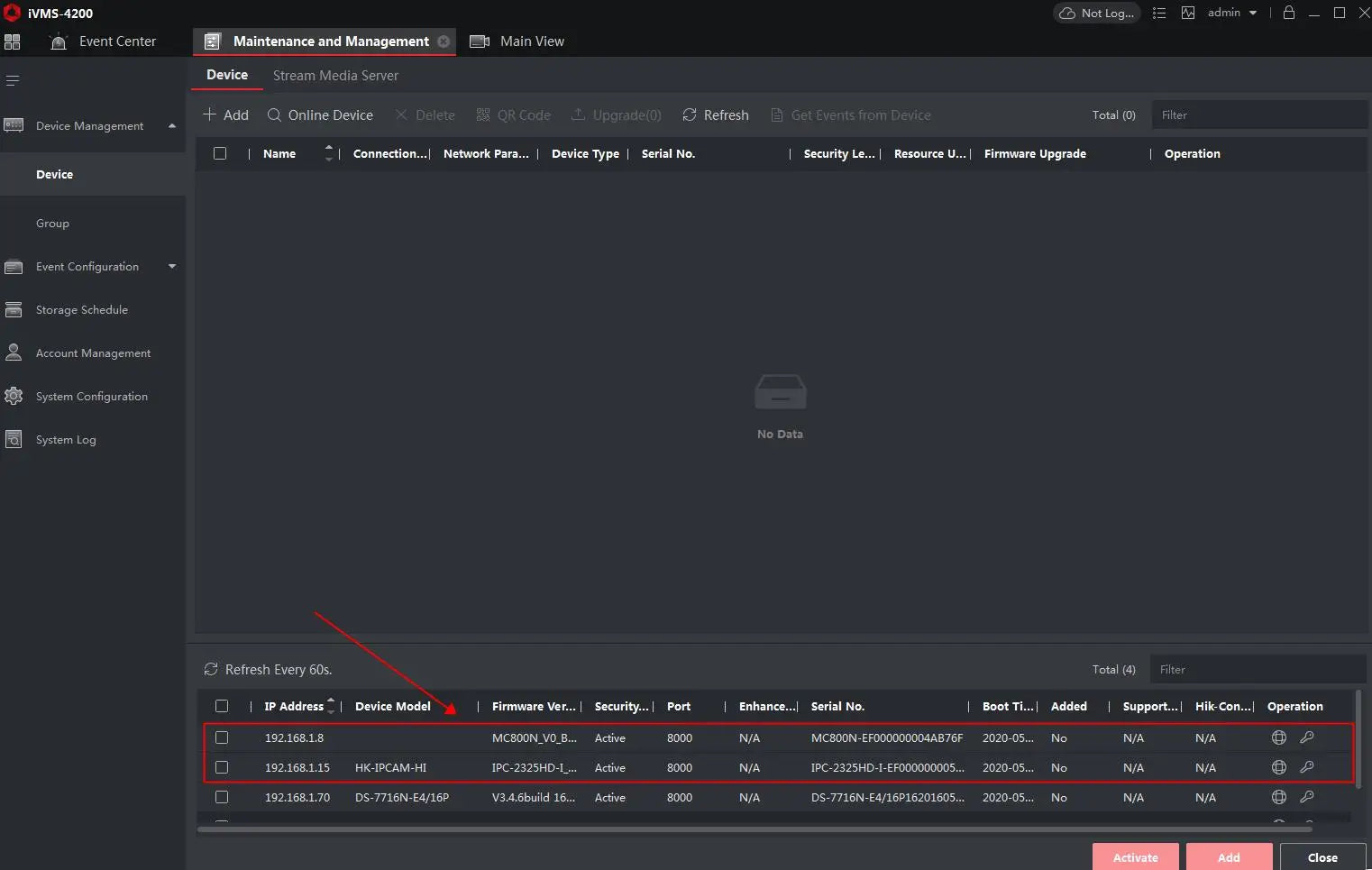

Software1

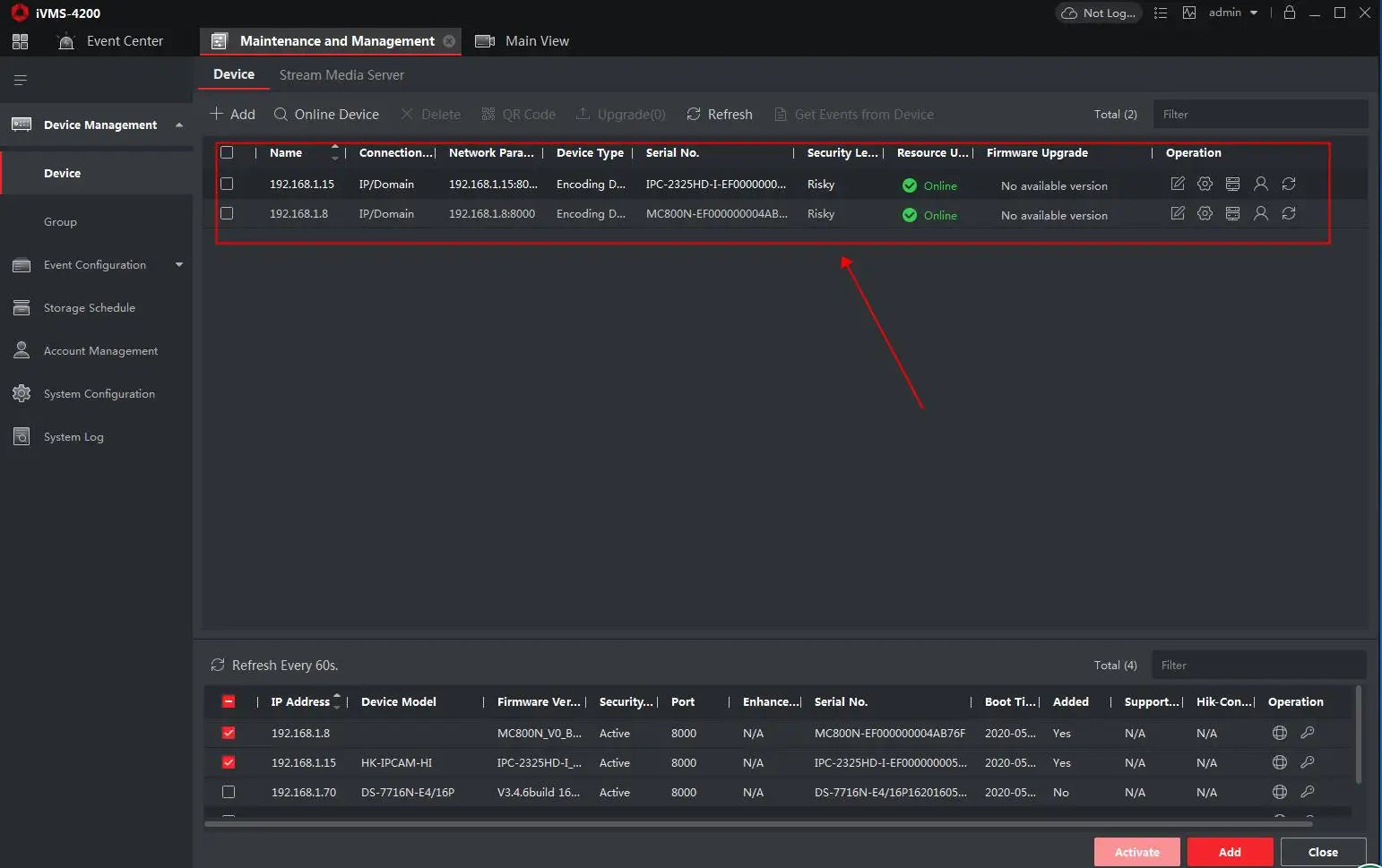

Settingtool：You can use this search tool to manage camera IP addresses, passwords, etc.
Software2

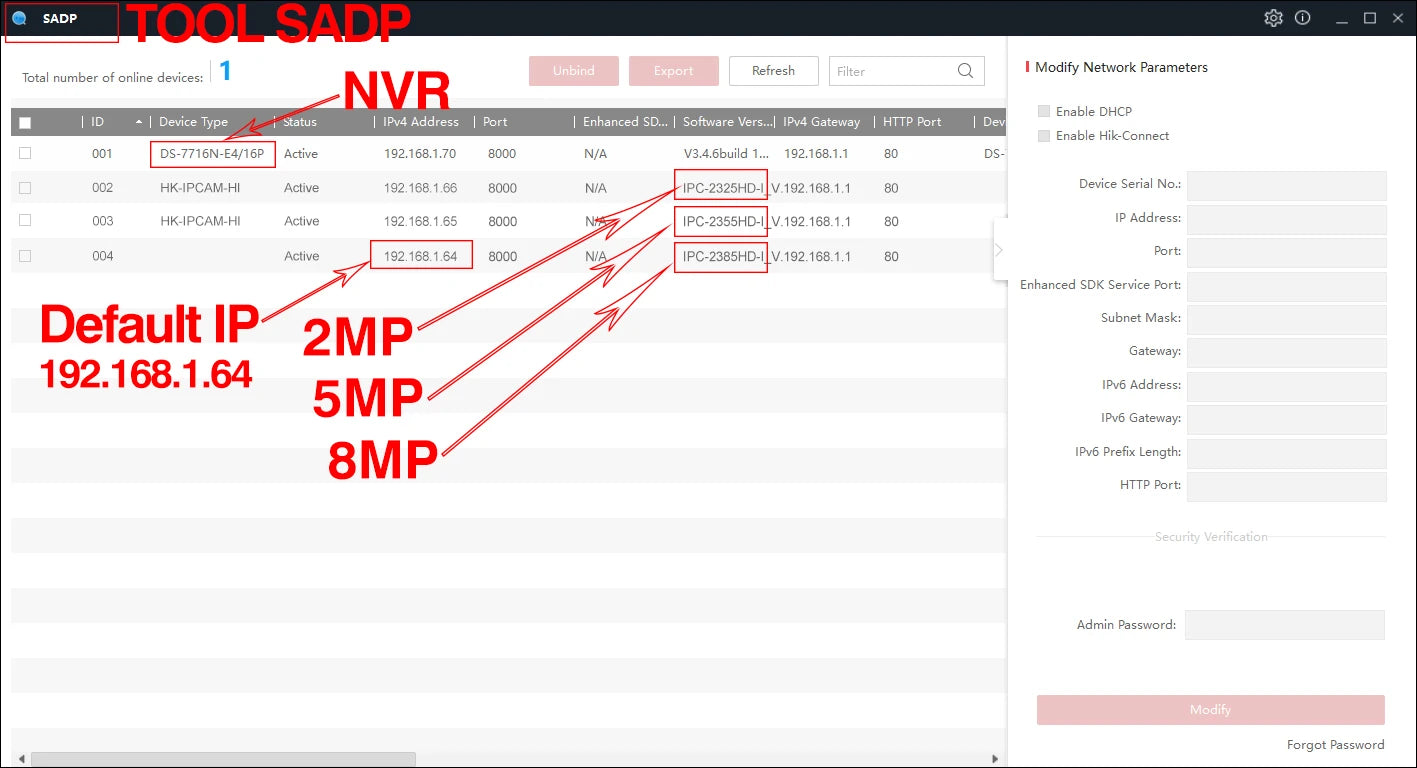

SADP：When the camera works with a Hikvision NVR, the NVR can be managed via SADP
>APP: Remoteyes：When you want to use the camera alone, you can view it remotely via Remoteyes
>APP: Hik-connect：When you use the camera via hikvision NVR, please add the NVR via Hik-connect and then operate it remotely!
Cross Line Detection, Perimeter protection, Face Detection（3 Choose 1）
Model |
YC226(8)5I-ISU-28/YC2387C-ISU-28 |
Camera | |
Image Sensor |
YC226(8)5I-ISU-28： ColorVu:1/3"CMOS YC2387C-ISU-28： ColorVu:1/2.8" CMOS |
Effective Pixels |
6/8megapixels |
Electronic Shutter |
AUTO,10-10000/min |
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
Day/Night |
Auto/Color/(B/W)/Timing |
WDR |
Digital WDR |
White Balance |
Auto/Manual |
BLC /HLC |
Support |
DNR |
2D/3DDNR |
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
Encode | |
Video Standard |
Smart264/Smart265 |
Video Resolution |
Main Stream: |
25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P | |
Sub stream: 25fps@D1/VGA/360P/CIF, etc. | |
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
Audio Standard |
G.711-u/G.711-a |
Built-in Mic |
Yes |
OSD Overlay |
Title and Time overlay |
Led | |
IR Led |
YC226(8)5I-ISU-28：2pcsArrayIR Led |
Warm Lights |
YC2387C-ISU-28：2 pcs Warm Light |
IR Distance |
20-30M |
Lens | |
Focal length |
2.8mmfixed lens |
Optional Function | |
PoE, two-way Audio, SD card slot (Max. 512GB), Vehicle & human body detection | |
Network Services | |
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
P2P |
Yes |
Web |
IE , Firefox (32bit esr), etc. |
Media |
CMS, Android, IOS |
O-N-V-I-F |
17.06 compatible |
General | |
Network Port |
1-RJ45, 100Mbps, POE optional |
Power Supply |
Default: PoE (12V DC ± 10% optional) |
Power Consumption |
< 8 W |
Operating Temp. |
-30_x001f_°C-(+60)°C, 10%-90%RH |

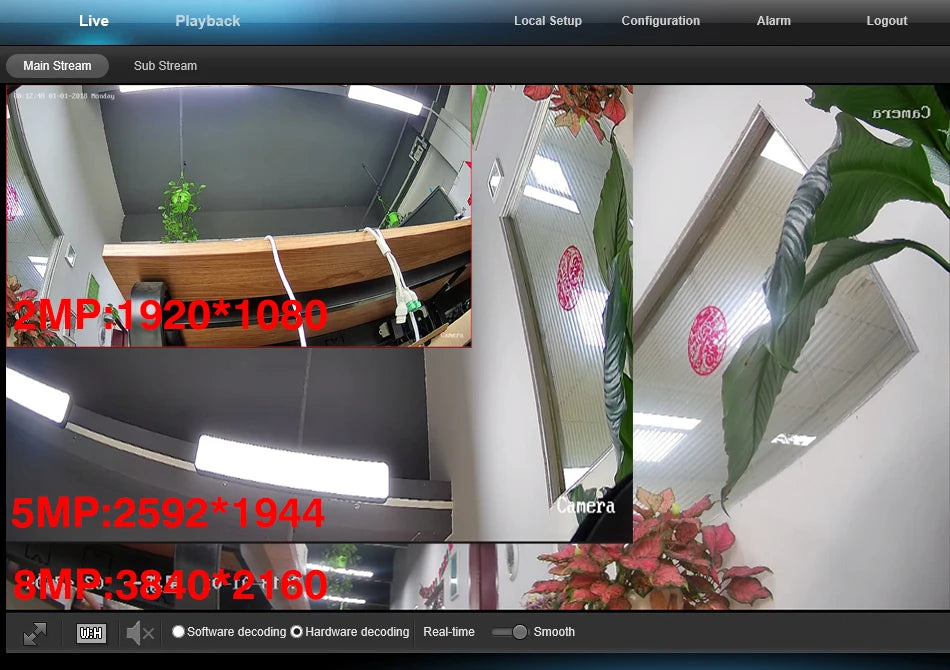

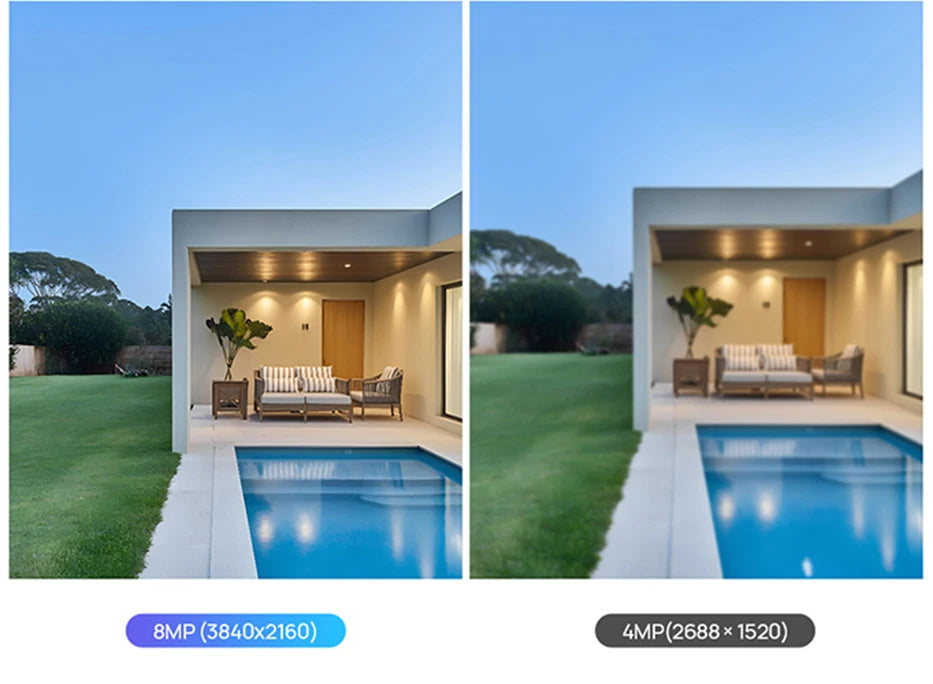

8MP 4K Ultra HD
With a high resolution of 8megapixels (3840 x 2160), this 8MP HD IP surveillance camera is able to capture videos in 3840p HD quality. It is a huge advancement compared to 720p HD or 1080p Full HD. you never miss a single detail of your loved ones. which enables you to see all objects very clearly.
Full Color Night Vision
The camera uses a pure white light illumination mode, and you can set the illumination brightness, as well as the illumination on time, from the camera's web site.
Human vehicle Detection
Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store. Protect your property from potential threat.
Tripwire, Intrusion Detection, Face Detection
The camera is equipped with the hikvision protocol, whichsupports tripwire, area detection and face detection (allthree functions cannot be enabled at the same time, only one can be active), and you can turn on one of these functions to protect a specific area.

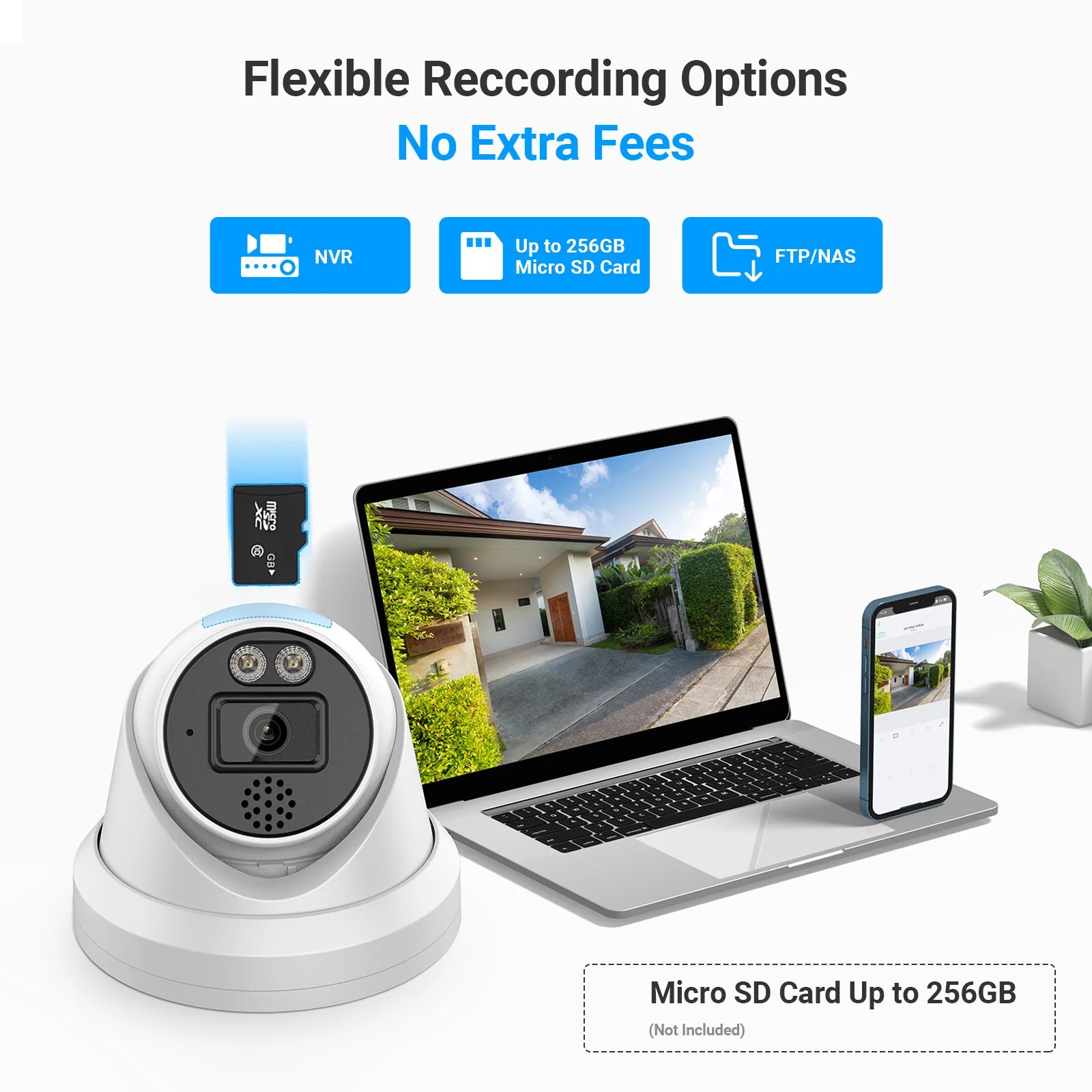

SD Card Slot
The camera has a built-in SD card slot, located inside the camera's bell, that can support up to 256G memory cards.

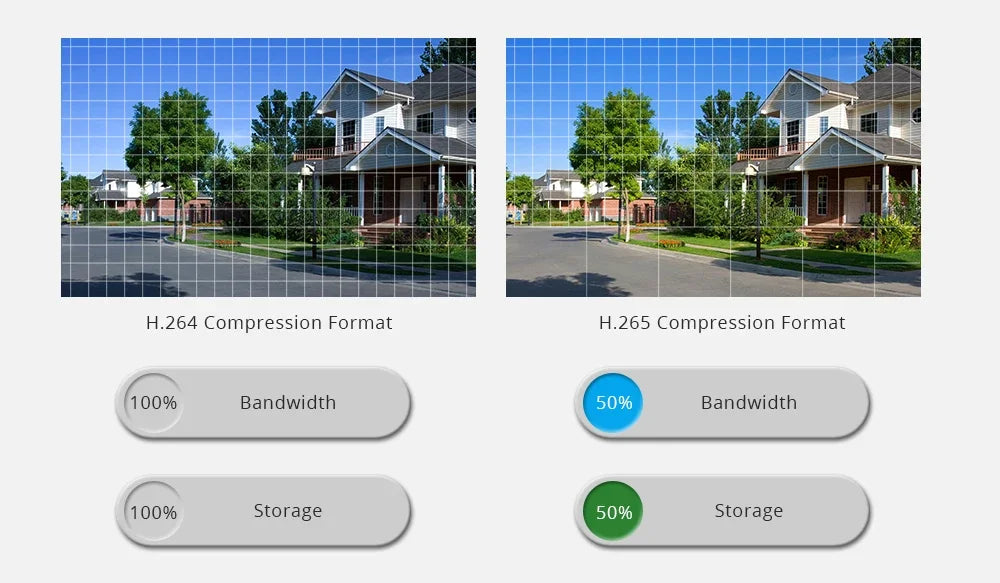

H.265 Video Compression Technology
H.265 Sharper, HD resolution gives you the best image quality at a lower bit rate. Save more storage space, can reduce video file size by 40%-50%, save hard disk storage space and reduce storage cost.
Mobile APP and PC search tool
This IP camera is Hikvision compatible version, you can use the cell phone APP Remoteyes for remote viewing, you can also use the computer client search tool Settingtool for bulk management of the camera IP address!

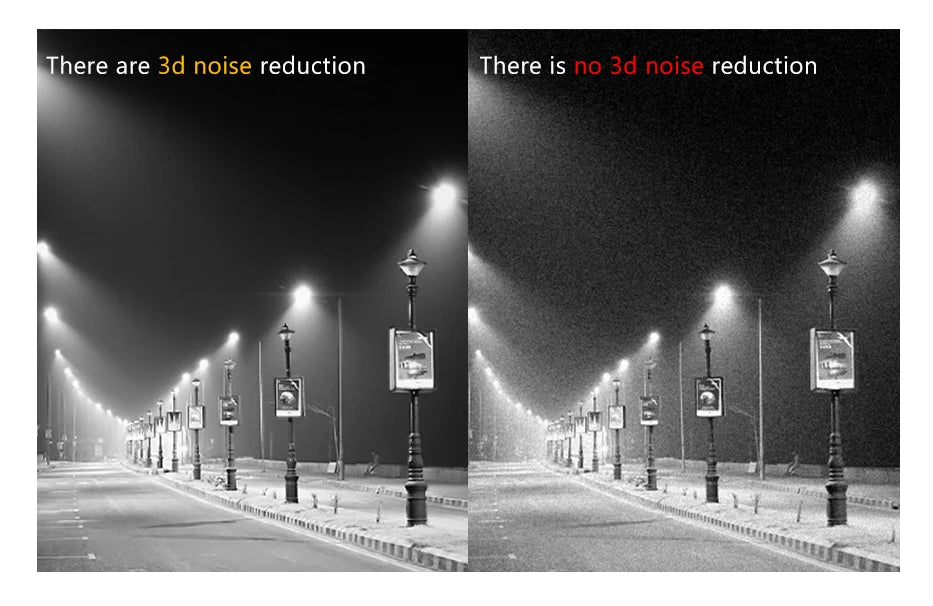

3DNR & 120db WDR
DNR: The camera utilizes DNR (Digital Noise Reduction) technology, which filters out noise in low-light environments as well as noise generated by motion. By eliminating graininess, the camera provides clearer and more accurate images.

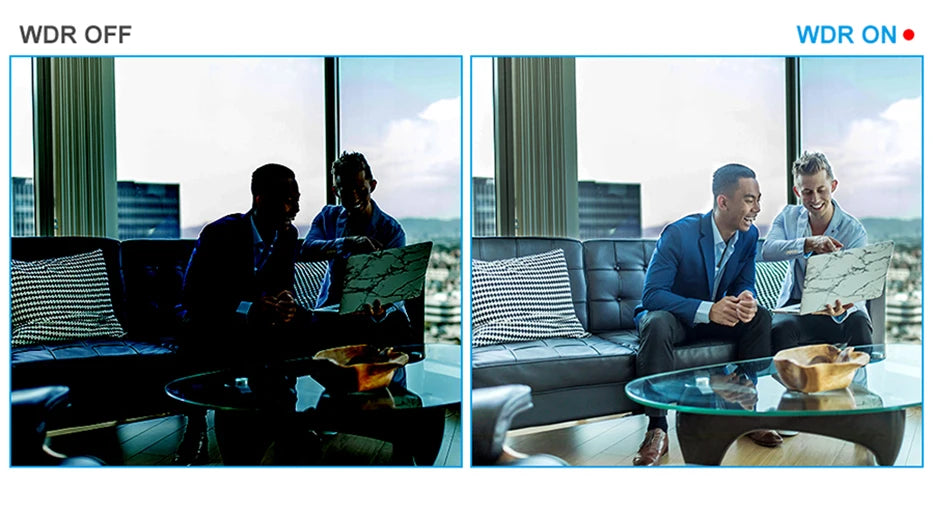

WDR: Balancing details in scenes with strong contrasts between light and dark.Your security camera with WDR technology can balance the details of light and dark areas in the camera's image, making the overall surveillance image clearer.

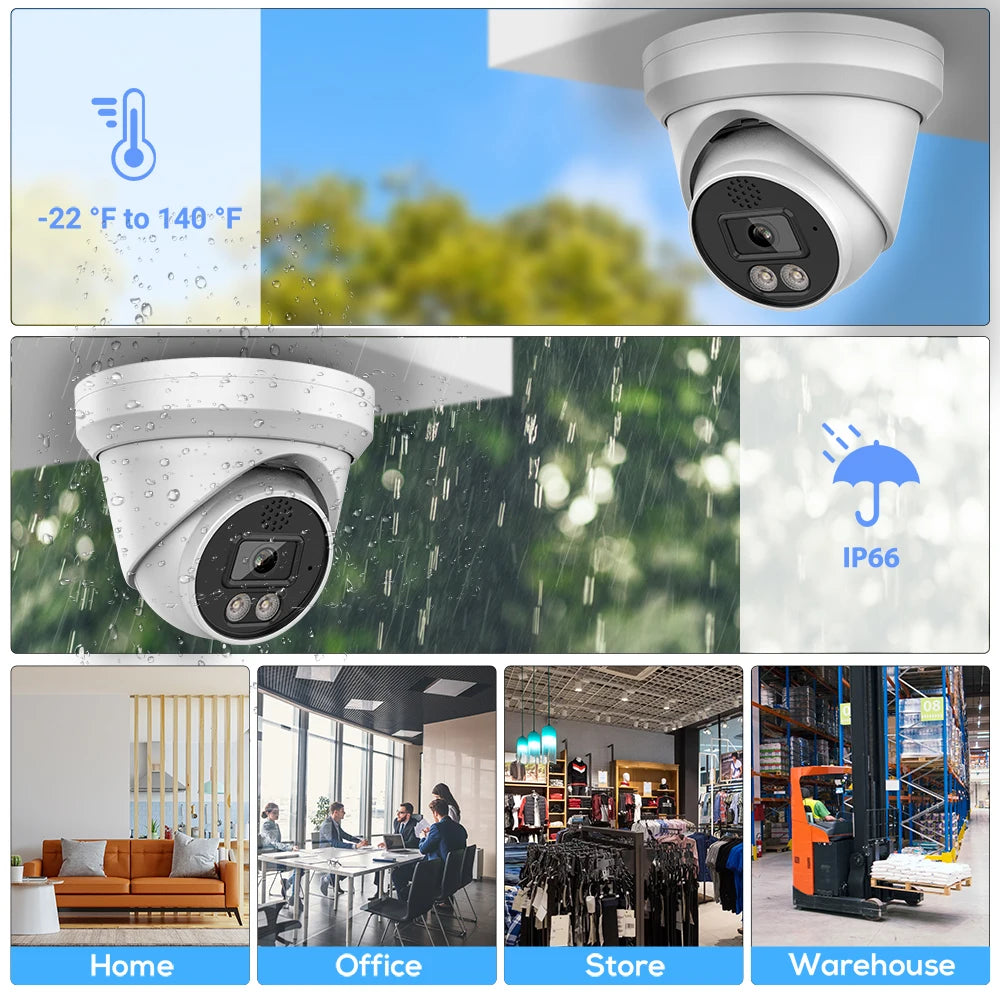

IP66 waterproof and dustproof
IP66 waterproof and dustproof, the camera can completely prevent dust from entering, can avoid the accumulation of dust affecting the performance and life of the equipment, can withstand strong water spray impact, even in torrential rain and other harsh environments can work normally, to ensure that the equipment in a variety of complex outdoor environments stable operation

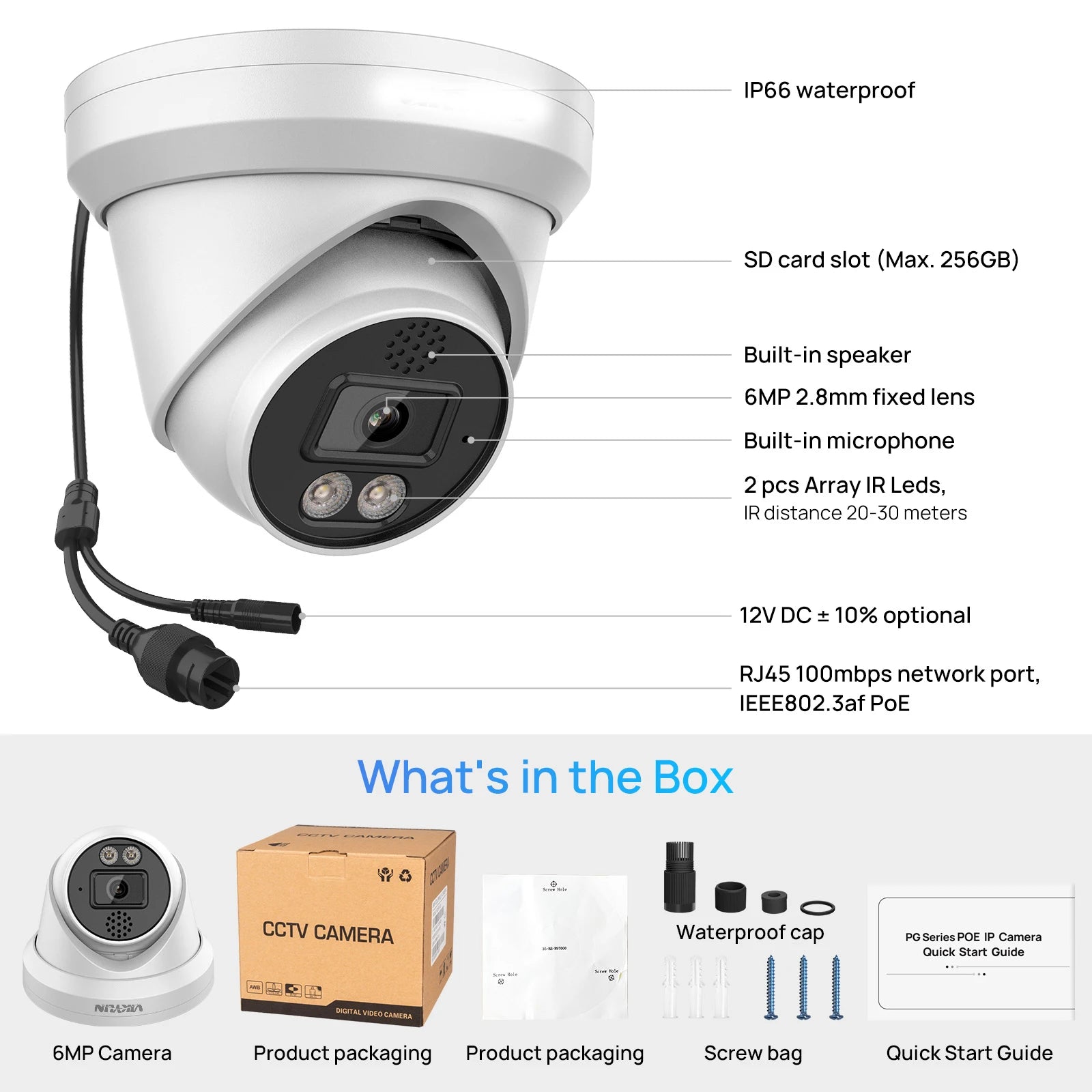

1. 5/8MP IPC*1
2. Waterproof accessories *1
3. Screw*1lot
4. User guide *1
PC Client
