Specification
SPECIFICATIONS
Brand Name: ANNKE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
Installation: Ceiling,Normal,Wall Mounted
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Megapixels: 8MP
Model Number: I91BQ
Origin: Mainland China
Power Supply: With Poe
Scene: Outdoor
Shell Material: Metal
Special Features: Waterproof / Weatherproof
Style: Bullet Camera
Supported Operating Systems: No
TF Card: 256g tf card
Zoom: None
Zoom type: None

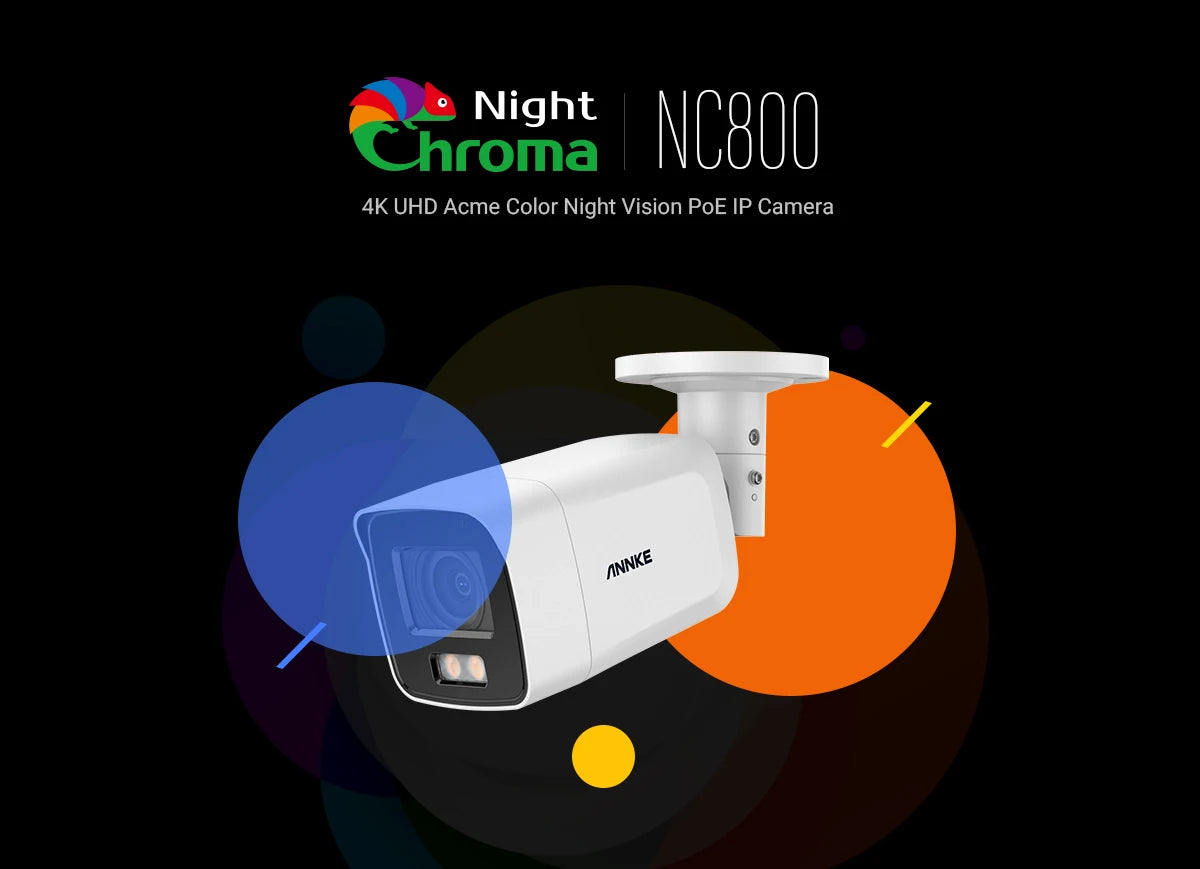

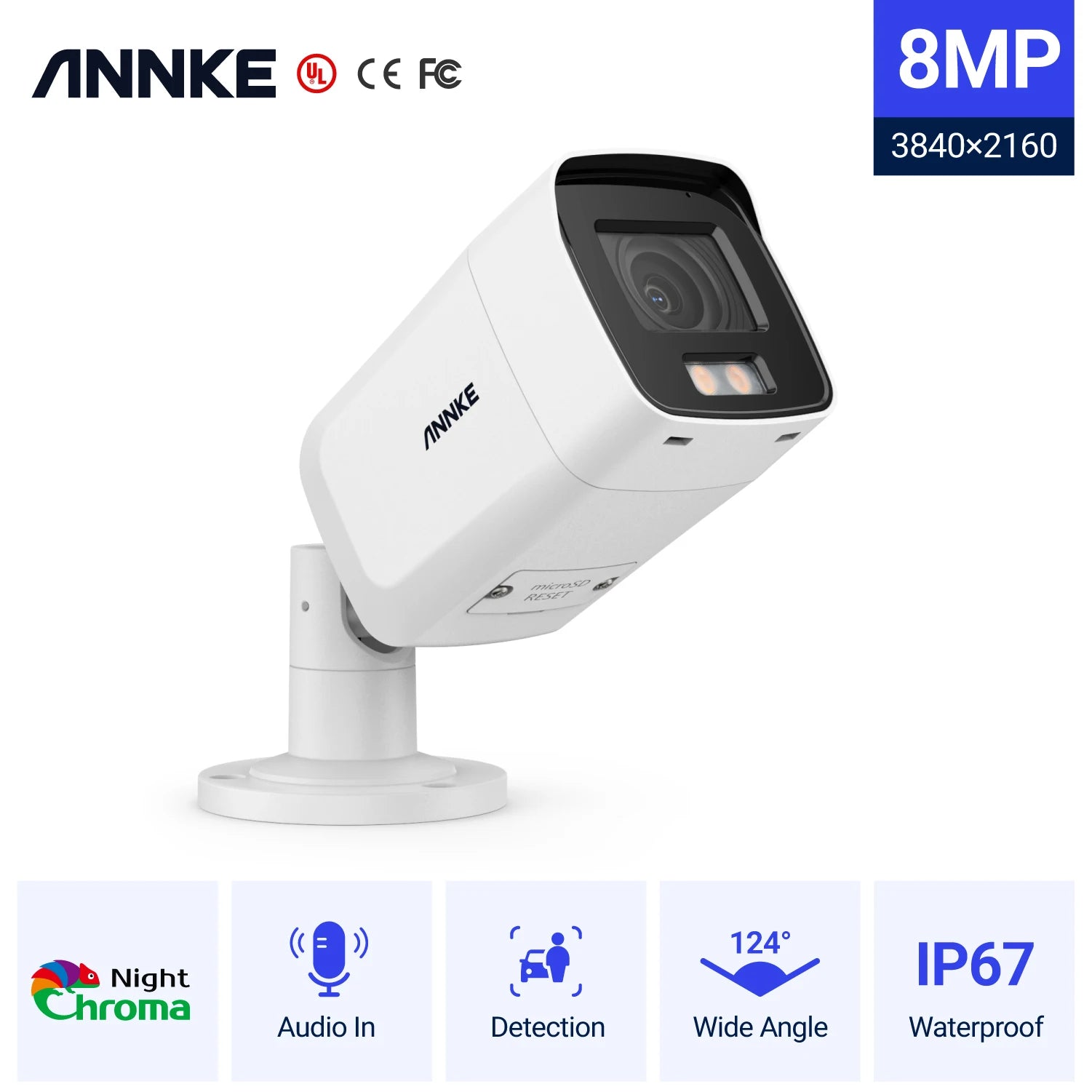

ANNKE 4K Ultra HD Full Color Night Vision IP Camera

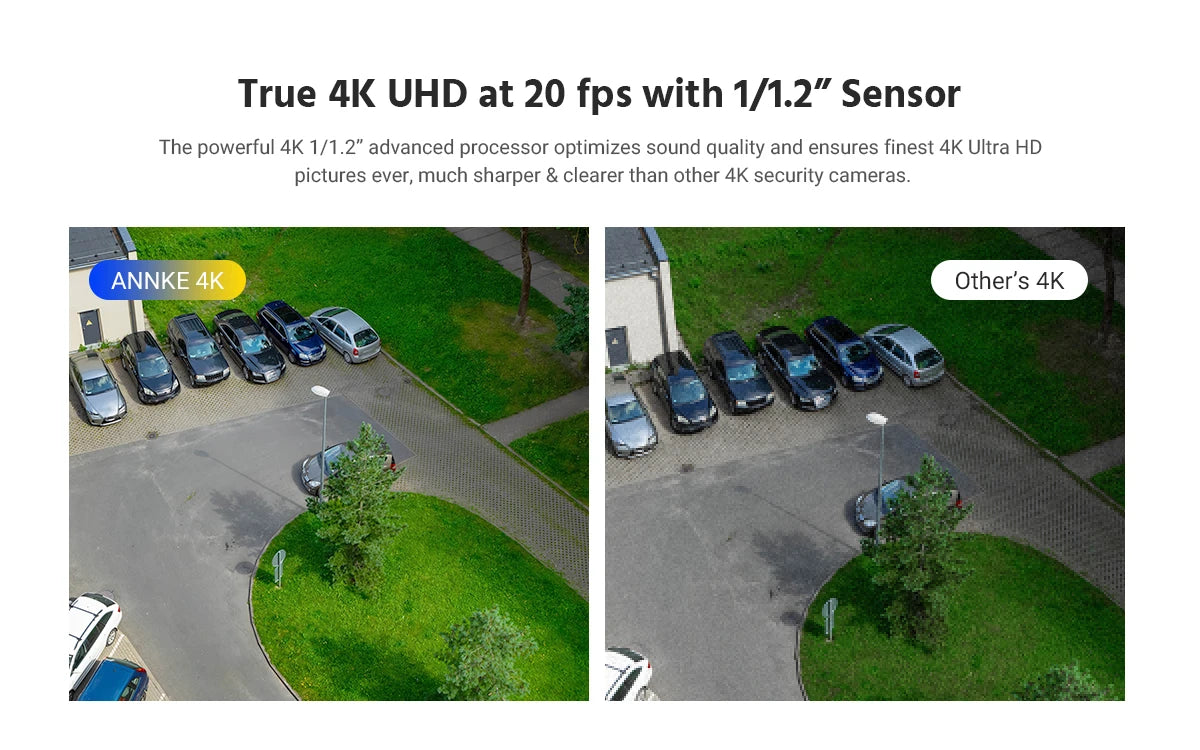

★ 4K IR Network Bullet Camera
★ 24/7 vivid colorful images

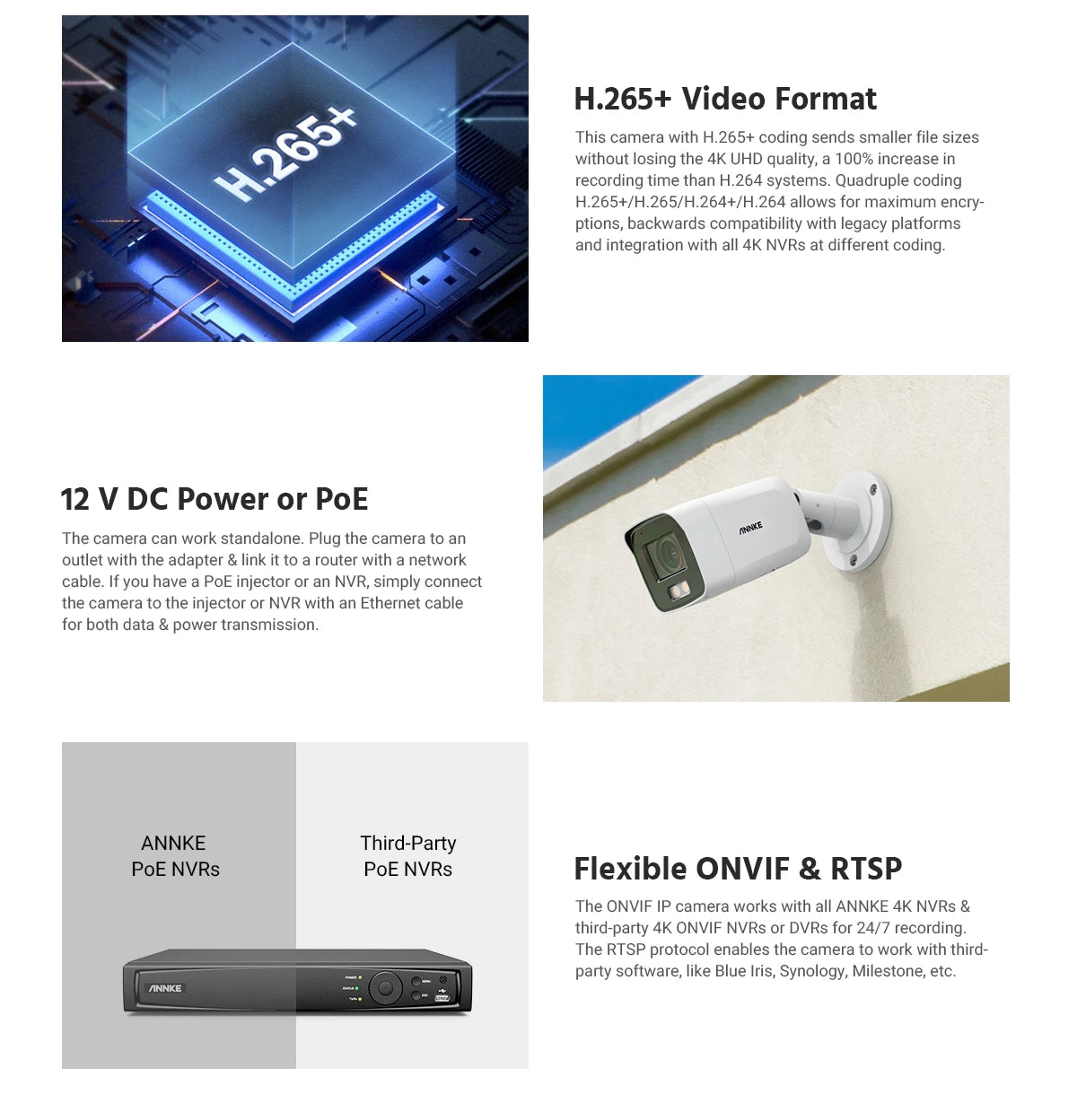

★ Efficient H.265+ compression technology
★ 2.8mm lens with diagonal FOV 124° brings everything back to life
★ Up to 130ft night vision with white light
★ Built-in microphone for real-time audio security
★ Support up to 256GB SD card storage

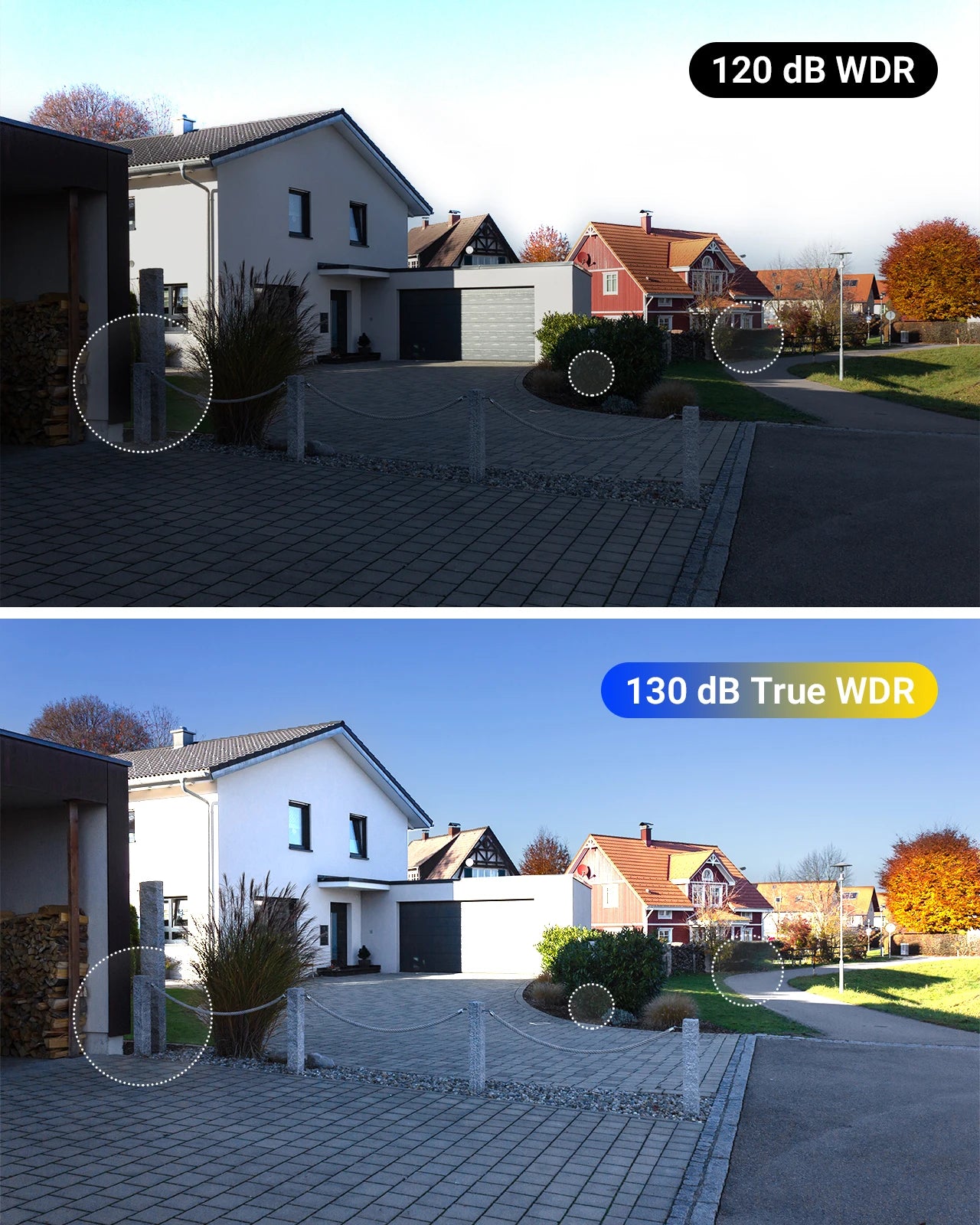

★ Clear imaging even with strong back lighting due to 130 dB WDR

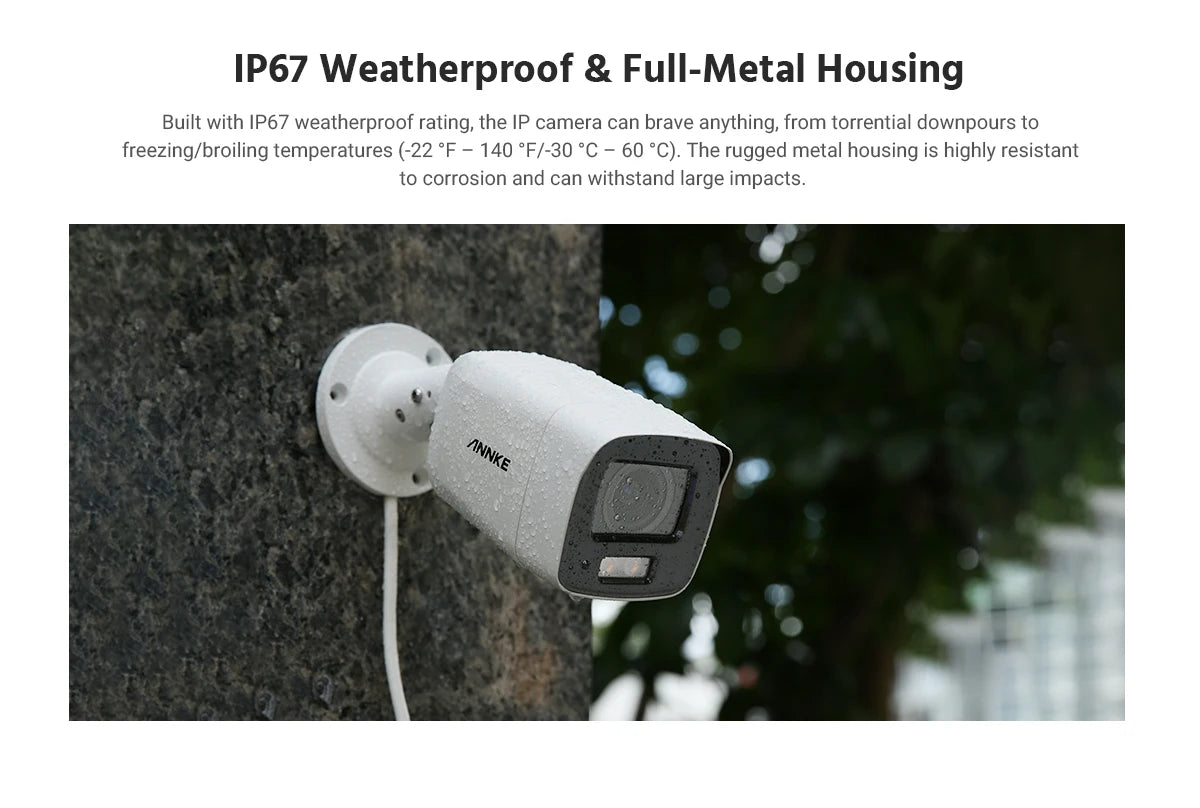

★ IP67 Dust and Waterproof Rating
★ Support PoE (Power over Ethernet)&DC12V
IP Camera | ||
Camera |
Image Sensor |

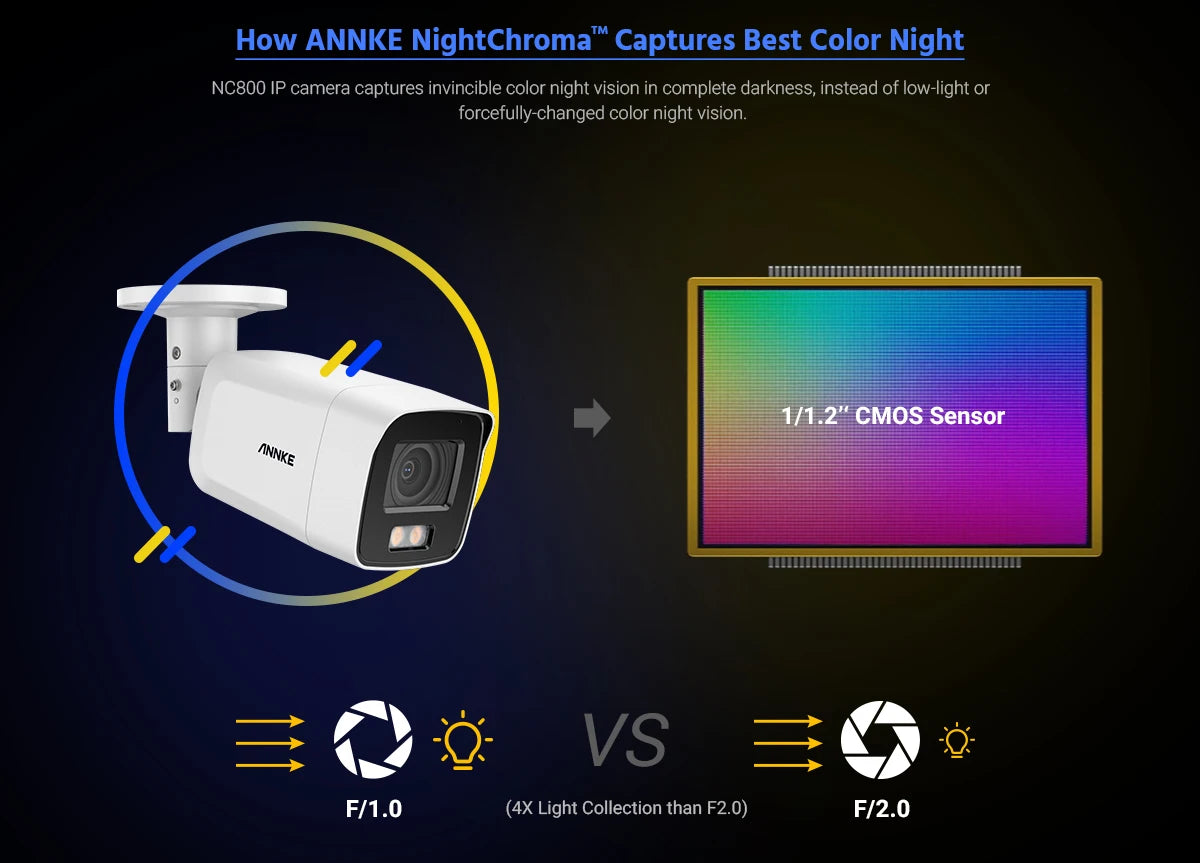

1/1.2" Progressive Scan CMOS |
Video Resolution |
50 Hz:25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ |
|
Video Bitrate |
32 Kbps — 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Input/Output |
Built-in Microphone |
|
Lens |
2.8 mm |
|
Min. Illumination |
0.0005 Lux @ (F1.0, AGC On), 0 Lux with Light |
|
Angle of View |
Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124° |
|
Number of Warm Light |
2 |
|
Night Vision Distance |
Up to 130 ft/40 m |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
130 dB WDR |
|
Network Storage |
MicroSD/SDHC/SDXC card (256 GB) Local Storage, and NAS (NFS, SMB/CIFS) |
|
Face Capture |
Yes |
|
Perimeter Protection |
Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection |
|

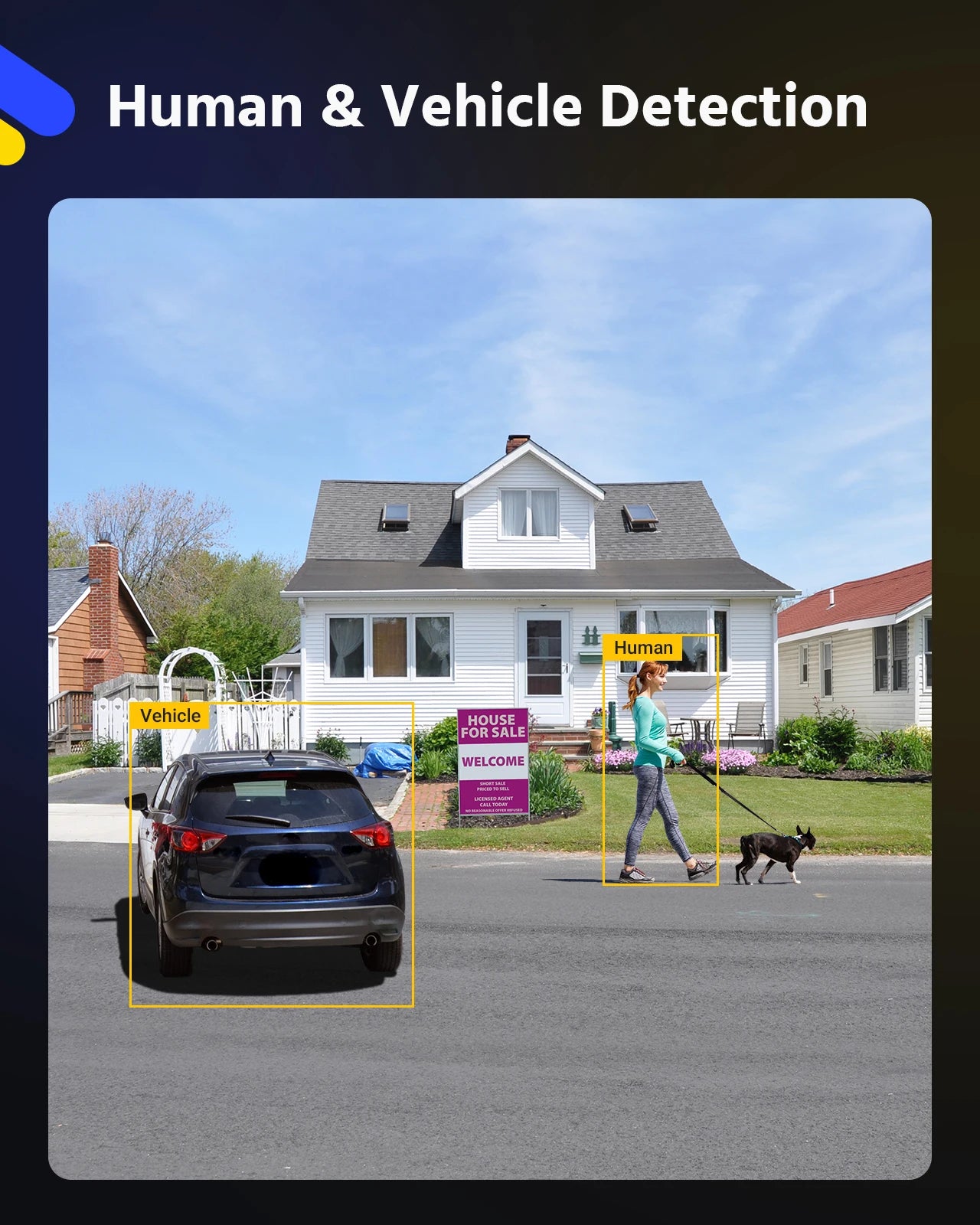

Smart Event |
Motion Detection2.0 (Human and Vehicle), Line Crossing Detection, Intrusion Detection |
|
ONVIF |
Support |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Ethernet |
RJ45 X1 (10 M/100 M) |
|
General |
Housing |
Metal |
Color |
White |
|
Operating Power |
PoE 802.3af, Class 3), 12 V DC ± 25% |
|
Storage |
MicroSD/SDHC/SDXC card (256 GB) local storage &NAS (NFS, SMB/CIFS), ANR |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L X W X H) |
78.8 X 78.6 X 215.2 mm (3.1'' X 3.1'' X 8.5'') |
|
Weight |
1.9 lbs./860 g |
|
Packaging Contents | ||
Camera |
1 |
|
Mounting Screws Bag |
1 |
|
User's Manual For Camera |
1 |
|
