Specification

SPECIFICATIONS

Brand Name: SONOFF

Camera Equipped: No

Certification: CE

Communication method: Wi-Fi

Compatibility: All Compatible

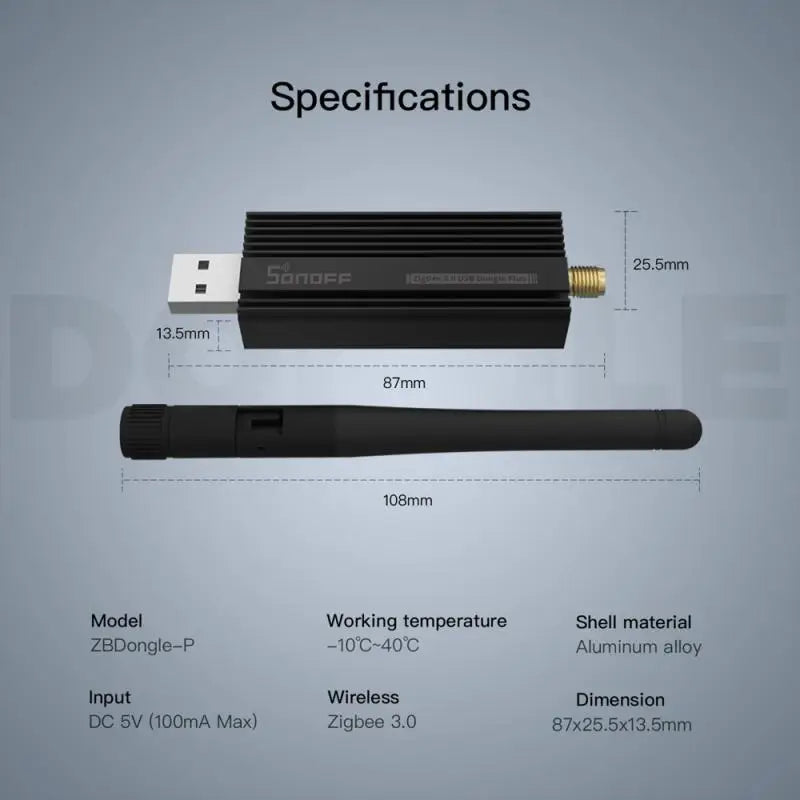

Dimension: 87x25.5x13.5mm

Input: DC 5V (100mA Max)

Model: SONOFF ZBDongle-P

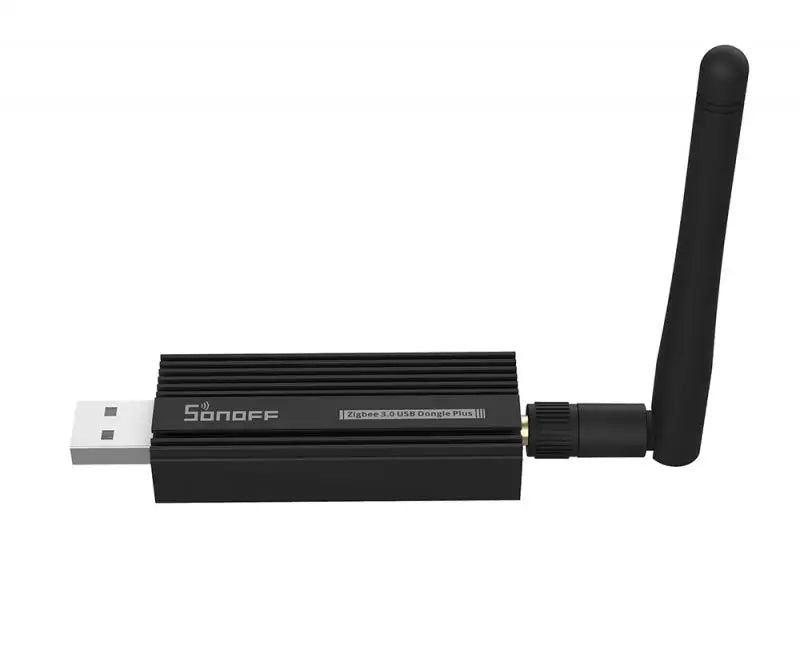

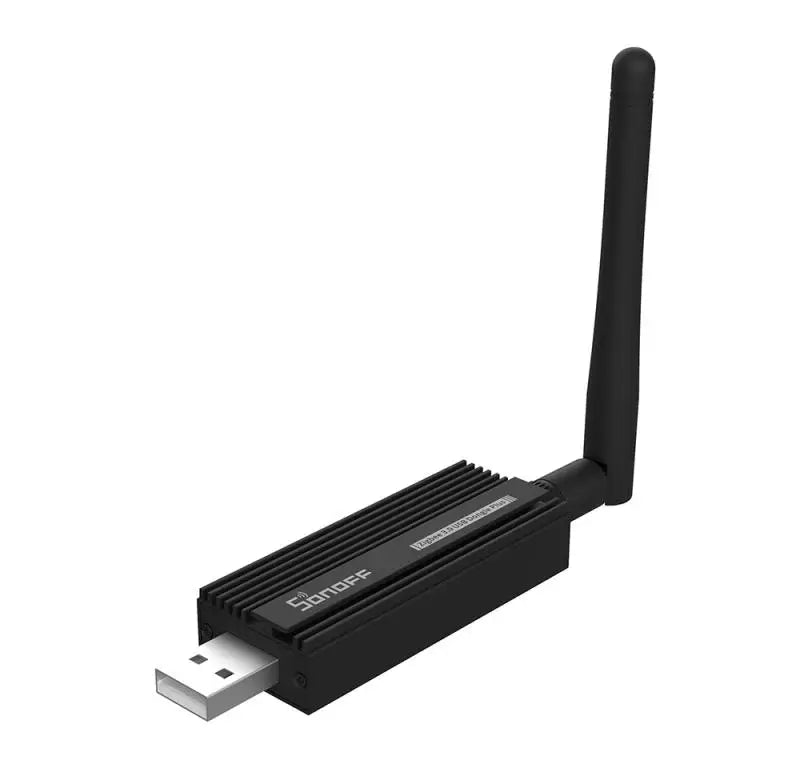

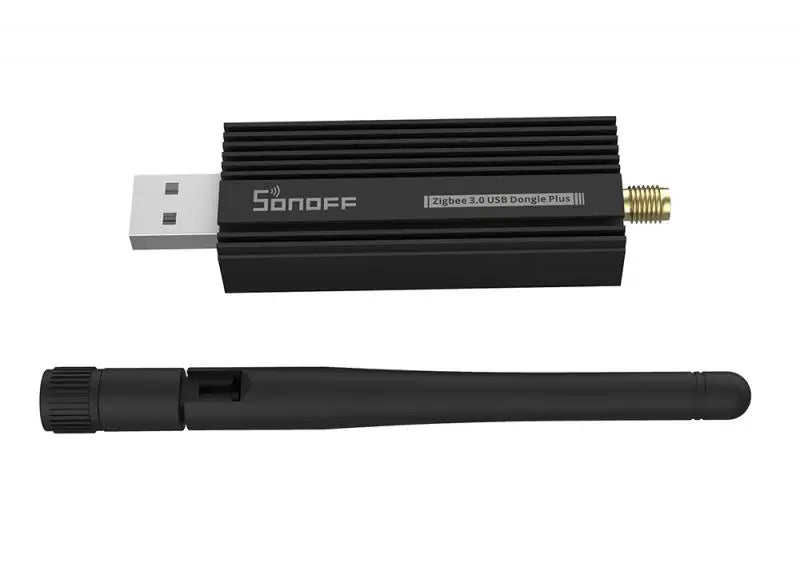

Model Number: SONOFF Zigbee 3.0 USB Dongle Plus

Origin: Mainland China

Shell Material: Aluminum alloy

State of Assembly: Ready-to-Go

Wireless: Zigbee 3.0

Working Temperature: -10℃~40℃

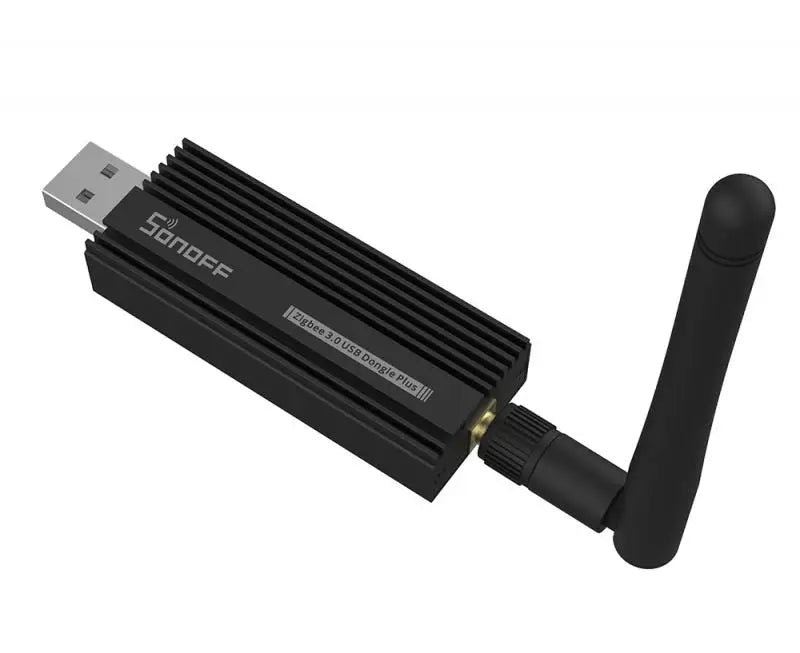

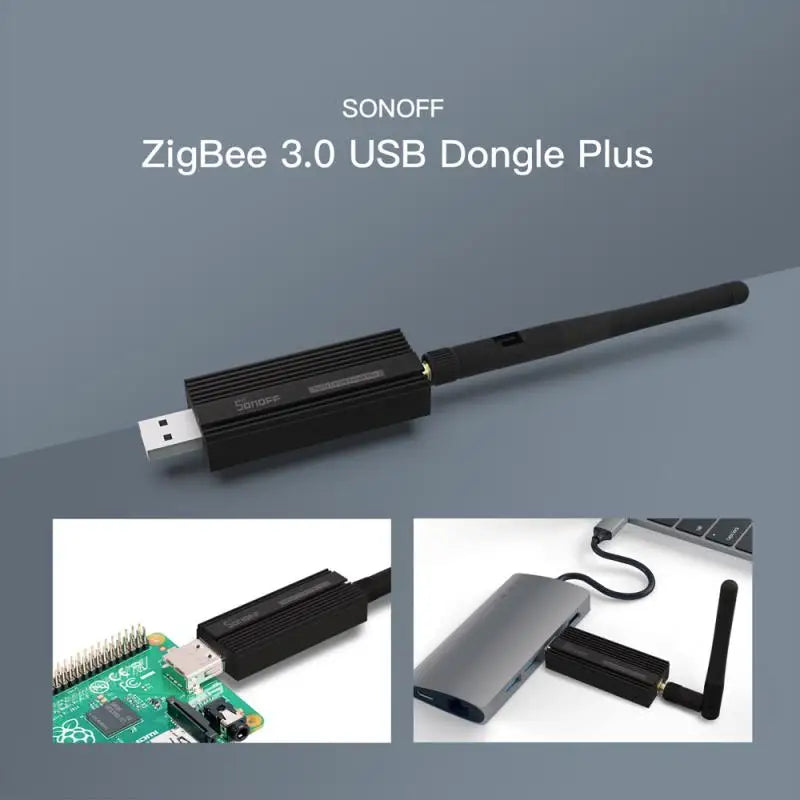

SONOFF ZB Dongle Zigbee 3.0 USB ZBDongle Plus Universal ZigBee Gateway via ZHA or Zigbee2MQTT Support Sonoff ZBMINI S26R2ZB SNZB

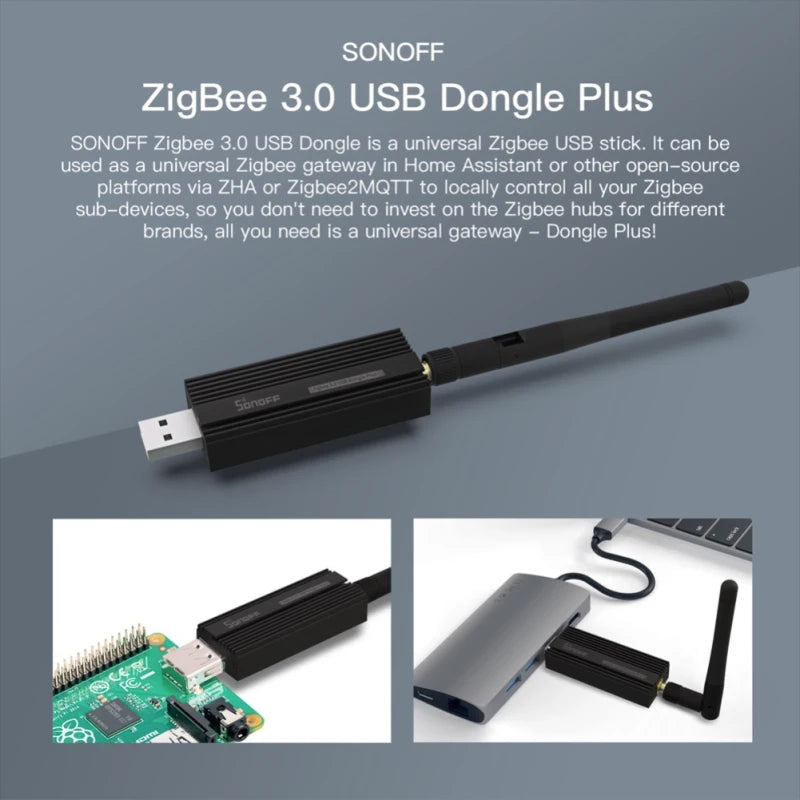

1.SONOFF Zigbee 3.0 USB Dongle Plus is ZBDongle-E ， a universal Zigbee USB stick. It can be used as a universal Zigbee gateway in Home Assistant or other open-source platforms via ZHA to locally control all your Zigbee sub-devices, so you don't need to invest in the Zigbee hubs for different brands, all you need is a universal gateway - Dongle Plus!

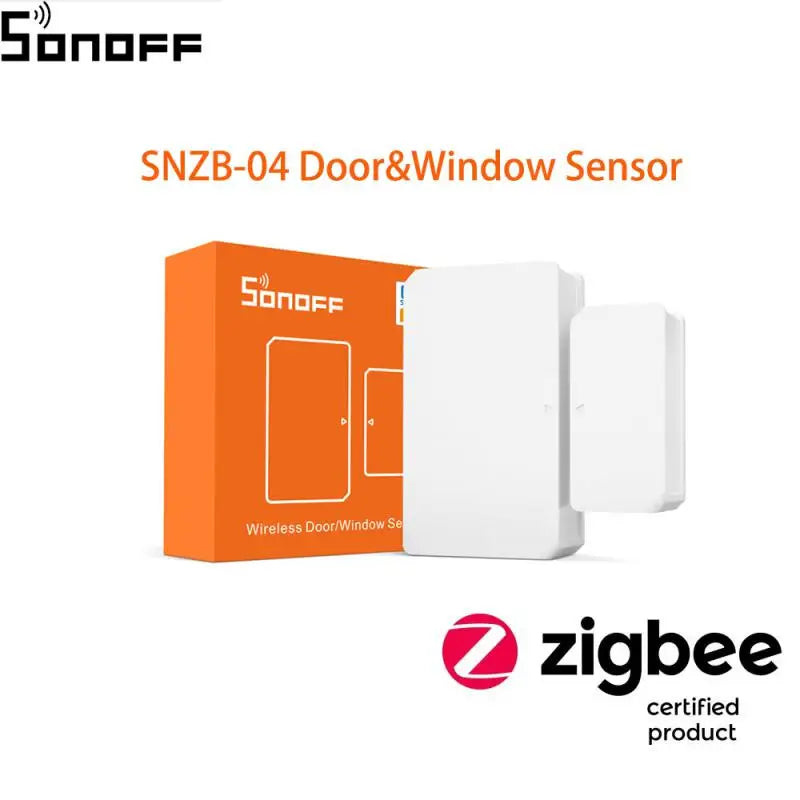

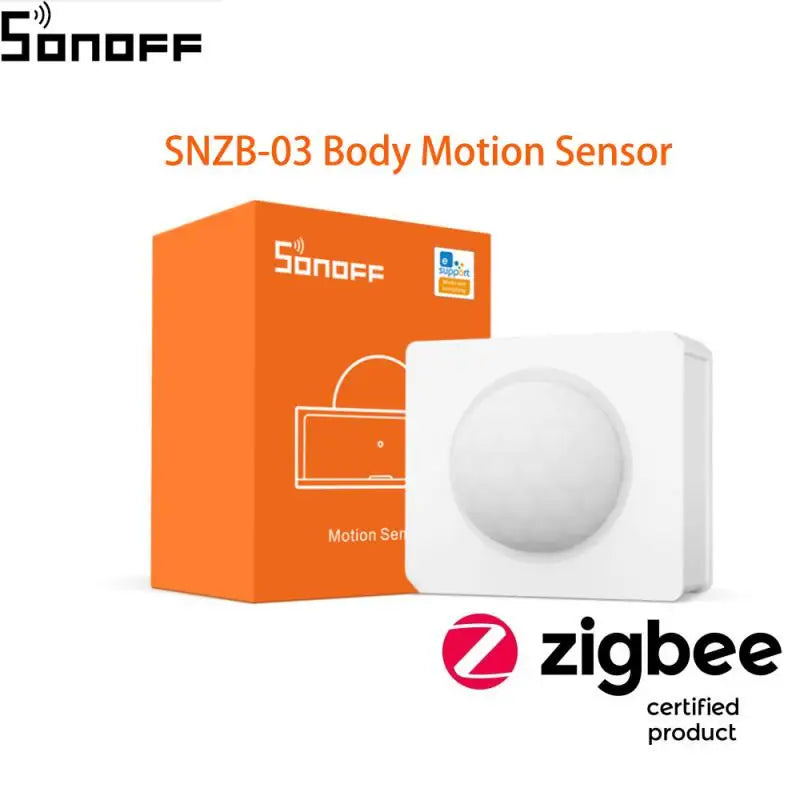

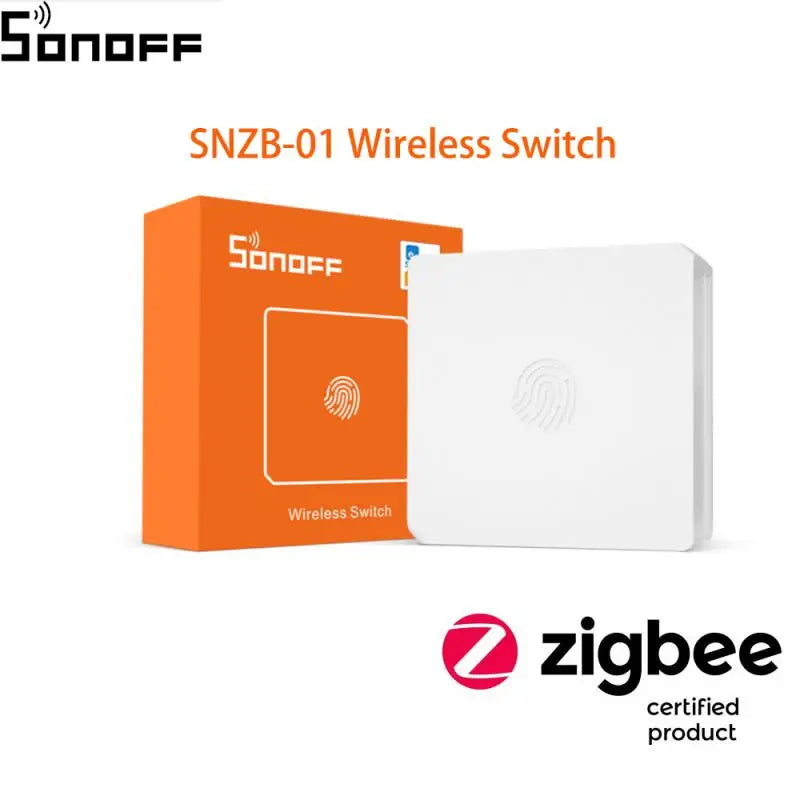

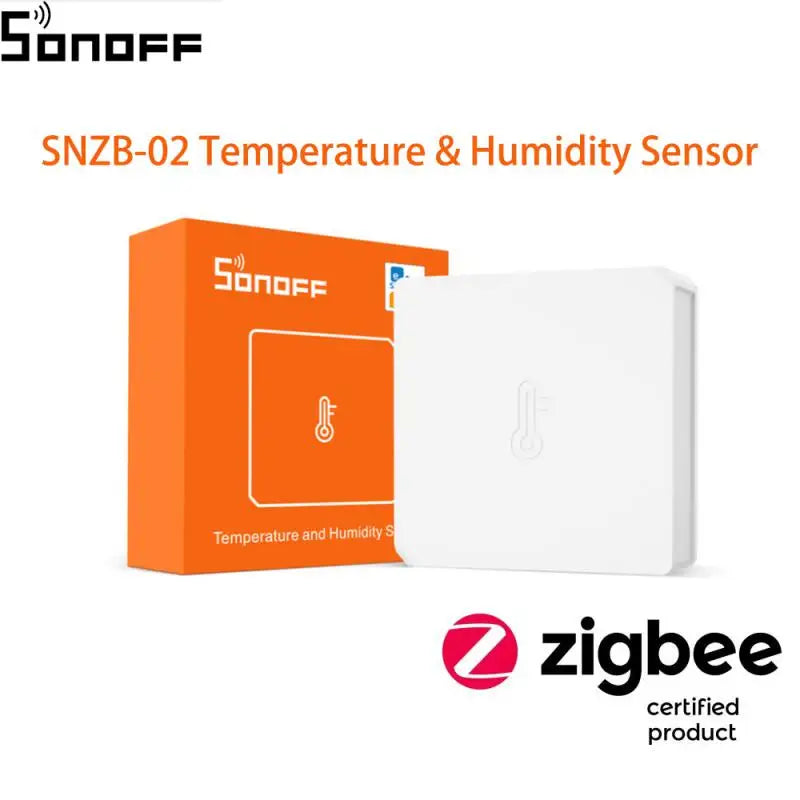

2.The dongle plus has a wide range of supported devices, such as BASICZBR3, S31 Lite zb, SNZB01, SNZB02, SNZB03, SNZB04, ZBMINI, S26R2ZB , and various sub-devices from various brands or flash router firmware to extend the network range.

3.The limits of ZBDongle Plus are 21 direct children and up to 40 children (Default values from official firmware). Supported to connect more by configurating yourself.

*Updated version (in the near future) will be supported to work with maximum 200 children

Specifications:

Pre-flashed with Z-Stack 3.x.0 coordinator firmware

Can use ZHA in Home Assistant or use Zigbee2MQTT

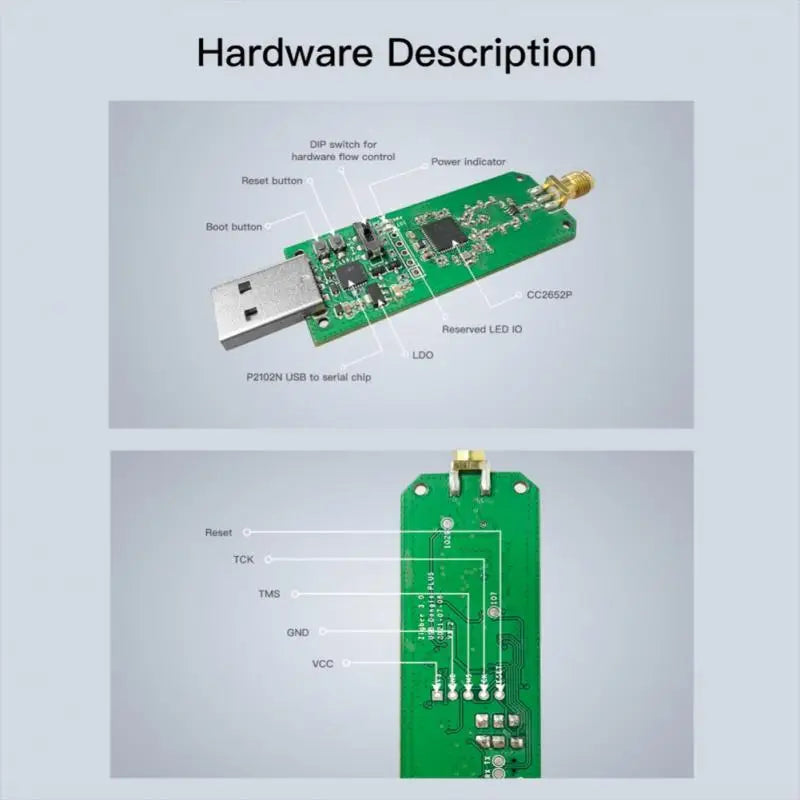

Base on TI CC2652P CP2102N

20dBm output gain

SMA interface external antenna

Aluminum housing effectively reduces signal interference from peripherals

Optional 1.5m USB extension cable for better signal range

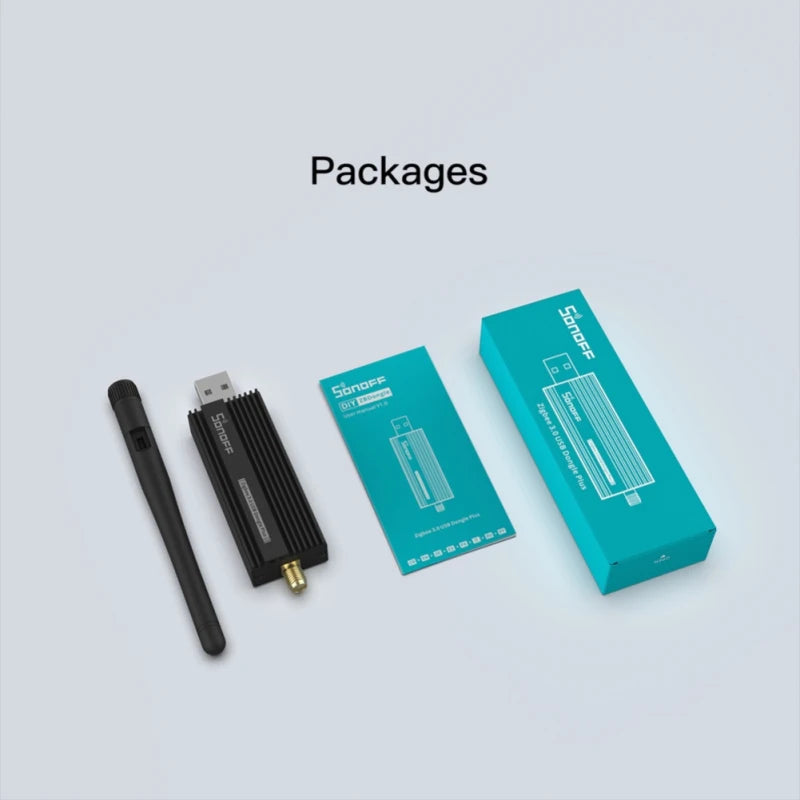

Package Included:

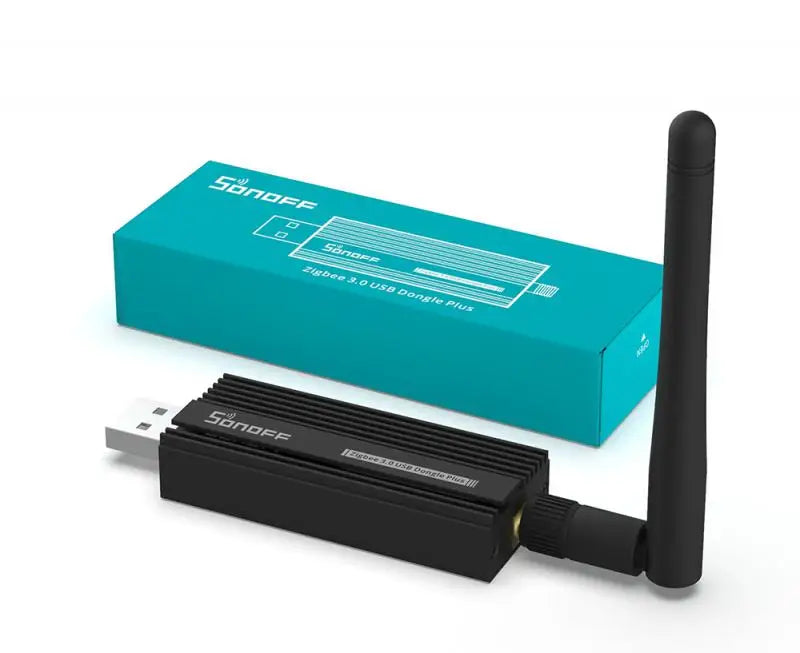

1*SONOFF Zigbee 3.0 USB Dongle Plus

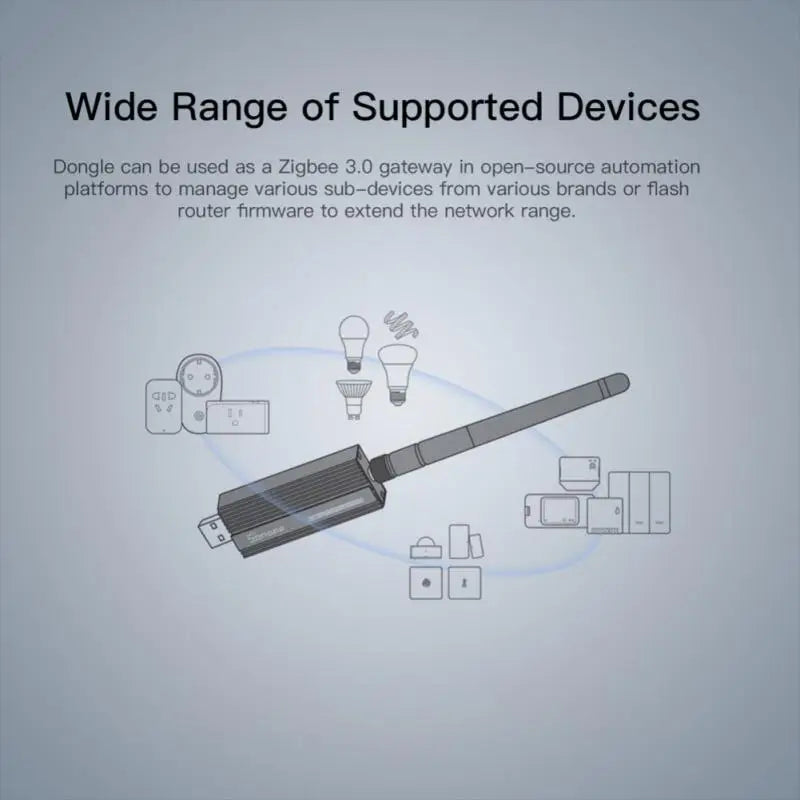

Wide Range of Supported Devices

Dongle can be used as a Zigbee 3.0 gateway in open-source automation platforms to manage various sub-devices from various brands or flash router firmware to extend the network range.

* The official firmware supports 21 direct children by default and up to 40 children. You can modify the relevant configuration to support up to 100 children.
