Specification
SPECIFICATIONS
Accessory Type: Battery Accessories
Battery Included: No
Battery type: NCM/LFP/LTO
Brand Name: Heltecbms
Certification: CE
Charger included: N
Current: 5A
Hign-concerned Chemical: None

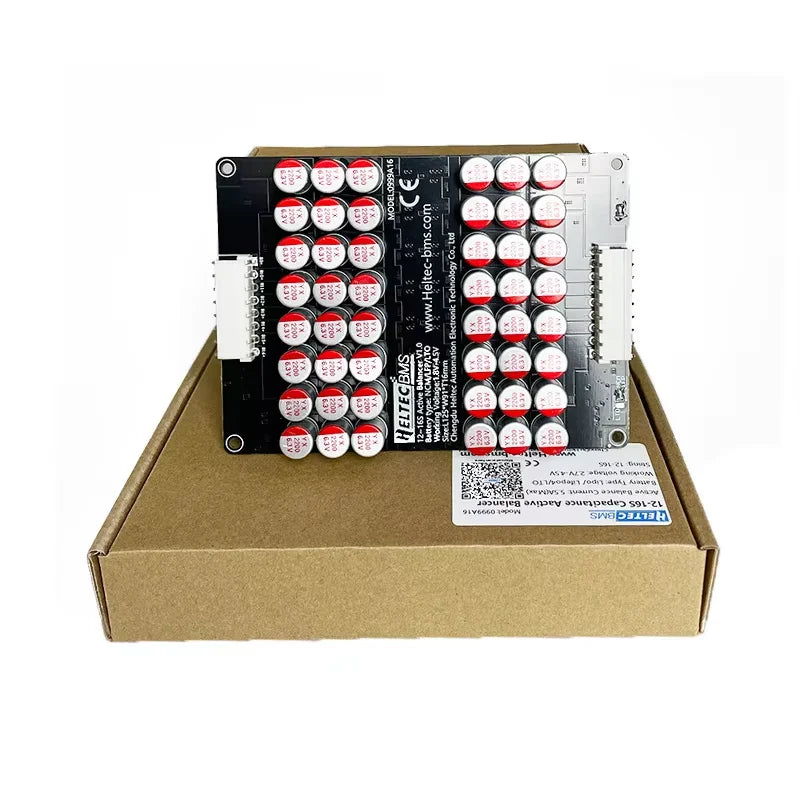

Model Number: 0999A16
Origin: Mainland China
Strings number: 12~16S
Feature
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

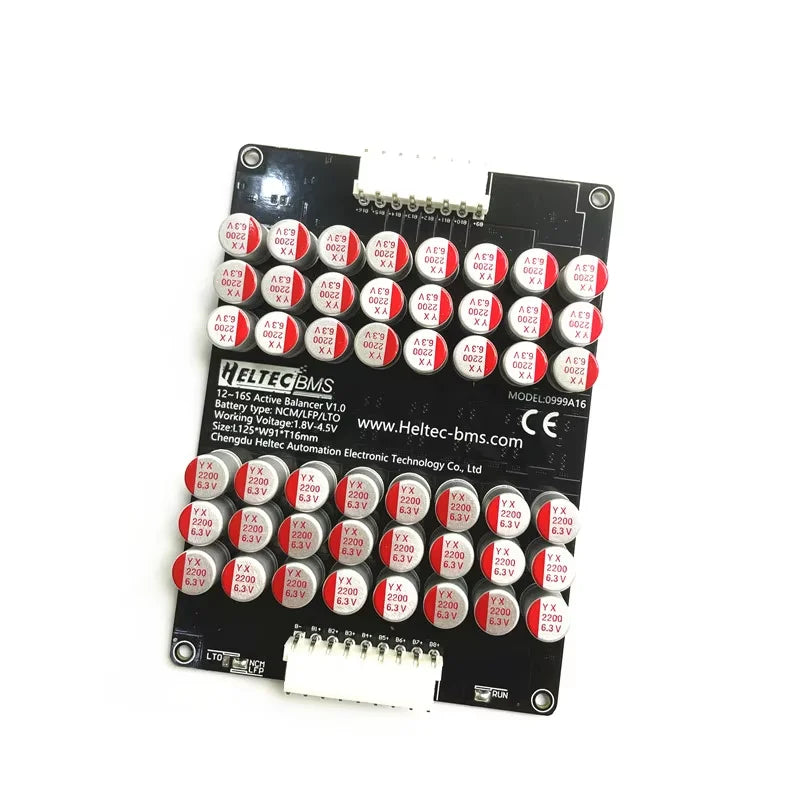

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

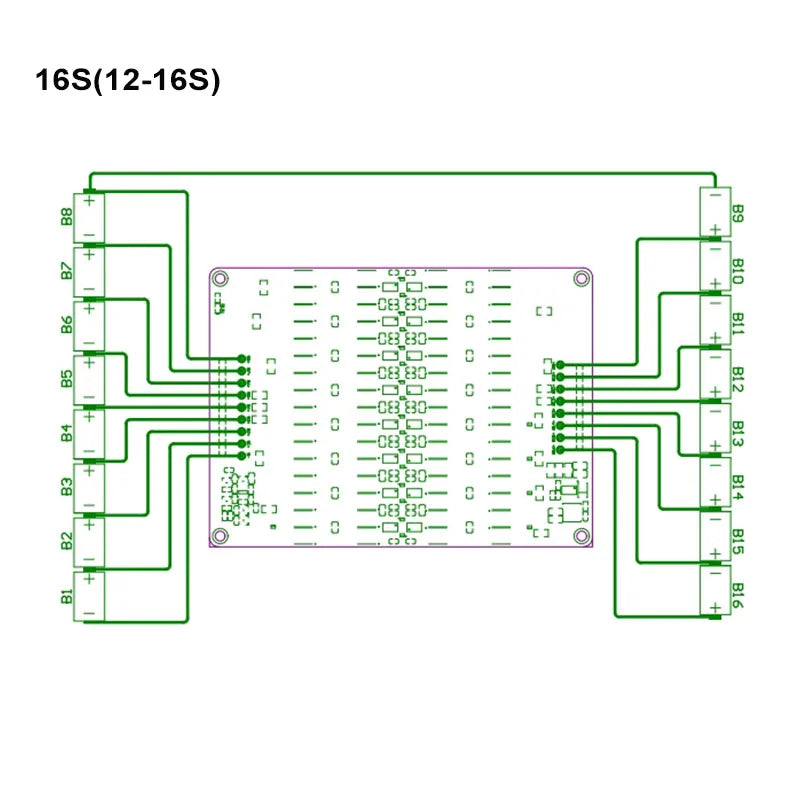

Wiring diagram
