SPECIFICATIONS

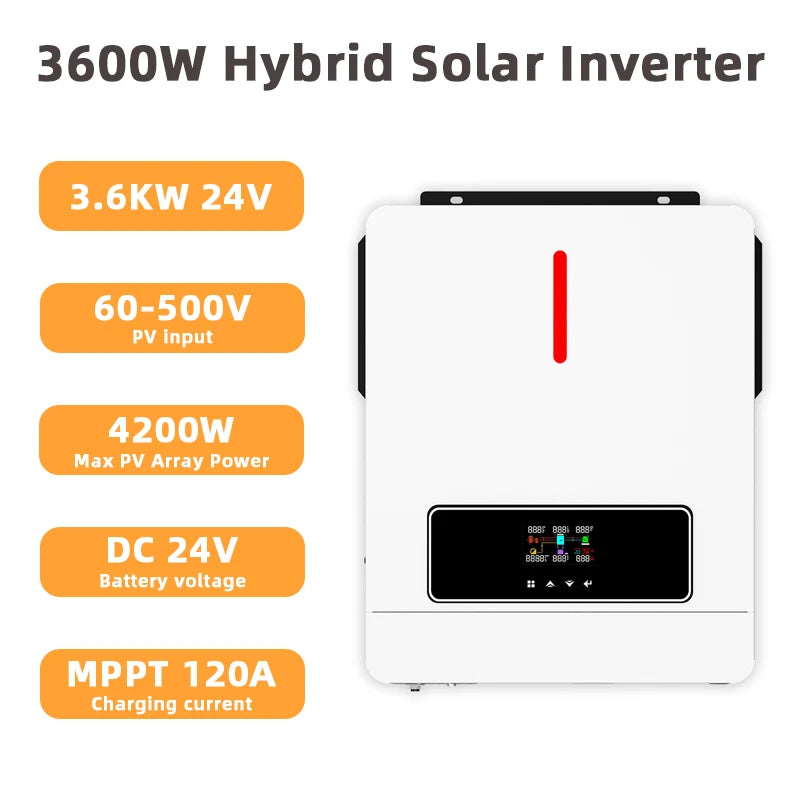

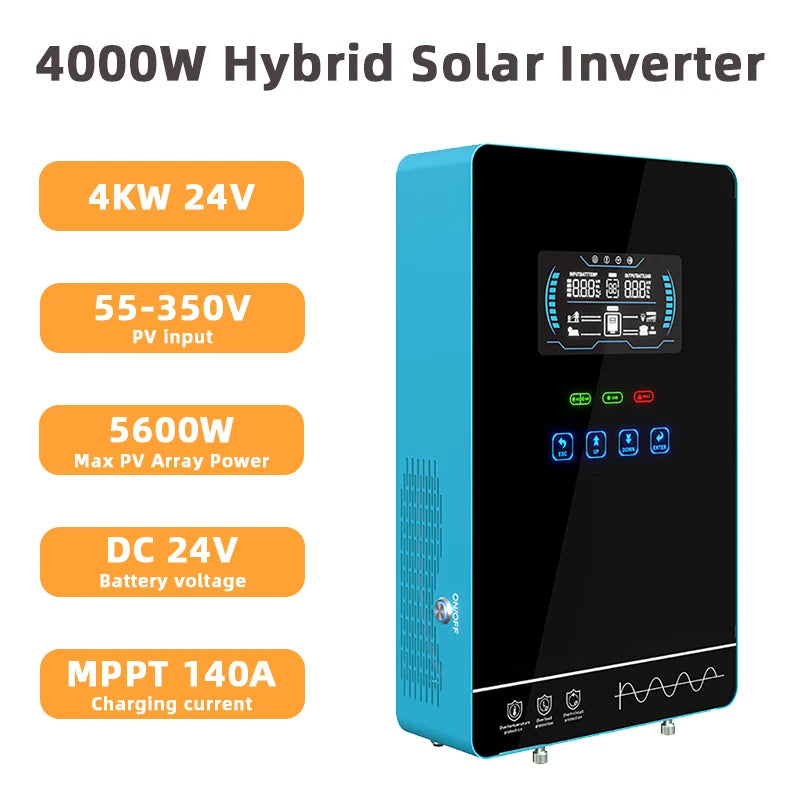

Y&H 3.6KW 4KW Hybrid Solar Inverter 24VDC 110VAC Pure Sine Wave Hybrid Inverter 120A MPPT Solar Controller Run Without Battery

Do not turn on each input at the same time. It is recommended to work for 3 minutes. The inverter is working sufficiently and stably

Inverter startup sequence:

1: Battery 2: AC input or PV input 3: Load

The inverter exits the system sequence:

1: Load 2: AC input or PV input 3: Turn off the inverter Exit battery

Describe:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

3600W On Grid/Off-Grid Solar Inverter Features：

*Pure sine wave solar inverter(on/off Grid)

*WIFI&GPRS available for IOS and Android

*Inverter running without battery

*One-key restoration to factory settings

*Built-in lithium battery automatic activation

*Built-in MPPT 120A Solar Charger

*Solar chargeHigh PV input voltage range(90~450VDC)

*Built-in anti-dusk kit for harsh enviroment

*Smart battery charge design to optimize battery life

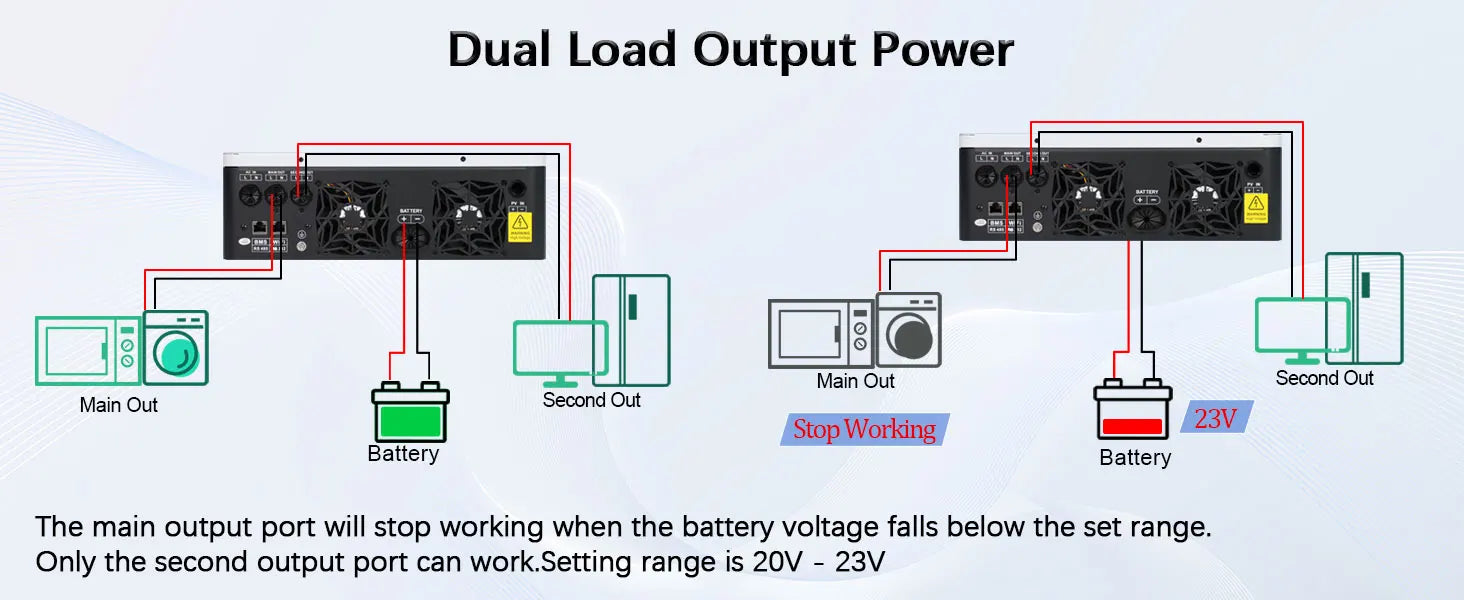

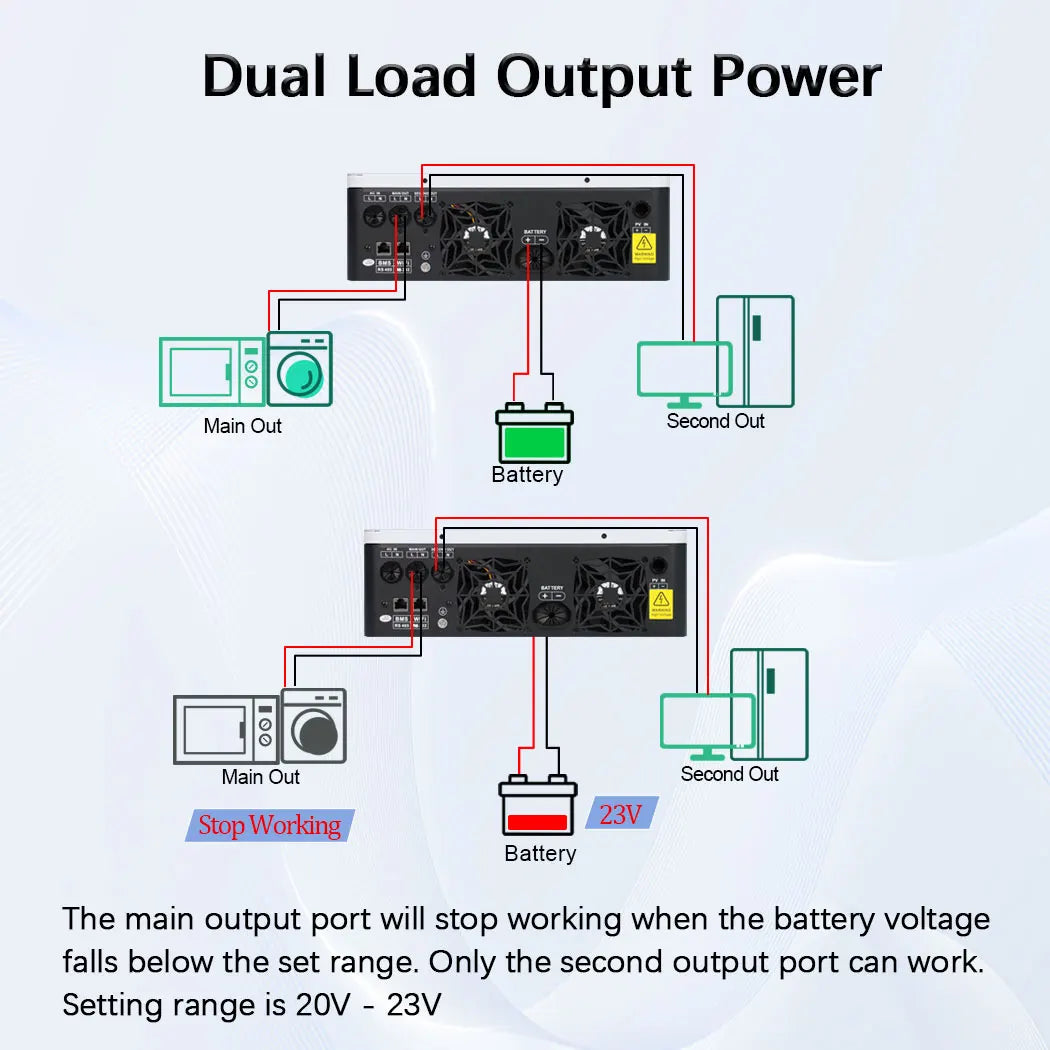

*110V/120V AC Dual outputFeatures：

1.No battery function available

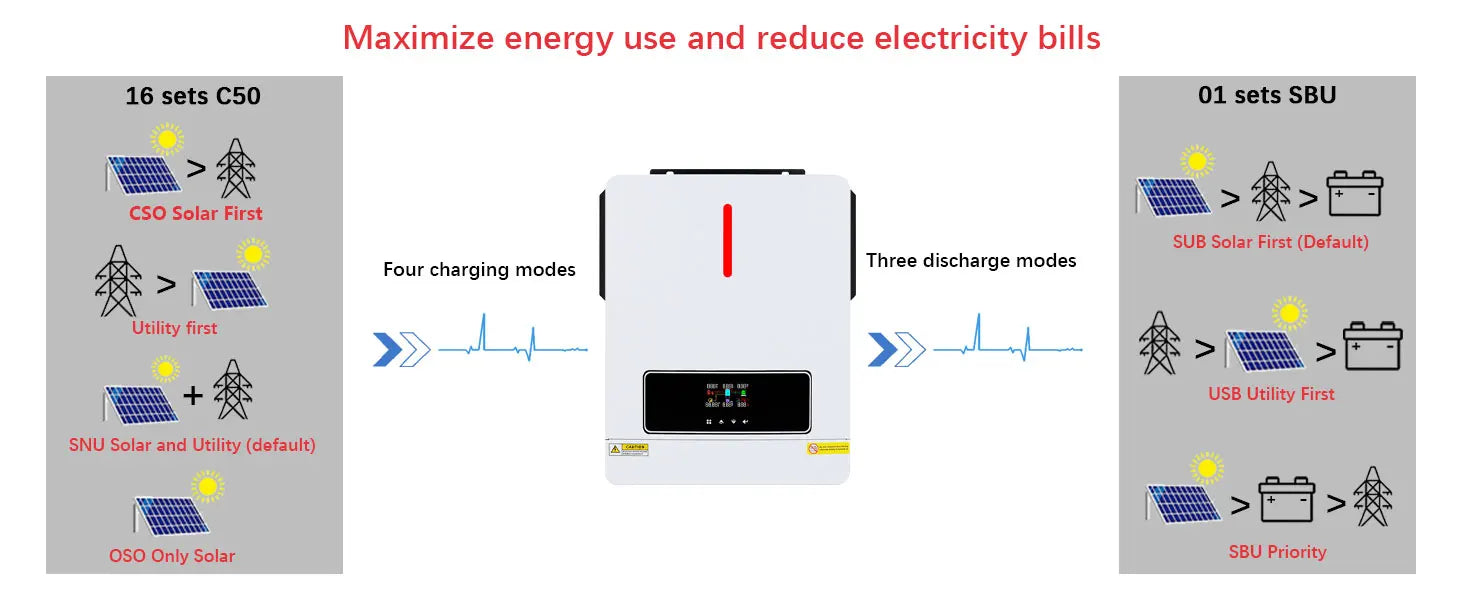

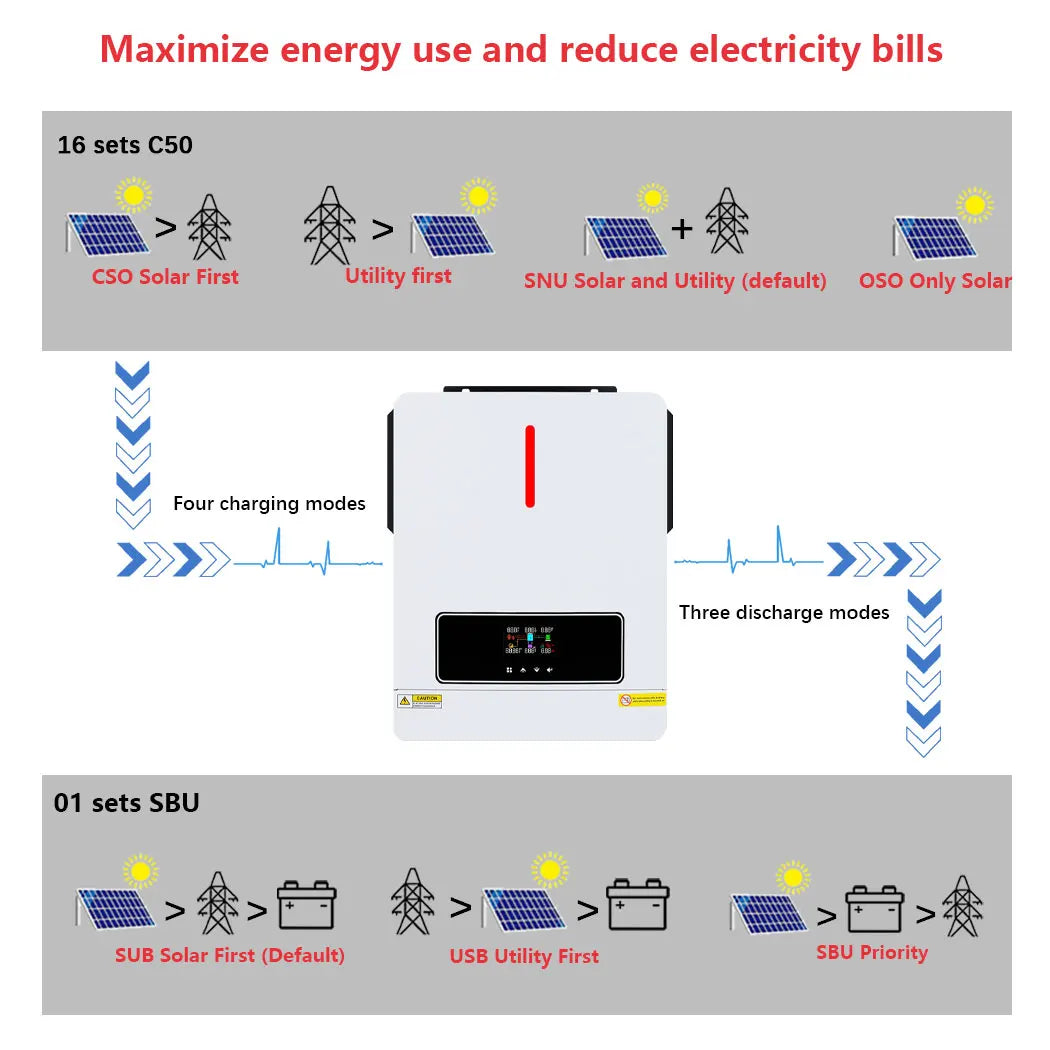

2.SBU mode:utility powerbattery and PV power complement each other

3.Pure sine wave solar inverter

4.Unique glass top cover design

5.with 6.25inch LCD displayand touchable buttons

6.Built-in 140A MPPT(Max PV 5600W) solar charger

7.High PVinput range from 55V-350Vdc

8.Smart battery charger design for optimized battery performance

9.Configurable AC/Battery input priority via LCD setting

10.Auto restart while PV is recovering

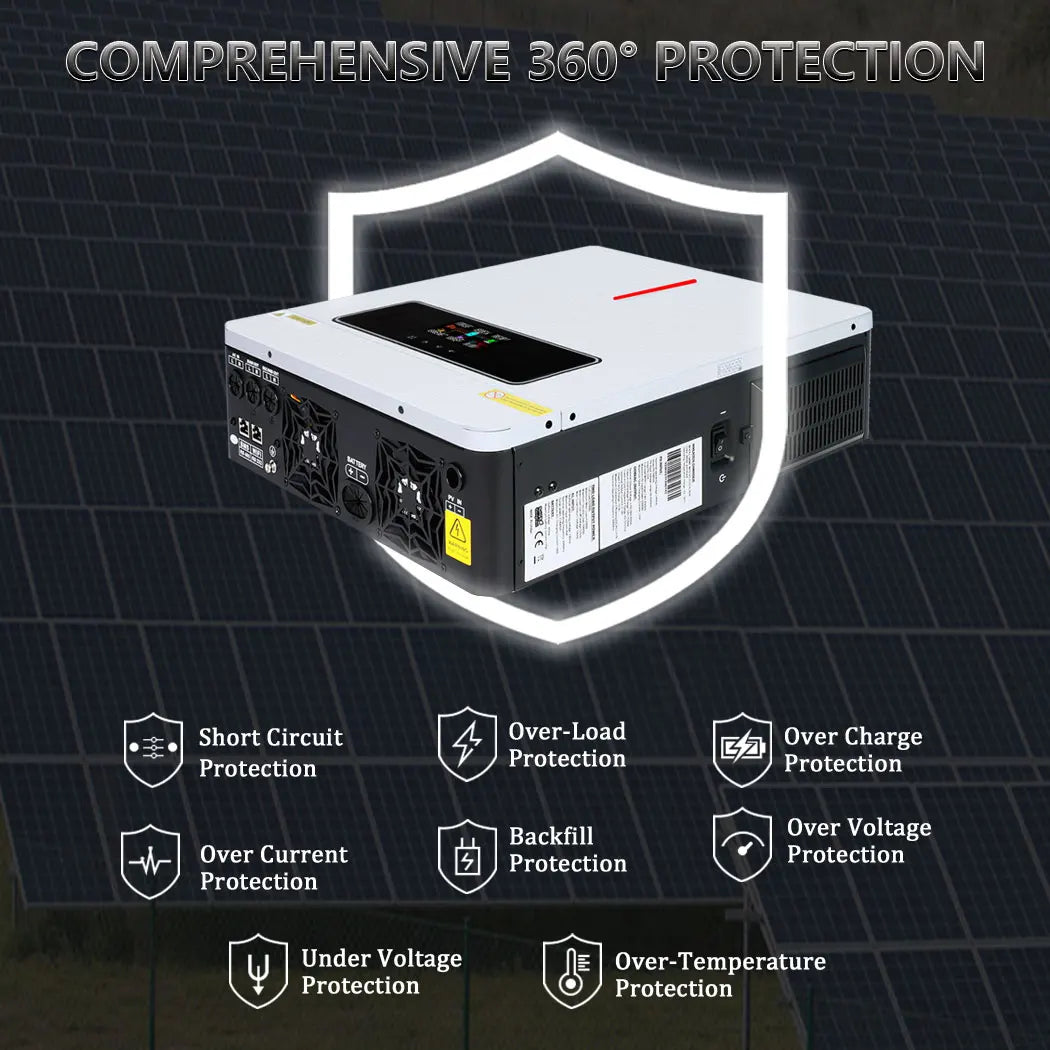

11.Over-load , over temperature and output shortcircuit protection

Cold restart function

12.Built-in lithium battery automatic activation

13.Communication with RS232/RS485

14.WiFi monitoring function (optional )

15.Restore default Settings with one click

16.  3 Heat Dissipation Fan

Compatible with 24V Batteries and No-Battery Operation:

Compatible with a variety of 24V batteries, including AGM, gel, lead acid, lithium ions, and lithium iron phosphate batteries. It offers a no-battery operation mode and features built-in lithium activation and comprehensive battery protection functions, including short circuit protection and over/under voltage protection, effectively extending battery life.
