Specification
SPECIFICATIONS
Brand Name: PowMr
Certification: CE
Hign-concerned Chemical: None
Is Smart Device: Yes
Model Number: POW-LVM5K-48V-N
Origin: Mainland China
Output Current: MPPT 80A
Output Frequency: 50Hz/ 60Hz
Output Type: SINGLE
Size: 420*320*120mm
Weight: 11.5KG
is_customized: Yes

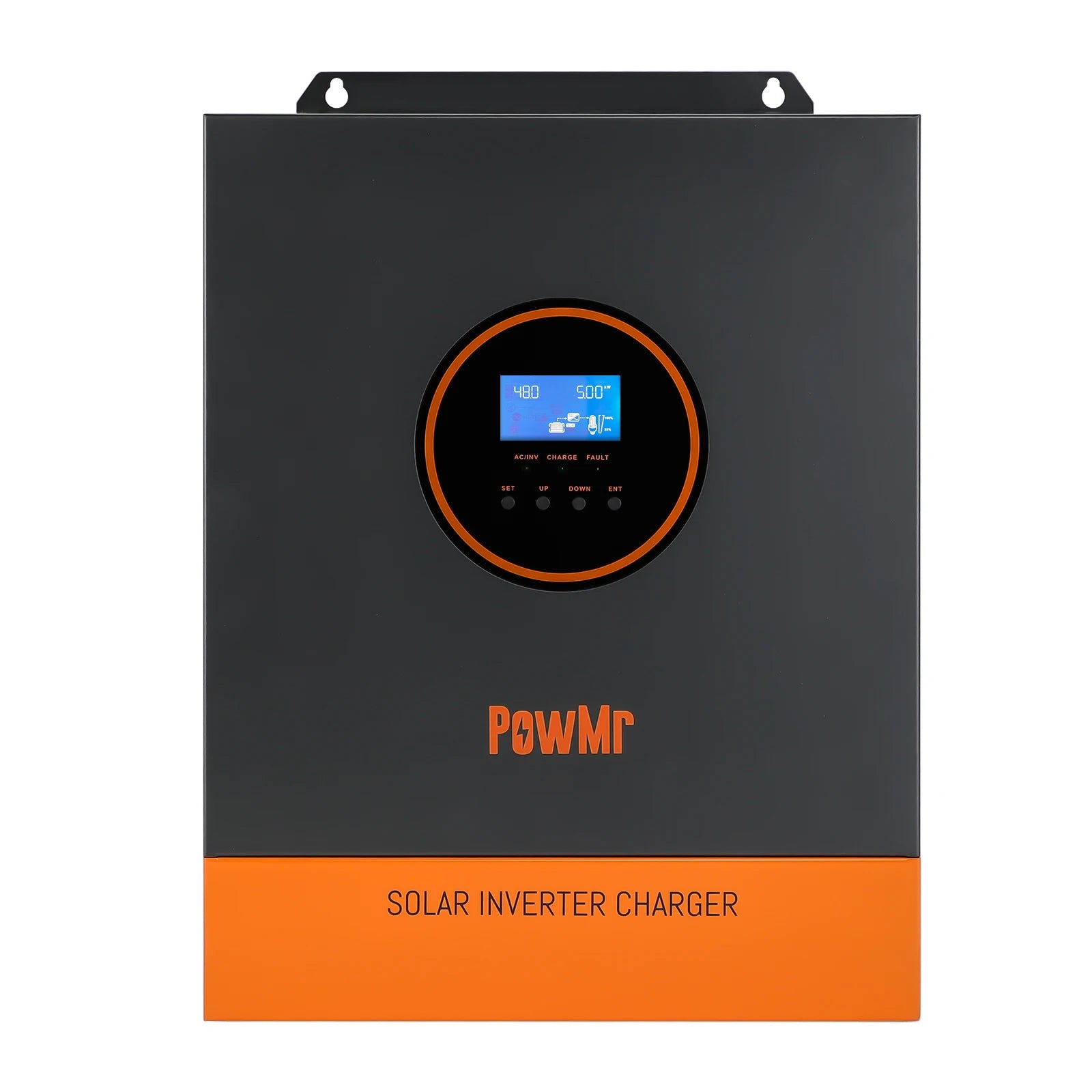

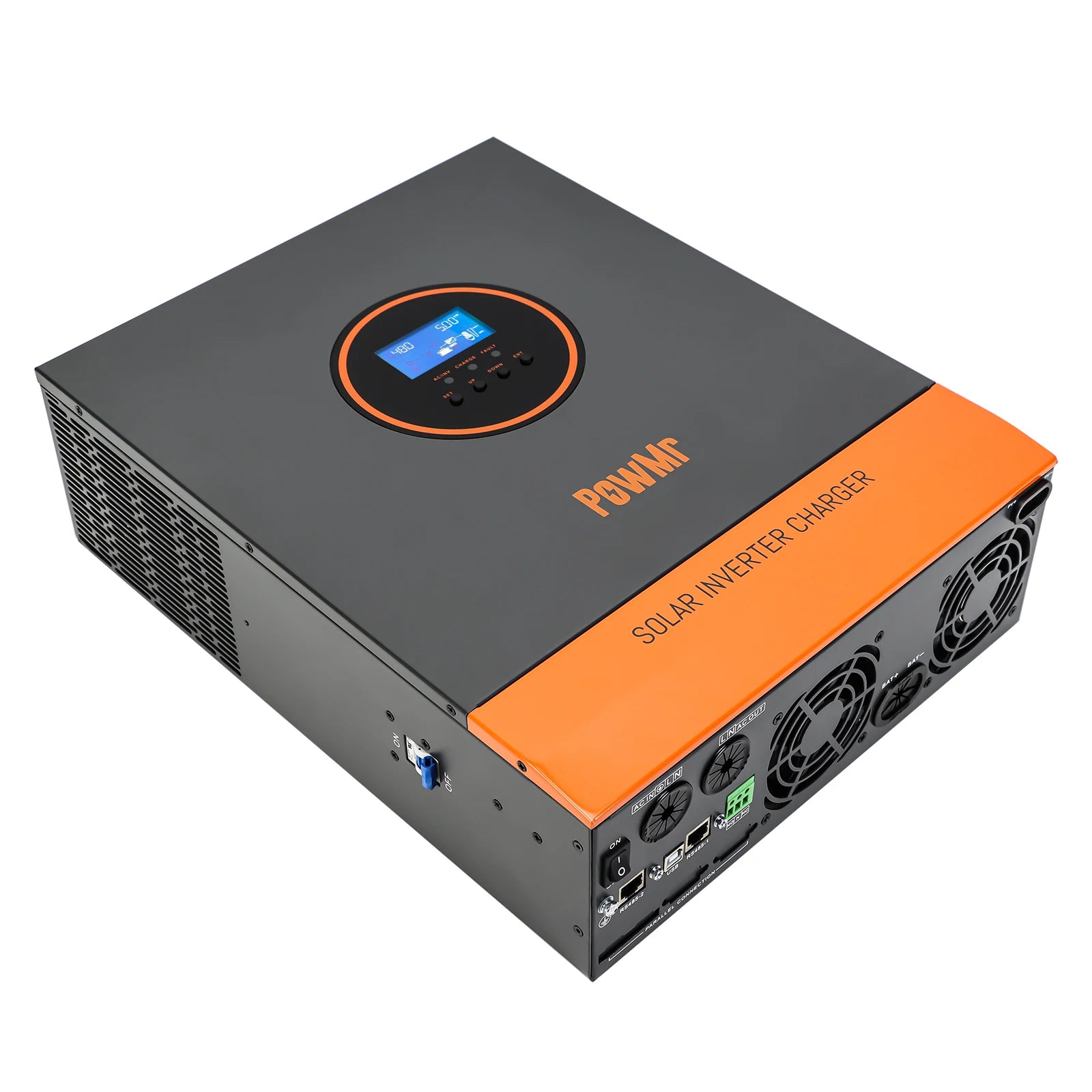

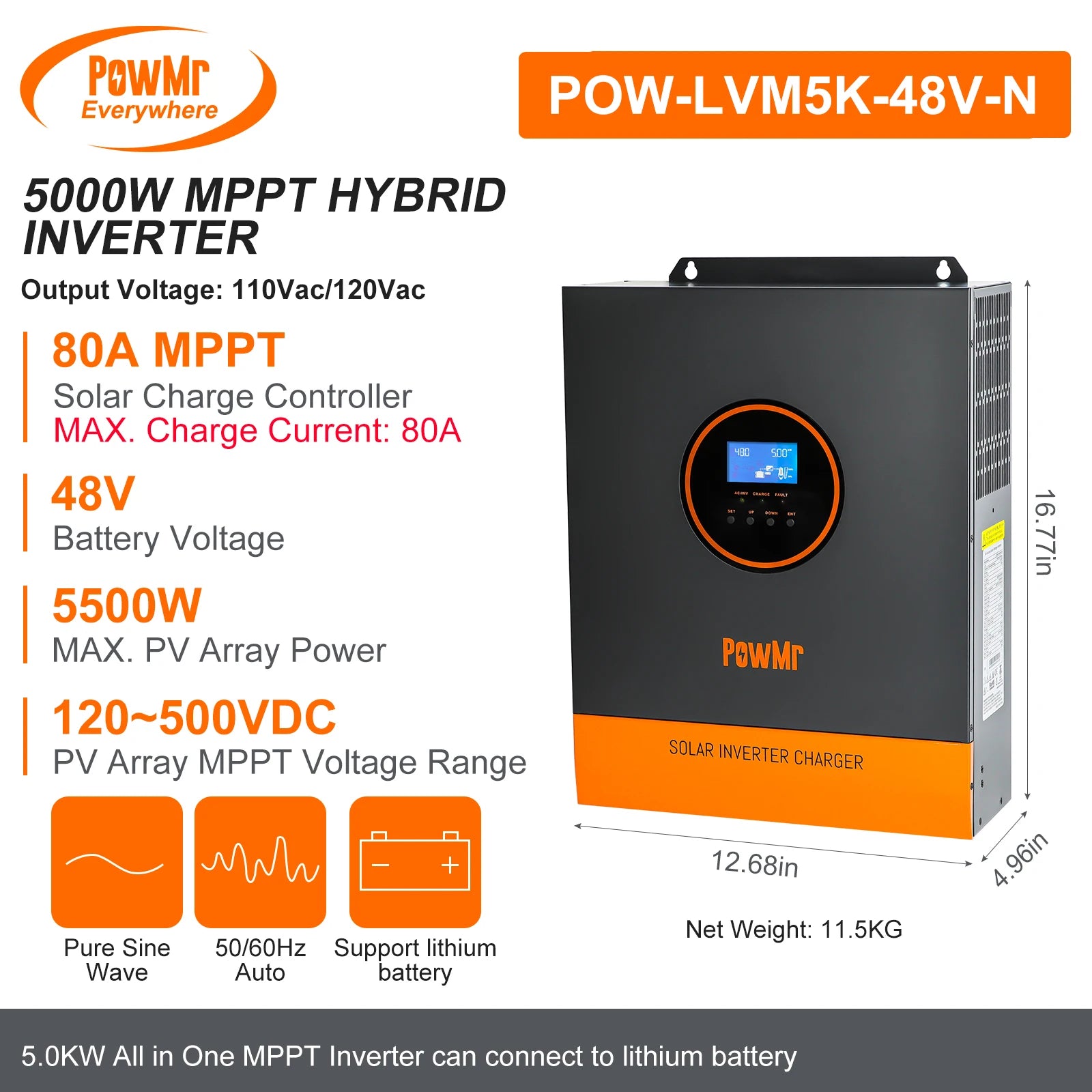

PowMr 5000W 48V 110/120VAC Output MPPT Hybrid Solar Inverter PV 500VDC With MPPT 80A Charger Controller Support Lithium Battery
Introduction:
POW-LVM5K-48V-N and POW-LVM3K-24V-H are the new type of mixed solar energy storage inverting & control all-in-one inverter integrating solar energy storage & municipal power charge storage and AC sine wave output.
It can output 110VAC/120VAC voltage, suitable for countries or regions that require 110VAC voltage such as the United States, Brazil and Japan.
Features:
* Pure Sine Wave inverter, 120Vac AC output.
* Higher output power up to 3000W / 5000W, supports single-phase devices.
* Fast switching time of 10ms.
* Compatible with 24V/48V lithium-ion and lead-acid battery, support user-define.
* Max. PV charging current up to 80A.
* Max. AC charging current up to 40A.
* Max. hybrid charging current up to 80A.
* 90~140Vac AC input voltage range.
* 120~450Vdc wide voltage range for PV access.
* 1 MPP Tracker, with 99.9% efficiency.
* Configure multiple communication interfaces(USB/CAN/RS485(WiFi/GPRS)/Dry node control).
* Durable finish with high anti-corrosion.

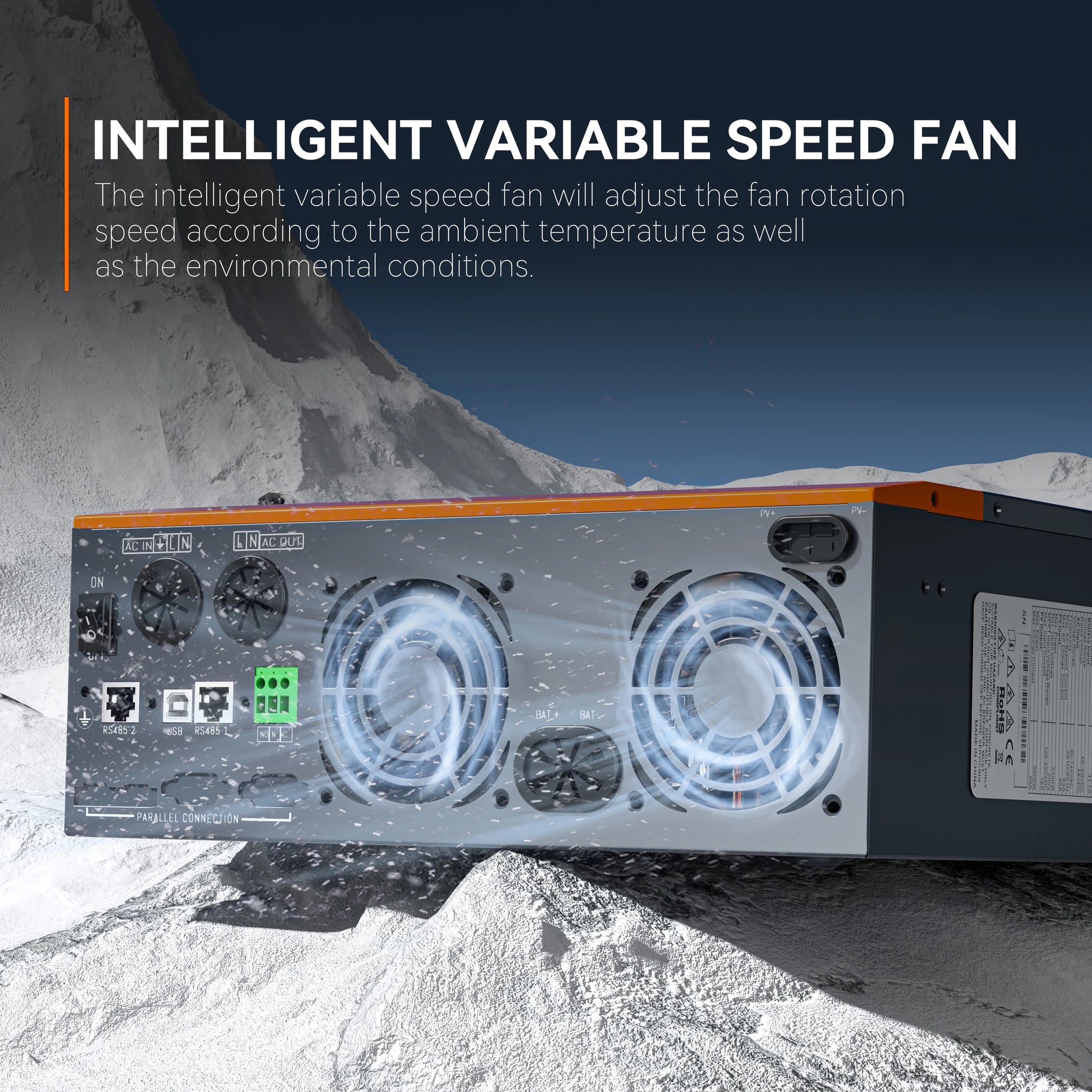

* Effective forced air cooling to ensure that the equipment runs stably.
Specification:
Model |
POW-LVM3K-24V |
POW-LVM5K-48V |
AC Mode | ||
Rated input voltage |
110/120Vac |
|
Input voltage range |
(90Vac-140Vac) |
|
Frequency |
50Hz/ 60Hz (auto-sensing) |
50Hz/ 60Hz (auto-sensing) |
Overload/short-circuit protection |
Circuit breaker |
|
Efficiency |
>95% |
|
Maximum bypass overload current |
40A |
63A |
Inverting Mode | ||
Output voltage waveform |
Pure sine wave |
|
Rated output power (VA) |
3000 |
5000 |
Rated output power (W) |
3000 |
5000 |
Rated output voltage (Vac) |
120Vac |
120Vac |
Maximum Efficiency |
>92% |
>90% |
Peak power |
6000VA |
10000VA |
Loaded motor capability |
2HP |
4HP |
Rated battery input voltage |
24V (Minimum starting voltage 22V) |
48V (minimum start voltage 44V) |
Power saving mode |
Load ≤50W |
|
AC Charging | ||
Battery type |
Lead acid or lithium battery |
|
|
Maximum charge current
(can be set)
|
0-40A |
|
Charge voltage range |
20–33Vdc |
40–60Vdc |
Breaker specification |
40A |
63A |
Solar Charging | ||
Maximum PV open-circuit voltage |
450Vdc |
500Vdc |
PV operating voltage range |
120~450Vdc |
120-500Vdc |
Battery voltage range |
20~33Vdc |
40-60Vdc |
Maximum input power |
4000W |
5500W |
|
Charge current range of solar energy
(settable)
|
0-80A |
|
Authentication Specification | ||
EMC authentication grade |
EN61000 |
|
Noise |
≤60dB |
|
Communication interface |
USB/RS485 (WiFi/GPRS)/dry node control |
|
Dimension (L*W*D) |
378mm*280mm*103mm |
426mm*322mm*126mm |
Weight (kg) |
8 |
11.5 |

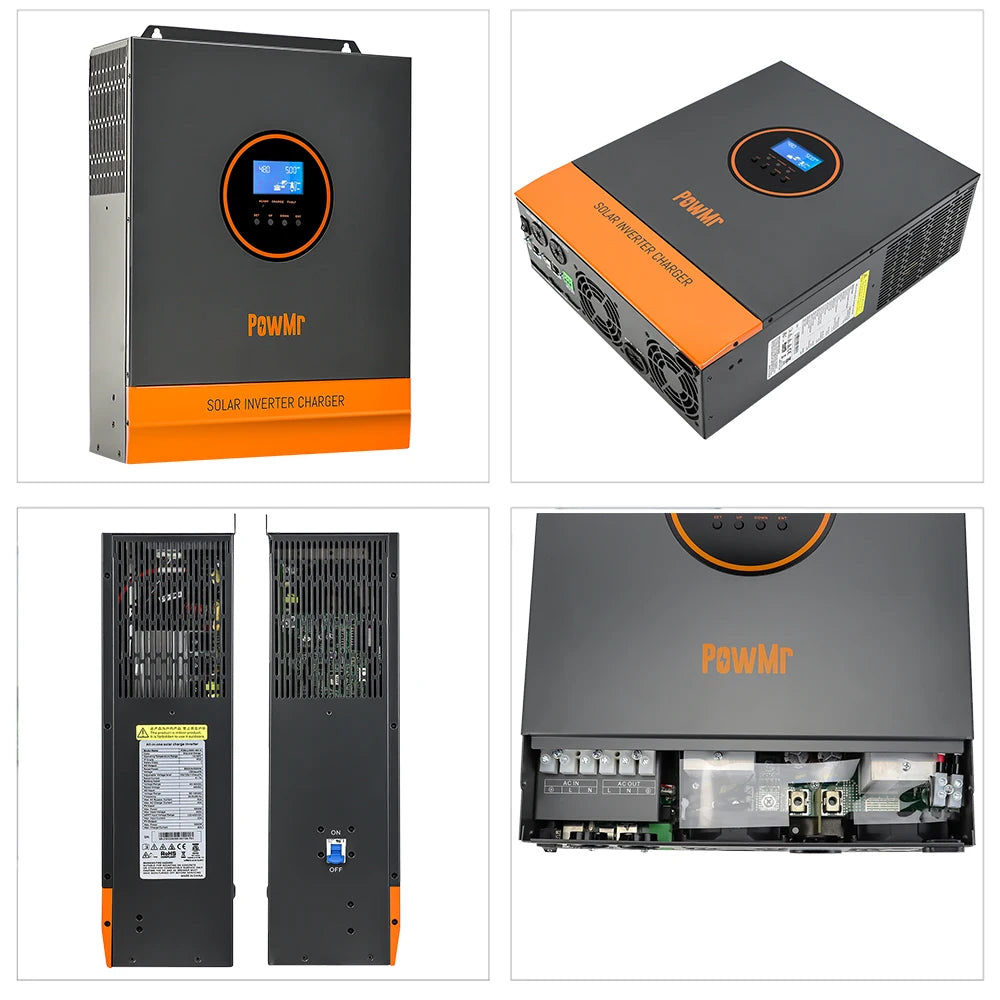

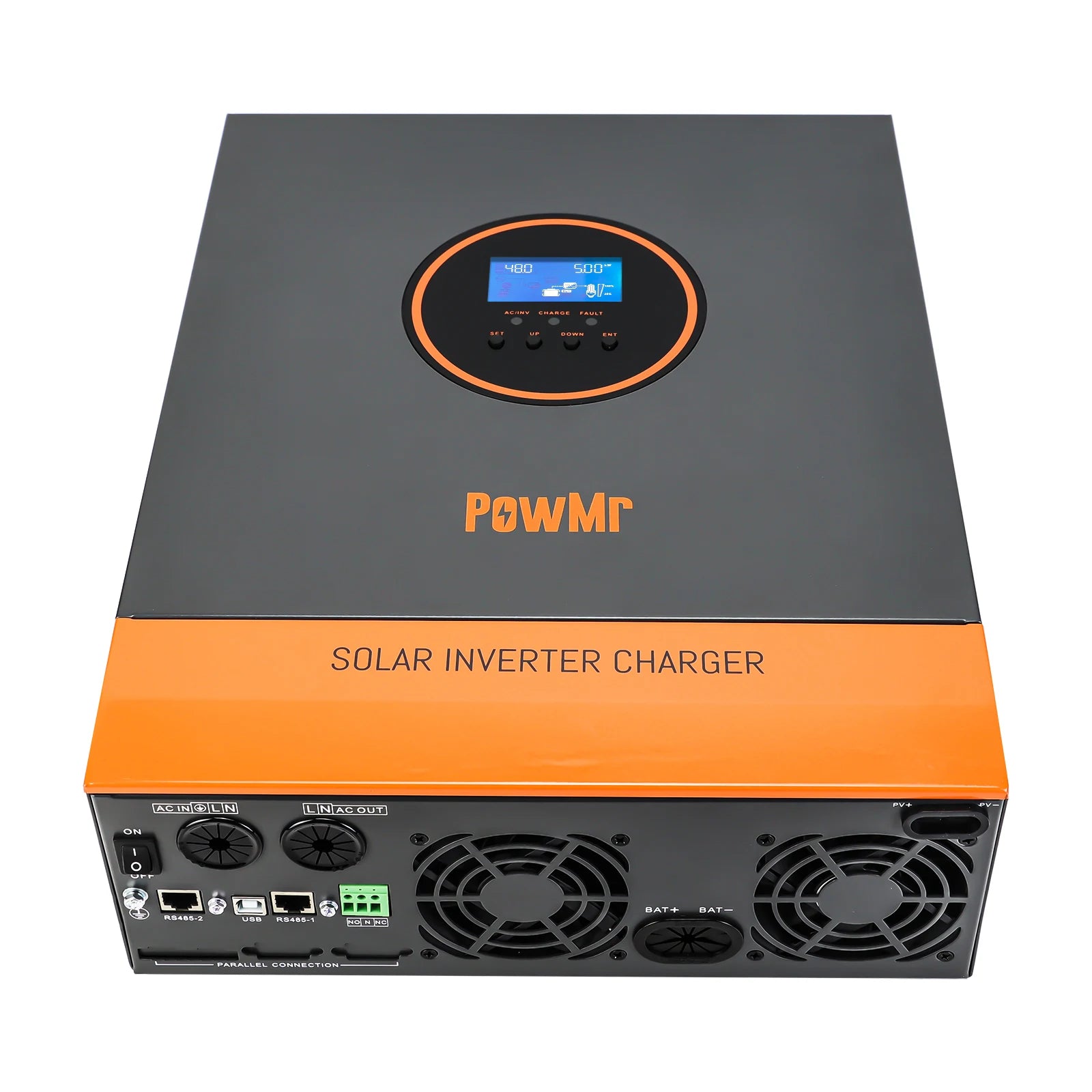

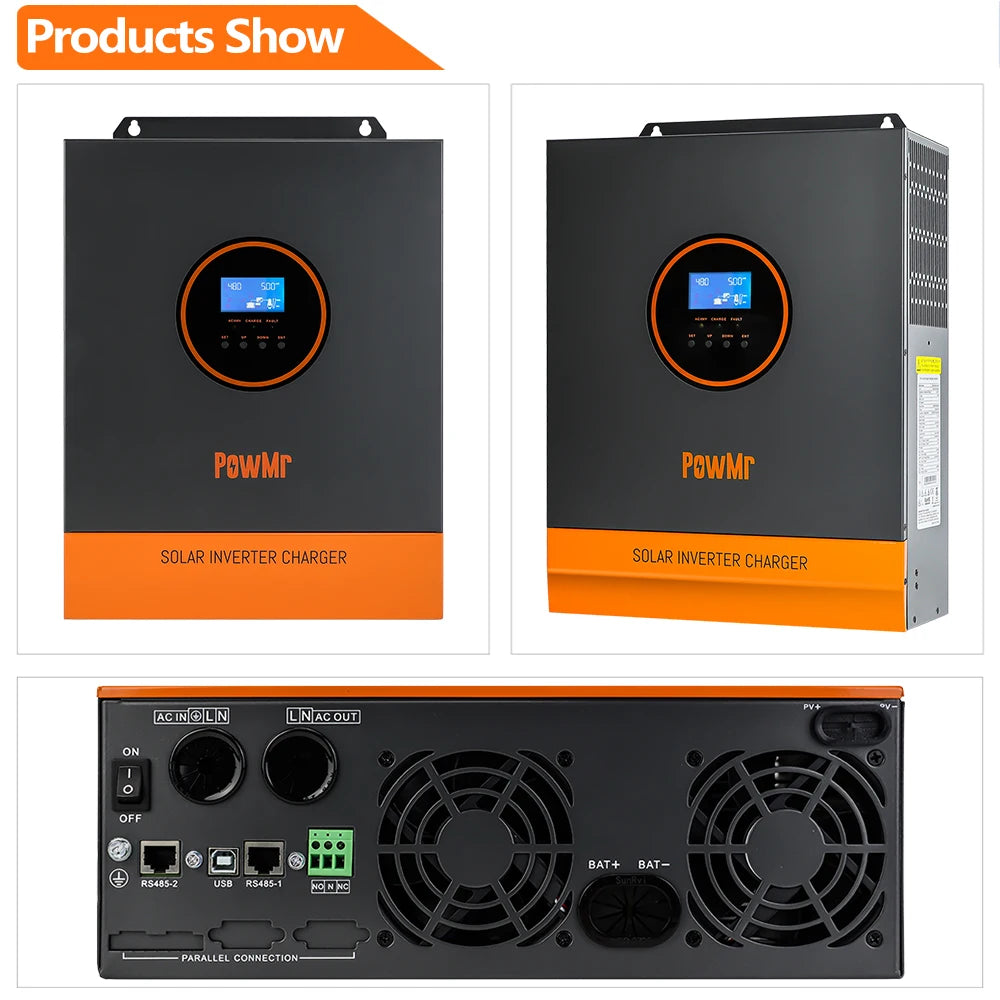

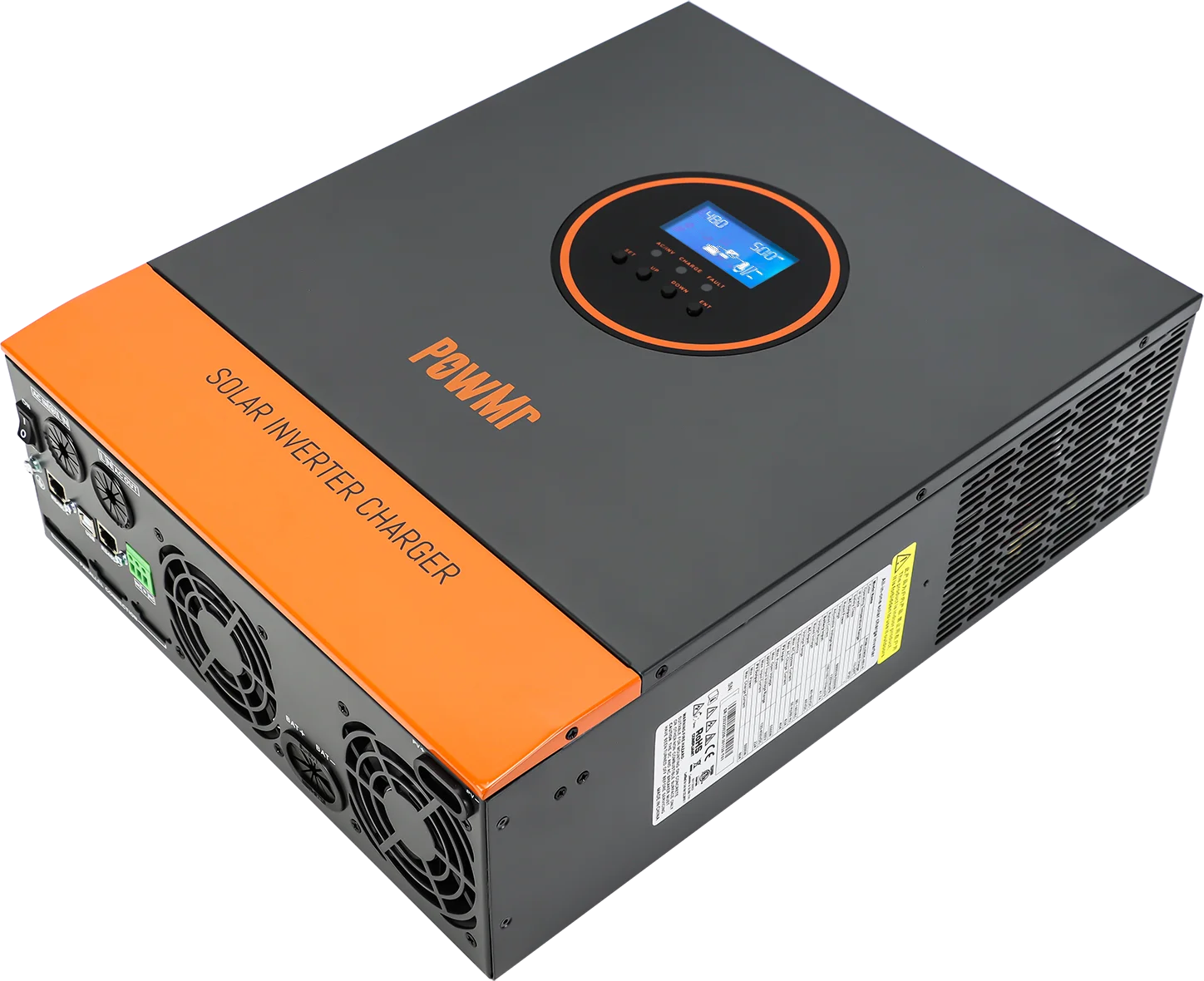

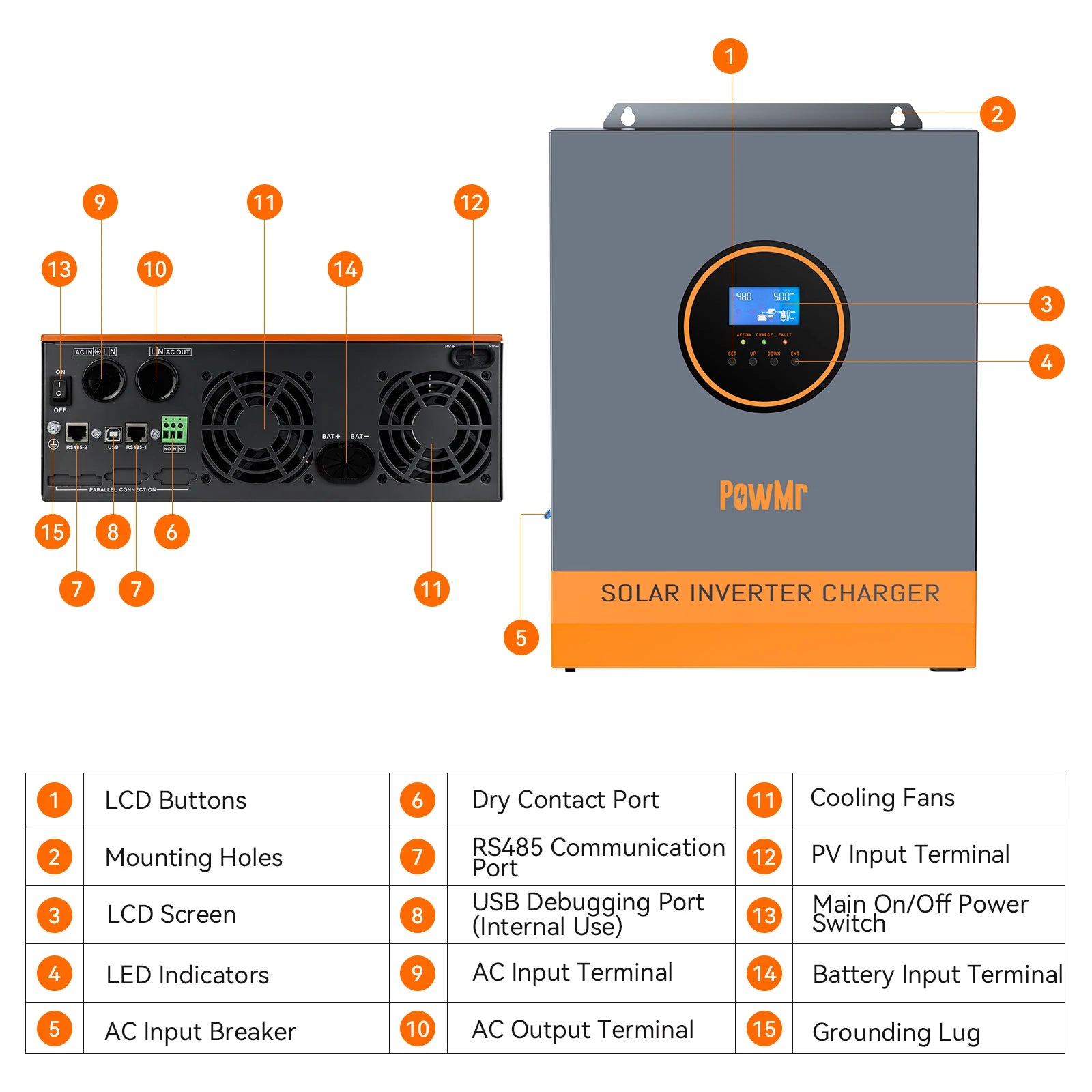

Product Overview:
