Specification
SPECIFICATIONS
Bore x Stroke(mm): 70x55
Brand Name: maxpeedingrods
Compression: 8.5 : 1
Displacement: 212cc
Engine Type: Petrol
Engine type: Single cylinder, 4 Stroke, Forced Coolling, OHV
Fuel Tank capacity(L): 3.6
Fuel Type: Gasoline
Hign-concerned Chemical: None
Horse Power(HP): 7
Ignition method: Transistorized ignition
Model Number: MXR212E
Oil Type: SAE 10W-30
Oil capacity(L): 0.6
Origin: Mainland China
Starting method: Recoil/Electric(Battery not included)
Typical Application for:
Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.
Technical Data:
Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.
Technical Data:
Model: MXR212E
Engine type: Single cylinder, 4 Stroke, Forced Coolling, OHV
Bore x Stroke(mm): 70x55
Displacement: 212cc
Compression: 8.5 : 1
Starting method: Recoil/Electric(Battery not included)
Ignition method: Transistorized ignition
Horse Power(HP): 7
Fuel Type: Gasoline
Oil Type: SAE 10W-30
Fuel Tank capacity(L): 3.6
Oil capacity(L): 0.6
Dimensions L*W*H (mm): 435*325*385
Package size L*W*H(mm): 450*350*395
Net weight (kgs): 17.5
Gross Weight(kgs): 18.5
Shaft Orientation: Horizontal
Shaft Diameter(inch): 3/4
Shaft Keyway(inch): 3/16
Shaft length(inch): 2.43
Shaft End: 5/16"-24 Drilled and Tapped
EPA Certified: Yes
Engine type: Single cylinder, 4 Stroke, Forced Coolling, OHV
Bore x Stroke(mm): 70x55
Displacement: 212cc
Compression: 8.5 : 1
Starting method: Recoil/Electric(Battery not included)
Ignition method: Transistorized ignition
Horse Power(HP): 7
Fuel Type: Gasoline
Oil Type: SAE 10W-30
Fuel Tank capacity(L): 3.6
Oil capacity(L): 0.6
Dimensions L*W*H (mm): 435*325*385
Package size L*W*H(mm): 450*350*395
Net weight (kgs): 17.5
Gross Weight(kgs): 18.5
Shaft Orientation: Horizontal
Shaft Diameter(inch): 3/4
Shaft Keyway(inch): 3/16
Shaft length(inch): 2.43
Shaft End: 5/16"-24 Drilled and Tapped
EPA Certified: Yes
*Please double check the diameter of driver shaft and the Length of Drive Shaft / Crankshaft !!!
Feature

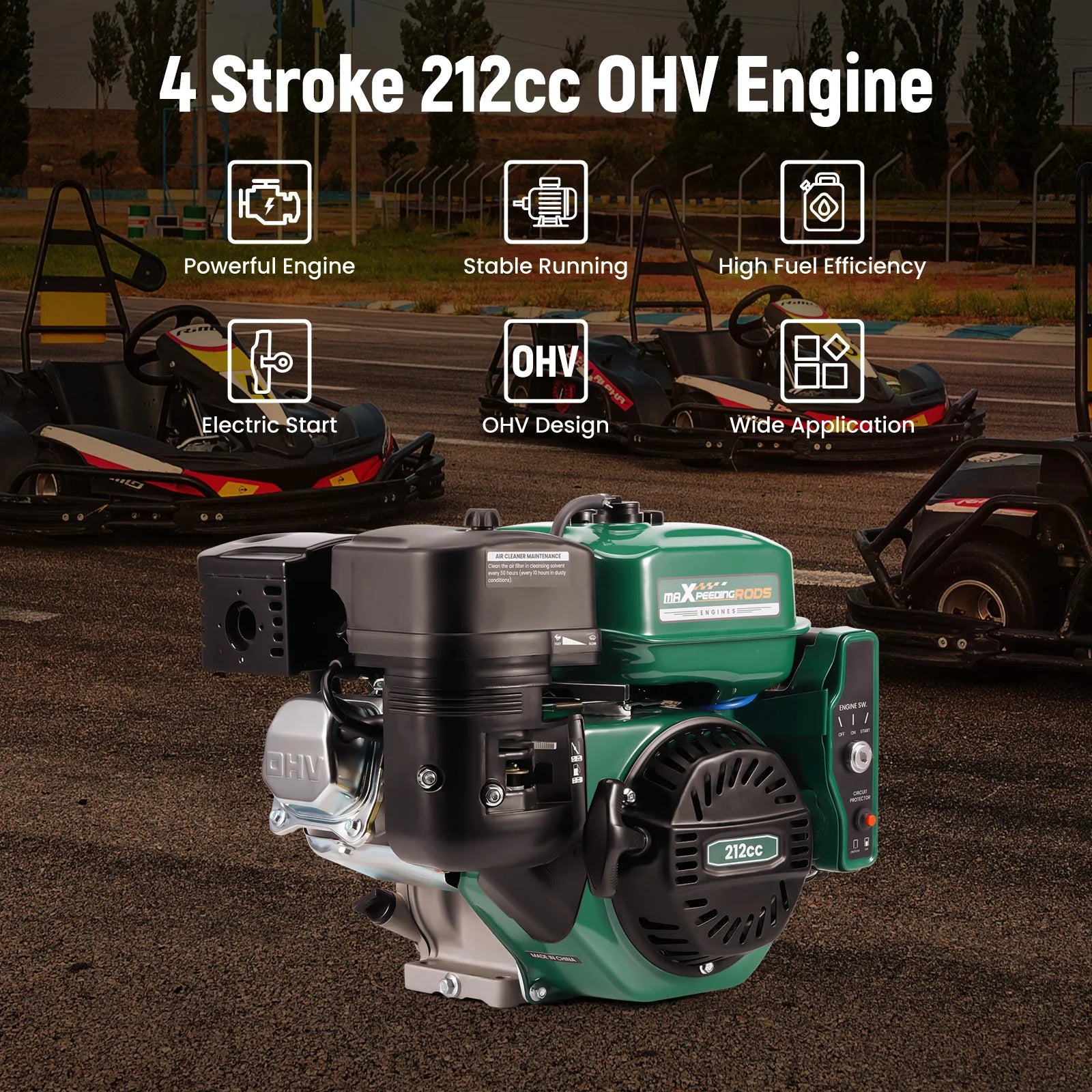

Powerful Engine: Our gasoline engine is a 4-stroke 212cc OHV engine, which provides you with strong power and ensures that your work can be completed quickly and easily.

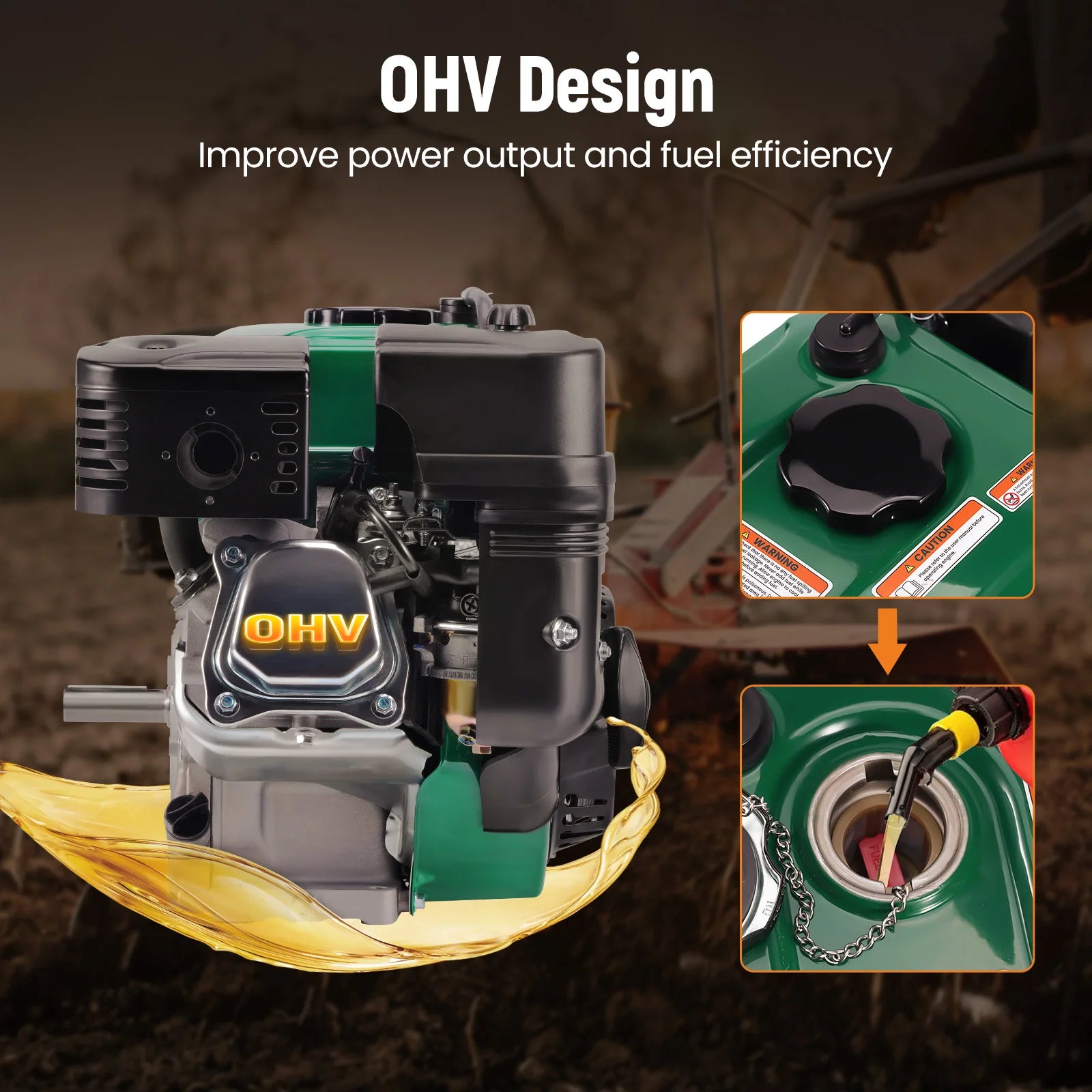

High Fuel Efficiency: OHV design for improved power output and fuel efficiency.

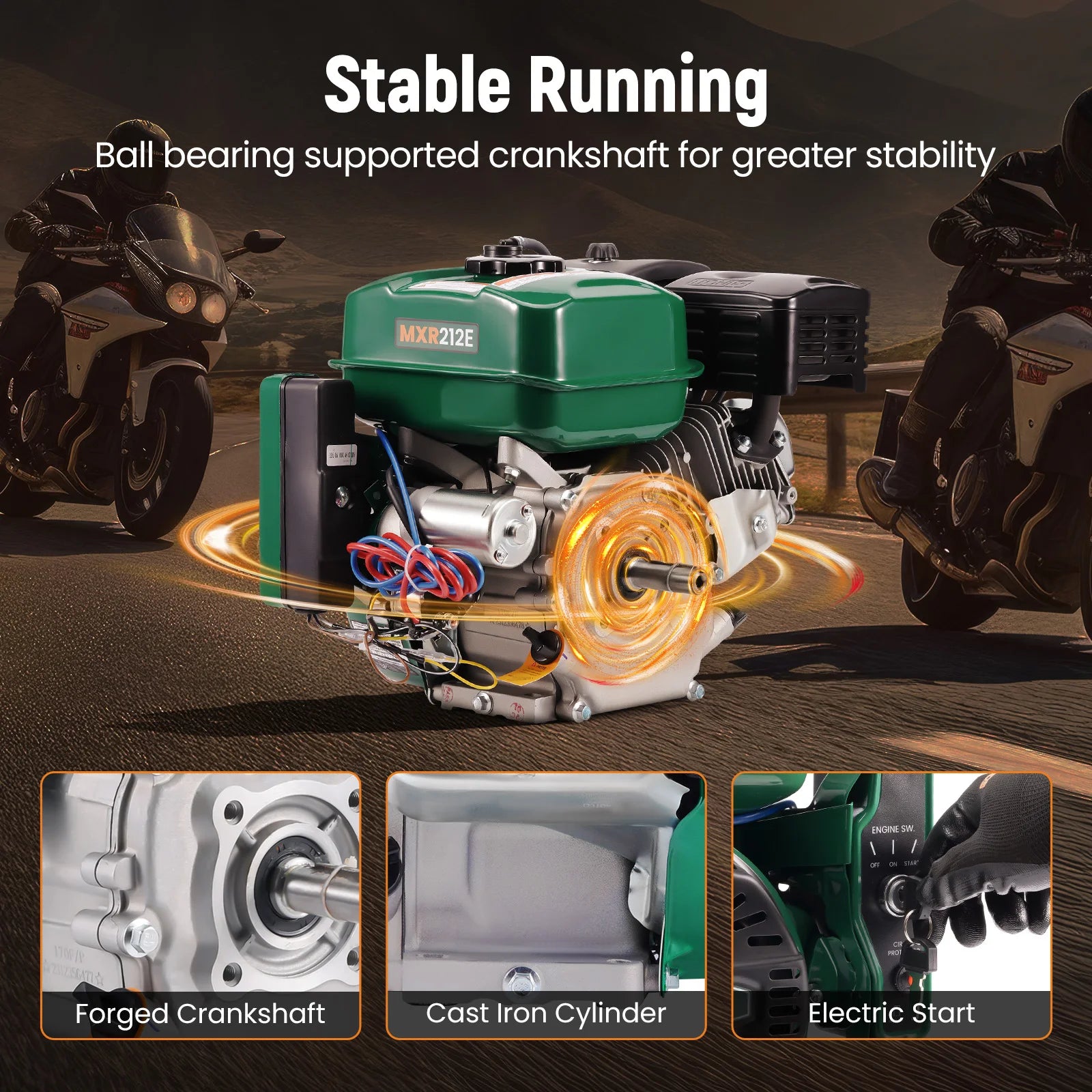

Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.
Easy to Use and Maintain: Ergonomic, easy to grip recoil rope design, simple throttle control, easily accessible spark plug.

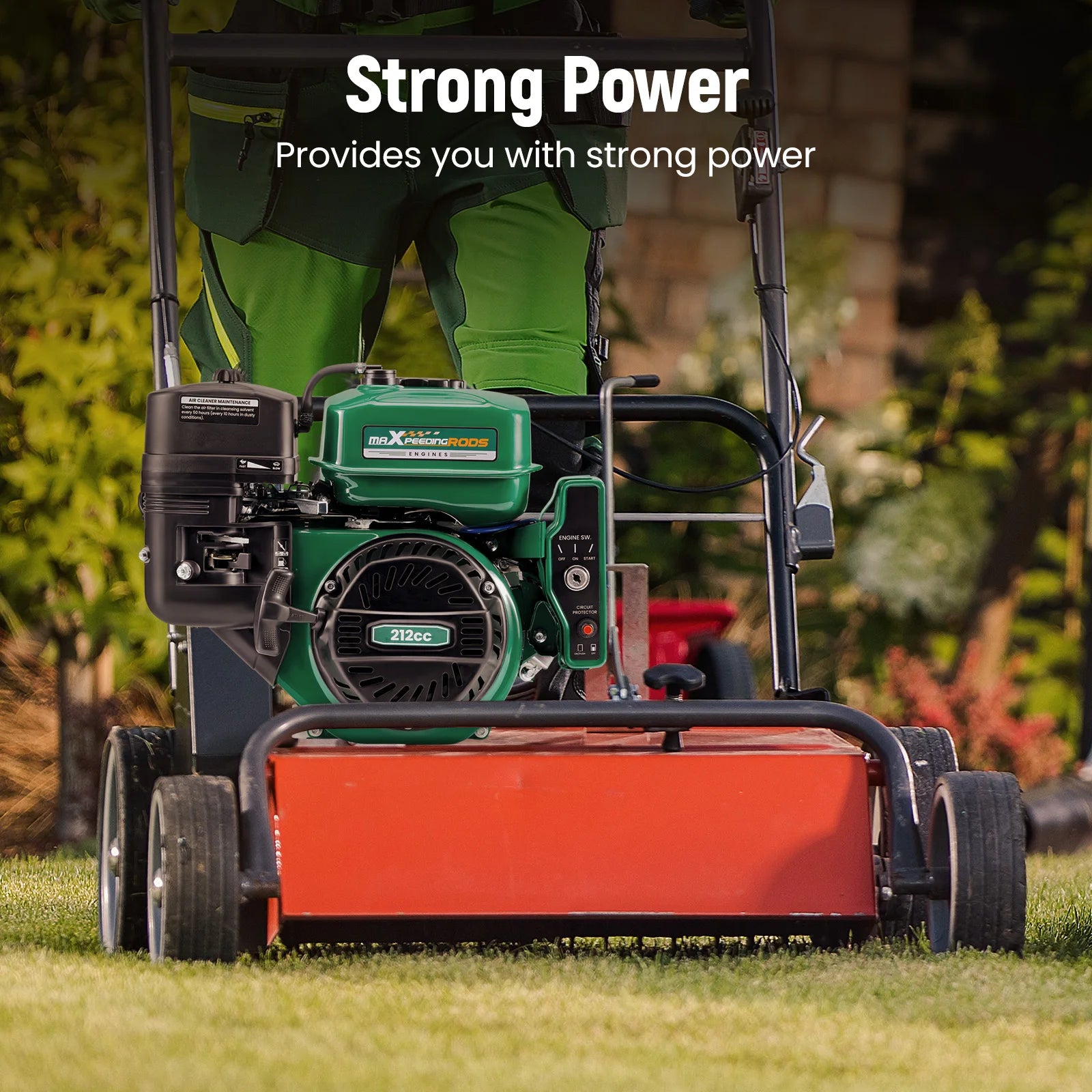

Versatility: Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.
Low oil sensor: Shuts down engine when oil reaches a level that is too low for safe operation.

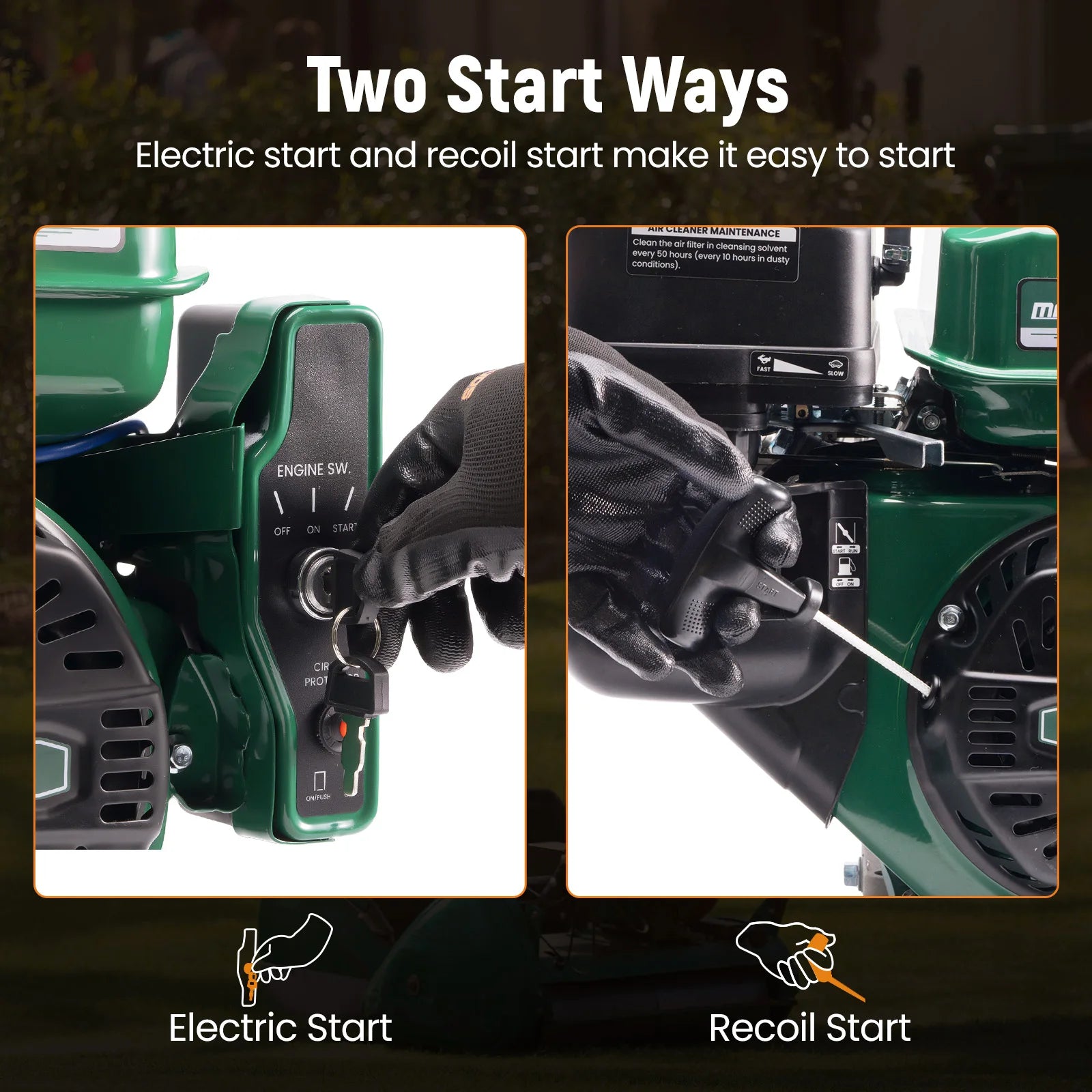

Double Start: Our engine is specially designed with Electric Start. Just turn the key, you could easily get the engine start; also with a recoil start, give you a double start secure.(Battery not included)
High Fuel Efficiency: OHV design for improved power output and fuel efficiency.
Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.
Easy to Use and Maintain: Ergonomic, easy to grip recoil rope design, simple throttle control, easily accessible spark plug.
Versatility: Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.
Low oil sensor: Shuts down engine when oil reaches a level that is too low for safe operation.
Double Start: Our engine is specially designed with Electric Start. Just turn the key, you could easily get the engine start; also with a recoil start, give you a double start secure.(Battery not included)

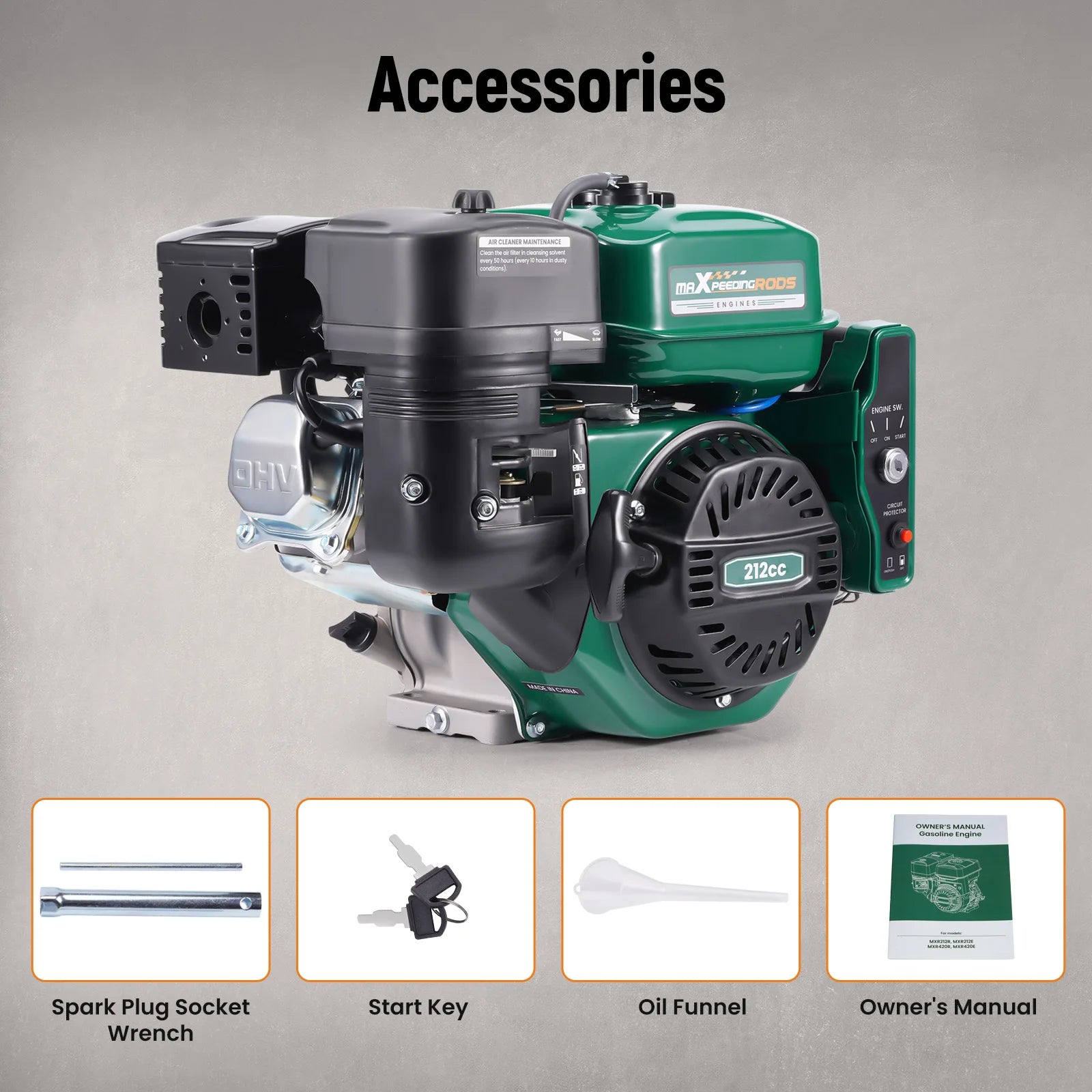

Package included
1x Gasoline Engine
1x Spark Plug Socket Wrench
1x Oil Funnel
1x Owner's Manual
Notice:
1. Do not pull the pull rope to start the machine without refilling oil. Starting the engine without refilling oil can cause permanent damage to the internal engine components.
2. All engine functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.
3. Installation Manual Is NOT Included; Professional Installation Is Highly Recommended.
2. All engine functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.
3. Installation Manual Is NOT Included; Professional Installation Is Highly Recommended.
*An engine's exhaust contains toxic carbon monoxide, which you cannot see or smell. Breathing carbon monoxide can KILL YOU IN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a engine.
