Specification
SPECIFICATIONS
Brand Name: ANNKE
Built-in battery: 5200 mAh/9000mAh
Cable Length: None
Certification: CE
Hign-concerned Chemical: None
IP Video Input: 16CH Wireless
Indoor/Outdoor: Weatherproof Rating IP65
Lens: 4mm
Model Number: N98WHR-81BL
Origin: Mainland China

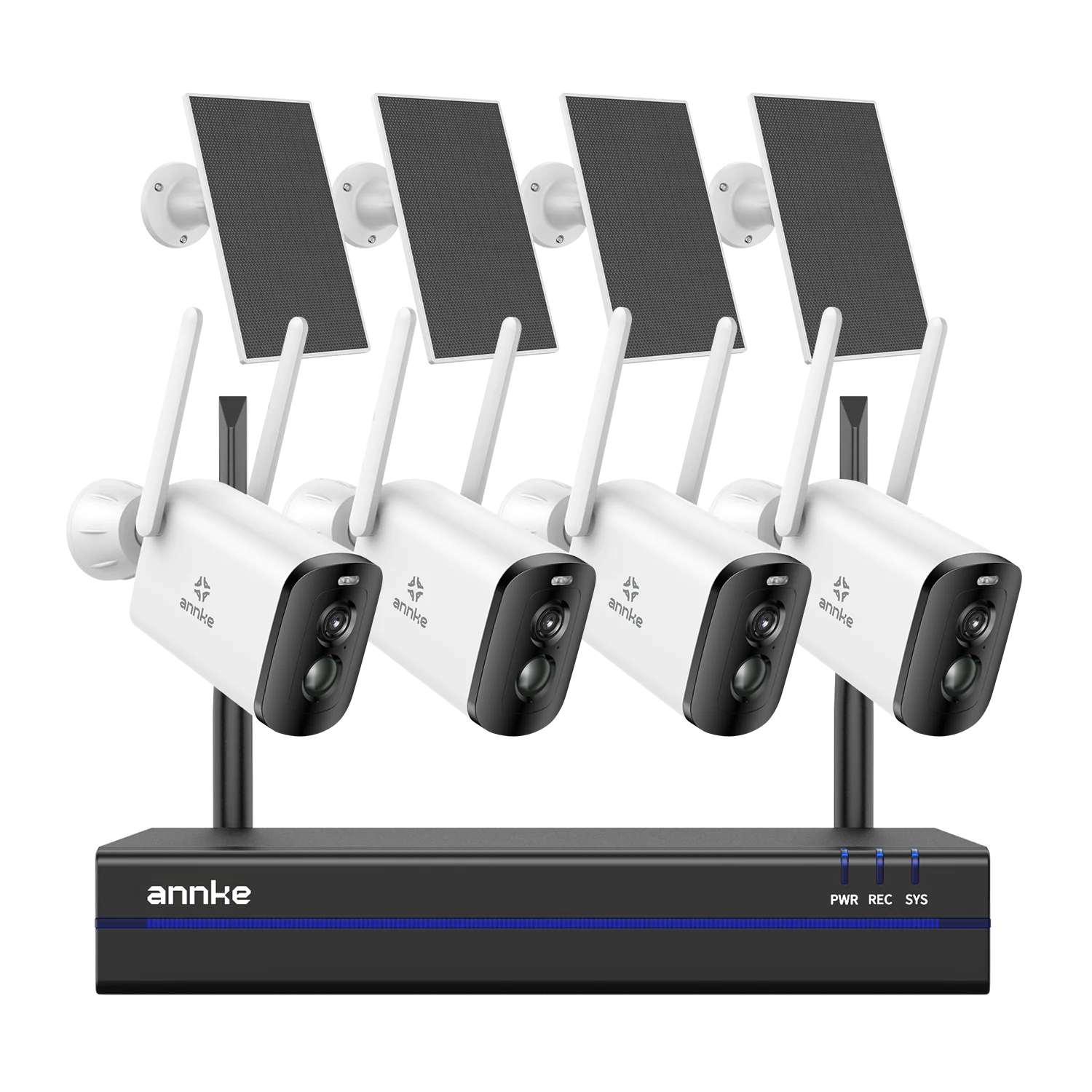

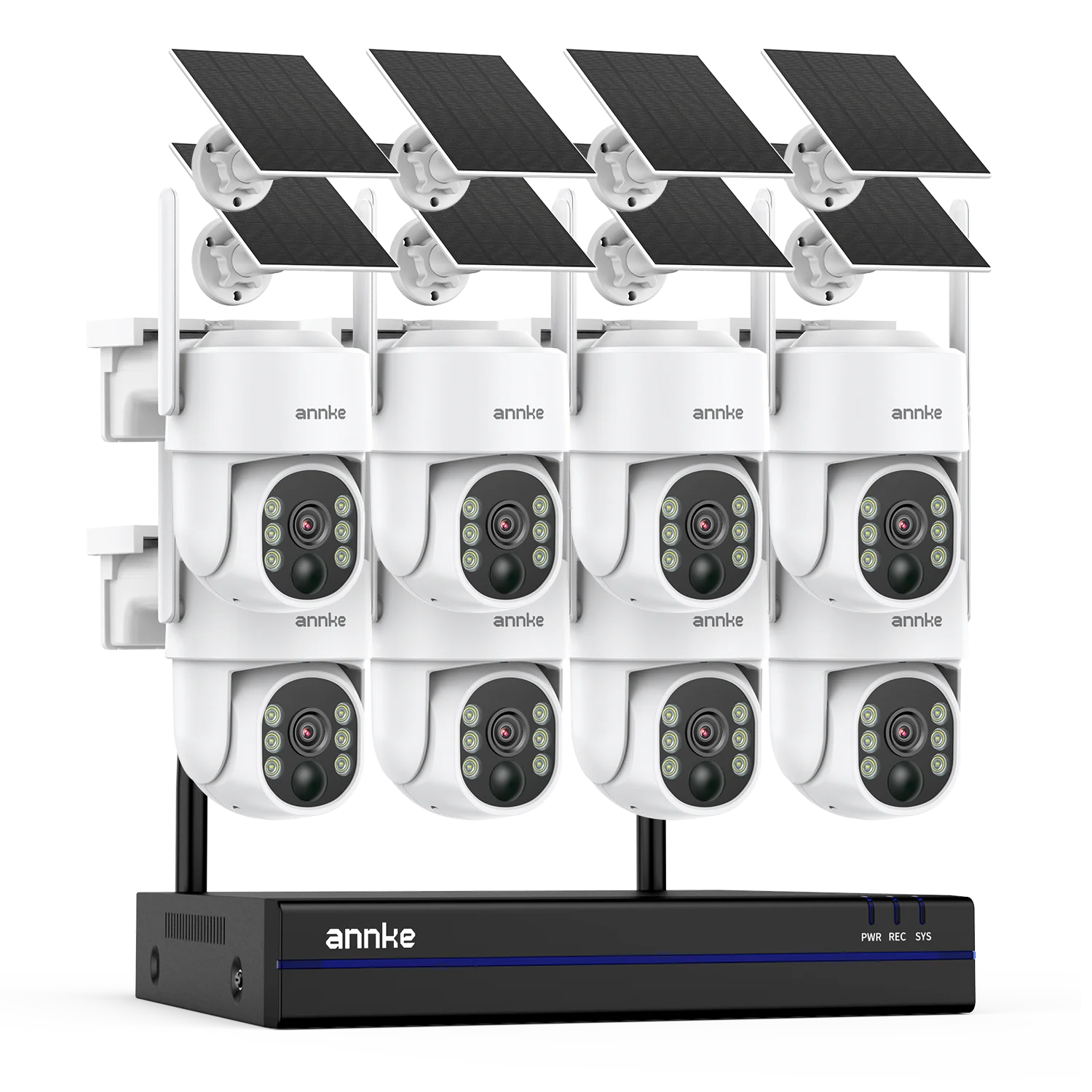

PCS of Camera: 4PCS,8PCS
Resolution: 4MP
Smart home platform: alexa
TV System: NTSC,PAL
Video Compression: H.264+
Video Input: 16 Channel

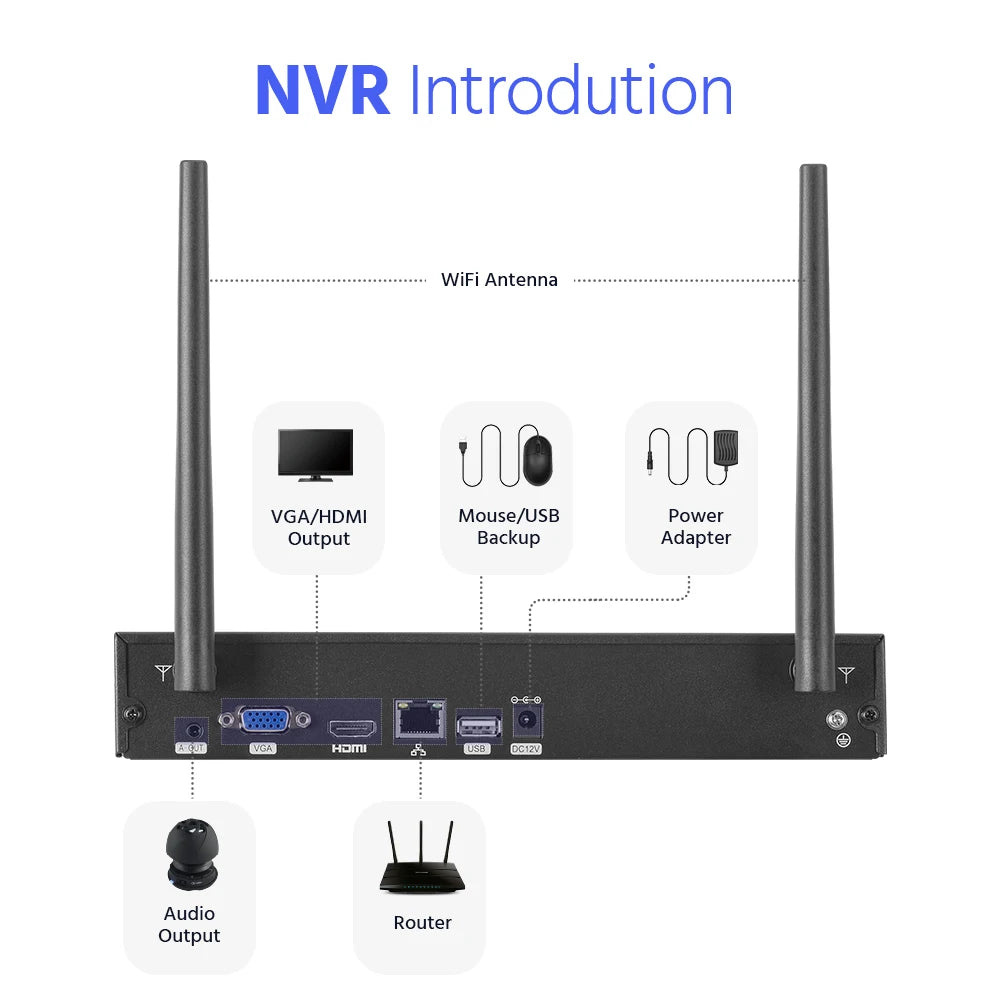

NVR |
||
Video Format |
H.264+ |
|
IP Video Input |
16CH Wireless |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M |
|
Max Playback Resolution |
Up to 8M |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 5MP/2CH 8MP |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 8TB capacity(2.5&3.5 inches) |
|
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
|
Power Consumption |
6 W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|

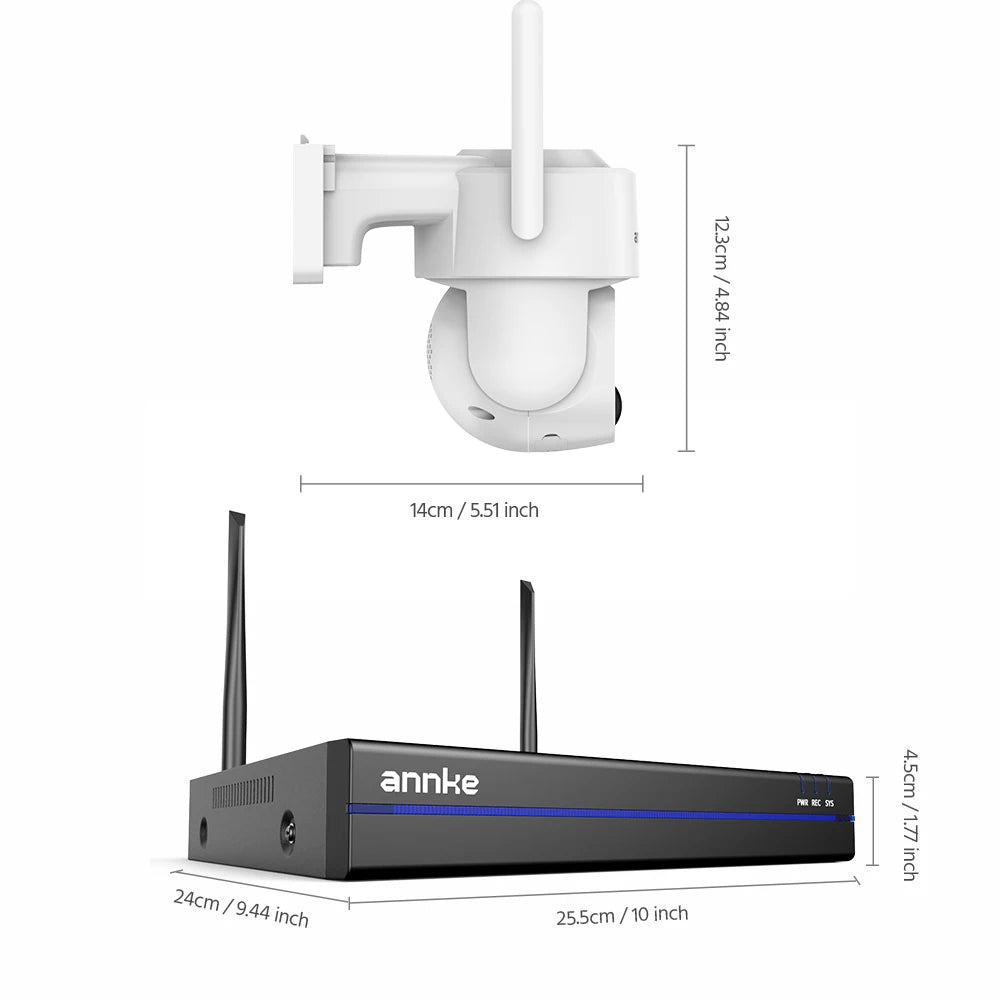

Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|

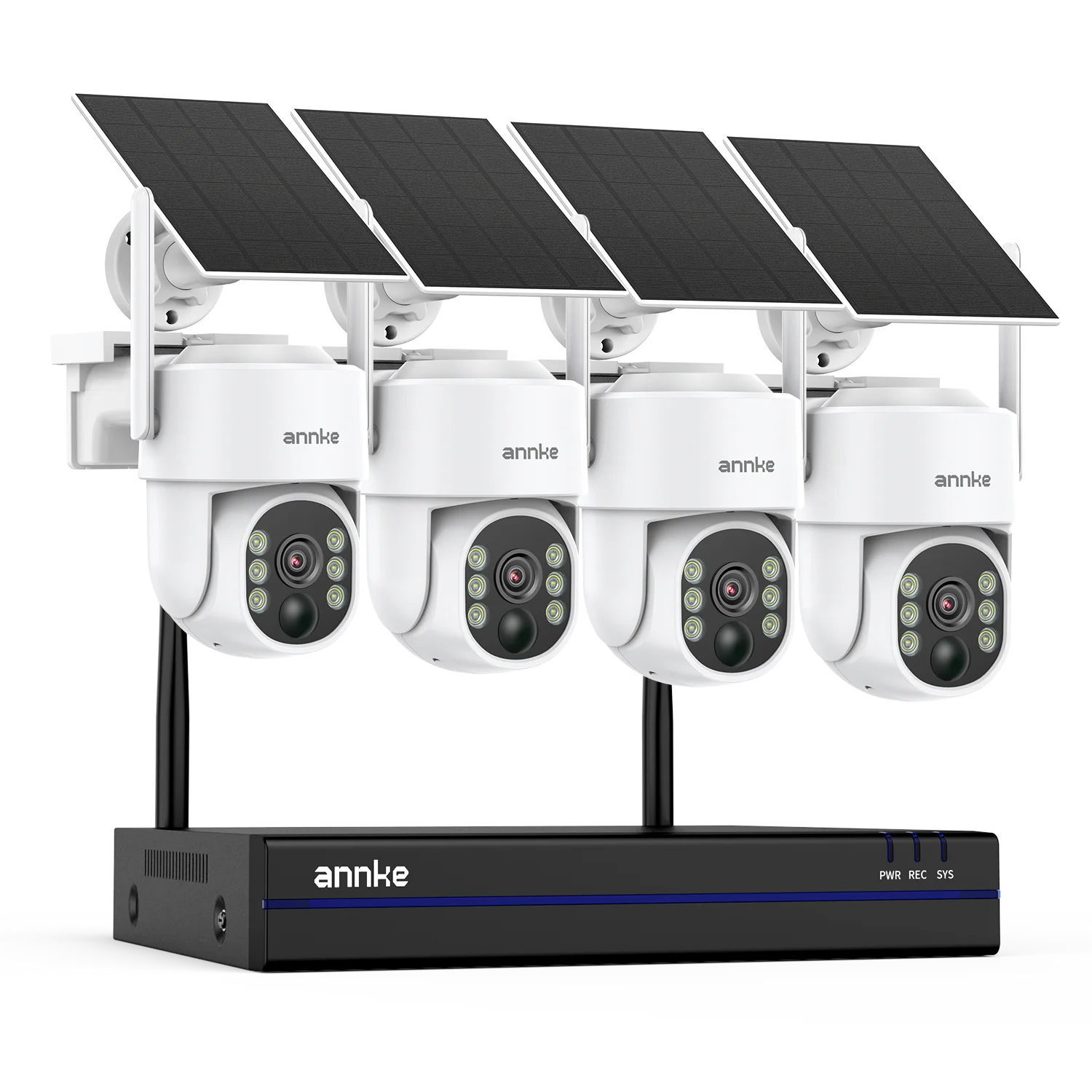

Camera 9000mAh I81BM

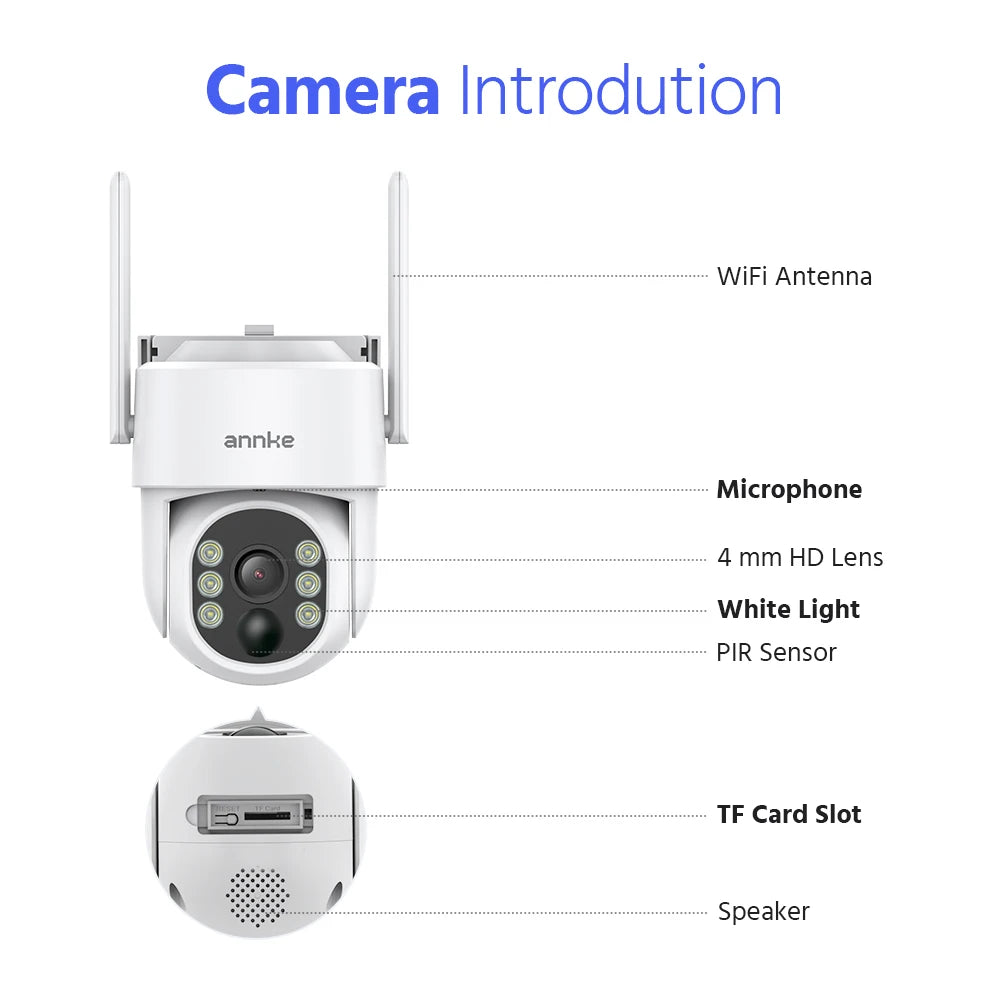

Camera |
Video Resolution |
4MP(2560x1440) |
Image sensor |
1/3" Progressive Scan CMOS |
|
Video compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Lens |
4mm |
|
Angle of View |
70° |
|
Number of Infrared/Color LEDs |
6 |
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
PT |
Horizontal 270°, Vertical 90° |
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
Audio Input/output |
Built-in microphone and speaker |
|
Mini. Illumination |
0Lux (with infrared led on) |
|
Day Night Mode |
Auto change with IR-CUT removable |
|
PIR Sensor |
10 meters |
|
Bluetooth pairing |
support |
|
Internet |
Wireless networks |
2.4G&5.8G dual-band，IEEE 802.11.ax |
Wireless Security |
WEP, WPA, WPA2 |
|
Remote Access |
P2P |
|
General |
Housing |
Plastic |
Operating Voltage |
DC 5V |
|

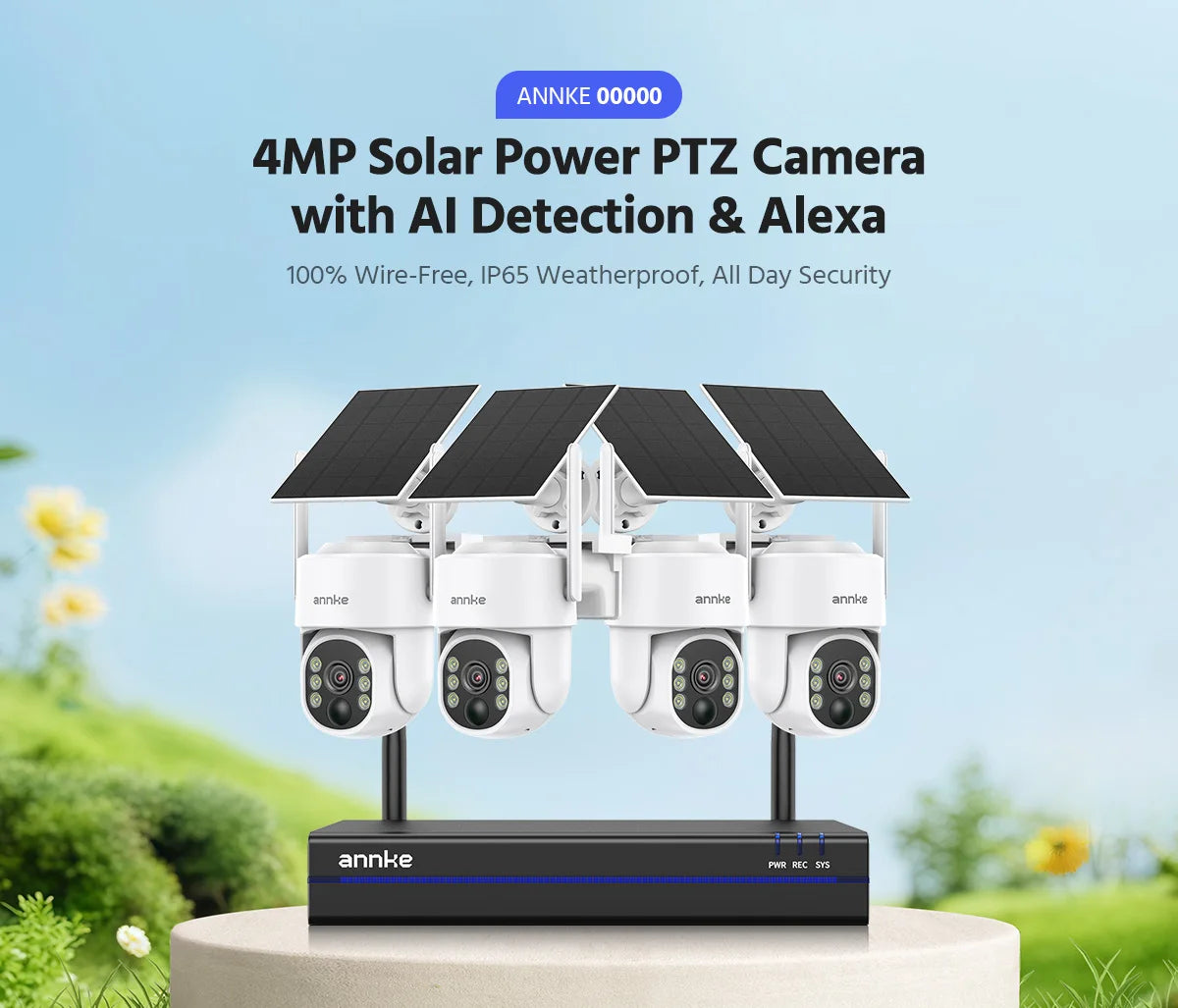

Solar power |
Support |
|
Storage |
Micro SD(Max 256GB) |
|
Operating Temperature |
-20° ~ 50°C(-4°F ~ 122°F) |
|
Indoor/Outdoor |
Indoor/Outdoor |
|

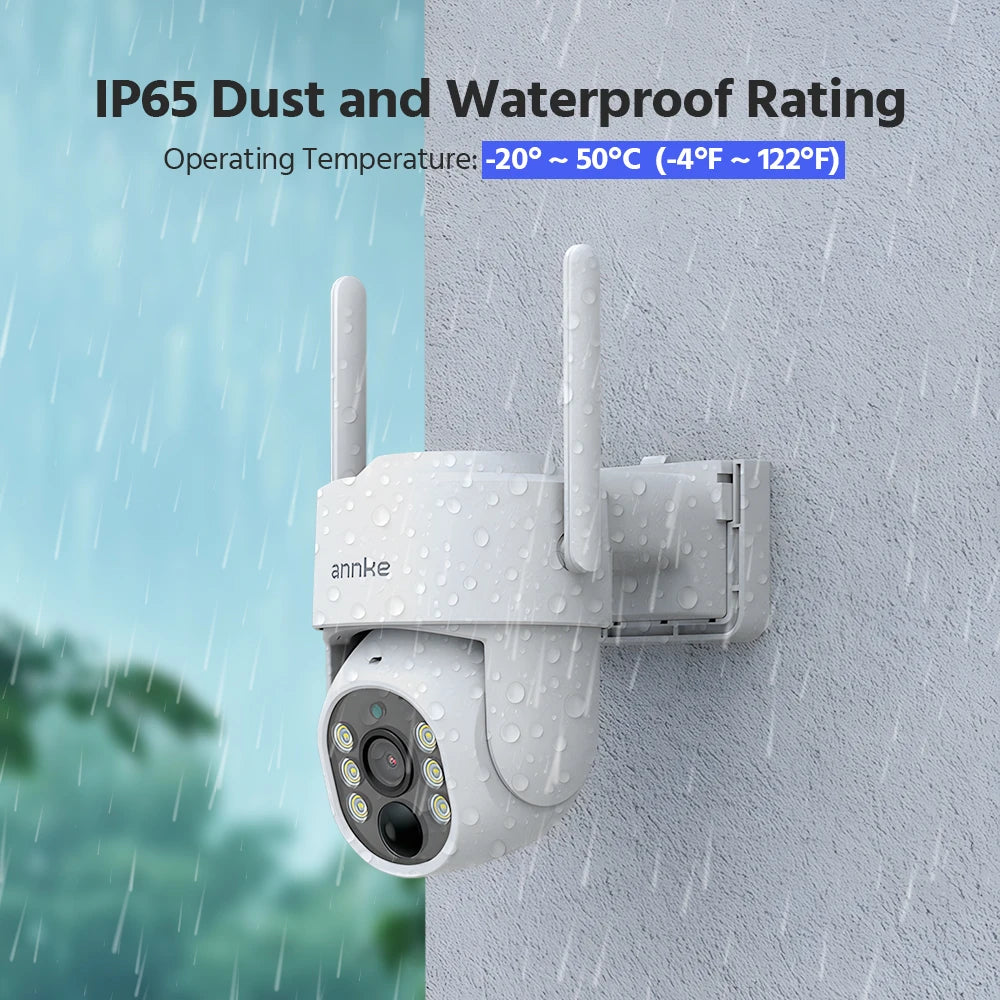

Weatherproof Rating |
IP65 |
|
Mount Option |
Wall mount/Ceiling mount |
|
Dimension (L x W x H) |
||
Weight |

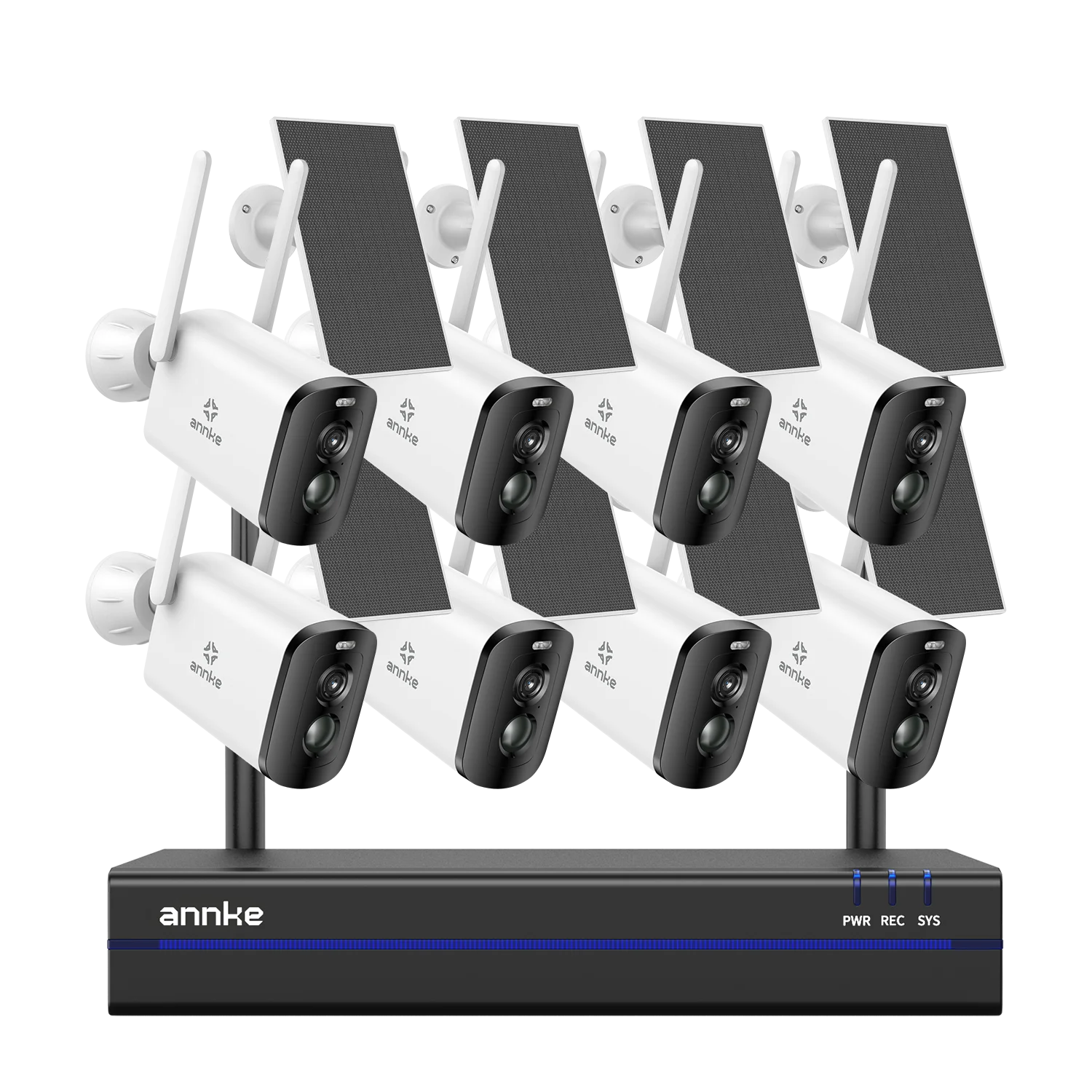

Model Number 5200mAh |
I81BL |
|
Camera |
Sensor |
1/3" CMOS |
Focal Length |
4 mm |
|
Aperture |
F2.0 |
|
Optical Field of View |
102.9° diagonal, 86.4° horizontal, 46.1° vertical |
|
Minimum Illumination |
0.1 lux |
|
IR distance |
Night visibility up to 15m , 10M Color Nightvision |
|
Audio |
Input |
Built-in microphone |
Output |
Built-in speaker |
|
Two-way Audio |
Full duplex |
|
Audio Compressing |
AAC |
|
Video |
Video Compressing |
H.264, H.265 |
Lighting Frequency |
50 Hz, 60 Hz |
|
Frame Rate |
15 fps |
|
Maximum Resolution |
4MP 2560 × 1440 |
|
Light Source For Night Vision |
White light or infrared LED switchable |
|
Network |
Wireless Standard |
2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) |
Protocols Supported |
TCP/IP, UDP/IP, DHCP, RTMP, MUTP |
|
IP Address Type |
Dynamic IP address |
|
Recording |
Recording Method |
Alarm triggered recording, and manual recording |
Video Storage |
Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory |
|
Function |
AI Function |
Human detection |
Wake-up Method |
PIR body induction wake-up and remote wake-up |
|
Alarm Notification |
Alarm push by mobile app, white LED flashing and alarm sound warning |
|
Indicator |
RGB tri-color LED |
|

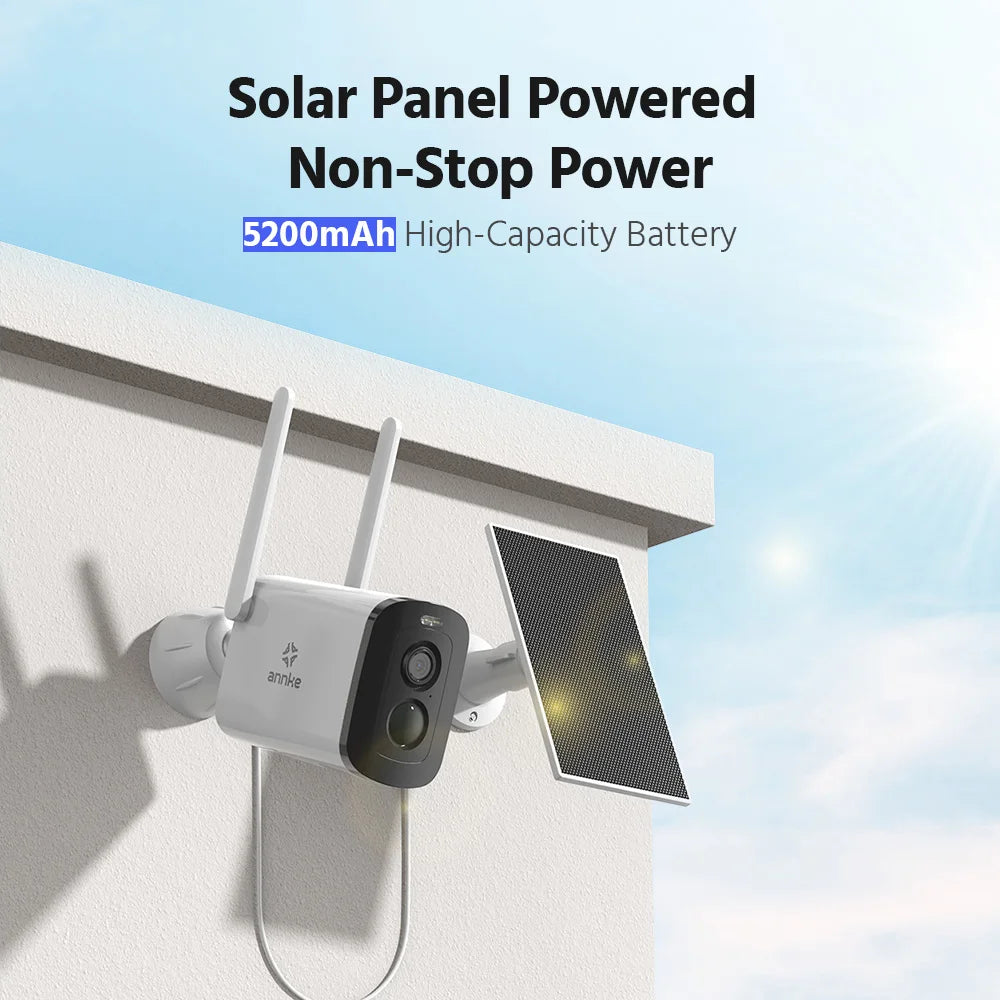

Battery |
Capacity |
5200 mAh |
Removability |
Unremovable |
|
Charging Voltage |
5 V ±5% |
|
Charing Current |
1.5 A |
|
Protection |
Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature |
|
Power Consumption |
Standby |
1.48 mW |
Daytime Working |
0.95 W |
|
Nighttime Working |
1.54W |
|
Interface |
Power |
TYPE-C |
Storage |
Micro SD card |
|
Key |
Power key and reset key |
|
Installation |
Installation Method |
Wall mount, ceiling mount,desktop |
Bracket Type |
1/4'' universal screw hole |
|
Environment |
Dustproof and Waterproof |
IP65 |
Operating Temperature |
-10℃~ 45℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Prodoct Dimension |
Dimension |
54(L)mm x 118(W)mm x 81mm(H) (without bracket) |
Bare Weight |
330 g |
|
Material |
ABS + PC |
|
Color |
White |
|
