SPECIFICATIONS

Application: rolling Motor Solar Caravan Household Appliances Marine

Brand Name: FLLYROWER

Certification: CE,FCC,RoHS,weee

Hign-concerned Chemical: None

Model Number: 12V 100AH lithium battery

Nominal Capacity: 1280Wh

Origin: Mainland China

Type: LiFePO4

Voltage: 12.8V

Weight: 11kg

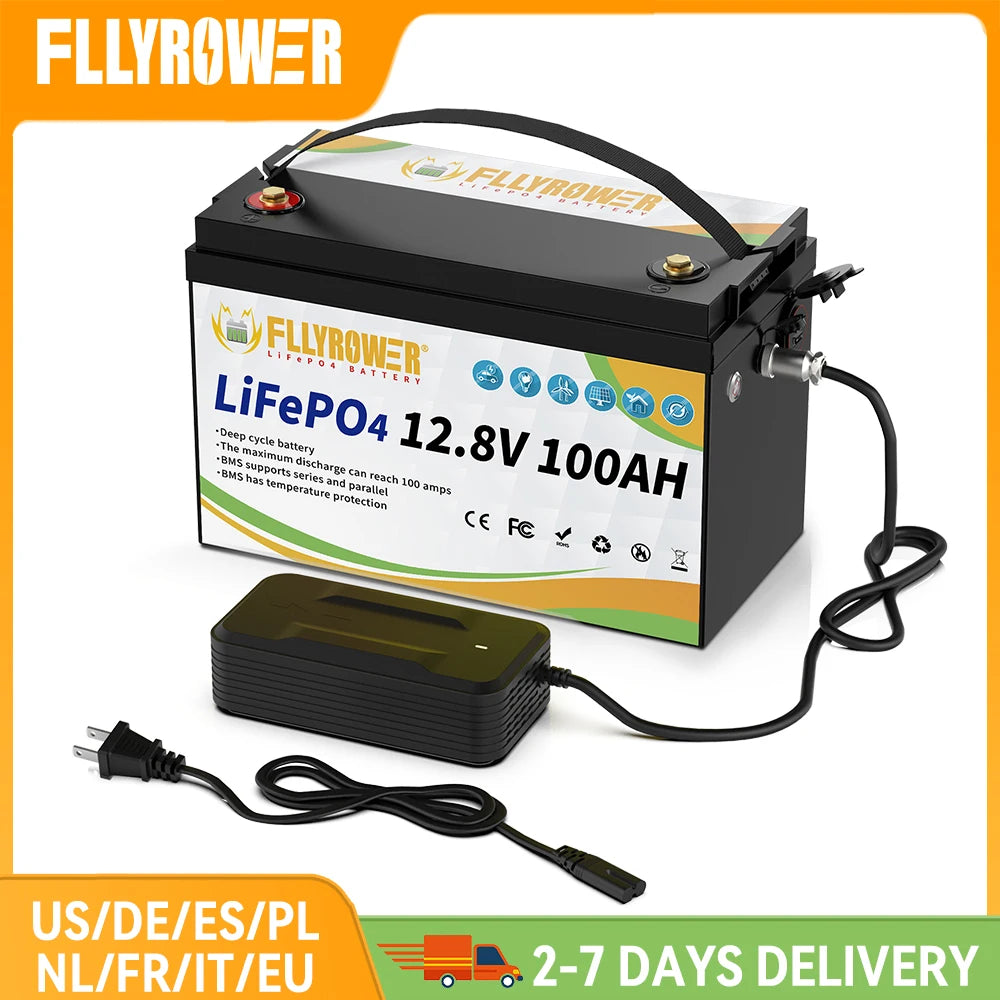

LiFePO4 Battery 12V 100Ah BMS100A Rechargeable Lithium Battery Pack For Inverter Solar Off-Road Off-grid Solar Energy Deep Cycle

Note:

We have local warehouses in Europe(Germany/Poland),USA, CA,JP,UK,which support fast delivery. Belgium, Germany, Spain, France, Italy, Netherlands, Poland, Austria Bulgaria, Czech Republic, Denmark, Estonia, Finland, Greece, Croatia, Hungary, Ireland, Lithuania, Latvia, Portugal, Romania,Sweden, Slovenia and Slovakia.

Local warehouse has three labels, the warehouse is randomly shipped, if you mind please contact customer service before buying.

1.Don't use as s a jump starter battery and vehicle starter battery.

2.If the battery needs to be connected in series or parallel, contact customer service before purchase

3. if there is a problem with the battery during the warranty period, please describe the problem to the seller in detail, and the seller will carry out the warranty according to the situation.

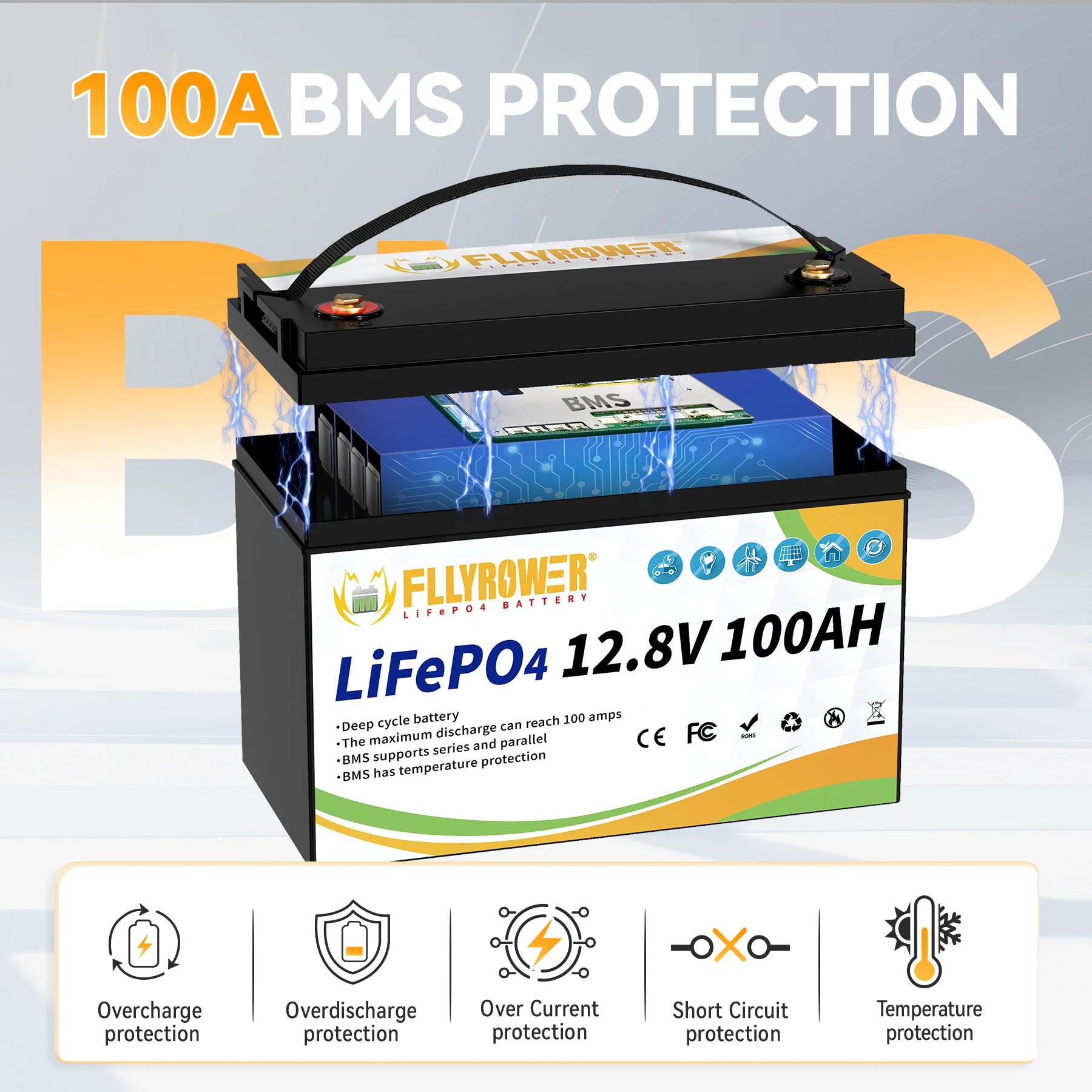

About BMS:

Our batteries have BMS. BMS has reliable overcharge/over-discharge protection, over-current/over-temperature/low temperature protection, multi-stage error diagnosis protection.BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.

Product advantages:

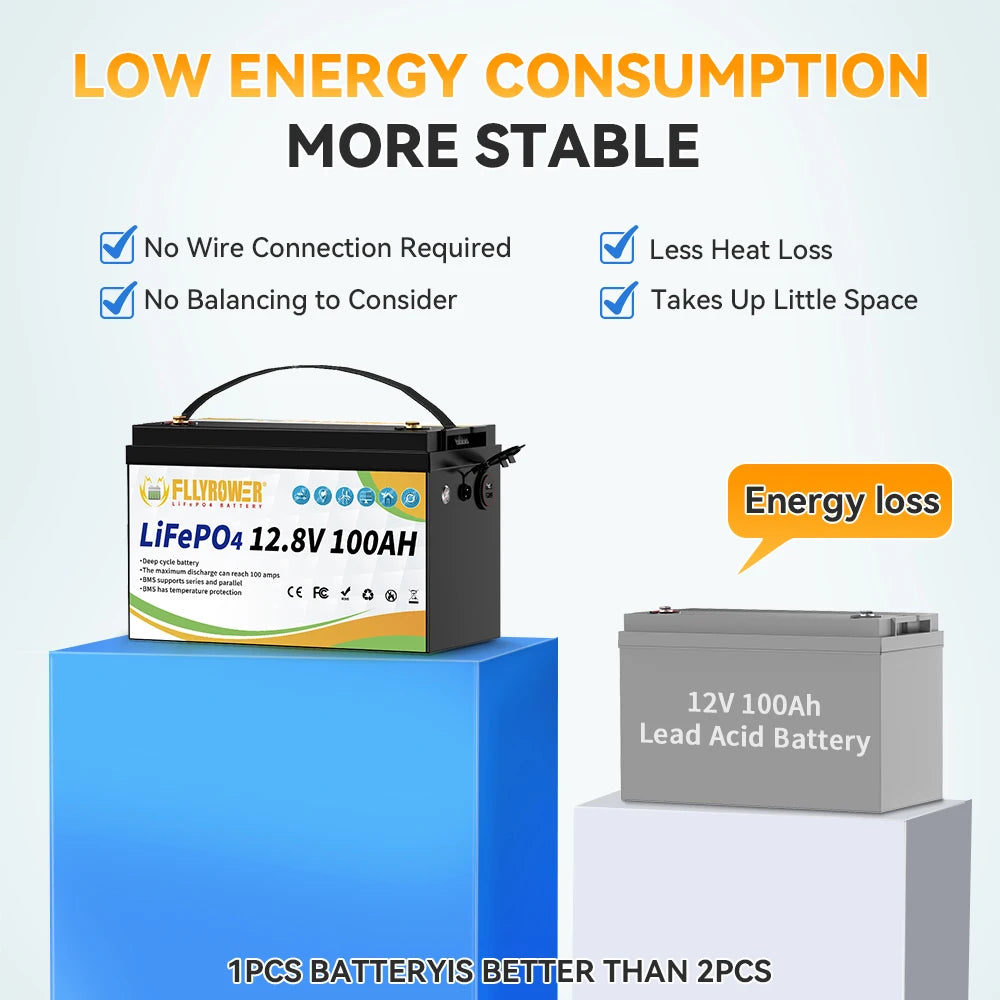

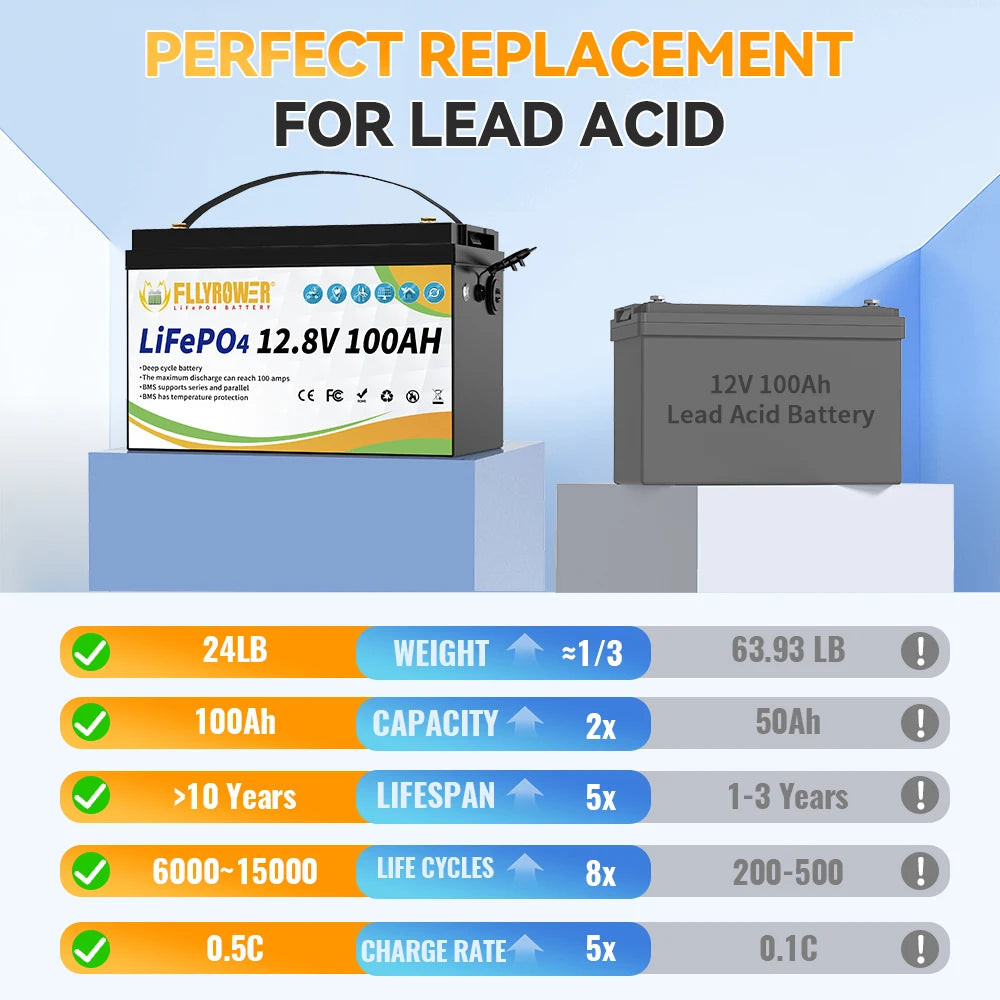

Easy to carry, light weight, high capacity, high release platform, long working hours, long life, safety and environmental protection. It has excellent safety peformance and high efficiency and stability woking performance than traditional Lead acid battery

Light weight: It is only 1/3 times lighter than lead acid battery.

Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).

No pollution: It does not contain any hazardous materials such as heavy metal ,acid or any leads etc.

Long cycle life: Normally the cycle life our our battery can reach more than 2000 time with 80% capacity ( noral lead acid battery has only 300 times cycle life ).

Attention: Please check the rectifier is good or not before installation.

Perfect Used For:

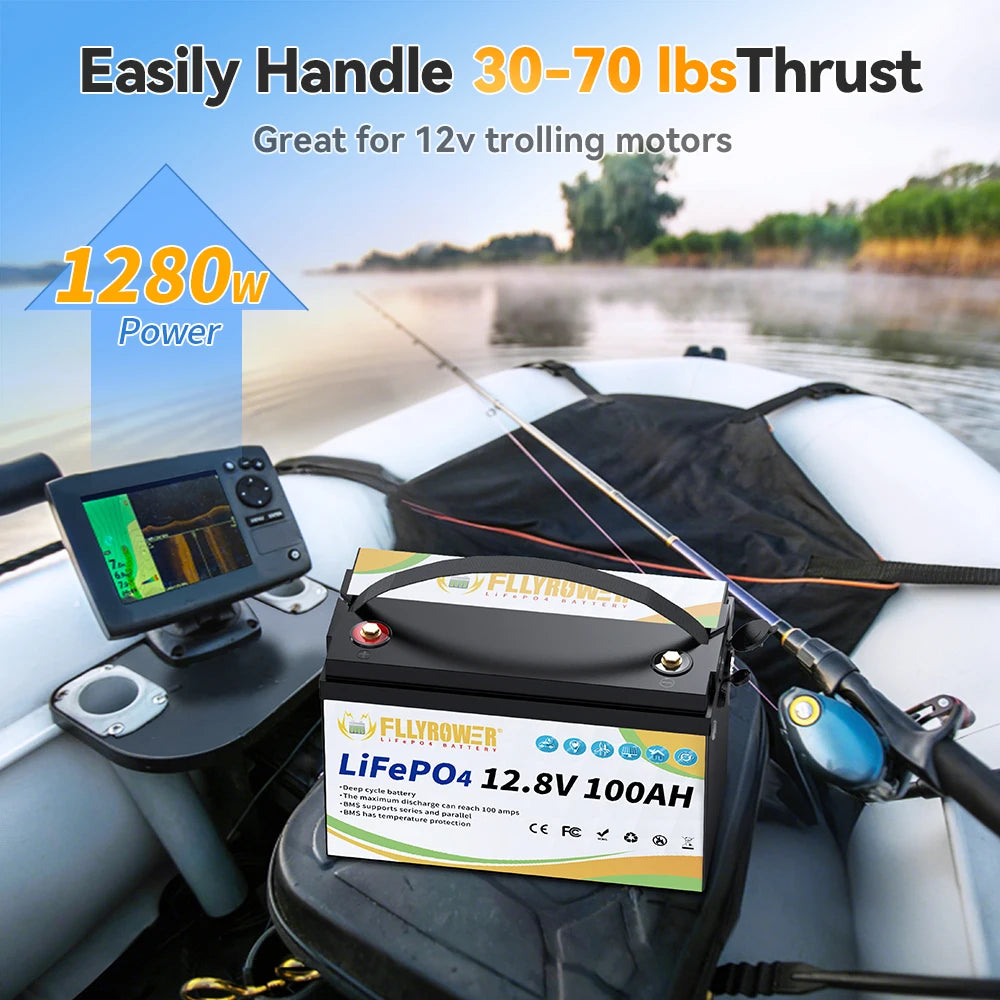

Solar Panel Power Bank System, Solar VRLA 12V 24V 36V 48V 60V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Motorcycle ATV Engine Starts)

12V 100AH LiFePO4 Battery Specifications:

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah

Rated Capacity: 1280Wh

Battery Cell Composition: Lithium-Phosphat

Cycle Life: 4000 cycles at 100% DOD, 8000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Months of Self Discharge: ≤3.5% per month at 25℃

Charge Voltage: 14.6±0.2V

Max. Charge Current: 50A/1C

Max. Continuous Current: 100A

Instantaneous discharge current: 200A 5second

Discharge Cut-off Voltage: 10.0V

Certificate: CE ROHS MSDS UN38.3 WEEE

Upgrade Parts/Accessories: Grade A

Voltage Protection Board(BMS): Yes

BMS:100A

Life Span:10 Years

Material: Lithium iron phosphate

Upgrade Parts/Accessories: Grade A Cells

Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

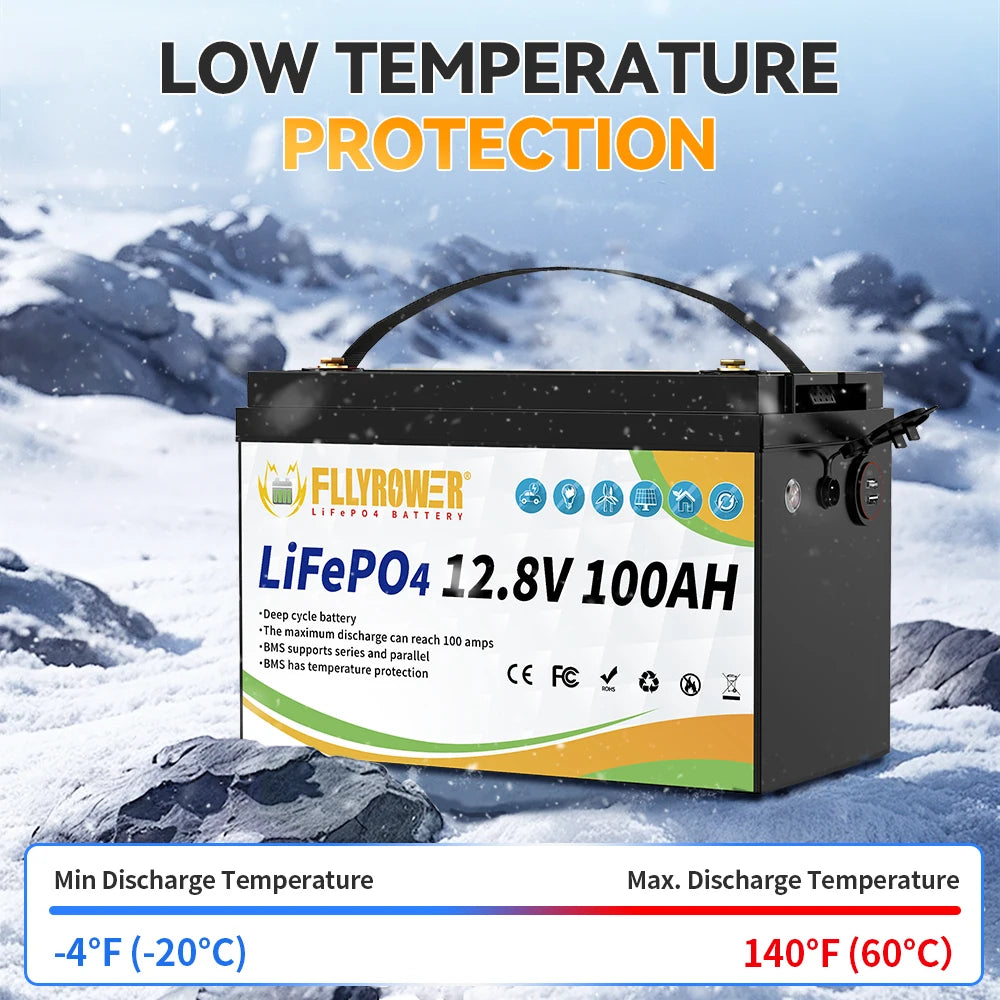

Discharge Temperature: -30 to 60℃ (-4 to 140℉) at 60±25% relative humidity

Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Water Dust Resistance: IP55

Case Material: ABS

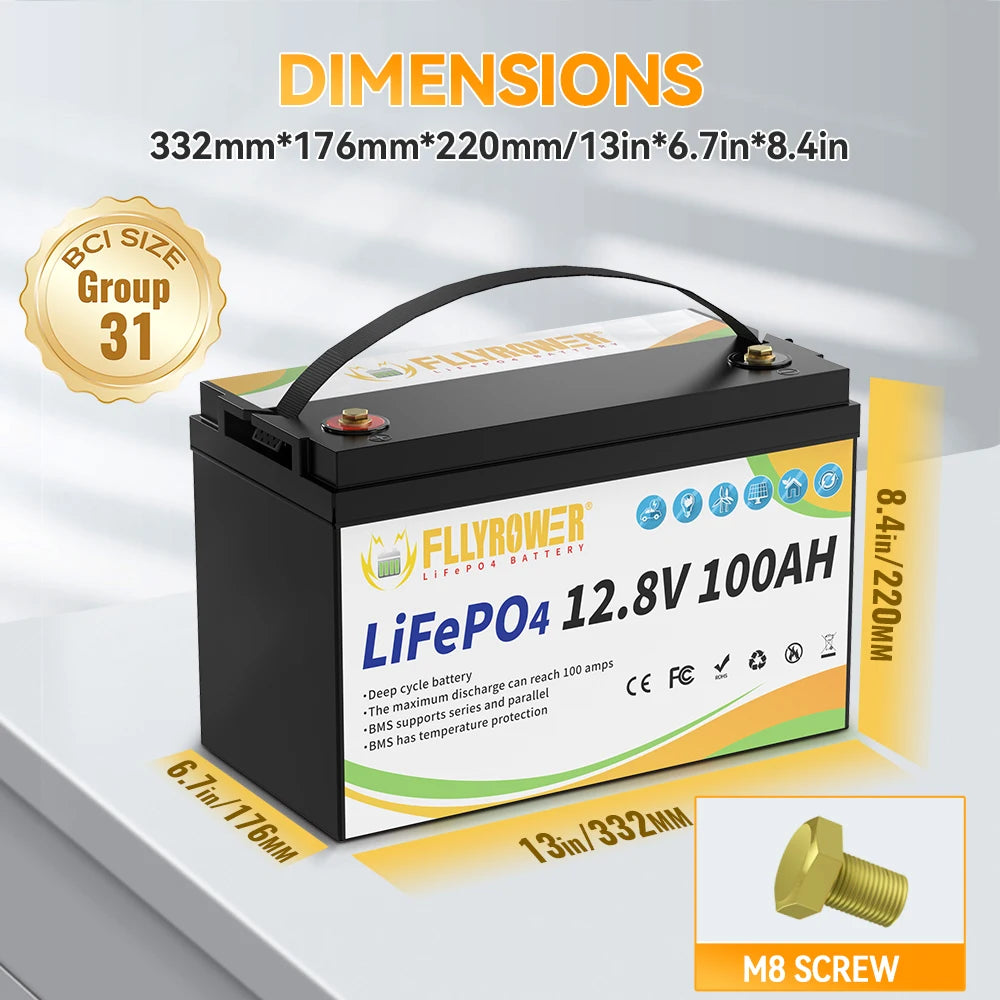

Dimension (L/W/H): 332*176*220mm

Weight: Approx. 11kg

Terminal Type: M8

Warranty: 5 Years

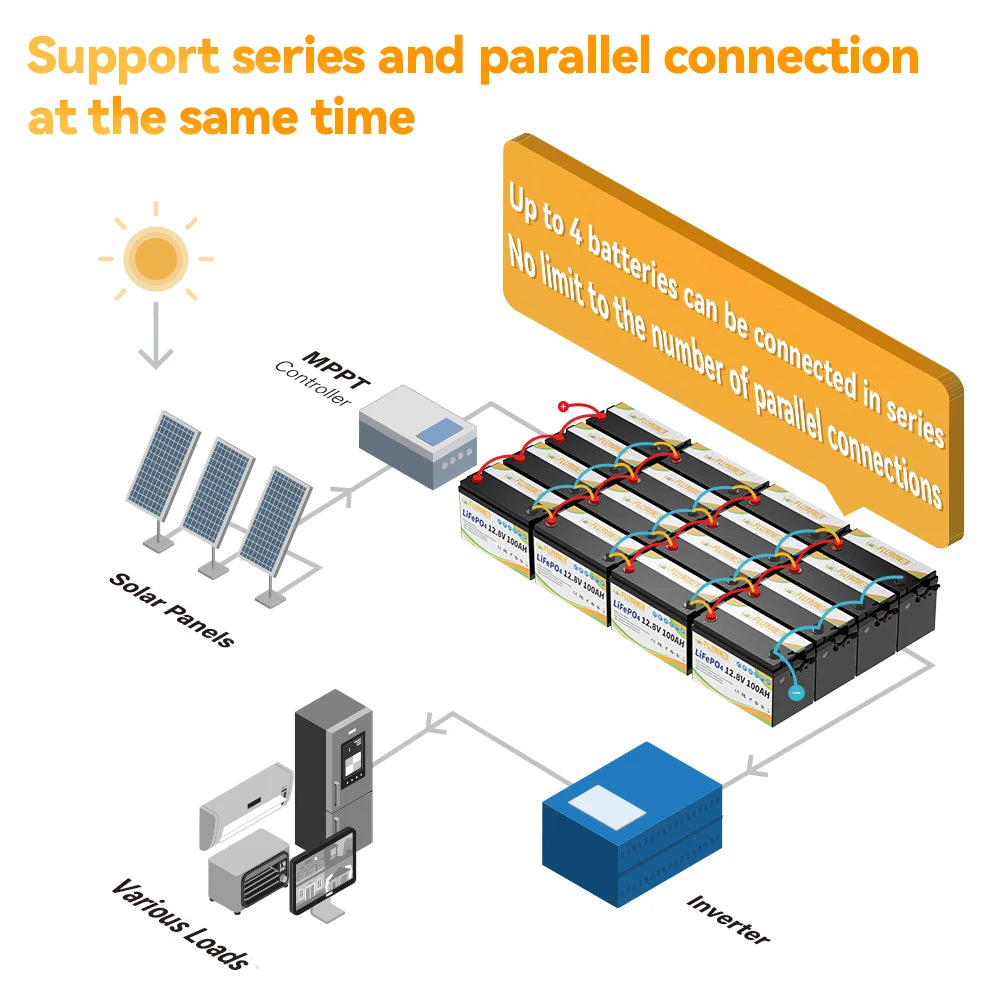

Max. Expansion (Parallel & Series)：Up to 4 pcs batteries in Series,there is no limit in parallel.
